BZB40-ZRMNC (2002)
Toyota Coaster
(9301-0408)
24V 25A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-58320 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27060-58420 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27060-58420 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27060-58420 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90148-10001 |
1BZFPE..BZB40,50..LX |
1 | ||
| 90148-10001 |
1BZFPE..BZB40,50 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-17230 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-58350 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-28050 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27330-20070 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27330-20070 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27330-20070 |
1BZFPE..BZB40,50 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-20060 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27357-20060 |
1BZFPE..BZB40,50 |
1 | ||
| 27357-20060 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-58050 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1BZFPE..BZB40,50 |
1 | ||
| 27370-75060 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-58440 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27411-58290 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27411-58440 |
1BZFPE..BZB40,50 |
1 | ||
| 27411-58440 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-75010 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27700-75010 |
1BZFPE..BZB40,50 |
1 | ||
| 27700-75010 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| Common parts | ||||
| 27384-16380 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-00959 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
(9301-0408)
24V 85A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-58320 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27060-58420 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27060-58420 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27060-58420 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90148-10001 |
1BZFPE..BZB40,50..LX |
1 | ||
| 90148-10001 |
1BZFPE..BZB40,50 |
1 | ||
| 27039A - COVER, ALTERNATOR REAR END, NO.2 | ||||
| 27039-58330 |
1BZFPE..BZB40,50 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-58350 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-28050 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27330-20070 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27330-20070 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27330-20070 |
1BZFPE..BZB40,50 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-58440 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27411-58290 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27411-58440 |
1BZFPE..BZB40,50 |
1 | ||
| 27411-58440 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-75010 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27700-75010 |
1BZFPE..BZB40,50 |
1 | ||
| 27700-75010 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| Common parts | ||||
| 90099-00937 | ||||
| 90099-02207 | ||||
| 90099-04568 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05185 | ||||
| 90099-05231 | ||||
| 90099-34013 | ||||
| 90179-08204 | ||||
| 90201-12452 | ||||
(9301-0408)
24V 60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-58320 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27060-58420 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27060-58420 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27060-58420 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90148-10001 |
1BZFPE..BZB40,50..LX |
1 | ||
| 90148-10001 |
1BZFPE..BZB40,50 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-17230 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-58350 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-28050 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27330-20070 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27330-20070 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27330-20070 |
1BZFPE..BZB40,50 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-20060 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27357-20060 |
1BZFPE..BZB40,50 |
1 | ||
| 27357-20060 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-58050 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1BZFPE..BZB40,50 |
1 | ||
| 27370-75060 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-58440 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27411-58290 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27411-58440 |
1BZFPE..BZB40,50 |
1 | ||
| 27411-58440 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-75010 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27700-75010 |
1BZFPE..BZB40,50 |
1 | ||
| 27700-75010 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||

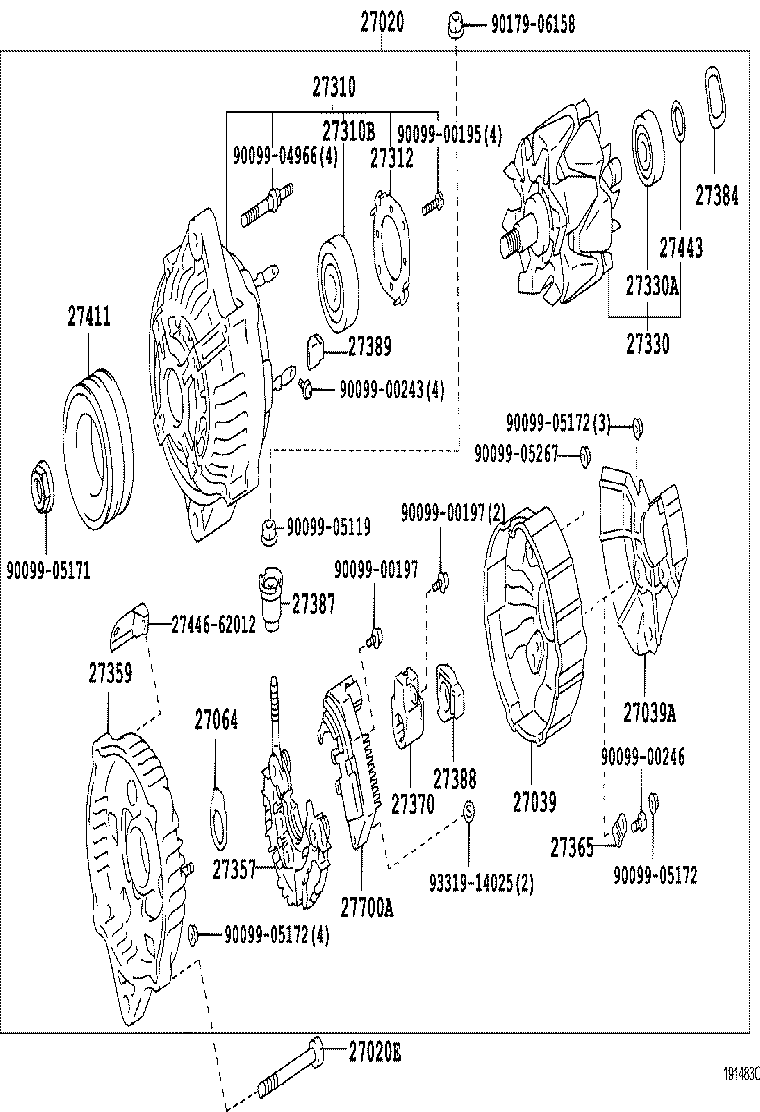

(0203-0312)1BZFPE
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-58320 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27060-58420 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27060-58420 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27060-58420 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90148-10001 |
1BZFPE..BZB40,50..LX |
1 | ||
| 90148-10001 |
1BZFPE..BZB40,50 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-17230 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27039A - COVER, ALTERNATOR REAR END, NO.2 | ||||
| 27039-58330 |
1BZFPE..BZB40,50 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-58350 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-28050 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27330-20070 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27330-20070 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27330-20070 |
1BZFPE..BZB40,50 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-20060 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27357-20060 |
1BZFPE..BZB40,50 |
1 | ||
| 27357-20060 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-58050 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1BZFPE..BZB40,50 |
1 | ||
| 27370-75060 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-58440 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27411-58290 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27411-58440 |
1BZFPE..BZB40,50 |
1 | ||
| 27411-58440 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-75010 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27700-75010 |
1BZFPE..BZB40,50 |
1 | ||
| 27700-75010 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| Common parts | ||||
| 27446-62012 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05267 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||

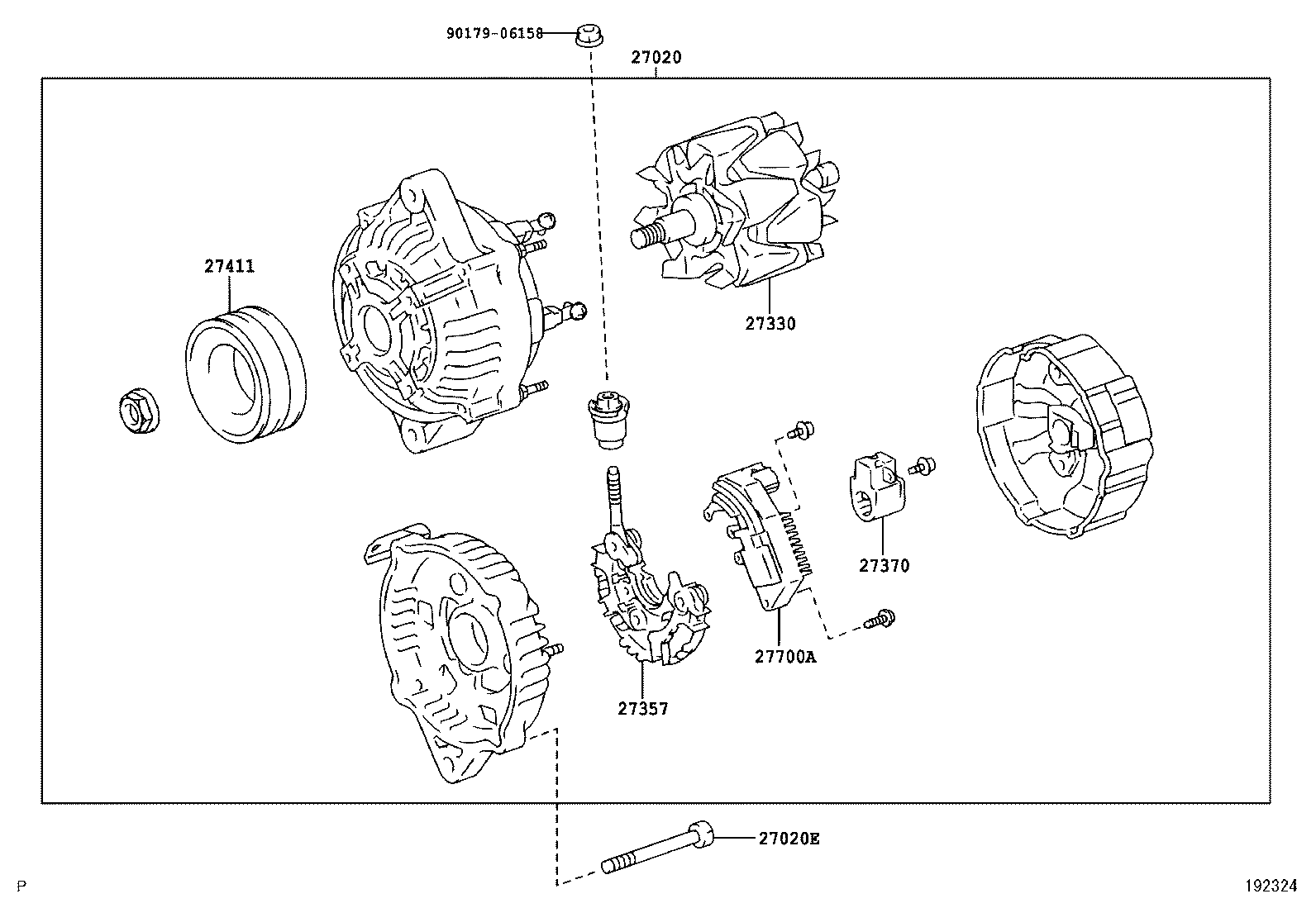

(0312- )1BZFPE
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-58320 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27060-58420 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27060-58420 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27060-58420 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90148-10001 |
1BZFPE..BZB40,50..LX |
1 | ||
| 90148-10001 |
1BZFPE..BZB40,50 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-28050 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27330-20070 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27330-20070 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27330-20070 |
1BZFPE..BZB40,50 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-20060 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27357-20060 |
1BZFPE..BZB40,50 |
1 | ||
| 27357-20060 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1BZFPE..BZB40,50 |
1 | ||
| 27370-75060 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-58440 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27411-58290 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27411-58440 |
1BZFPE..BZB40,50 |
1 | ||
| 27411-58440 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-75010 |
1BZFPE..BZB40,50 12V 100A |
1 | ||
| 27700-75010 |
1BZFPE..BZB40,50 |
1 | ||
| 27700-75010 |
1BZFPE..BZB40,50..LX 12V 100A |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
