BZB40-BKMSC (2003)

Toyota Coaster

Production Oct 2003 - Aug 2011
Engine 1BZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-0408)BB4#,BZB40,HZB4#..09S,10S,15S,26S,39S; (0408-1108)XZB46 ; (0408-1501)XZ

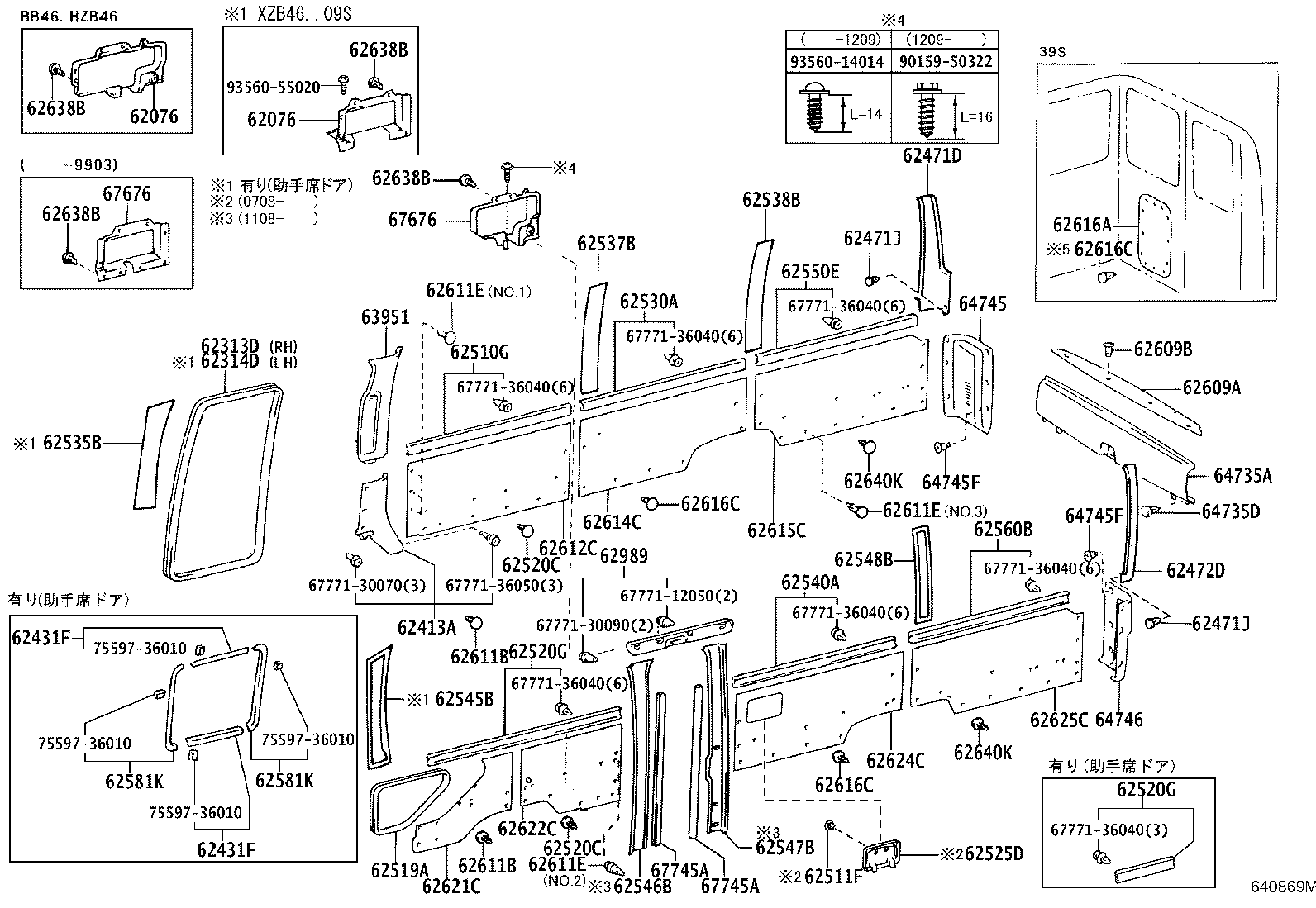

Click highlighted areas on diagram

diagram 62076 62076 62313D 62314D 62413A 62431F 62431F 62471D 62471J 62471J 62472D 62510G 62511F 62519A 62520C 62520C 62520G 62520G 62525D 62530A 62535B 62537B 62538B 62540A 62545B 62546B 62547B 62548B 62550E 62560B 62581K 62581K 62609A 62609B 62611B 62611B 62611E 62611E 62611E 62612C 62614C 62615C 62616A 62616C 62616C 62616C 62621C 62622C 62624C 62625C 62638B 62638B 62638B 62638B 62640K 62640K 62989 63951 64735A 64735D 64745 64745F 64745F 64746 67676 67676 67745A 67745A 6777112050 6777130070 6777130090 6777136040 6777136040 6777136040 6777136040 6777136040 6777136040 6777136040 6777136050 7559736010 7559736010 7559736010 7559736010 9015950322 9356014014 9356055020
Part # Description Qty Price
62313D - TRIM, FRONT DOOR OPENING, RH
62313-36010B0

BZB40,50..STD

MD.CHARCOAL,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-36010A0

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

IVORY,TRIM4#

 1
62413-36010B0

BZB40,50,XZB51..(STD,SULNG)..(5F,6FC)

MD.CHARCOAL,TRIM1#

 1
62519A - TRIM, SIDE LOWER WINDOW
62519-36010A0

BB4#,HZB40,5#..DX,LX,STD

IVORY,TRIM4#

 1
62530A - TRIM ASSY, SIDE NO.2, RH
62570-36010E0

BB4#,5#,HDB50,HZB40,5#

GREIGE,TRIM4#

 1
62540A - TRIM ASSY, SIDE NO.2, LH
62540-36230E0

BB4#,5#,HDB50,HZB40,5#

GREIGE,TRIM4#

 1
62611E - RETAINER, DOOR TRIM
90467-08104A1

BB4#,HDB50,HZB40,5#..5F

IVORY,TRIM4#,NO.2,D=9.3

 1
90467-05020A0

BB4#,HDB50,HZB40,5#..5F

IVORY,TRIM4#,NO.2,D=6

 1
90467-06020B2

XZB40,50,51..WC..CBU;BZB40,50,XZB46,56..08S,09S,39S,49S

MD.CHARCOAL,TRIM1#

 27
62611E - RETAINER, DOOR TRIM
90467-08104A1

BB4#,HDB50,HZB40,5#..5F

IVORY,TRIM4#,NO.2,D=9.3

 1
90467-05020A0

BB4#,HDB50,HZB40,5#..5F

IVORY,TRIM4#,NO.2,D=6

 1
90467-06020B2

XZB40,50,51..WC..CBU;BZB40,50,XZB46,56..08S,09S,39S,49S

MD.CHARCOAL,TRIM1#

 27
62611E - RETAINER, DOOR TRIM
90467-08104A1

BB4#,HDB50,HZB40,5#..5F

IVORY,TRIM4#,NO.2,D=9.3

 1
90467-05020A0

BB4#,HDB50,HZB40,5#..5F

IVORY,TRIM4#,NO.2,D=6

 1
90467-06020B2

XZB40,50,51..WC..CBU;BZB40,50,XZB46,56..08S,09S,39S,49S

MD.CHARCOAL,TRIM1#

 27
62616C - CLIP
90467-08104B1

BZB40..STD;XZB40..STD..4FC

MD.CHARCOAL,TRIM1#

 21
62616C - CLIP
90467-08104B1

BZB40..STD;XZB40..STD..4FC

MD.CHARCOAL,TRIM1#

 21
62616C - CLIP
90467-08104B1

BZB40..STD;XZB40..STD..4FC

MD.CHARCOAL,TRIM1#

 21
62989 - COVER, CENTER DOOR LOCK
62989-36020A0

BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD

IVORY,TRIM4#

 1
64745F - RETAINER, DOOR TRIM
67771-36030A0

BB4#,HDB51,HZB4#,5#..DX,EX,LX,STD,SULNG

IVORY,TRIM4#

 14
64745F - RETAINER, DOOR TRIM
67771-36030A0

BB4#,HDB51,HZB4#,5#..DX,EX,LX,STD,SULNG

IVORY,TRIM4#

 14
67745A - MOULDING, CENTER DOOR TRIM
67745-36020B0

BZB40,50..STD

MD.CHARCOAL,TRIM1#

 2
67745A - MOULDING, CENTER DOOR TRIM
67745-36020B0

BZB40,50..STD

MD.CHARCOAL,TRIM1#

 2
Common parts
67771-12050
67771-30070
67771-30090
67771-36040
67771-36050
75597-36010
90159-50322
93560-14014
93560-55020
