BB58-ZRPNZ (1999)
Toyota Coaster

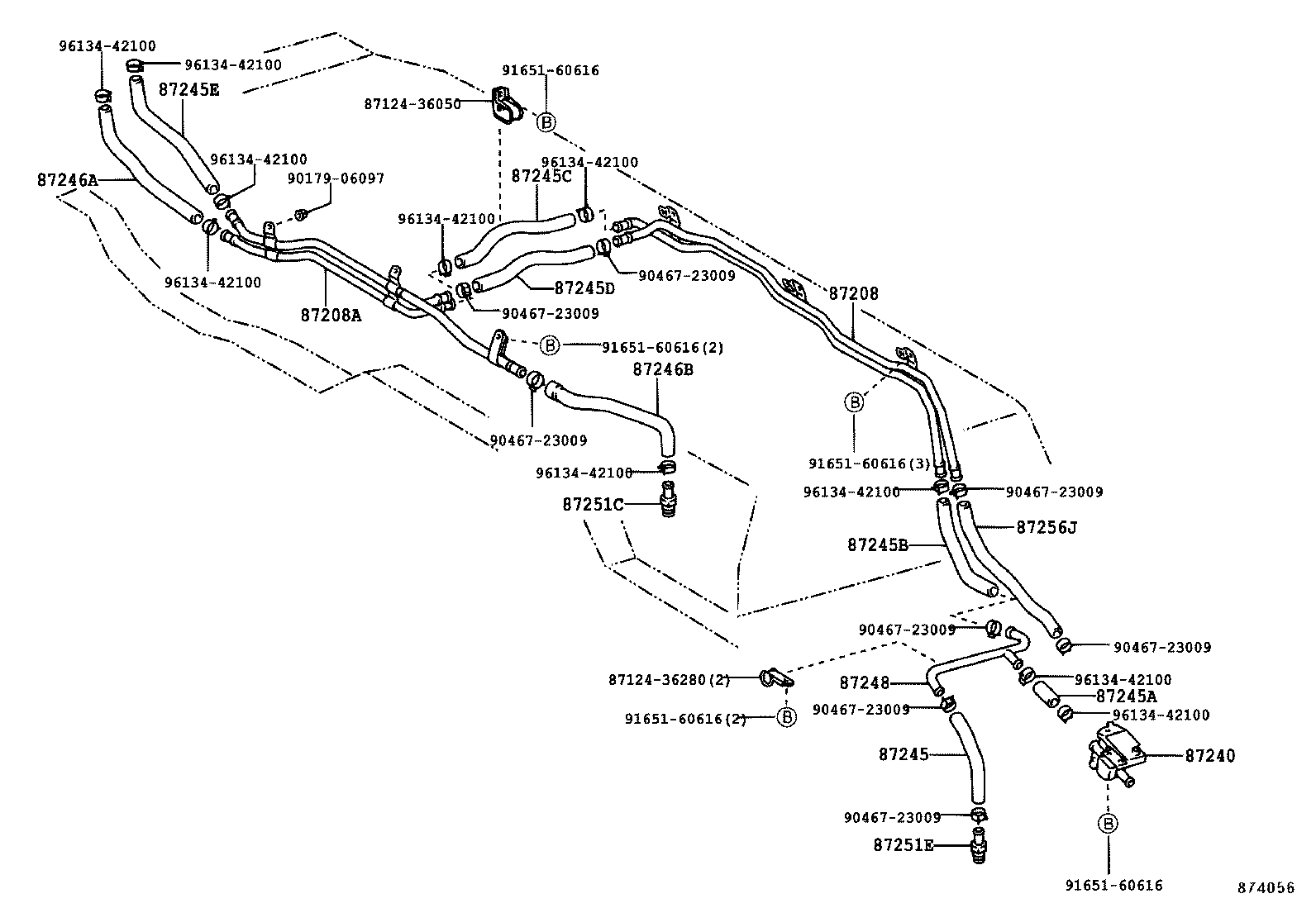

ILLUST NO. 1 OF 3(9907-0408)BB58
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-36370 |
HDB5#,HZB4#,5# |
1 | ||
| 87208-36181 |
BB58 |
1 | ||
| 87208-36372 |
HDB5#,HZB4#,5# |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-36051 |
BB58 |
1 | ||
| 87208-36462 |
HZB40,46,5#..DX,LX,STD |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-36120 |
HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 87240-36110 |
BB58 |
1 | ||
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87245-3B211 |
BB58 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-36270 |
HDB5#,HZB4#,5# |
1 | ||
| 99556-30080 |
BB58 *H,L=80 |
1 | ||
| 87245-36272 |
HDB5#,HZB4#,5# |
1 | ||
| 87245-36231 |
HDB5#,HZB4#,5#..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-36210 |
BB4#,HDB5#,HZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87245-3C360 |
HDB5#,HZB4#,5# |
1 | ||
| 87245-3B201 |
BB58 |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-3C471 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 99556-30700 |
BB58 *H,L=580 |
1 | ||
| 87245D - HOSE, HEATER WATER, INLET D | ||||
| 87245-3C221 |
BB58 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-3B390 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 99556-30300 |
BB58 *H,L=210 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-3B400 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 99556-30300 |
BB58 *H,L=210 |
1 | ||
| 87245-3C370 |
HDB5#,HZB4#,5# |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-3C211 |
BB58 |
1 | ||
| 87245-3B410 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87245-3C380 |
HDB5#,HZB4#,5# |
1 | ||
| 87248 - PIPE SUB-ASSY, WATER | ||||
| 87248-36151 |
BB58 |
1 | ||
| 87251C - JOINT, WATER HOSE THROUGH | ||||
| 87251-30200 |
BB4#,5# |
1 | ||
| 87251-30200 |
BB58,BZB40,50 |
1 | ||
| 87251E - JOINT, WATER, NO.2 | ||||
| 87251-30200 |
BB58,BZB40,50 |
1 | ||
| 87256J - HOSE, REAR HEATER WATER OUTLRT, J | ||||
| 87245-3C181 |
BB58 |
1 | ||
| Common parts | ||||
| 87124-36050 | ||||
| 87124-36280 | ||||
| 90179-06097 | ||||
| 90467-23009 | ||||
| 91651-60616 | ||||
| 96134-42100 | ||||

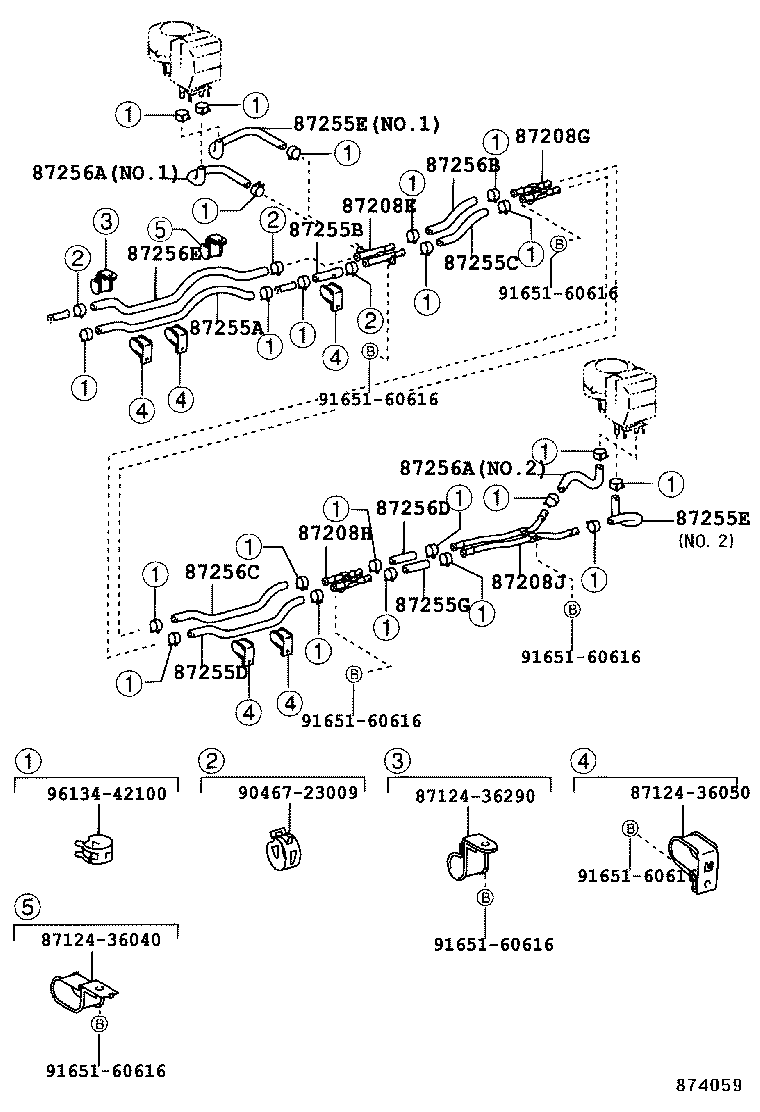

ILLUST NO. 2 OF 3(9907-0408)BB58
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208E - PIPE SUB-ASSY, HEATER WATER, E | ||||
| 87208-36540 |
HDB51..IV1;BB58,HDB50,HZB4#,5#..DX,EX,LX,STD |
1 | ||
| 87208-36320 |
HZB40..LX;BB4#,HDB5#,HZB41,5#..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87208-36540 |
HZB40..CBU;HDB51..IV1,IV5;HZB40..5F..IV5;BB58,BZB40,50,HDB50,HZB41,46,5#..DX,EX,LX,STD |
1 | ||
| 87208G - PIPE SUB-ASSY, HEATER WATER, G | ||||
| 87208-36540 |
HDB51..IV1,IV5;BB4#,HDB50,HZB4#,5# |
1 | ||
| 87208-36670 |
HDB51..IV1,IV5;BB58,BZB50,HDB50,HZB50..DX,LX,STD |
1 | ||
| 87208H - PIPE SUB-ASSY, HEATER WATER, H | ||||
| 87208-36670 |
HDB51..IV1,IV5;BB58,BZB40,50,HDB50,HZB4#,50..(08S,10S,19S,26S,29S,39S,49S)..(DX,EX,LX,STD) |
1 | ||
| 87208J - PIPE SUB-ASSY, HEATER WATER, J | ||||
| 87208-36690 |
HDB51..IV1,IV5;BB58,BZB40,50,HDB50,HZB4#,50..(08S,10S,19S,26S,29S)..(DX,EX,LX) |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-31160 |
BB58 *H,L=1160 |
1 | ||
| 87245-3B621 |
HDB5#,HZB4#,5# |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-36263 |
HDB51..IV1;HDB50,HZB40,46,5# |
1 | ||
| 87245-3B840 |
BB58 |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| 99556-30300 |
BB58 *H,L=240 |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 87245-3B661 |
HDB51..IV1;HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 87245-3B661 |
HZB40..CBU;HZB40..5F..IV5;HDB51,HZB41..IV1,IV5;BZB40,50,HDB50,HZB46,5#..DX,LX,STD |
1 | ||
| 87245-3C690 |
BB58 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-3B671 |
HDB51..IV1;HDB50,HZB4#,5#..DX,EX,LX NO.1 |
1 | ||
| 87245-3C200 |
BB58 NO.1 |
1 | ||
| 87245-3B671 |
HDB51..IV1,IV5;HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BZB40,50,HDB50,HZB41,46,5#..DX,EX,LX NO.1 |
1 | ||
| 87245-3C560 |
HDB51..IV1,IV5;BB58,BZB40,50,HDB50,HZB4#,50..(08S,10S,19S,26S,29S)..(DX,EX,LX) NO.2 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-3B671 |
HDB51..IV1;HDB50,HZB4#,5#..DX,EX,LX NO.1 |
1 | ||
| 87245-3C200 |
BB58 NO.1 |
1 | ||
| 87245-3B671 |
HDB51..IV1,IV5;HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BZB40,50,HDB50,HZB41,46,5#..DX,EX,LX NO.1 |
1 | ||
| 87245-3C560 |
HDB51..IV1,IV5;BB58,BZB40,50,HDB50,HZB4#,50..(08S,10S,19S,26S,29S)..(DX,EX,LX) NO.2 |
1 | ||
| 87255G - HOSE, REAR HEATER WATER INLET, G | ||||
| 87245-3C710 |
BB58 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-3C190 |
BB58 NO.1 |
1 | ||
| 87245-3C550 |
HDB51..IV1,IV5;BB58,BZB40,50,HDB50,HZB4#,50..(08S,10S,19S,26S,29S)..(DX,EX,LX) NO.2 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-3C190 |
BB58 NO.1 |
1 | ||
| 87245-3C550 |
HDB51..IV1,IV5;BB58,BZB40,50,HDB50,HZB4#,50..(08S,10S,19S,26S,29S)..(DX,EX,LX) NO.2 |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 87245-3B651 |
HDB51..IV1;HDB50,HZB4#,5#..DX,EX,LX,STD |
1 | ||
| 87245-3B651 |
HZB40..CBU;HDB51..IV1,IV5;HZB40..5F..IV5;BZB40,50,HDB50,HZB41,46,5#..DX,EX,LX,STD |
1 | ||
| 99556-30300 |
BB58 *H,L=240 |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 87245-3C690 |
BB58 |
1 | ||
| 87256D - HOSE, REAR HEATER WATER OUTLET, D | ||||
| 87245-3C710 |
BB58 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87245-3B341 |
BB58 |
1 | ||
| Common parts | ||||
| 87124-36040 | ||||
| 87124-36050 | ||||
| 87124-36290 | ||||
| 90467-23009 | ||||
| 91651-60616 | ||||
| 96134-42100 | ||||

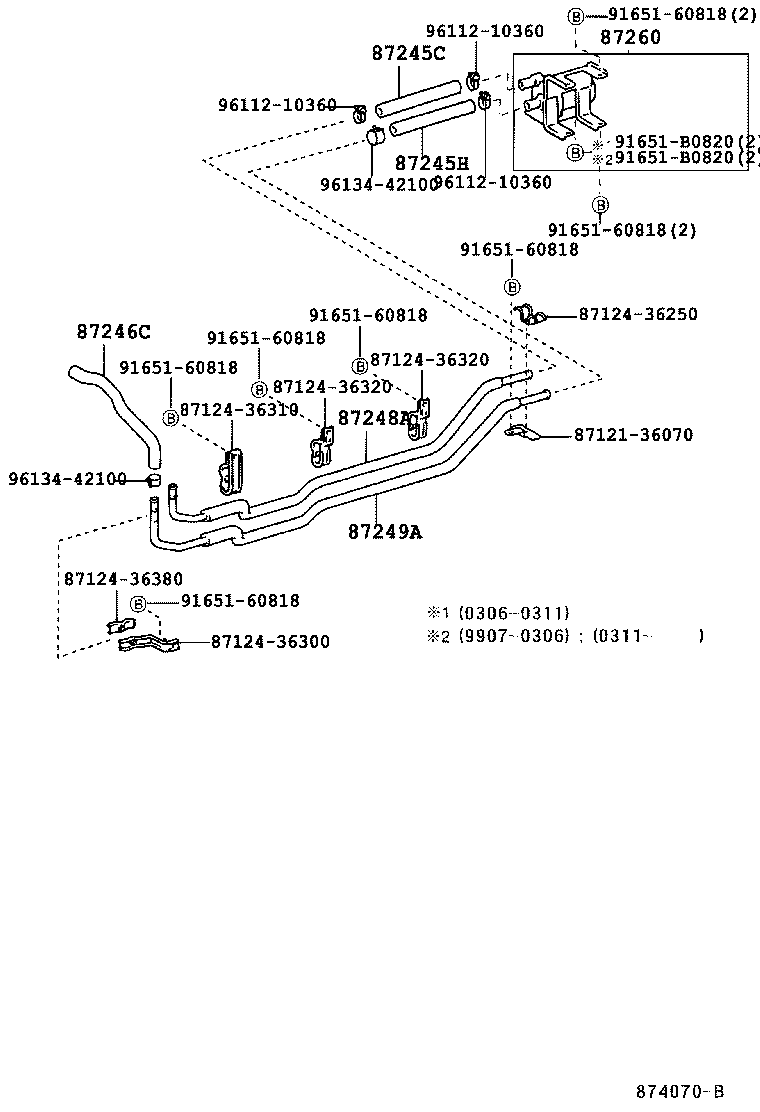

ILLUST NO. 3 OF 3(9907-0408)BB58
ﾋ-ﾀﾖｳ ｳｵ-ﾀﾎﾟﾝﾌﾟ ﾂｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-3C471 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 99556-30700 |
BB58 *H,L=580 |
1 | ||
| 87245H - HOSE, HEATER WATER, INLET H | ||||
| 87245-36190 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87245-36191 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-36190 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-3B852 |
BB58 |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87245-3B481 |
HZB4#,5# |
1 | ||
| 87245-3B871 |
BB58 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-36192 |
BB58 |
1 | ||
| 87248-14090 |
HDB5#,HZB4#,5# |
1 | ||
| 87248-36300 |
HDB5#,HZB4#,5# |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-36182 |
BB58 |
1 | ||
| 87260 - PUMP ASSY, HEATER | ||||
| 87260-36061 |
BB58 |
1 | ||
| 87260-36062 |
BB58 |
1 | ||
| 87260-36031 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87260-36032 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87260-36030 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87260-36061 |
BB58 |
1 | ||
| Common parts | ||||
| 87121-36070 | ||||
| 87124-36250 | ||||
| 87124-36300 | ||||
| 87124-36310 | ||||
| 87124-36320 | ||||
| 87124-36380 | ||||
| 91651-60818 | ||||
| 91651-B0820 | ||||
| 96112-10360 | ||||
| 96134-42100 | ||||

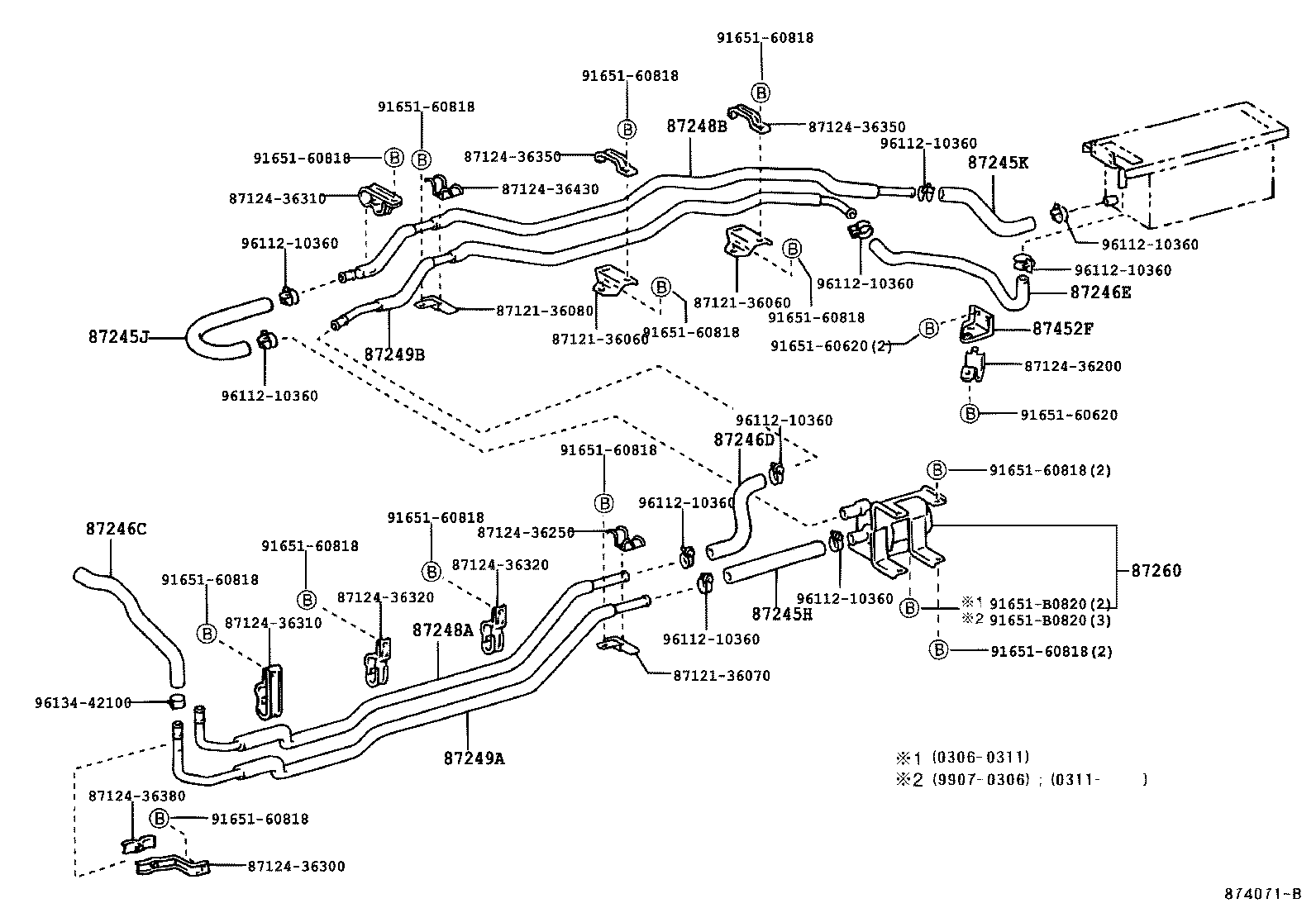

ILLUST NO. 3 OF 3(9907-0408)BB58
ﾊﾟﾜ-ﾋ-ﾀ ﾂｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245H - HOSE, HEATER WATER, INLET H | ||||
| 87245-36190 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87245-36191 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-36190 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-3B852 |
BB58 |
1 | ||
| 87245J - HOSE, HEATER WATER, INLET J | ||||
| 87245-3B380 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-3B380 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
2 | ||
| 87245-3B861 |
BB58 |
1 | ||
| 87245-3B380 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245-3B861 |
BB58 |
1 | ||
| 87245-3B380 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245-3B862 |
BB58 |
1 | ||
| 87245K - HOSE, HEATER WATER, INLET K | ||||
| 87245-3B360 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245-3B640 |
BB58 |
1 | ||
| 87245-3B360 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245-3B360 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-3B360 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
2 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87245-3B481 |
HZB4#,5# |
1 | ||
| 87245-3B871 |
BB58 |
1 | ||
| 87246D - HOSE, HEATER WATER, OUTLET D | ||||
| 87245-36173 |
BB58 |
1 | ||
| 87245-3C430 |
BB58 ｱﾘ(ﾊﾟﾜ-ﾋ-ﾀ) |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-3B480 |
HDB5#,HZB4#,5# |
1 | ||
| 87245-3B630 |
BB58 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-36192 |
BB58 |
1 | ||
| 87248-14090 |
HDB5#,HZB4#,5# |
1 | ||
| 87248-36300 |
HDB5#,HZB4#,5# |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-36163 |
BB58 |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-36182 |
BB58 |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-36173 |
BB58 |
1 | ||
| 87260 - PUMP ASSY, HEATER | ||||
| 87260-36061 |
BB58 |
1 | ||
| 87260-36062 |
BB58 |
1 | ||
| 87260-36031 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87260-36032 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87260-36030 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87260-36061 |
BB58 |
1 | ||
| 87452F - BRACKET, POWER HEATER, NO.3 | ||||
| 87452-36090 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87452-36090 |
BB58,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 87121-36060 | ||||
| 87121-36070 | ||||
| 87121-36080 | ||||
| 87124-36200 | ||||
| 87124-36250 | ||||
| 87124-36300 | ||||
| 87124-36310 | ||||
| 87124-36320 | ||||
| 87124-36350 | ||||
| 87124-36380 | ||||
| 87124-36430 | ||||
| 91651-60620 | ||||
| 91651-60818 | ||||
| 91651-B0820 | ||||
| 96112-10360 | ||||
| 96134-42100 | ||||
ILLUST NO. 1 OF 3(9907-0408)IV1 ; (9907-0408)HDB50,HZB40,46,5#
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-36370 |
HDB5#,HZB4#,5# |
1 | ||
| 87208-36181 |
BB58 |
1 | ||
| 87208-36372 |
HDB5#,HZB4#,5# |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-36051 |
BB58 |
1 | ||
| 87208-36462 |
HZB40,46,5#..DX,LX,STD |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-36120 |
HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 87240-36110 |
BB58 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-36270 |
HDB5#,HZB4#,5# |
1 | ||
| 99556-30080 |
BB58 *H,L=80 |
1 | ||
| 87245-36272 |
HDB5#,HZB4#,5# |
1 | ||
| 87245-36231 |
HDB5#,HZB4#,5#..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-36210 |
BB4#,HDB5#,HZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87245-3C360 |
HDB5#,HZB4#,5# |
1 | ||
| 87245-3B201 |
BB58 |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-3C410 |
HDB5#,HZB4#,5# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-3B400 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 99556-30300 |
BB58 *H,L=210 |
1 | ||
| 87245-3C370 |
HDB5#,HZB4#,5# |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-3C211 |
BB58 |
1 | ||
| 87245-3B410 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87245-3C380 |
HDB5#,HZB4#,5# |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87245-3B481 |
HZB4#,5# |
1 | ||
| 87245-3B871 |
BB58 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-36192 |
BB58 |
1 | ||
| 87248-14090 |
HDB5#,HZB4#,5# |
1 | ||
| 87248-36300 |
HDB5#,HZB4#,5# |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-31160 |
BB58 *H,L=1160 |
1 | ||
| 87245-3B621 |
HDB5#,HZB4#,5# |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-36263 |
HDB51..IV1;HDB50,HZB40,46,5# |
1 | ||
| 87245-3B840 |
BB58 |
1 | ||
| Common parts | ||||
| 87124-36130 | ||||
| 87124-36150 | ||||
| 87124-36161 | ||||
| 90179-06206 | ||||
| 90464-00763 | ||||
| 90467-22004 | ||||
| 90467-23009 | ||||
| 91651-60616 | ||||
| 96112-10250 | ||||
| 96134-42100 | ||||
ILLUST NO. 1 OF 3(9907-0408)IV1 ; (9907-0408)HDB50,HZB40,46,5#
ﾌﾛﾝﾄ(ｶﾝﾚｲﾁ ｼﾖｳ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-36370 |
HDB5#,HZB4#,5# |
1 | ||
| 87208-36181 |
BB58 |
1 | ||
| 87208-36372 |
HDB5#,HZB4#,5# |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-36051 |
BB58 |
1 | ||
| 87208-36462 |
HZB40,46,5#..DX,LX,STD |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-36120 |
HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 87240-36110 |
BB58 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-36270 |
HDB5#,HZB4#,5# |
1 | ||
| 99556-30080 |
BB58 *H,L=80 |
1 | ||
| 87245-36272 |
HDB5#,HZB4#,5# |
1 | ||
| 87245-36231 |
HDB5#,HZB4#,5#..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-36210 |
BB4#,HDB5#,HZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87245-3C360 |
HDB5#,HZB4#,5# |
1 | ||
| 87245-3B201 |
BB58 |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-3C471 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 99556-30700 |
BB58 *H,L=580 |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-3C410 |
HDB5#,HZB4#,5# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-3B400 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 99556-30300 |
BB58 *H,L=210 |
1 | ||
| 87245-3C370 |
HDB5#,HZB4#,5# |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-3C211 |
BB58 |
1 | ||
| 87245-3B410 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87245-3C380 |
HDB5#,HZB4#,5# |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87245-3B481 |
HZB4#,5# |
1 | ||
| 87245-3B871 |
BB58 |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-31160 |
BB58 *H,L=1160 |
1 | ||
| 87245-3B621 |
HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 87124-36130 | ||||
| 87124-36140 | ||||
| 87124-36150 | ||||
| 87124-36161 | ||||
| 90179-06206 | ||||
| 90467-22004 | ||||
| 90467-23009 | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||
| 96134-42100 | ||||
ILLUST NO. 2 OF 3(9907-0408)IV1 ; (9907-0408)HDB50,HZB50..DX,LX ;(0108-0408)HDB51..IV5 ; (0203-1501
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208E - PIPE SUB-ASSY, HEATER WATER, E | ||||
| 87208-36540 |
HDB51..IV1;BB58,HDB50,HZB4#,5#..DX,EX,LX,STD |
1 | ||
| 87208-36320 |
HZB40..LX;BB4#,HDB5#,HZB41,5#..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87208-36540 |
HZB40..CBU;HDB51..IV1,IV5;HZB40..5F..IV5;BB58,BZB40,50,HDB50,HZB41,46,5#..DX,EX,LX,STD |
1 | ||
| 87208G - PIPE SUB-ASSY, HEATER WATER, G | ||||
| 87208-36540 |
HDB51..IV1,IV5;BB4#,HDB50,HZB4#,5# |
1 | ||
| 87208-36670 |
HDB51..IV1,IV5;BB58,BZB50,HDB50,HZB50..DX,LX,STD |
1 | ||
| 87208H - PIPE SUB-ASSY, HEATER WATER, H | ||||
| 87208-36670 |
HDB51..IV1,IV5;BB58,BZB40,50,HDB50,HZB4#,50..(08S,10S,19S,26S,29S,39S,49S)..(DX,EX,LX,STD) |
1 | ||
| 87208J - PIPE SUB-ASSY, HEATER WATER, J | ||||
| 87208-36690 |
HDB51..IV1,IV5;BB58,BZB40,50,HDB50,HZB4#,50..(08S,10S,19S,26S,29S)..(DX,EX,LX) |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 87245-3B661 |
HDB51..IV1;HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 87245-3B661 |
HZB40..CBU;HZB40..5F..IV5;HDB51,HZB41..IV1,IV5;BZB40,50,HDB50,HZB46,5#..DX,LX,STD |
1 | ||
| 87245-3C690 |
BB58 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-3B671 |
HDB51..IV1;HDB50,HZB4#,5#..DX,EX,LX NO.1 |
1 | ||
| 87245-3C200 |
BB58 NO.1 |
1 | ||
| 87245-3B671 |
HDB51..IV1,IV5;HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BZB40,50,HDB50,HZB41,46,5#..DX,EX,LX NO.1 |
1 | ||
| 87245-3C560 |
HDB51..IV1,IV5;BB58,BZB40,50,HDB50,HZB4#,50..(08S,10S,19S,26S,29S)..(DX,EX,LX) NO.2 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-3B671 |
HDB51..IV1;HDB50,HZB4#,5#..DX,EX,LX NO.1 |
1 | ||
| 87245-3C200 |
BB58 NO.1 |
1 | ||
| 87245-3B671 |
HDB51..IV1,IV5;HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BZB40,50,HDB50,HZB41,46,5#..DX,EX,LX NO.1 |
1 | ||
| 87245-3C560 |
HDB51..IV1,IV5;BB58,BZB40,50,HDB50,HZB4#,50..(08S,10S,19S,26S,29S)..(DX,EX,LX) NO.2 |
1 | ||
| 87255G - HOSE, REAR HEATER WATER INLET, G | ||||
| 87245-3C710 |
BB58 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-3C190 |
BB58 NO.1 |
1 | ||
| 87245-3C550 |
HDB51..IV1,IV5;BB58,BZB40,50,HDB50,HZB4#,50..(08S,10S,19S,26S,29S)..(DX,EX,LX) NO.2 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-3C190 |
BB58 NO.1 |
1 | ||
| 87245-3C550 |
HDB51..IV1,IV5;BB58,BZB40,50,HDB50,HZB4#,50..(08S,10S,19S,26S,29S)..(DX,EX,LX) NO.2 |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 87245-3B651 |
HDB51..IV1;HDB50,HZB4#,5#..DX,EX,LX,STD |
1 | ||
| 87245-3B651 |
HZB40..CBU;HDB51..IV1,IV5;HZB40..5F..IV5;BZB40,50,HDB50,HZB41,46,5#..DX,EX,LX,STD |
1 | ||
| 99556-30300 |
BB58 *H,L=240 |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 87245-3C690 |
BB58 |
1 | ||
| 87256D - HOSE, REAR HEATER WATER OUTLET, D | ||||
| 87245-3C710 |
BB58 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87245-3B341 |
BB58 |
1 | ||
| Common parts | ||||
| 87124-36040 | ||||
| 87124-36050 | ||||
| 90467-23009 | ||||
| 91651-60616 | ||||
| 96134-42100 | ||||
ILLUST NO. 3 OF 3(9907-0408)HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S..CBU,IV5
ﾊﾟﾜ-ﾋ-ﾀ ﾂｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208K - PIPE SUB-ASSY, HEATER WATER, K | ||||
| 87208-36320 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245H - HOSE, HEATER WATER, INLET H | ||||
| 87245-36190 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87245-36191 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-36190 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-3B852 |
BB58 |
1 | ||
| 87245J - HOSE, HEATER WATER, INLET J | ||||
| 87245-3B380 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-3B380 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
2 | ||
| 87245-3B861 |
BB58 |
1 | ||
| 87245-3B380 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245-3B861 |
BB58 |
1 | ||
| 87245-3B380 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245-3B862 |
BB58 |
1 | ||
| 87245K - HOSE, HEATER WATER, INLET K | ||||
| 87245-3B360 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245-3B640 |
BB58 |
1 | ||
| 87245-3B360 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245-3B360 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-3B360 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
2 | ||
| 87245L - HOSE, HEATER WATER, L | ||||
| 87245-3B640 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245-3B640 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245M - HOSE, HEATER WATER, M | ||||
| 87245-3B630 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-3B630 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245N - HOSE, HEATER WATER, INLET N | ||||
| 87245-3B350 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245-3B350 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-3B350 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245-3B350 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
2 | ||
| 87245P - HOSE, HEATER WATER, INLET P | ||||
| 87245-3B370 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87245-3B370 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-3B371 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87248J - PIPE, HEATER WATER INLET, J | ||||
| 87248-36100 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87248-36100 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87248K - PIPE, HEATER WATER INLET, K | ||||
| 87248-36110 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87248-36110 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87248L - PIPE, HEATER WATER, L | ||||
| 87248-36120 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87248-36120 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87248M - PIPE, HEATER WATER, M | ||||
| 87248-36130 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87248-36130 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87260 - PUMP ASSY, HEATER | ||||
| 87260-36061 |
BB58 |
1 | ||
| 87260-36062 |
BB58 |
1 | ||
| 87260-36031 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87260-36032 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87260-36030 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87260-36061 |
BB58 |
1 | ||
| 87452F - BRACKET, POWER HEATER, NO.3 | ||||
| 87452-36090 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87452-36090 |
BB58,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87452G - BRACKET, REAR HEATER, NO.1 | ||||
| 87452-36111 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87452-36110 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87452H - BRACKET, REAR HEATER, NO.2 | ||||
| 87452-36121 |
HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87452-36120 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87452J - BRACKET, REAR HEATER PIPE, NO.1 | ||||
| 87452-36170 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87452-36170 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87452K - BRACKET, REAR HEATER PIPE, NO.2 | ||||
| 87452-36180 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87452-36180 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87452L - BRACKET, REAR HEATER PIPE, NO.3 | ||||
| 87452-36190 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87452-36190 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 87124-36100 | ||||
| 87124-36190 | ||||
| 87124-36200 | ||||
| 87124-36230 | ||||
| 87124-36240 | ||||
| 87124-36250 | ||||
| 87124-36260 | ||||
| 87124-36270 | ||||
| 90179-08017 | ||||
| 91651-60620 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96112-10360 | ||||
ILLUST NO. 3 OF 3(9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501)XZB4#,5#
ﾋ-ﾀﾖｳ ｳｵ-ﾀﾎﾟﾝﾌﾟ ﾂｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208K - PIPE SUB-ASSY, HEATER WATER, K | ||||
| 87208-36320 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245H - HOSE, HEATER WATER, INLET H | ||||
| 87245-36190 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87245-36191 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-36190 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-3B852 |
BB58 |
1 | ||
| 87245Q - HOSE, HEATER WATER, INLET Q | ||||
| 87245-36200 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87245-36200 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87245-36201 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87248J - PIPE, HEATER WATER INLET, J | ||||
| 87248-36100 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87248-36100 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87248K - PIPE, HEATER WATER INLET, K | ||||
| 87248-36110 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87248-36110 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87260 - PUMP ASSY, HEATER | ||||
| 87260-36061 |
BB58 |
1 | ||
| 87260-36062 |
BB58 |
1 | ||
| 87260-36031 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87260-36032 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87260-36030 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87260-36061 |
BB58 |
1 | ||
| 87452J - BRACKET, REAR HEATER PIPE, NO.1 | ||||
| 87452-36170 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87452-36170 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87452K - BRACKET, REAR HEATER PIPE, NO.2 | ||||
| 87452-36180 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87452-36180 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87452L - BRACKET, REAR HEATER PIPE, NO.3 | ||||
| 87452-36190 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87452-36190 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 87124-36240 | ||||
| 87124-36250 | ||||
| 87124-36260 | ||||
| 87124-36270 | ||||
| 90179-08017 | ||||
| 90463-15003 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96112-10360 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
