BB58-ZRPDU (1998)
Toyota Coaster
ILLUST NO. 3 OF 3(9301-9907)HRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63349-36010 |
BB4#,HZB40,5#..HRF..(DX,LX) |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63349-36010 |
HZB41..15S;BB4#,HZB40,5#..HRF..(DX,LX) |
2 | ||
| 63343E - PAD, ROOF SILENCER, NO.3 | ||||
| 63349-36010 |
HZB41..15S;BB4#,HZB40,5#..HRF..(DX,LX) |
4 | ||
| 63349-36031 |
BB58..WOC |
2 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63349-36010 |
HZB41..15S;BB4#,HZB40,5#..HRF..(DX,LX) |
2 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63344-36010 |
BB5#,HDB5#,HZB5#..HRF..(CBU,IV5) |
10 | ||
| 63347A - PAD, ROOF SILENCER, NO.7 | ||||
| 63347-36010 |
HZB41..15S;BB4#,HZB40,5#..HRF..(DX,LX) |
2 | ||
| 63347A - PAD, ROOF SILENCER, NO.7 | ||||
| 63347-36010 |
HZB41..15S;BB4#,HZB40,5#..HRF..(DX,LX) |
2 | ||
| 63349 - PAD, ROOF SILENCER, NO.9 | ||||
| 63349-36010 |
HZB41..15S;BB4#,HZB40,5#..DX,LX,STD |
2 | ||
| 63351A - PAD, ROOF SILENCER, NO.10 | ||||
| 63349-36010 |
BB4#,HZB40,5#..HRF..(DX,LX) |
4 | ||
| 63349-36031 |
BB58..WOC |
6 | ||
| 63352A - PAD, ROOF SILENCER, NO.11 | ||||
| 63349-36010 |
BB4#,HDB5#,HZB4#,5#..HRF |
2 | ||
| 63359A - PAD, ROOF SILENCER, NO.18 | ||||
| 63349-36010 |
HZB41..15S;BB4#,HZB40,5#..DX,LX,STD |
1 | ||

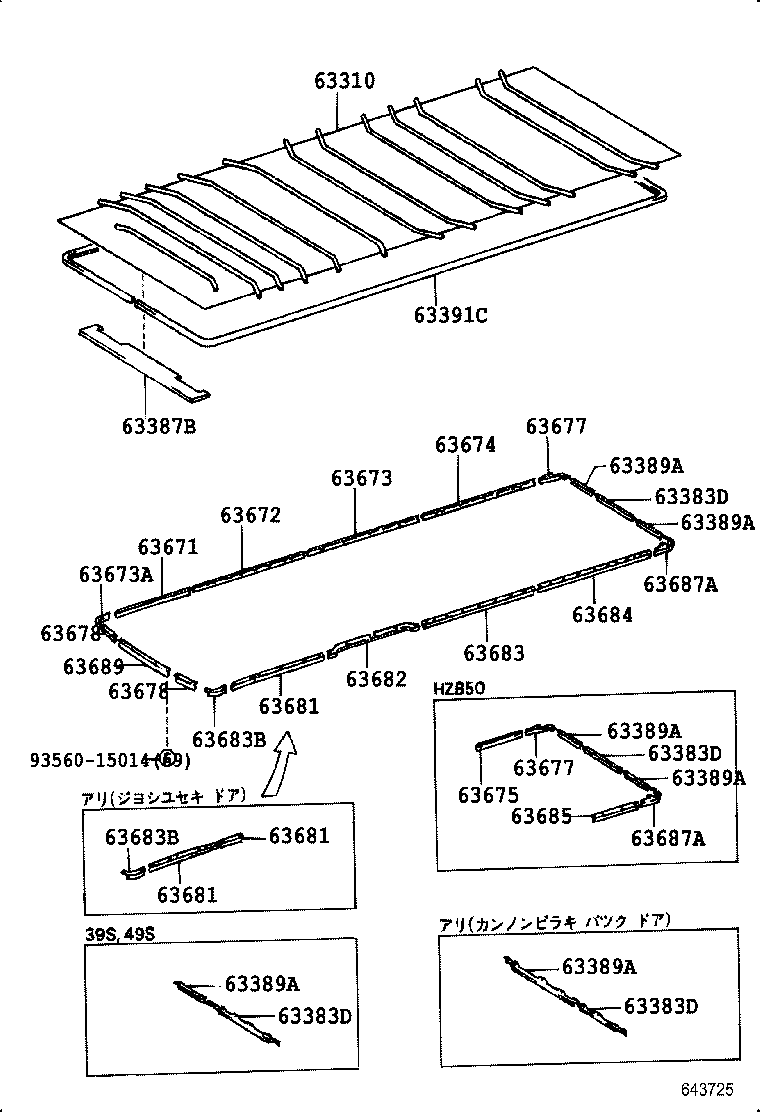

ILLUST NO. 1 OF 3(9301-0408)WOC ; (0408-1501)WOC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63383D - RETAINER, ROOF HEADLINING, REAR | ||||
| 63309-36010 |
BB58..WOC ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 63383-36010 |
BB40,58,HZB50..(26S,29S)..WOC |
1 | ||
| 63383D - RETAINER, ROOF HEADLINING, REAR | ||||
| 63309-36010 |
BB58..WOC ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 63383-36010 |
BB40,58,HZB50..(26S,29S)..WOC |
1 | ||
| 63383D - RETAINER, ROOF HEADLINING, REAR | ||||
| 63309-36010 |
BB58..WOC ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 63383-36010 |
BB40,58,HZB50..(26S,29S)..WOC |
1 | ||
| 63383D - RETAINER, ROOF HEADLINING, REAR | ||||
| 63309-36010 |
BB58..WOC ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 63383-36010 |
BB40,58,HZB50..(26S,29S)..WOC |
1 | ||
| 63387B - BRACKET, ROOF HEADLINING RETAINER | ||||
| 63387-36030 |
BB4#,58,HZB50..WOC |
1 | ||
| 63389A - PLATE SUB-ASSY, ROOF HEADLINING SET, RH | ||||
| 63389-36030 |
BB40,58,HZB50..(26S,29S)..WOC |
2 | ||
| 63301-36030 |
BB58..WOC ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 63389A - PLATE SUB-ASSY, ROOF HEADLINING SET, RH | ||||
| 63389-36030 |
BB40,58,HZB50..(26S,29S)..WOC |
2 | ||
| 63301-36030 |
BB58..WOC ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 63389A - PLATE SUB-ASSY, ROOF HEADLINING SET, RH | ||||
| 63389-36030 |
BB40,58,HZB50..(26S,29S)..WOC |
2 | ||
| 63301-36030 |
BB58..WOC ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 63389A - PLATE SUB-ASSY, ROOF HEADLINING SET, RH | ||||
| 63389-36030 |
BB40,58,HZB50..(26S,29S)..WOC |
2 | ||
| 63301-36030 |
BB58..WOC ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 63389A - PLATE SUB-ASSY, ROOF HEADLINING SET, RH | ||||
| 63389-36030 |
BB40,58,HZB50..(26S,29S)..WOC |
2 | ||
| 63301-36030 |
BB58..WOC ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 63389A - PLATE SUB-ASSY, ROOF HEADLINING SET, RH | ||||
| 63389-36030 |
BB40,58,HZB50..(26S,29S)..WOC |
2 | ||
| 63301-36030 |
BB58..WOC ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 63671 - RETAINER, ROOF HEADLINING, NO.1 RH | ||||
| 63675-36010 |
BB4#,58,HZB50..WOC |
1 | ||
| 63672 - RETAINER, ROOF HEADLINING, NO.2 RH | ||||
| 63674-36030 |
BB4#,58,HZB50..WOC |
1 | ||
| 63673 - RETAINER, ROOF HEADLINING, NO.3 RH | ||||
| 63679-36010 |
BB4#,58,HZB50..WOC |
1 | ||
| 63673A - RETAINER, ROOF HEADLINING, NO.3 RH | ||||
| 63673-36010 |
BB4#,58,HZB50..WOC |
1 | ||
| 63674 - RETAINER, ROOF HEADLINING, NO.4 RH | ||||
| 63375-36030 |
BB58,HZB50..WOC |
1 | ||
| 63675 - RETAINER, ROOF HEADLINING, NO.5 RH | ||||
| 63676-36020 |
BB58,HZB50..WOC |
1 | ||
| 63677 - RETAINER, ROOF HEADLINING, NO.7 RH | ||||
| 63677-36010 |
BB4#,58,HZB50..WOC |
1 | ||
| 63677 - RETAINER, ROOF HEADLINING, NO.7 RH | ||||
| 63677-36010 |
BB4#,58,HZB50..WOC |
1 | ||
| 63678 - RETAINER, ROOF HEADLINING, NO.8 RH | ||||
| 63678-36010 |
BB4#,58,HZB50..WOC |
2 | ||
| 63678 - RETAINER, ROOF HEADLINING, NO.8 RH | ||||
| 63678-36010 |
BB4#,58,HZB50..WOC |
2 | ||
| 63681 - RETAINER, ROOF HEADLINING, NO.1 LH | ||||
| 63308-36010 |
BB4#,58,HZB50..WOC |
1 | ||
| 63681 - RETAINER, ROOF HEADLINING, NO.1 LH | ||||
| 63308-36010 |
BB4#,58,HZB50..WOC |
1 | ||
| 63681 - RETAINER, ROOF HEADLINING, NO.1 LH | ||||
| 63308-36010 |
BB4#,58,HZB50..WOC |
1 | ||
| 63682 - RETAINER, ROOF HEADLINING, NO.2 LH | ||||
| 63397-36010 |
BB4#,58,HZB50..WOC |
1 | ||
| 63683 - RETAINER, ROOF HEADLINING, NO.3 LH | ||||
| 63684-36030 |
BB4#,58,HZB50..WOC |
1 | ||
| 63683B - RETAINER, ROOF HEADLINING, NO.3 LH | ||||
| 63683-36010 |
BB4#,58,HZB50..WOC |
1 | ||
| 63683B - RETAINER, ROOF HEADLINING, NO.3 LH | ||||
| 63683-36010 |
BB4#,58,HZB50..WOC |
1 | ||
| 63684 - RETAINER, ROOF HEADLINING, NO.4 LH | ||||
| 63375-36030 |
BB58,HZB50..WOC |
1 | ||
| 63685 - RETAINER, ROOF HEADLINING, NO.5 LH | ||||
| 63676-36020 |
BB58,HZB50..WOC |
1 | ||
| 63687A - RETAINER, ROOF HEADLINING, NO.7 LH | ||||
| 63687-36010 |
BB4#,58,HZB50..WOC |
1 | ||
| 63687A - RETAINER, ROOF HEADLINING, NO.7 LH | ||||
| 63687-36010 |
BB4#,58,HZB50..WOC |
1 | ||
| 63689 - RETAINER, ROOF HEADLINING, NO.8 CENTER | ||||
| 63689-36010 |
BB4#,58,HZB50..WOC |
1 | ||
| Common parts | ||||
| 93560-15014 | ||||

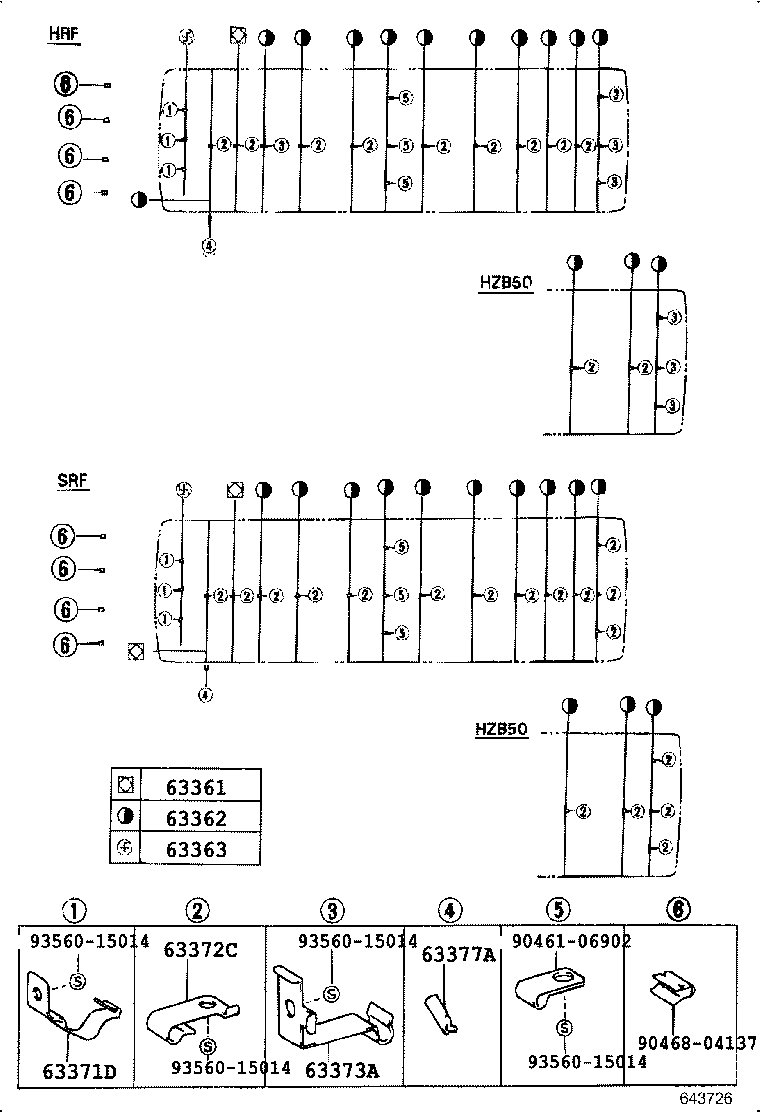

ILLUST NO. 2 OF 3(9301-0408)WOC ; (0408-1501)WOC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63361 - SUPPORT, ROOF HEADLINING, NO.1 | ||||
| 63361-36050 |
BB4#,58,HZB50..HRF..WOC L=1760,H=124.5 |
1 | ||
| 63361-36060 |
BB4#,58,HZB50..HRF..WOC L=1765,H=124.5 |
1 | ||
| 63361-36040 |
BB4#,58,HZB50..HRF..WOC L=1755,H=124.5 |
1 | ||
| 63362 - SUPPORT, ROOF HEADLINING, NO.2 | ||||
| 63362-36050 |
BB58,HZB50..HRF..WOC L=1730.5,H=200 |
12 | ||
| 63362-36060 |
BB58,HZB50..HRF..WOC L=1735.5,H=200 |
12 | ||
| 63362-36040 |
BB58,HZB50..HRF..WOC L=1725.5,H=200 |
12 | ||
| 63363 - SUPPORT, ROOF HEADLINING, NO.3 | ||||
| 63363-36010 |
BB4#,58,HZB50..WOC |
1 | ||
| 63371D - RETAINER, ROOF HEADLINING SUPPORT | ||||
| 63371-36010 |
BB4#,58,HZB50..WOC |
3 | ||
| 63372C - HOOK, ROOF HEADLINING SUPPORT | ||||
| 63372-36010 |
BB58,HZB50..HRF..WOC |
10 | ||
| 63373A - HOOK, ROOF HEADLINING SUPPORT, NO.2 | ||||
| 63373-36010 |
BB4#,58,HZB50..HRF..WOC |
4 | ||
| 63377A - RETAINER, ROOF HEADLINING SUPPORT, NO.1 | ||||
| 63377-36020 |
BB58,HZB50..HRF..WOC |
26 | ||
| Common parts | ||||
| 90461-06902 | ||||
| 90468-04137 | ||||
| 93560-15014 | ||||
