BB55-ZRPNU (1995)

Toyota Coaster

Production Dec 1995 - May 1997
Engine 15BF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-9907)15BF,3B

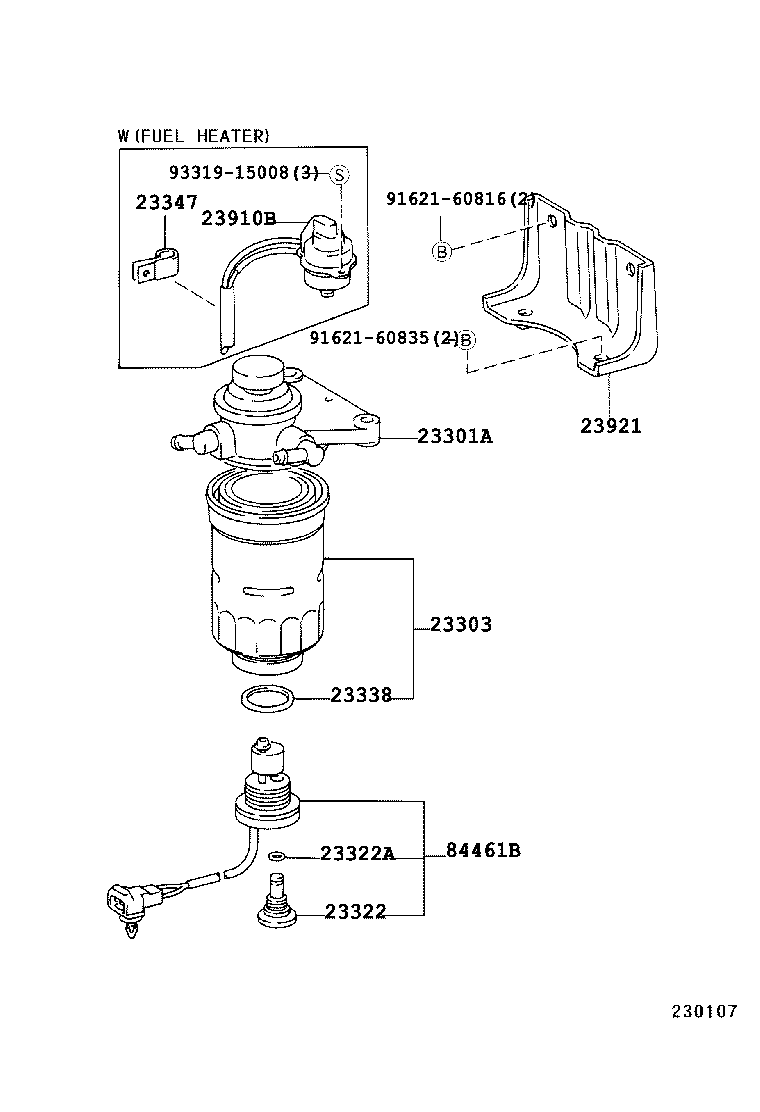

Click highlighted areas on diagram

diagram 23301A 23303 23322 23322A 23338 23347 23910B 23921 84461B 9162160816 9162160835 9331915008
Part # Description Qty Price
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

15BF,3B..BB4#,5#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64020

15BF,3B..BB4#,5#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

15BF,3B..BB4#,5#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

15BF,3B..BB4#,5#

 1
23347 - CLIP, CORD
23347-54010

15BF,3B..BB4#,5#

 1
23910B - HEATER ASSY, FUEL
23910-17050

15BF,3B..BB4#,5#

 1
23921 - SUPPORT, FUEL FILTER
23921-17040

15BF,3B..BB4#,5#

 1
84461B - SWITCH, LEVEL WARNING
84461-36080

HDB5#,HZB4#,5#

 1
84461-36080

BB4#,5#

 1
Common parts
91621-60816
91621-60835
93319-15008
