BB55-ZRPMU (1996)

Toyota Coaster

Production Oct 1996 - May 1997
Engine 15BF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-0408)HDB5#,HZB4#,5#..4FC

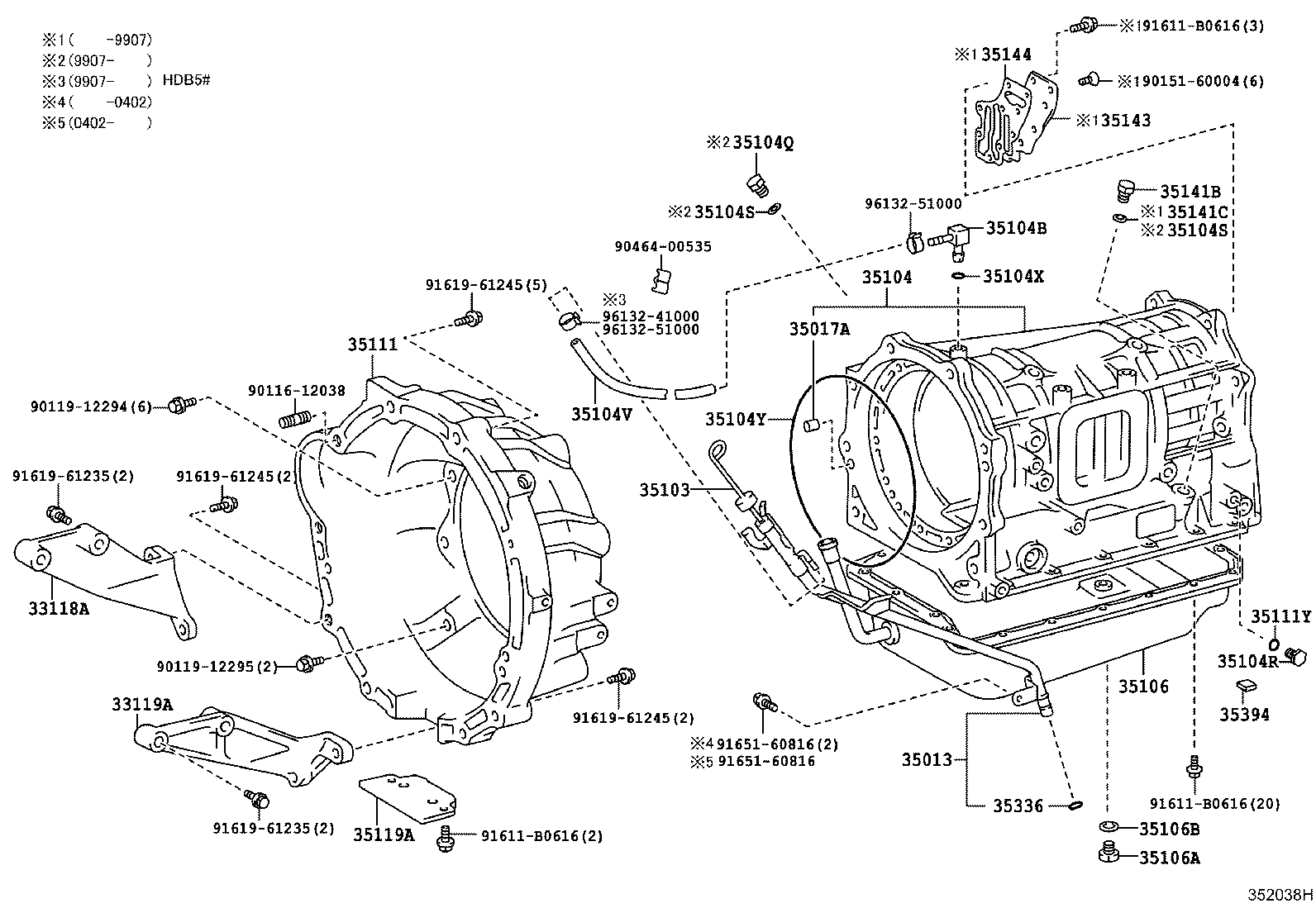

Click highlighted areas on diagram

A441E,A442E

diagram 33118A 33119A 35013 35017A 35103 35104 35104B 35104Q 35104R 35104S 35104S 35104V 35104X 35104Y 35106 35106A 35106B 35111 35111Y 35119A 35141B 35141C 35143 35144 35336 35394 9011612038 9011912294 9011912295 9015160004 9046400535 91611B0616 91611B0616 91611B0616 9161961235 9161961235 9161961245 9161961245 9161961245 9165160816 9165160816 9613241000 9613251000 9613251000
Part # Description Qty Price
33118A - PLATE, STIFFENER, RH(ATM)
33118-60030

HDB5#,HZB4#,5#..4FC

 1
33119A - PLATE, STIFFENER, LH(ATM)
33119-60031

HDB5#,HZB4#,5#..4FC

 1
35017A - PIN, STRAIGHT(FOR TRANSMISSION HOUSING ADAPTER, FRONT)
90250-12146

HZB4#,5#..4FC

 2
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-36040

HZB4#,5#..4FC

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03094

BB5#,HDB5#,HZB4#,5#..4FC

 1
35104R - PLUG, NO.2 (FOR TRANSAXLE CASE)
90341-08001

BB5#,HDB5#,HZB4#,5#..4FC

 7
35104V - HOSE (FOR BREATHER PLUG)
90445-11123

HDB5#,HZB4#,5#..4FC

 1
35104X - RING, O (FOR BREATHER PLUG)
90301-06005

BB5#,HDB5#,HZB4#,5#..4FC

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-36050

HDB5#,HZB4#,5#..4FC

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-18057

BB5#,HDB5#,HZB4#,5#..4FC

 1
35106B - GASKET, DRAIN PLUG (ATM)
12157-10010

BB5#,HDB5#,HZB4#,5#..4FC

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-60040

HDB5#,HZB4#,5#..4FC

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

BB5#,HDB5#,HZB4#,5#..4FC

 7
35119A - COVER, TRANSMISSION HOUSING
35119-36010

BB5#,HDB5#,HZB4#,5#..4FC

 1
35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE)
90341-16010

BB5#,HDB5#,HZB4#,5#..4FC

 1
35141C - WASHER, PLATE (FOR AUTOMATIC TRANSMISSION CASE)
90201-16013

BB5#,HDB5#,HZB4#,5#..4FC

 1
35143 - COVER, TRANSMISSION CASE, REAR
35143-36010

HDB5#,HZB4#,5#..4FC

 1
35144 - GASKET, TRANSMISSION CASE REAR COVER
35144-60010

HDB5#,HZB4#,5#..4FC

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

BB5#,HDB5#,HZB4#,5#..4FC

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

HDB5#,HZB4#,5#..4FC..(CBU,IV5)

 4
Common parts
90116-12038
90119-12294
90119-12295
90151-60004
90464-00535
91611-B0616
91619-61235
91619-61245
91651-60816
96132-41000
96132-51000
