BB46V-ZRMNS (1993)

Toyota Coaster

Production Jan 1993 - Jul 1999
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-9705)DX,EX,GX,LX,SULNG ; (9705-0108) ; (0108-0408)BB58

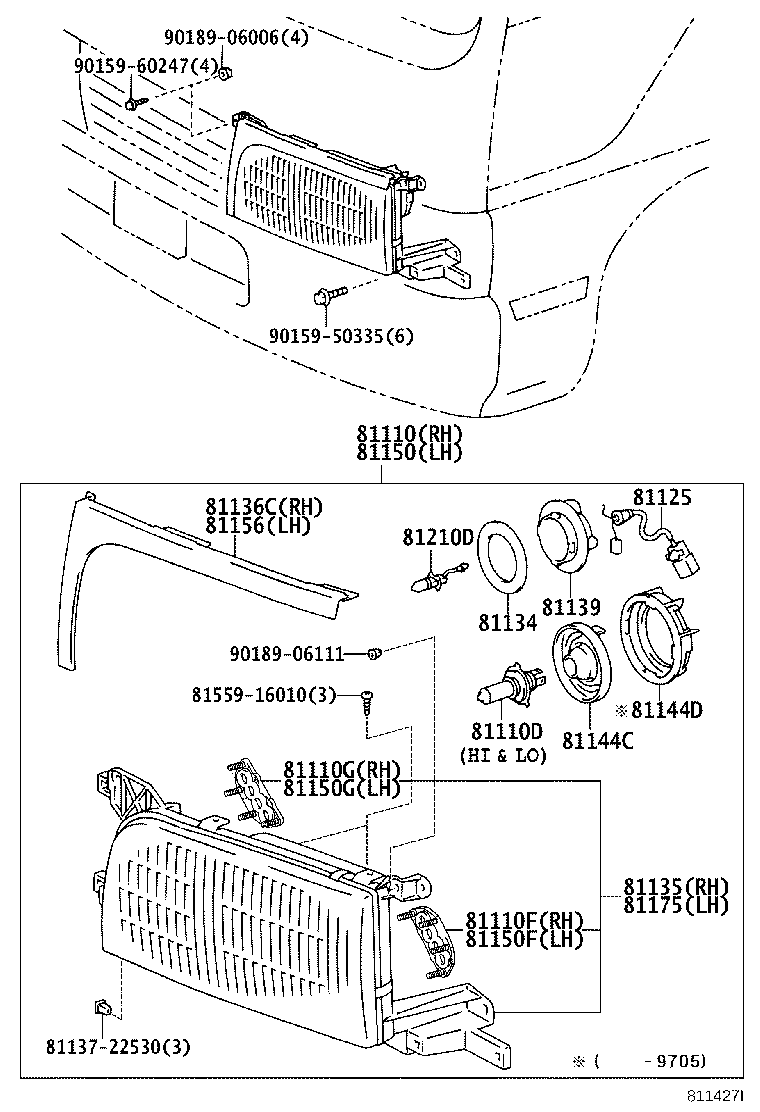

Click highlighted areas on diagram

diagram 81110 81110D 81110F 81110G 81125 81134 81135 81136C 8113722530 81139 81144C 81144D 81150 81150F 81150G 81156 81175 81210D 8155916010 9015950335 9015960247 9018906006 9018906111
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-36170

BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG

 1
81110-36270

BB4#,58,HDB5#,HZB4#,5#

 1
81110D - BULB(FOR HEADLAMP, NO.2)
90981-17011

BB4#,58,HDB5#,HZB4#,5#

24V 75/70W,*HAL *WH

 2
90981-17011

BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG

24V 75/70W,*HAL *WH

 2
81110F - GEAR UNIT ASSY, RH NO.1
90075-50023

BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG

 1
90075-50019

BB4#,58,HDB5#,HZB4#,5#

 1
81110G - GEAR UNIT ASSY, RH NO.2
90075-50021

BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG

 1
90075-50021

BB4#,58,HDB5#,HZB4#,5#

 1
81125 - CORD, HEADLAMP
81125-36170

BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG

 2
81125-36170

BB4#,58,HDB5#,HZB4#,5#

 2
81134 - GASKET, HEADLAMP
81134-36170

BB4#,58,HDB5#,HZB4#,5#

 2
81134-36170

BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-36170

BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG

 1
81130-36270

BB4#,58,HDB5#,HZB4#,5#

 1
81136C - RIM, HEADLAMP, RH
81116-36170

BB4#,58,HDB5#,HZB4#,5#

 1
81116-36170

BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG

 1
81139 - COVER, HEADLAMP SOCKET
81139-36170

BB4#,58,HDB5#,HZB4#,5#

 2
81139-36170

BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG

 2
81144C - COVER, HEADLAMP SOCKET
90075-99058

BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG

 2
90075-65002

BB4#,58,HDB5#,HZB4#,5#

 2
81144D - CAP, HEADLAMP LOCKING
90075-99057

BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG

 2
81150 - HEADLAMP ASSY, LH
81150-36250

BB4#,58,HDB5#,HZB4#,5#

 1
81150-36150

BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG

 1
81150F - GEAR UNIT ASSY, LH NO.1
90075-50020

BB4#,58,HDB5#,HZB4#,5#

 1
90075-50023

BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG

 1
81150G - GEAR UNIT ASSY, LH NO.2
90075-50022

BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG

 1
90075-50022

BB4#,58,HDB5#,HZB4#,5#

 1
81156 - RIM, HEADLAMP, LH
81156-36150

BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG

 1
81156-36150

BB4#,58,HDB5#,HZB4#,5#

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-36150

BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG

 1
81170-36250

BB4#,58,HDB5#,HZB4#,5#

 1
81210D - BULB, FOG LAMP
90981-17016

BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG

24V 55W,*WSB

 2
90981-17016

BB4#,58,HDB5#,HZB4#,5#

24V 55W,*WSB

 2
Common parts
81137-22530
81559-16010
90159-50335
90159-60247
90189-06006
90189-06111
