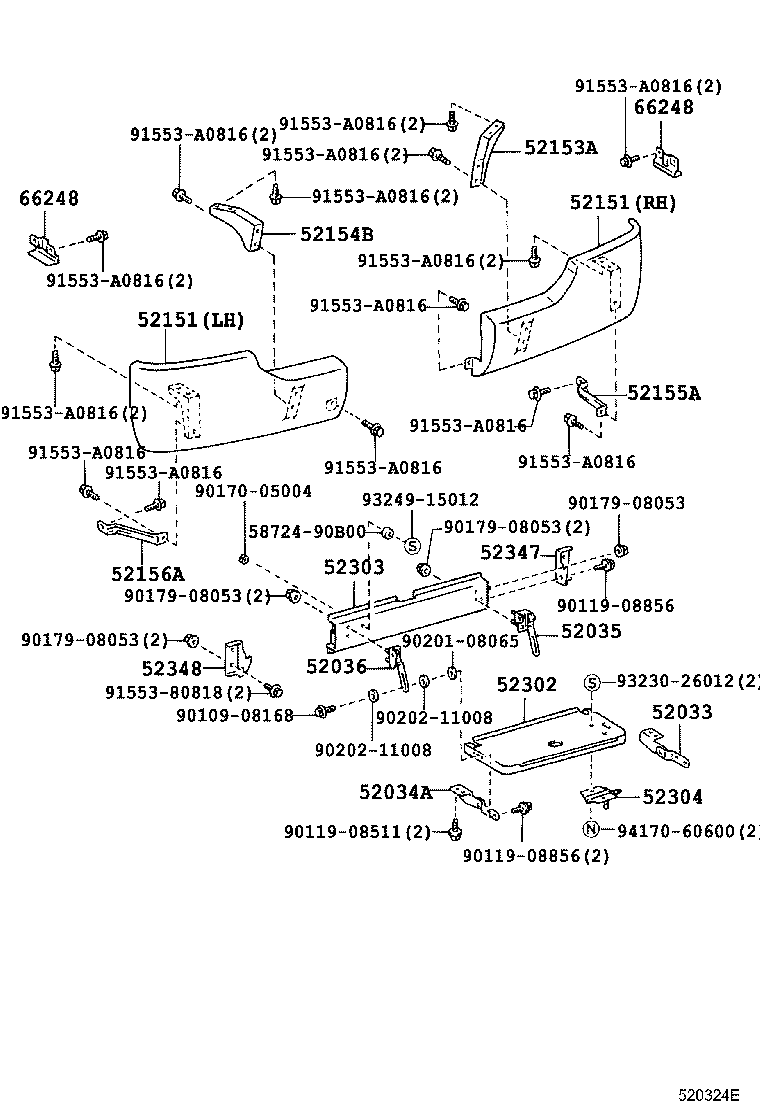

BB46V-ZRMNS (1993)
Toyota Coaster
(9301- )
ｼﾞﾖｳｺｳｽﾃﾂﾌﾟ ﾂｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52033 - HINGE SUB-ASSY, BACK STEP, RH | ||||
| 52033-36010 |
BB46,HZB56 |
1 | ||
| 52033-36010 |
BB4#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..CBU |
1 | ||
| 52034A - HINGE SUB-ASSY, BACK STEP, LH | ||||
| 52034-36010 |
BB46,HZB56 |
1 | ||
| 52034-36010 |
BB4#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..CBU |
1 | ||
| 52035 - STAY SUB-ASSY, BACK STEP, RH | ||||
| 52035-36010 |
BB46,HZB56 |
1 | ||
| 52035-36010 |
BB4#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..CBU |
1 | ||
| 52036 - STAY SUB-ASSY, BACK STEP, LH | ||||
| 52036-36010 |
BB46,HZB56 |
1 | ||
| 52036-36010 |
BB4#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..CBU |
1 | ||
| 52151 - BUMPER ASSY, REAR | ||||
| 52106-36900 |
BB46,HZB56 要塗装,RH,塗装なし |
1 | ||
| 52107-36900 |
BB46,HZB56 要塗装,LH,塗装なし |
1 | ||
| 52105-36900 |
BB40,5#,HDB5#,HZB4#,50..CBU,IV5 要塗装,塗装なし |
1 | ||
| 52151 - BUMPER ASSY, REAR | ||||
| 52106-36900 |
BB46,HZB56 要塗装,RH,塗装なし |
1 | ||
| 52107-36900 |
BB46,HZB56 要塗装,LH,塗装なし |
1 | ||
| 52105-36900 |
BB40,5#,HDB5#,HZB4#,50..CBU,IV5 要塗装,塗装なし |
1 | ||
| 52153A - STAY, REAR BUMPER SIDE, RH | ||||
| 52153-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 52154B - STAY, REAR BUMPER SIDE, LH | ||||
| 52154-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 52302 - STEP SUB-ASSY, BACK | ||||
| 52302-36900 |
BB46,HZB56 |
1 | ||
| 52302-36900 |
BB4#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..CBU |
1 | ||
| 52303 - MEMBER SUB-ASSY, BACK STEP | ||||
| 52303-36900 |
BB4#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..CBU |
1 | ||
| 52303-36900 |
BB46,HZB56 |
1 | ||
| 52304 - LOCK SUB-ASSY, BACK STEP | ||||
| 52304-90B00 |
BB4#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..CBU |
1 | ||
| 52304-90B00 |
BB46,HZB56 |
1 | ||
| 52347 - BRACKET, BACK STEP FRAME, OUTER RH | ||||
| 52347-36010 |
BB4#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..CBU |
1 | ||
| 52347-36010 |
BB46,HZB56 |
1 | ||
| 52348 - BRACKET, BACK STEP FRAME, OUTER LH | ||||
| 52348-36010 |
BB46,HZB56 |
1 | ||
| 52348-36010 |
BB4#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..CBU |
1 | ||
| 66248 - PROTECTOR, REAR BODY SIDE PANEL, RH | ||||
| 66248-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 66248 - PROTECTOR, REAR BODY SIDE PANEL, RH | ||||
| 66248-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| Common parts | ||||
| 58724-90B00 | ||||
| 90109-08168 | ||||
| 90119-08511 | ||||
| 90119-08856 | ||||
| 90170-05004 | ||||
| 90179-08053 | ||||
| 90201-08065 | ||||
| 90202-11008 | ||||
| 91553-80818 | ||||
| 91553-A0816 | ||||
| 93230-26012 | ||||
| 93249-15012 | ||||
| 94170-60600 | ||||

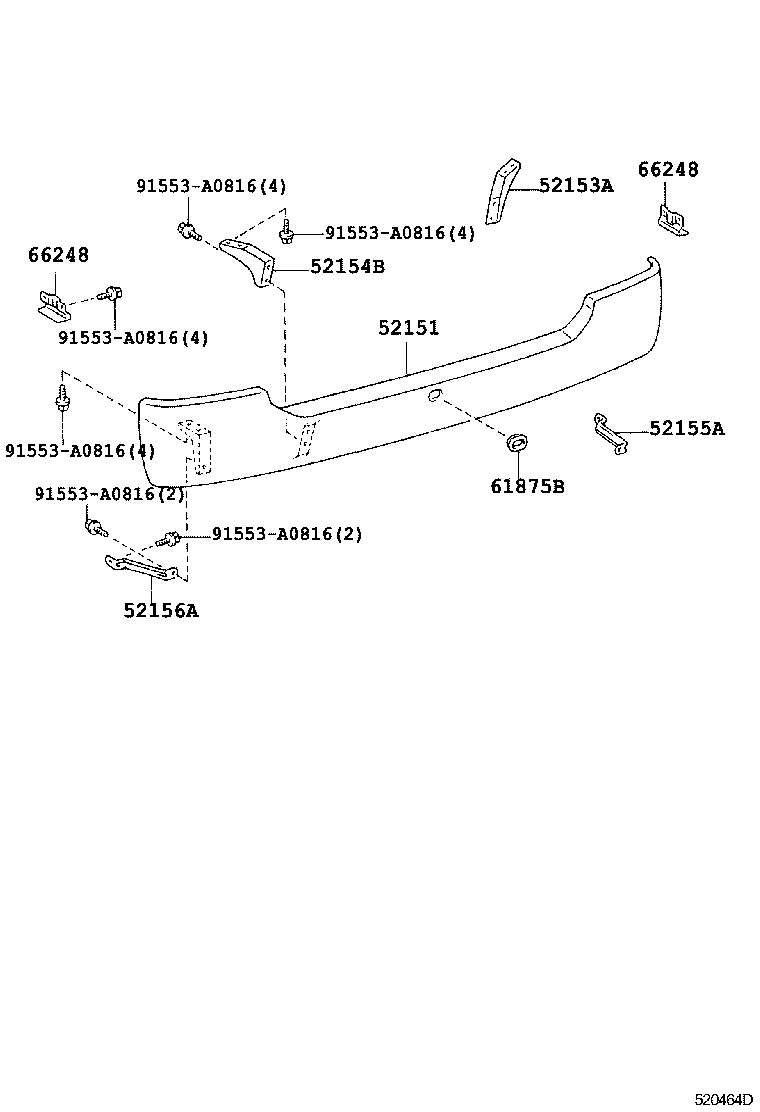

(9301- )
ｼﾞｮｳｺｳｽﾃｯﾌﾟ ﾅｼ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52151 - BUMPER ASSY, REAR | ||||
| 52106-36900 |
BB46,HZB56 要塗装,RH,塗装なし |
1 | ||
| 52107-36900 |
BB46,HZB56 要塗装,LH,塗装なし |
1 | ||
| 52105-36900 |
BB40,5#,HDB5#,HZB4#,50..CBU,IV5 要塗装,塗装なし |
1 | ||
| 52153A - STAY, REAR BUMPER SIDE, RH | ||||
| 52153-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 52154B - STAY, REAR BUMPER SIDE, LH | ||||
| 52154-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61875B - LID, SPARE WHEEL CARRIER, NO.1 | ||||
| 61875-36010 |
BB40,5#,HDB5#,HZB4#,50..CBU,IV5 |
1 | ||
| 66248 - PROTECTOR, REAR BODY SIDE PANEL, RH | ||||
| 66248-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 66248 - PROTECTOR, REAR BODY SIDE PANEL, RH | ||||
| 66248-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| Common parts | ||||
| 91553-A0816 | ||||
