Toyota Coaster BB46 CLUTCH PEDAL & FLEXIBLE HOSE

BB46V-ZRMNS (1993)

Toyota Coaster

Production Jan 1993 - Jul 1999

Engine 3B

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

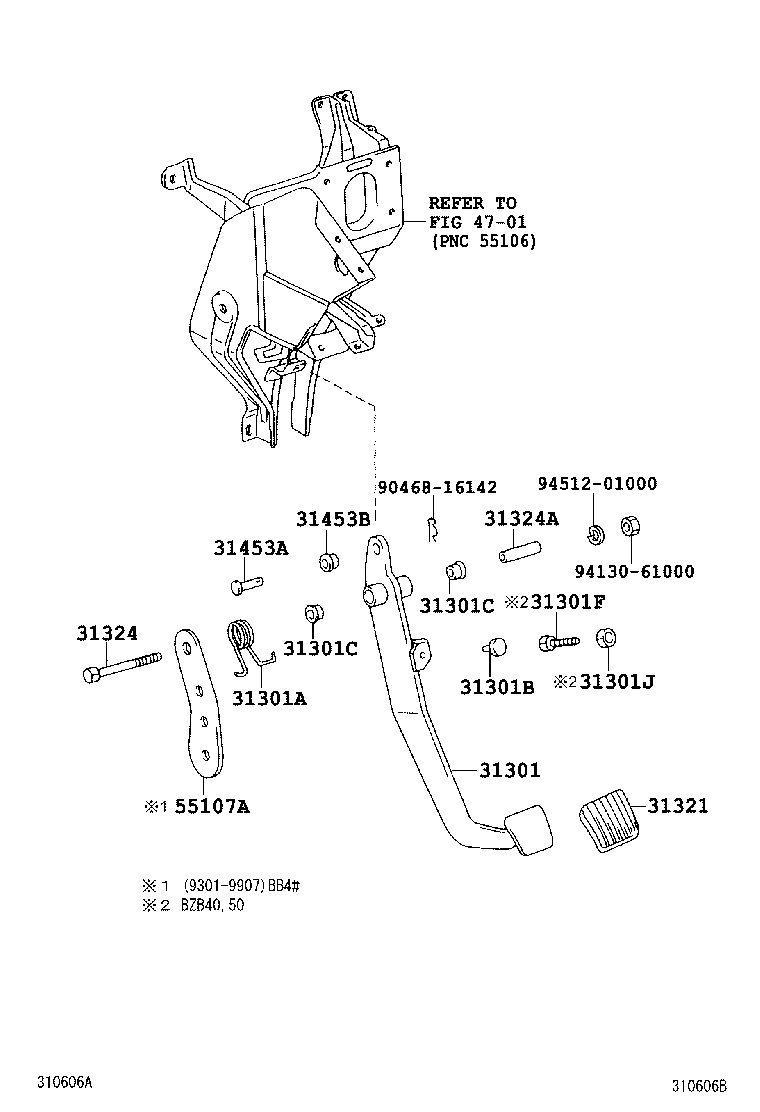

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-36210	BB4#	01/1993 - 07/1999	1
31301-36200	HDB5#,HZB4#,5#..MTM	01/1993 - 07/1999	1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-35013	BB4#,HDB5#,HZB4#,5#..MTM	01/1993 - 07/1999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	BB4#,HDB5#,HZB4#,5#..MTM	01/1993 - 07/1999	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	BB4#,HDB5#,HZB4#,5#..5F	01/1993 - 08/1993	2
90386-13007	BB4#,HDB5#,HZB4#,5#..MTM	08/1993 - 07/1999	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	BB4#,HDB5#,HZB4#,5#..5F	01/1993 - 08/1993	2
90386-13007	BB4#,HDB5#,HZB4#,5#..MTM	08/1993 - 07/1999	2
31321 - PAD, CLUTCH PEDAL
31321-14020	BB4#,HDB5#,HZB4#,5#..MTM	01/1993 - 07/1999	1
31324 - SHAFT, CLUTCH PEDAL
91121-61070	BB4#	01/1993 - 07/1999	1
90101-10189	HDB5#,HZB4#,5#..MTM	01/1993 - 07/1999	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004	BB4#	01/1993 - 07/1999	1
90387-10134	HDB5#,HZB4#,5#..MTM	01/1993 - 07/1999	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006	BB4#,HDB5#,HZB4#,5#..MTM 長さ=23.5	01/1993 - 07/1999	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	BB4#,HDB5#,HZB4#,5#..MTM	01/1993 - 07/1999	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55136-36010	BB4#	01/1993 - 07/1999	1
Common parts
90468-16142
94130-61000
94512-01000
Linked diagrams
4701

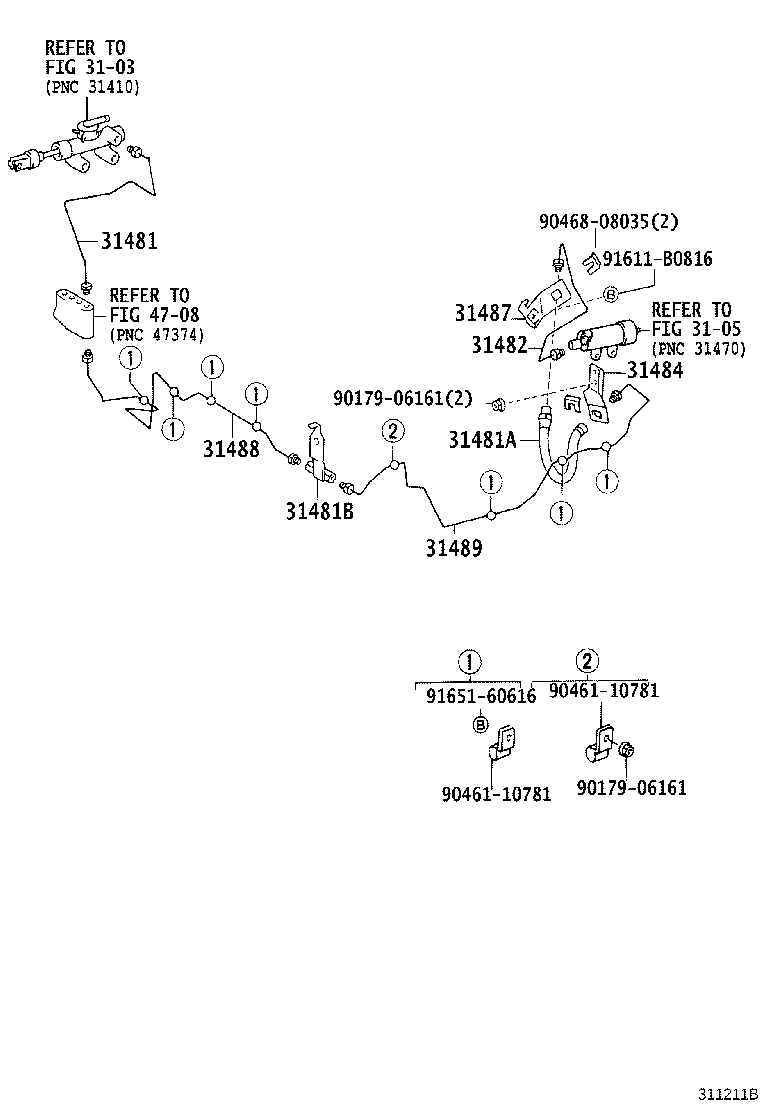

Click highlighted areas on diagram

Part #	Description	Period	Qty
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-36390	BB4#	01/1993 - 07/1999	1
31481-36380	HDB5#,HZB4#,5#..MTM	01/1993 - 07/1999	1
31481A - HOSE, CLUTCH, NO.1
90947-02977	HDB5#,HZB4#,5#..MTM	05/1997 - 07/1999	1
90947-02978	BB4#	05/1997 - 07/1999	1
96932-33005	BB4#,HDB5#,HZB4#,5#..5F	01/1993 - 05/1997	1
31481B - WAY(FOR CLUTCH TUBE)
90412-12048	BB4#	01/1993 - 07/1999	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-36220	BB4# 長さ=508.8	01/1993 - 07/1999	1
31482-36230	HDB5#,HZB4#,5#..MTM	01/1993 - 07/1999	1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-36200	BB4#,HDB5#,HZB4#,5#..MTM	05/1997 - 07/1999	1
31484-36210	BB4#,HDB5#,HZB4#,5#..5F	01/1993 - 05/1997	1
31487 - PLATE, RELEASE TUBE SET
31487-36160	HDB5#,HZB4#,5#..MTM	01/1993 - 07/1999	1
31487-36190	BB4#	01/1993 - 07/1999	1
31488 - TUBE, CONNECTOR TO TUBE CONNECTOR
31488-36450	HDB5#,HZB4#,5#..5F	01/1993 - 05/1995	1
31488-36451	HDB5#,HZB4#,5#..5F	05/1995 - 05/1997	1
31488-36590	BB4#	05/1997 - 07/1999	1
31488-36500	BB4#	01/1993 - 05/1997	1
31488-36600	HDB5#,HZB4#,5#..MTM	05/1997 - 07/1999	1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-36180	BB4#	01/1993 - 05/1997	1
31489-36200	HDB5#,HZB4#,5#..5F	01/1993 - 05/1997	1
31489-36240	BB4#	05/1997 - 07/1999	1
31489-36250	HDB5#,HZB4#,5#..MTM	05/1997 - 07/1999	1
Common parts
90179-06161
90461-10781
90468-08035
91611-B0816
91651-60616
Linked diagrams
3103
3105
4708

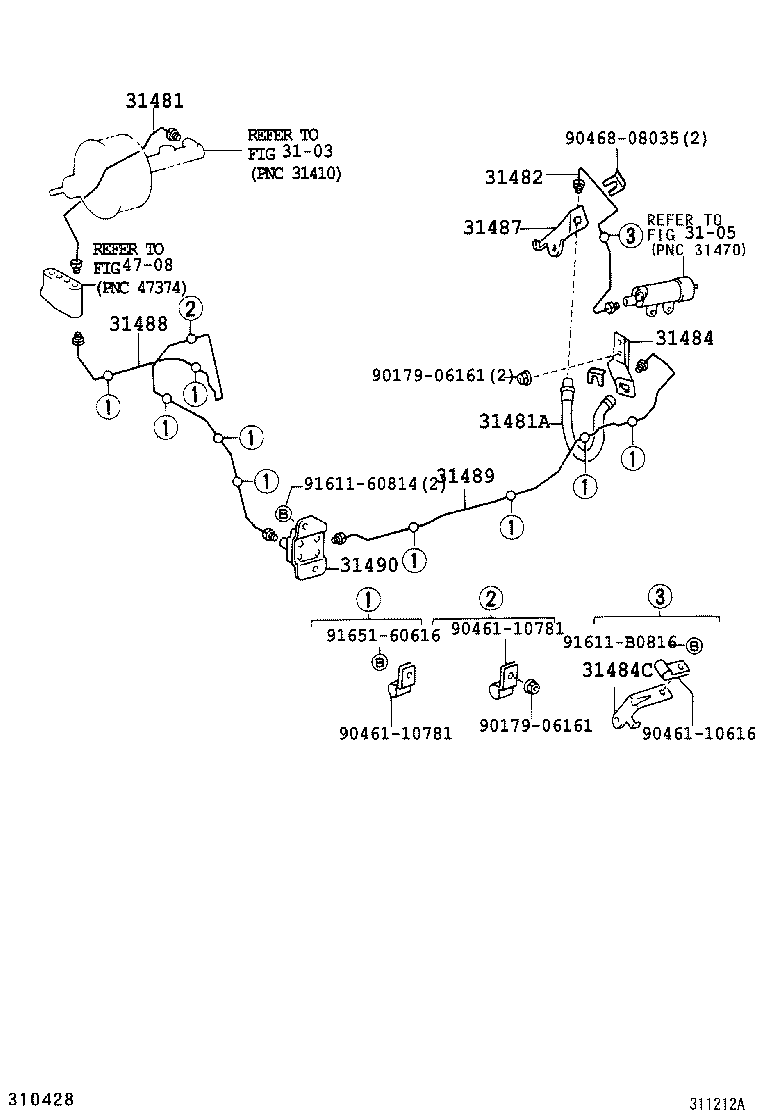

Click highlighted areas on diagram

Part #	Description	Period	Qty
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-36390	BB4#	01/1993 - 07/1999	1
31481-36380	HDB5#,HZB4#,5#..MTM	01/1993 - 07/1999	1
31481A - HOSE, CLUTCH, NO.1
90947-02977	HDB5#,HZB4#,5#..MTM	05/1997 - 07/1999	1
90947-02978	BB4#	05/1997 - 07/1999	1
96932-33005	BB4#,HDB5#,HZB4#,5#..5F	01/1993 - 05/1997	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-36220	BB4# 長さ=508.8	01/1993 - 07/1999	1
31482-36230	HDB5#,HZB4#,5#..MTM	01/1993 - 07/1999	1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-36200	BB4#,HDB5#,HZB4#,5#..MTM	05/1997 - 07/1999	1
31484-36210	BB4#,HDB5#,HZB4#,5#..5F	01/1993 - 05/1997	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-36190	HDB5#,HZB4#,5#..MTM	01/1993 - 07/1999	1
31487 - PLATE, RELEASE TUBE SET
31487-36160	HDB5#,HZB4#,5#..MTM	01/1993 - 07/1999	1
31487-36190	BB4#	01/1993 - 07/1999	1
31488 - TUBE, CONNECTOR TO TUBE CONNECTOR
31488-36450	HDB5#,HZB4#,5#..5F	01/1993 - 05/1995	1
31488-36451	HDB5#,HZB4#,5#..5F	05/1995 - 05/1997	1
31488-36590	BB4#	05/1997 - 07/1999	1
31488-36500	BB4#	01/1993 - 05/1997	1
31488-36600	HDB5#,HZB4#,5#..MTM	05/1997 - 07/1999	1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-36180	BB4#	01/1993 - 05/1997	1
31489-36200	HDB5#,HZB4#,5#..5F	01/1993 - 05/1997	1
31489-36240	BB4#	05/1997 - 07/1999	1
31489-36250	HDB5#,HZB4#,5#..MTM	05/1997 - 07/1999	1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-36030	HDB5#,HZB4#,5#..MTM	01/1993 - 07/1999	1
Common parts
90179-06161
90461-10616
90461-10781
90468-08035
91611-60814
91611-B0816
91651-60616
Linked diagrams
3103
3105
4708
