BB40-ZRMNS (1993)

Toyota Coaster

Production Jan 1993 - Jul 1999
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-9907)

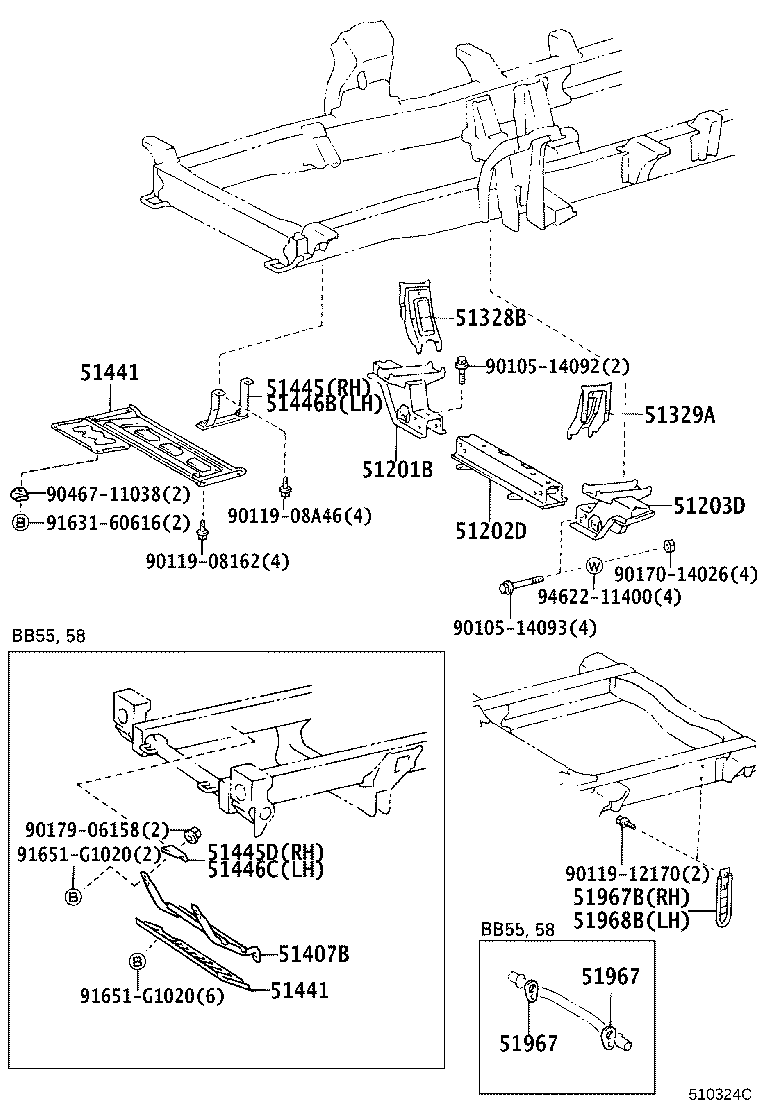

Click highlighted areas on diagram

diagram 51201B 51202D 51203D 51328B 51329A 51407B 51441 51441 51445 51445D 51446B 51446C 51967 51967 51967B 51968B 9010514092 9010514093 9011908162 9011908A46 9011912170 9017014026 9017906158 9046711038 9163160616 91651G1020 91651G1020 9462211400
Part # Description Qty Price
51201B - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION, RH
51201-36160

BB4#,HDB5#,HZB4#,5#

 1
51202D - CROSSMENBER SUB-ASSY, FRONT SUSPENSION, LOWER
51202-36170

BB4#,HDB5#,HZB4#,5#

 1
51203D - CROSSMENBER SUB-ASSY, FRONT SUSPENSION, LH
51203-36330

BB4#,HDB5#,HZB4#,5#

 1
51328B - SUPPORT, FRONT SUSPENSION MEMBER, RH
51328-36020

BB4#,HDB5#,HZB4#,5#

 1
51329A - SUPPORT, FRONT SUSPENSION MEMBER, LH
51329-36010

BB4#,HDB5#,HZB4#,5#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-36250

HDB5#,HZB4#,5#

 1
51441-36251

HDB5#,HZB4#,5#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-36250

HDB5#,HZB4#,5#

 1
51441-36251

HDB5#,HZB4#,5#

 1
51445 - BRACKET, ENGINE UNDER COVER
51445-36040

HDB5#,HZB4#,5#

 1
51446B - BRACKET, ENGINE UNDER COVER, NO.2
51446-36040

HDB5#,HZB4#,5#

 1
51967B - HOOK, TRANSPORT, REAR RH
51963-36060

BB4#,55,HDB5#,HZB4#,5#

 1
51963-36060

BB4#,HDB5#,HZB4#,5#

 1
51968B - HOOK, TRANSPORT, REAR LH
51963-36060

BB4#,55,HDB5#,HZB4#,5#

 1
51963-36060

BB4#,HDB5#,HZB4#,5#

 1
Common parts
90105-14092
90105-14093
90119-08162
90119-08A46
90119-12170
90170-14026
90179-06158
90467-11038
91631-60616
91651-G1020
94622-11400
