8716 - HEATING & AIR CONDITIONING - WATER PIPING

BB40-BKMSS (1993)

Toyota Coaster

Production Jan 1993 - Jul 1999

Engine 3B

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

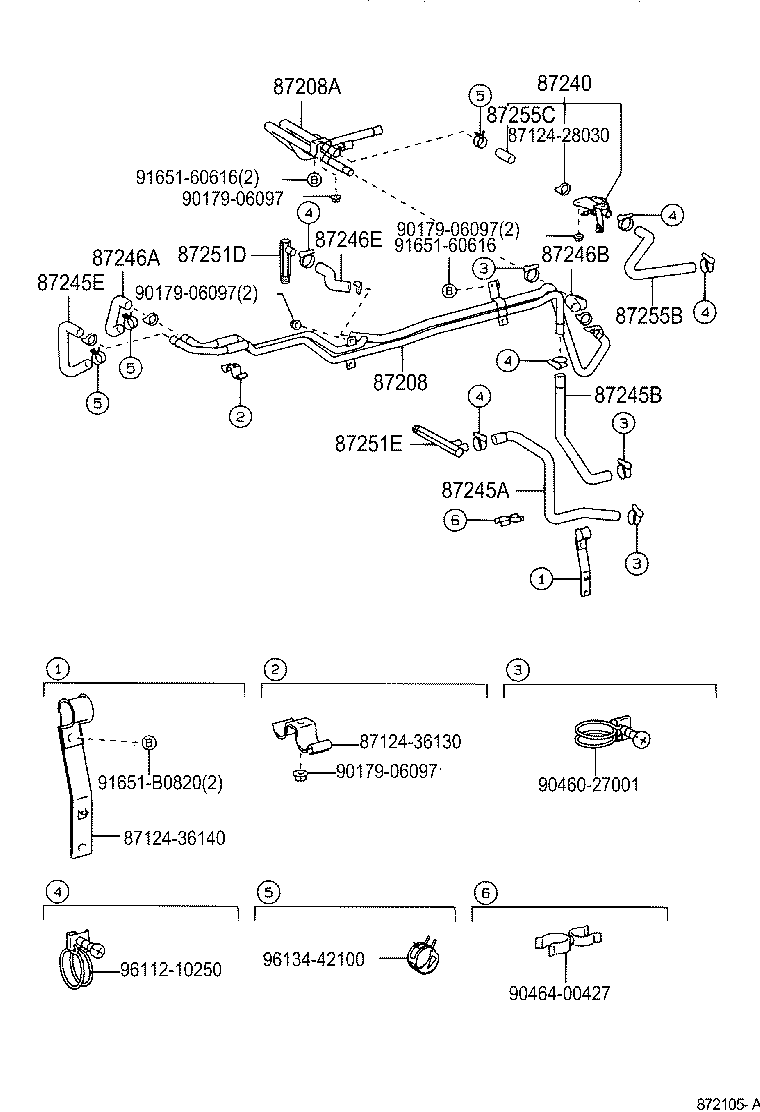

ILLUST NO. 1 OF 3(9301-9907)BB4#

Click highlighted areas on diagram

ﾌﾛﾝﾄ

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36390	BB4# ｱﾘ(ﾘﾔﾋ-ﾀ)	01/1993 - 05/1997	1
87208-36370	HDB5#,HZB4#,5#	01/1993 - 05/1997	1
87208-36411	BB4# ｶﾝﾚｲﾁｼﾖｳ	05/1997 - 07/1999	1
87208-36391	BB4#	05/1997 - 07/1999	1
87208-36371	HDB5#,HZB4#,5#	05/1997 - 07/1999	1
87208-36410	BB4# ｶﾝﾚｲﾁｼﾖｳ	01/1993 - 05/1997	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36190	BB40	01/1993 - 05/1997	1
87208-36730	BB40	05/1997 - 07/1999	1
87240 - VALVE ASSY, HEATER WATER
87240-36130	HDB51..IV5;BB40,HZB40,50..DX,LX,STD	05/1997 - 07/1999	1
87240-36030	BB40,HZB40,50..DX,LX,STD	01/1993 - 05/1997	1
87245A - HOSE, HEATER WATER, INLET A
87245-36270	HDB5#,HZB4#,5#	01/1993 - 05/1997	1
87245-3B430	BB4# ｱﾘ(ﾘﾔﾋ-ﾀ)	01/1993 - 05/1997	1
87245-36570	BB4# ｶﾝﾚｲﾁｼﾖｳ	01/1993 - 05/1997	1
87245-36571	BB4# ｶﾝﾚｲﾁｼﾖｳ	05/1997 - 07/1999	1
87245-3B431	BB4#	05/1997 - 07/1999	1
87245-36271	HDB5#,HZB4#,5#	05/1997 - 07/1999	1
87245E - HOSE, HEATER WATER, INLET E
87245-3B391	BB4#,HDB5#,HZB4#,5#	05/1997 - 07/1999	1
87245-3B390	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1997	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B400	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1997	1
87245-3B401	BB4#,HDB5#,HZB4#,5#	05/1997 - 07/1999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3B410	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1997	1
87245-3C440	HDB51..4FC;BB4#,HDB50,HZB4#,5#	05/1997 - 07/1999	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3B440	BB40	01/1993 - 05/1997	1
87245-3B441	BB4#	05/1997 - 07/1999	1
87245-3B481	HDB5#,HZB4#,5#	05/1997 - 07/1999	1
87245-3B480	HDB5#,HZB4#,5#	01/1993 - 05/1997	1
87251C - JOINT, WATER HOSE THROUGH
87251-60010	BB40 ｶﾝﾚｲﾁｼﾖｳ & FR ﾏﾆﾕｱﾙﾋ-ﾀ	01/1993 - 05/1995	1
87251-60010	BB40..39S ｶﾝﾚｲﾁｼﾖｳ	05/1995 - 05/1997	1
87251-30200	BB4#,5#	01/1993 - 07/1999	1
87251D - JOINT, WATER, NO.1
87251-60010	BB4#	01/1993 - 05/1997	1
87251-95403	BB40	05/1997 - 07/1999	1
87251E - JOINT, WATER, NO.2
87251-90B00	BB4#	01/1993 - 04/1994	1
87251-95400	BB4#,5#	04/1994 - 07/1999	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-36180	BB4#	01/1993 - 05/1997	1
87245-36181	BB4#	05/1997 - 07/1999	1
Common parts
82711-22270
87124-28030
87124-36130
90179-06206
90460-27001
91651-60616
96112-10250
96134-42100

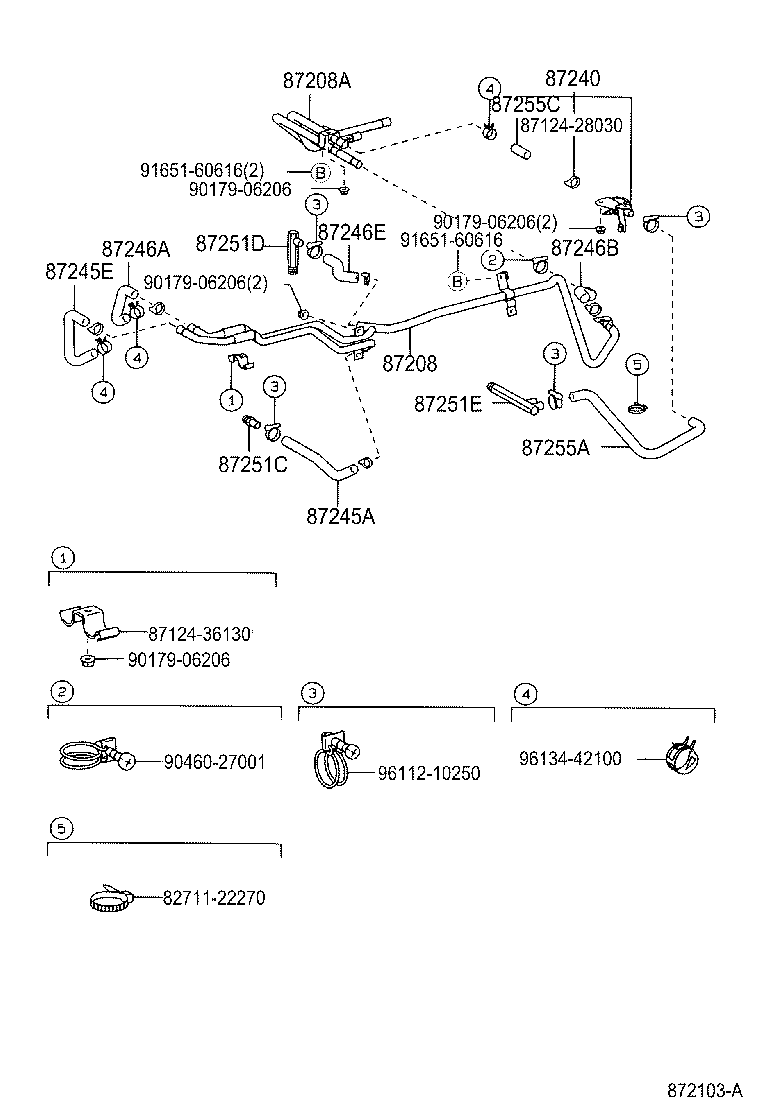

ILLUST NO. 1 OF 3(9301-9907)BB4#

Click highlighted areas on diagram

ﾌﾛﾝﾄ(ｶﾝﾚｲﾁｼﾖｳ)

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36390	BB4# ｱﾘ(ﾘﾔﾋ-ﾀ)	01/1993 - 05/1997	1
87208-36370	HDB5#,HZB4#,5#	01/1993 - 05/1997	1
87208-36411	BB4# ｶﾝﾚｲﾁｼﾖｳ	05/1997 - 07/1999	1
87208-36391	BB4#	05/1997 - 07/1999	1
87208-36371	HDB5#,HZB4#,5#	05/1997 - 07/1999	1
87208-36410	BB4# ｶﾝﾚｲﾁｼﾖｳ	01/1993 - 05/1997	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36190	BB40	01/1993 - 05/1997	1
87208-36730	BB40	05/1997 - 07/1999	1
87240 - VALVE ASSY, HEATER WATER
87240-36130	HDB51..IV5;BB40,HZB40,50..DX,LX,STD	05/1997 - 07/1999	1
87240-36030	BB40,HZB40,50..DX,LX,STD	01/1993 - 05/1997	1
87245A - HOSE, HEATER WATER, INLET A
87245-36270	HDB5#,HZB4#,5#	01/1993 - 05/1997	1
87245-3B430	BB4# ｱﾘ(ﾘﾔﾋ-ﾀ)	01/1993 - 05/1997	1
87245-36570	BB4# ｶﾝﾚｲﾁｼﾖｳ	01/1993 - 05/1997	1
87245-36571	BB4# ｶﾝﾚｲﾁｼﾖｳ	05/1997 - 07/1999	1
87245-3B431	BB4#	05/1997 - 07/1999	1
87245-36271	HDB5#,HZB4#,5#	05/1997 - 07/1999	1
87245B - HOSE, HEATER WATER, INLET B
87245-36211	BB4# ｶﾝﾚｲﾁｼﾖｳ	05/1997 - 07/1999	1
87245-36210	BB4#,HDB5#,HZB4#,5# ｶﾝﾚｲﾁｼﾖｳ	01/1993 - 05/1997	1
87245-3C470	HDB50,HZB4#,5#..CBU;HDB51..4FC..(CBU,IV1) ｶﾝﾚｲﾁｼﾖｳ	05/1997 - 07/1999	1
87245E - HOSE, HEATER WATER, INLET E
87245-3B391	BB4#,HDB5#,HZB4#,5#	05/1997 - 07/1999	1
87245-3B390	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1997	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B400	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1997	1
87245-3B401	BB4#,HDB5#,HZB4#,5#	05/1997 - 07/1999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3B410	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1997	1
87245-3C440	HDB51..4FC;BB4#,HDB50,HZB4#,5#	05/1997 - 07/1999	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3B440	BB40	01/1993 - 05/1997	1
87245-3B441	BB4#	05/1997 - 07/1999	1
87245-3B481	HDB5#,HZB4#,5#	05/1997 - 07/1999	1
87245-3B480	HDB5#,HZB4#,5#	01/1993 - 05/1997	1
87251D - JOINT, WATER, NO.1
87251-60010	BB4#	01/1993 - 05/1997	1
87251-95403	BB40	05/1997 - 07/1999	1
87251E - JOINT, WATER, NO.2
87251-90B00	BB4#	01/1993 - 04/1994	1
87251-95400	BB4#,5#	04/1994 - 07/1999	1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-36250	BB40 ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙﾋ-ﾀ	01/1993 - 05/1995	1
87245-36250	BB40..39S ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙﾋ-ﾀ	05/1995 - 07/1999	1
87245-36262	HDB50,HZB40,5#;HDB51..IV1,IV5	05/1997 - 07/1999	1
Common parts
87124-28030
87124-36130
87124-36140
90179-06097
90460-27001
90464-00427
91651-60616
91651-B0820
96112-10250
96134-42100

ILLUST NO. 1 OF 3(9301-9907)HDB50,HZB40,5# ; (9301-9907)HDB51..IV1,IV5

Click highlighted areas on diagram

ﾌﾛﾝﾄ(ｶﾝﾚｲﾁｼﾖｳ)

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36390	BB4# ｱﾘ(ﾘﾔﾋ-ﾀ)	01/1993 - 05/1997	1
87208-36370	HDB5#,HZB4#,5#	01/1993 - 05/1997	1
87208-36411	BB4# ｶﾝﾚｲﾁｼﾖｳ	05/1997 - 07/1999	1
87208-36391	BB4#	05/1997 - 07/1999	1
87208-36371	HDB5#,HZB4#,5#	05/1997 - 07/1999	1
87208-36410	BB4# ｶﾝﾚｲﾁｼﾖｳ	01/1993 - 05/1997	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36190	BB40	01/1993 - 05/1997	1
87208-36730	BB40	05/1997 - 07/1999	1
87240 - VALVE ASSY, HEATER WATER
87240-36130	HDB51..IV5;BB40,HZB40,50..DX,LX,STD	05/1997 - 07/1999	1
87240-36030	BB40,HZB40,50..DX,LX,STD	01/1993 - 05/1997	1
87245A - HOSE, HEATER WATER, INLET A
87245-36270	HDB5#,HZB4#,5#	01/1993 - 05/1997	1
87245-3B430	BB4# ｱﾘ(ﾘﾔﾋ-ﾀ)	01/1993 - 05/1997	1
87245-36570	BB4# ｶﾝﾚｲﾁｼﾖｳ	01/1993 - 05/1997	1
87245-36571	BB4# ｶﾝﾚｲﾁｼﾖｳ	05/1997 - 07/1999	1
87245-3B431	BB4#	05/1997 - 07/1999	1
87245-36271	HDB5#,HZB4#,5#	05/1997 - 07/1999	1
87245B - HOSE, HEATER WATER, INLET B
87245-36211	BB4# ｶﾝﾚｲﾁｼﾖｳ	05/1997 - 07/1999	1
87245-36210	BB4#,HDB5#,HZB4#,5# ｶﾝﾚｲﾁｼﾖｳ	01/1993 - 05/1997	1
87245-3C470	HDB50,HZB4#,5#..CBU;HDB51..4FC..(CBU,IV1) ｶﾝﾚｲﾁｼﾖｳ	05/1997 - 07/1999	1
87245E - HOSE, HEATER WATER, INLET E
87245-3B391	BB4#,HDB5#,HZB4#,5#	05/1997 - 07/1999	1
87245-3B390	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1997	1
87245X - HOSE, HEATER WATER
87245-36280	BB40,HZB41,50..15S,39S,49S NO.3	01/1993 - 05/1997	1
87245-36290	BB40,HZB41,50..15S,39S,49S NO.1	01/1993 - 05/1997	1
87245-3C050	BB40,HZB50..39S,49S NO.4	01/1993 - 05/1997	1
99556-30100	BB40,HDB5#,HZB4#,50 *H,L=55	01/1993 - 05/1997	1
87245-3C040	BB40,HZB50..39S,49S NO.2	01/1993 - 05/1997	1
87245-3C051	BB40,HZB40,50..39S,49S NO.4	05/1997 - 07/1999	1
87245-3C580	BB40,HZB40,50..39S,49S NO.3	05/1997 - 07/1999	1
87245-3C570	BB40,HZB40,50..39S,49S NO.1	05/1997 - 07/1999	1
87245-3C041	BB40,HZB40,50..39S,49S NO.2	05/1997 - 07/1999	1
87245-3C730	HZB40..LX;BB4#,HDB5#,HZB41,5#..CBU,IV5 ｶﾝﾚｲﾁｼﾖｳ & ﾊﾞﾝﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ OR ｶﾝﾚｲﾁｼﾖｳ & ﾄｳｻｲﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ	05/1997 - 07/1999	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B400	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1997	1
87245-3B401	BB4#,HDB5#,HZB4#,5#	05/1997 - 07/1999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3B410	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1997	1
87245-3C440	HDB51..4FC;BB4#,HDB50,HZB4#,5#	05/1997 - 07/1999	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3B440	BB40	01/1993 - 05/1997	1
87245-3B441	BB4#	05/1997 - 07/1999	1
87245-3B481	HDB5#,HZB4#,5#	05/1997 - 07/1999	1
87245-3B480	HDB5#,HZB4#,5#	01/1993 - 05/1997	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-36180	BB4#	01/1993 - 05/1997	1
87245-36181	BB4#	05/1997 - 07/1999	1
Common parts
87124-28030
87124-36130
87124-36140
87124-36150
90179-06097
90460-27001
90464-00427
91651-60616
91651-B0820
96112-10250
96134-42100

ILLUST NO. 3 OF 3(9301-9907)BB4#,HDB5#,HZB4#,5#

Click highlighted areas on diagram

ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ

Part #	Description	Period	Qty
87208E - PIPE SUB-ASSY, HEATER WATER, E
87208-36320	HZB40..LX;BB4#,HDB5#,HZB41,5#..CBU,IV5 ｶﾝﾚｲﾁｼﾖｳ	01/1993 - 07/1999	1
87245H - HOSE, HEATER WATER, INLET H
87245-36190	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
87245Q - HOSE, HEATER WATER, INLET Q
87245-36200	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
87248J - PIPE, HEATER WATER INLET, J
87248-36100	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
87248K - PIPE, HEATER WATER INLET, K
87248-36110	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
87260 - PUMP ASSY, HEATER
87260-36030	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
87452J - BRACKET, REAR HEATER PIPE, NO.1
87452-36170	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
87452K - BRACKET, REAR HEATER PIPE, NO.2
87452-36180	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
87452L - BRACKET, REAR HEATER PIPE, NO.3
87452-36190	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
Common parts
87124-36240
87124-36250
87124-36260
87124-36270
90179-08017
91651-B0820
94130-00802
96112-10360

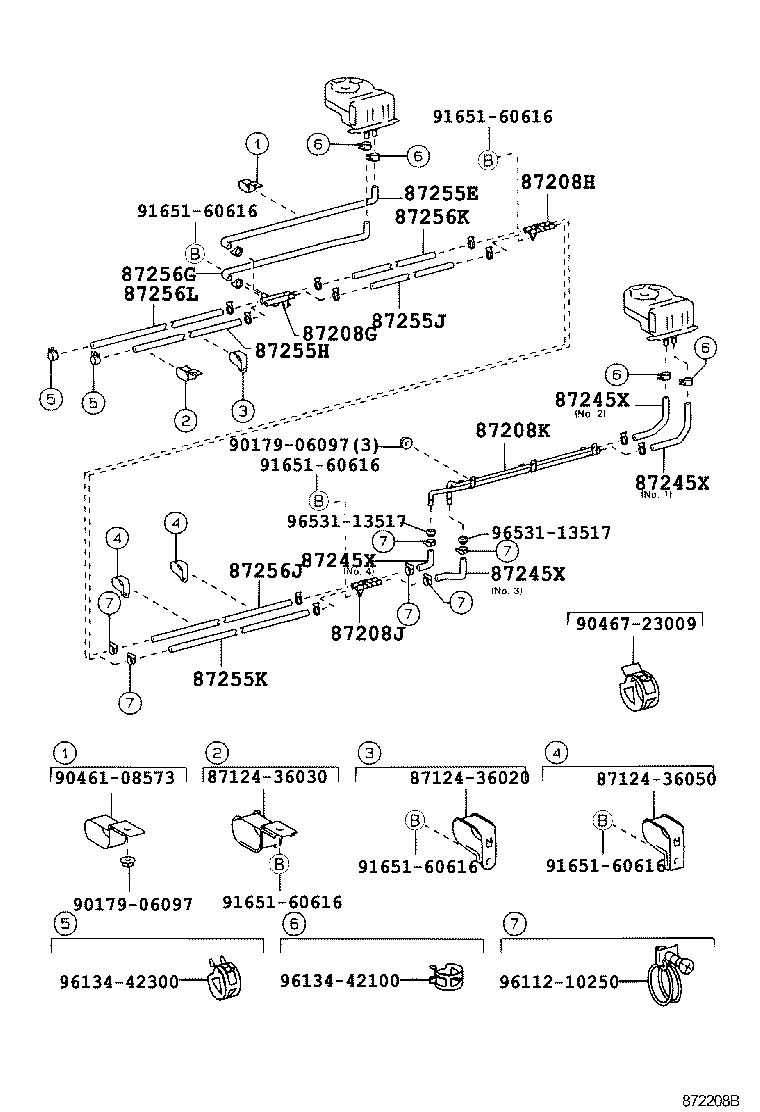

ILLUST NO. 2 OF 3(9301-9907)39S

Click highlighted areas on diagram

ﾘﾔ

Part #	Description	Period	Qty
87208G - PIPE SUB-ASSY, HEATER WATER, G
87208-36540	HDB51..IV1,IV5;BB4#,HDB50,HZB4#,5#	01/1993 - 07/1999	1
87208H - PIPE SUB-ASSY, HEATER WATER, H
87208-36590	BB40,HZB4#	01/1993 - 05/1997	1
87208-36591	BB40,HZB40..39S	05/1997 - 07/1999	1
87208J - PIPE SUB-ASSY, HEATER WATER, J
87208-36530	BB40,HDB50,HZB4#,50	01/1993 - 05/1997	1
87208-36670	HDB51..IV1;BB40,HDB50,HZB40,50..29S,39S,49S	05/1997 - 07/1999	1
87208K - PIPE SUB-ASSY, HEATER WATER, K
87208-36580	BB40,HZB50..39S,49S	01/1993 - 05/1997	1
87208-36581	BB40,HZB40,50..39S,49S	05/1997 - 07/1999	1
87245X - HOSE, HEATER WATER
87245-36280	BB40,HZB41,50..15S,39S,49S NO.3	01/1993 - 05/1997	1
87245-36290	BB40,HZB41,50..15S,39S,49S NO.1	01/1993 - 05/1997	1
87245-3C050	BB40,HZB50..39S,49S NO.4	01/1993 - 05/1997	1
99556-30100	BB40,HDB5#,HZB4#,50 *H,L=55	01/1993 - 05/1997	1
87245-3C040	BB40,HZB50..39S,49S NO.2	01/1993 - 05/1997	1
87245-3C051	BB40,HZB40,50..39S,49S NO.4	05/1997 - 07/1999	1
87245-3C580	BB40,HZB40,50..39S,49S NO.3	05/1997 - 07/1999	1
87245-3C570	BB40,HZB40,50..39S,49S NO.1	05/1997 - 07/1999	1
87245-3C041	BB40,HZB40,50..39S,49S NO.2	05/1997 - 07/1999	1
87245-3C730	HZB40..LX;BB4#,HDB5#,HZB41,5#..CBU,IV5 ｶﾝﾚｲﾁｼﾖｳ & ﾊﾞﾝﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ OR ｶﾝﾚｲﾁｼﾖｳ & ﾄｳｻｲﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ	05/1997 - 07/1999	1
87245X - HOSE, HEATER WATER
87245-36280	BB40,HZB41,50..15S,39S,49S NO.3	01/1993 - 05/1997	1
87245-36290	BB40,HZB41,50..15S,39S,49S NO.1	01/1993 - 05/1997	1
87245-3C050	BB40,HZB50..39S,49S NO.4	01/1993 - 05/1997	1
99556-30100	BB40,HDB5#,HZB4#,50 *H,L=55	01/1993 - 05/1997	1
87245-3C040	BB40,HZB50..39S,49S NO.2	01/1993 - 05/1997	1
87245-3C051	BB40,HZB40,50..39S,49S NO.4	05/1997 - 07/1999	1
87245-3C580	BB40,HZB40,50..39S,49S NO.3	05/1997 - 07/1999	1
87245-3C570	BB40,HZB40,50..39S,49S NO.1	05/1997 - 07/1999	1
87245-3C041	BB40,HZB40,50..39S,49S NO.2	05/1997 - 07/1999	1
87245-3C730	HZB40..LX;BB4#,HDB5#,HZB41,5#..CBU,IV5 ｶﾝﾚｲﾁｼﾖｳ & ﾊﾞﾝﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ OR ｶﾝﾚｲﾁｼﾖｳ & ﾄｳｻｲﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ	05/1997 - 07/1999	1
87245X - HOSE, HEATER WATER
87245-36280	BB40,HZB41,50..15S,39S,49S NO.3	01/1993 - 05/1997	1
87245-36290	BB40,HZB41,50..15S,39S,49S NO.1	01/1993 - 05/1997	1
87245-3C050	BB40,HZB50..39S,49S NO.4	01/1993 - 05/1997	1
99556-30100	BB40,HDB5#,HZB4#,50 *H,L=55	01/1993 - 05/1997	1
87245-3C040	BB40,HZB50..39S,49S NO.2	01/1993 - 05/1997	1
87245-3C051	BB40,HZB40,50..39S,49S NO.4	05/1997 - 07/1999	1
87245-3C580	BB40,HZB40,50..39S,49S NO.3	05/1997 - 07/1999	1
87245-3C570	BB40,HZB40,50..39S,49S NO.1	05/1997 - 07/1999	1
87245-3C041	BB40,HZB40,50..39S,49S NO.2	05/1997 - 07/1999	1
87245-3C730	HZB40..LX;BB4#,HDB5#,HZB41,5#..CBU,IV5 ｶﾝﾚｲﾁｼﾖｳ & ﾊﾞﾝﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ OR ｶﾝﾚｲﾁｼﾖｳ & ﾄｳｻｲﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ	05/1997 - 07/1999	1
87245X - HOSE, HEATER WATER
87245-36280	BB40,HZB41,50..15S,39S,49S NO.3	01/1993 - 05/1997	1
87245-36290	BB40,HZB41,50..15S,39S,49S NO.1	01/1993 - 05/1997	1
87245-3C050	BB40,HZB50..39S,49S NO.4	01/1993 - 05/1997	1
99556-30100	BB40,HDB5#,HZB4#,50 *H,L=55	01/1993 - 05/1997	1
87245-3C040	BB40,HZB50..39S,49S NO.2	01/1993 - 05/1997	1
87245-3C051	BB40,HZB40,50..39S,49S NO.4	05/1997 - 07/1999	1
87245-3C580	BB40,HZB40,50..39S,49S NO.3	05/1997 - 07/1999	1
87245-3C570	BB40,HZB40,50..39S,49S NO.1	05/1997 - 07/1999	1
87245-3C041	BB40,HZB40,50..39S,49S NO.2	05/1997 - 07/1999	1
87245-3C730	HZB40..LX;BB4#,HDB5#,HZB41,5#..CBU,IV5 ｶﾝﾚｲﾁｼﾖｳ & ﾊﾞﾝﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ OR ｶﾝﾚｲﾁｼﾖｳ & ﾄｳｻｲﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ	05/1997 - 07/1999	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-3C030	BB40..39S	01/1993 - 05/1997	1
87245-3C031	BB40,HZB40..39S	05/1997 - 07/1999	1
87255H - HOSE, HEATER WATER INLET, H
87245-3B660	BB40,HDB50,HZB4#,50	01/1993 - 05/1997	1
87245-3B661	HDB51..IV5;BB40,HDB50,HZB4#,50 ｶﾝﾚｲﾁｼﾖｳ	05/1997 - 07/1999	1
87255J - HOSE, HEATER WATER INLET, J
87245-3B820	BB40,HZB4#	01/1993 - 05/1997	1
87245-3B821	HZB40..5F;BB40,HZB41;HZB40..4FC..CBU	05/1997 - 07/1999	1
87255K - HOSE, REAR HEATER WATER INLET, K
99556-31000	HDB51..29S..4FC;BB4#,HDB50,HZB4#,50 *H,L=720	04/1993 - 05/1995	1
87245-3C690	HZB40..5F;HDB51..IV1;HZB40..4FC..CBU;BB4#,HDB50,HZB41,5#	05/1997 - 07/1999	1
99556-31000	BB4#,HDB50,HZB4#,5# *H,L=720	05/1995 - 05/1997	1
99556-31000	BB4#,HDB50,HZB4#,50 *H,L=720	01/1993 - 04/1993	1
87256G - HOSE, REAR HEATER WATER OUTLET, G
87245-3C020	BB40..39S	01/1993 - 05/1997	1
87245-3C021	BB40,HZB40..39S	05/1997 - 07/1999	1
87256J - HOSE, REAR HEATER WATER OUTLRT, J
99556-31000	HDB51..29S..4FC;BB4#,HDB50,HZB4#,50 *H,L=720	04/1993 - 05/1995	1
99556-31000	BB4#,HDB50,HZB4#,5# *H,L=720	05/1995 - 05/1997	1
99556-31000	BB4#,HDB50,HZB4#,50 *H,L=720	01/1993 - 04/1993	1
87245-3C690	HZB40..5F;HDB51..IV1;HZB40..4FC..CBU;BB4#,HDB50,HZB41,5#	05/1997 - 07/1999	1
87256K - HOSE, REAR HEATER WATER OUTLET, K
87245-3B830	BB40,HZB4#	01/1993 - 05/1997	1
87245-3B831	HZB40..5F;BB40,HZB41;HZB40..4FC..CBU	05/1997 - 07/1999	1
87256L - HOSE, REAR HEATER WATER OUTLET, L
87245-3B651	HDB51..IV1,IV5;BB40,HDB50,HZB4#,50 ｶﾝﾚｲﾁｼﾖｳ	05/1997 - 07/1999	1
87245-3B650	BB40,HDB50,HZB4#,50	01/1993 - 05/1997	1
Common parts
87124-36020
87124-36030
87124-36050
90179-06097
90461-08573
90467-23009
91651-60616
96112-10250
96134-42100
96134-42300
96531-13517

ILLUST NO. 3 OF 3(9301-9907)BB4#,HDB5#,HZB4#,5#

Click highlighted areas on diagram

ﾊﾟﾜ-ﾋ-ﾀﾂｷ

Part #	Description	Period	Qty
87208E - PIPE SUB-ASSY, HEATER WATER, E
87208-36320	HZB40..LX;BB4#,HDB5#,HZB41,5#..CBU,IV5 ｶﾝﾚｲﾁｼﾖｳ	01/1993 - 07/1999	1
87245H - HOSE, HEATER WATER, INLET H
87245-36190	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
87245J - HOSE, HEATER WATER, INLET J
87245-3B380	BB4#,HDB5#,HZB4#,5#..CBU,IV5	01/1993 - 07/1999	1
87245K - HOSE, HEATER WATER, INLET K
87245-3B360	BB4#,HDB5#,HZB4#,5#..CBU,IV5	01/1993 - 07/1999	1
87245L - HOSE, HEATER WATER, L
87245-3B640	BB4#,HDB5#,HZB4#,5#..CBU,IV5	01/1993 - 07/1999	1
87245M - HOSE, HEATER WATER, M
87245-3B630	BB4#,HDB5#,HZB4#,5#..CBU,IV5	01/1993 - 07/1999	1
87245N - HOSE, HEATER WATER, INLET N
87245-3B350	BB4#,HDB5#,HZB4#,5#..CBU,IV5	01/1993 - 07/1999	1
87245P - HOSE, HEATER WATER, INLET P
87245-3B370	BB4#,HDB5#,HZB4#,5#..CBU,IV5	01/1993 - 07/1999	1
87248J - PIPE, HEATER WATER INLET, J
87248-36100	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
87248K - PIPE, HEATER WATER INLET, K
87248-36110	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
87248L - PIPE, HEATER WATER, L
87248-36120	BB4#,HDB5#,HZB4#,5#..CBU,IV5	01/1993 - 07/1999	1
87248M - PIPE, HEATER WATER, M
87248-36130	BB4#,HDB5#,HZB4#,5#..CBU,IV5	01/1993 - 07/1999	1
87260 - PUMP ASSY, HEATER
87260-36030	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
87452F - BRACKET, POWER HEATER, NO.3
87452-36090	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
87452G - BRACKET, REAR HEATER, NO.1
87452-36110	BB4#,HDB5#,HZB4#,5#..CBU,IV5	01/1993 - 07/1999	1
87452H - BRACKET, REAR HEATER, NO.2
87452-36120	BB4#,HDB5#,HZB4#,5#..CBU,IV5	01/1993 - 07/1999	1
87452J - BRACKET, REAR HEATER PIPE, NO.1
87452-36170	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
87452K - BRACKET, REAR HEATER PIPE, NO.2
87452-36180	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
87452L - BRACKET, REAR HEATER PIPE, NO.3
87452-36190	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
Common parts
87124-36100
87124-36190
87124-36200
87124-36230
87124-36240
87124-36250
87124-36260
87124-36270
90179-08017
91651-60620
91651-B0820
94130-00802
96112-10360

BB40-BKMSS (1993)

ILLUST NO. 1 OF 3(9301-9907)BB4#

ILLUST NO. 1 OF 3(9301-9907)BB4#

ILLUST NO. 1 OF 3(9301-9907)HDB50,HZB40,5# ; (9301-9907)HDB51..IV1,IV5

ILLUST NO. 3 OF 3(9301-9907)BB4#,HDB5#,HZB4#,5#

ILLUST NO. 2 OF 3(9301-9907)39S

ILLUST NO. 3 OF 3(9301-9907)BB4#,HDB5#,HZB4#,5#

Part Price Details
