BB40-BKMSS (1993)
Toyota Coaster

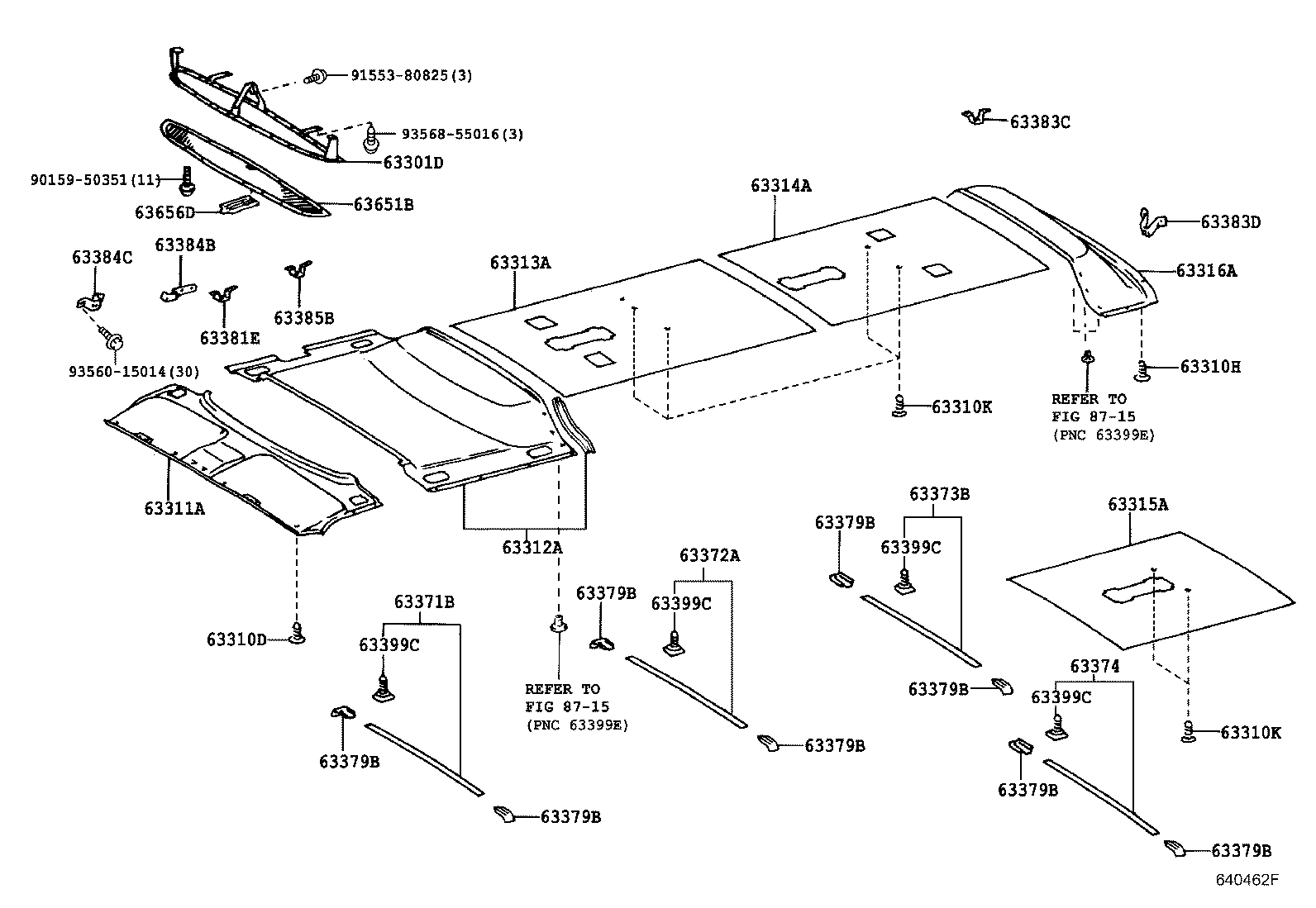

ILLUST NO. 1 OF 3(9301-0408)HZB50..STD..WC ; (9301-0408)BB40,BZB40,50,HZB40..SRF..WC ; (0408- )SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63301D - PLATE SUB-ASSY, ROOF HEADLINING SET | ||||
| 63301-36020 |
BB40,HZB40,50..SRF..(LX,STD)..WC |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-08104A3 |
BB40,HZB50..SRF..(LX,STD)..WC IVORY,TRIM4# |
13 | ||
| 90467-08104A3 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
12 | ||
| 90467-08104A1 |
BB40,HZB50..SRF..(LX,STD)..WC IVORY,TRIM4# |
13 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-08104A3 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
8 | ||
| 63310K - CLIP | ||||
| 90467-08104A3 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
6 | ||
| 63310K - CLIP | ||||
| 90467-08104A3 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
6 | ||
| 63311A - HEADLINING, ROOF NO.1 | ||||
| 63311-36060A1 |
BB40,HZB40,50..SRF..(LX,STD)..WC IVORY,TRIM4# |
1 | ||
| 63311-36060A0 |
BB40,HZB50..SRF..(LX,STD)..WC IVORY,TRIM4# |
1 | ||
| 63312A - HEADLINING, ROOF, NO.2 | ||||
| 63312-36070A0 |
BB40,HZB50..SRF..(LX,STD)..WC IVORY,TRIM4# |
1 | ||
| 63312-36070A1 |
BB40,HZB40,50..SRF..(LX,STD)..WC IVORY,TRIM4# |
1 | ||
| 63313A - HEADLINING, ROOF, NO.3 | ||||
| 63313-36060A0 |
BB40,HZB50..SRF..(LX,STD)..WC IVORY,TRIM4# |
1 | ||
| 63313-36160A0 |
BB40,HZB50..SRF..(LX,STD)..WC ｱﾘ(2 ｽﾋﾟ-ｶ),IVORY,TRIM4# |
1 | ||
| 63313-36060A1 |
BB40,HZB40,50..SRF..(LX,STD)..WC IVORY,TRIM4# |
1 | ||
| 63313-36160A1 |
BB40,HZB40,50..SRF..(LX,STD)..WC ｱﾘ(2 ｽﾋﾟ-ｶ),IVORY,TRIM4# |
1 | ||
| 63314A - HEADLINING, ROOF, NO.4 | ||||
| 63314-36020A1 |
BB40,HZB40..SRF..(LX,STD)..WC IVORY,TRIM4# |
1 | ||
| 63314-36020A0 |
BB40..SRF..(LX,STD)..WC IVORY,TRIM4# |
1 | ||
| 63314-36490A0 |
BB40..SRF..(LX,STD)..WC ｱﾘ(2 ｽﾋﾟ-ｶ),IVORY,TRIM4# |
1 | ||
| 63314-36490A1 |
BB40,HZB40..SRF..(LX,STD)..WC ｱﾘ(2 ｽﾋﾟ-ｶ),IVORY,TRIM4# |
1 | ||
| 63316A - HEADLINING, ROOF, NO.6 | ||||
| 63316-36110A0 |
BB40,HZB50..WC IVORY,TRIM4# |
1 | ||
| 63316-36110A1 |
BB40,HZB40,50..WC IVORY,TRIM4# |
1 | ||
| 63371B - MOULDING, ROOF BOARD SET, NO.1 | ||||
| 63371-36040A0 |
BB40,HZB50..SRF..(LX,STD)..WC IVORY,TRIM4# |
1 | ||
| 63371-36040A1 |
BB40,HZB40,50..SRF..(LX,STD)..WC IVORY,TRIM4# |
1 | ||
| 63372A - MOULDING, ROOF BOARD SET, NO.2 | ||||
| 63371-36040A0 |
BB40,HZB50..SRF..(LX,STD)..WC IVORY,TRIM4# |
1 | ||
| 63371-36040A1 |
BB40,HZB40,50..SRF..(LX,STD)..WC IVORY,TRIM4# |
1 | ||
| 63373B - MOULDING, ROOF BOARD SET, NO.3 | ||||
| 63371-36040A1 |
BB40,HZB40,50..SRF..(LX,STD)..WC IVORY,TRIM4# |
1 | ||
| 63371-36040A0 |
BB40,HZB50..SRF..(LX,STD)..WC IVORY,TRIM4# |
1 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63373-36040A0 |
BB40,HZB50..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63374-36030A0 |
BB40..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010A1 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63373-36040A1 |
BB40,HZB40,50..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36030A1 |
BB40,HZB40..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63373-36040A0 |
BB40,HZB50..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63374-36030A0 |
BB40..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010A1 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63373-36040A1 |
BB40,HZB40,50..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36030A1 |
BB40,HZB40..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63373-36040A0 |
BB40,HZB50..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63374-36030A0 |
BB40..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010A1 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63373-36040A1 |
BB40,HZB40,50..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36030A1 |
BB40,HZB40..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63373-36040A0 |
BB40,HZB50..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63374-36030A0 |
BB40..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010A1 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63373-36040A1 |
BB40,HZB40,50..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36030A1 |
BB40,HZB40..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63373-36040A0 |
BB40,HZB50..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63374-36030A0 |
BB40..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010A1 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63373-36040A1 |
BB40,HZB40,50..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36030A1 |
BB40,HZB40..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63373-36040A0 |
BB40,HZB50..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63374-36030A0 |
BB40..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010A1 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63373-36040A1 |
BB40,HZB40,50..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36030A1 |
BB40,HZB40..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63373-36040A0 |
BB40,HZB50..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63374-36030A0 |
BB40..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010A1 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63373-36040A1 |
BB40,HZB40,50..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36030A1 |
BB40,HZB40..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63373-36040A0 |
BB40,HZB50..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63374-36030A0 |
BB40..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63379-36010A1 |
BB4#,HZB4#..(EX,LX,STD)..WC IVORY,TRIM4#,CENTER |
2 | ||
| 63373-36040A1 |
BB40,HZB40,50..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36030A1 |
BB40,HZB40..SRF..(LX,STD)..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-36020 |
BB40,HZB40,50..SRF..(LX,STD)..WC 運転席側 |
2 | ||
| 63385-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) 助手席側 |
3 | ||
| 63383C - RETAINER, ROOF HEADLINING TRIM, REAR | ||||
| 63385-36010 |
BB40,HZB40,50..SRF..(LX,STD)..WC |
1 | ||
| 63383D - RETAINER, ROOF HEADLINING, REAR | ||||
| 63383-36020 |
BB40,HZB40,50..WC |
2 | ||
| 63384B - BRACKET, ROOF HEADLINING TRIM RETAINER | ||||
| 63384-36030 |
BB40,HZB40,50..SRF..(LX,STD)..WC |
1 | ||
| 63384C - RETAINER, ROOF HEADLINING TRIM SIDE, NO.1 | ||||
| 63385-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
2 | ||
| 63385B - RETAINER, ROOF HEADLINING TRIM SIDE, NO.1 | ||||
| 63385-36010 |
BB4#,58,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
2 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-36020 |
BB4#,HZB4#..(EX,LX,STD)..WC |
18 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-36020 |
BB4#,HZB4#..(EX,LX,STD)..WC |
18 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-36020 |
BB4#,HZB4#..(EX,LX,STD)..WC |
18 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-36020 |
BB4#,HZB4#..(EX,LX,STD)..WC |
18 | ||
| 63651B - NET, AIR INTAKE | ||||
| 63651-36011A1 |
BB4#,58,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 63651-36010A0 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
1 | ||
| 63651-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
1 | ||
| 63656D - COVER, AIR INTAKE, CENTER | ||||
| 63656-36010A0 |
BB4#,58,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-50351 | ||||
| 91553-80825 | ||||
| 93560-15014 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8715 | ||||

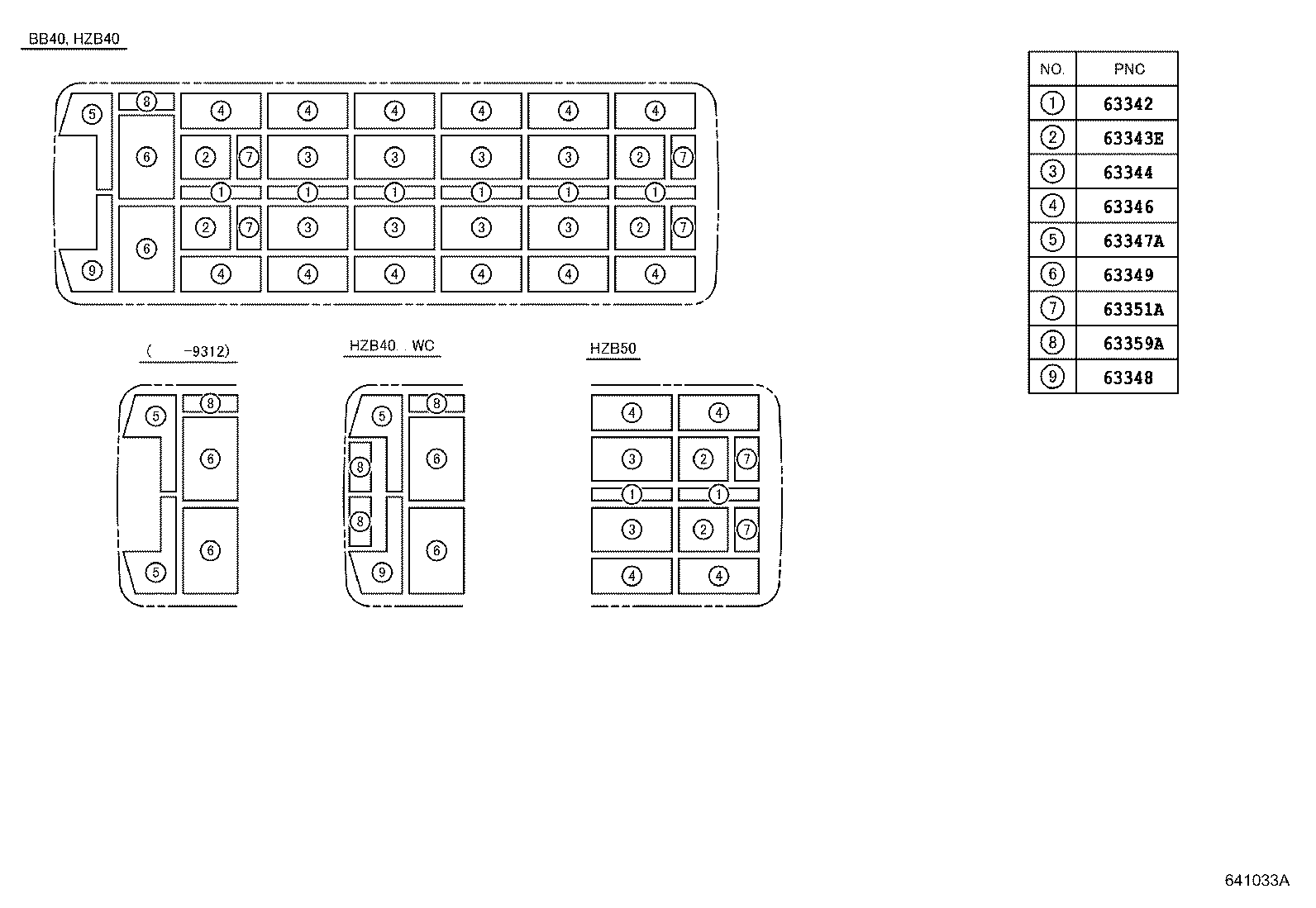

ILLUST NO. 3 OF 3(9301-9907)SRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-36010 |
BB40..SRF |
6 | ||
| 63349-36031 |
BB40,HZB40..SRF |
6 | ||
| 63343E - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-36020 |
HZB41..26S;BB40,HZB50..SRF |
4 | ||
| 63349-36031 |
BB58,HZB41..(15S,29S)..WC;BB4#,55,HDB5#,HZB40,5#..CBU,IV5 |
4 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-36020 |
BB40..SRF |
8 | ||
| 63344-36010 |
BB4#,HZB40 |
8 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-36010 |
BB40..SRF |
12 | ||
| 63349-36031 |
BB40,HZB40..SRF |
12 | ||
| 63347A - PAD, ROOF SILENCER, NO.7 | ||||
| 63347-36041 |
BB58..WC;BB4#,55,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63347-36041 |
HZB40..LX;BB4#,58,HDB5#,HZB41,5#..CBU,IV5 NO.1 |
1 | ||
| 63349-36010 |
BB40,HZB50..SRF |
2 | ||
| 63349-36031 |
BB40,HZB50..SRF |
2 | ||
| 63348 - PAD, ROOF SILENCER, NO.8 | ||||
| 63348-36040 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63349 - PAD, ROOF SILENCER, NO.9 | ||||
| 63349-36010 |
HZB41..15S;BB4#,HZB40,5#..DX,LX,STD |
2 | ||
| 63349-36010 |
BB4#,HZB40,5#..DX,LX,STD |
2 | ||
| 63349-36031 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 63351A - PAD, ROOF SILENCER, NO.10 | ||||
| 63351-36020 |
BB40..SRF |
4 | ||
| 63349-36031 |
BB58..WC;BB4#,55,HZB40,5#..DX,LX,STD |
4 | ||
| 63359A - PAD, ROOF SILENCER, NO.18 | ||||
| 63349-36010 |
HZB41..15S;BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 63349-36010 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 63349-36031 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 63347-36032 |
HZB40..LX;BB4#,5#,HDB5#,HZB41,5#..CBU,IV5 |
1 | ||
