BB40-BKMSS (1993)
Toyota Coaster
ILLUST NO. 1 OF 7(9301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61421 - GLASS, SIDE LOWER WINDOW | ||||
| 62171-36020 |
HZB50..STD..WC;BB4#,55,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S,39S *TT,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 62171-36080 |
BB4#,58,HDB5#,HZB4#,5#..CBU,IV5 *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 62021A - FRAME SUB-ASSY, FRONT SIDE WINDOW, OUTER LH | ||||
| 62021-36010 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 62021-36011 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 62021-36012 |
BB4#,5#,HDB50,HZB40,5# ｼﾙﾊﾞｰ |
1 | ||
| 62029 - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36030 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 62029-36010 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 62029-36033 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62029-36032 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62029-36031 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 62121 - GLASS, FRONT SIDE WINDOW, FRONT LH | ||||
| 62121-36020 |
BB40,HZB50..STD..WC;BB40,HZB50..DX,GX,LX;BB46,HDB50,HZB40,56..WC *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 62121-36050 |
BB4#,58,HDB50,HZB40,5# *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62121-36021 |
BB40,HZB50..STD..WC;BB4#,55,HDB50,HZB40,5#..DX,GX,LX *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 62179 - DAM, SIDE LOWER WINDOW | ||||
| 62179-36010 |
BB4#,58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 62179-36010 |
HZB50..STD..WC;BB4#,55,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S,39S |
1 | ||
| 62211F - GLASS, SIDE WINDOW, REAR LH | ||||
| 62211-36020 |
BB40,HZB50..STD..WC;BB40,HZB50..DX,GX,LX;BB46,55,HDB50,HZB40,56..WC *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 62211-36080 |
BB4#,58,HDB50,HZB40,5# *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62269F - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
11 | ||
| 62279 - SPACER, SIDE WINDOW FRAME, UPPER | ||||
| 62279-36030 |
BB4#,58,HDB5#,HZB4#,5#..CBU,IV5 |
7 | ||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
7 | ||
| 62279-36010 |
BB4#,HDB5#,HZB4#,5# |
3 | ||
| 62376A - CLIP, SIDE WINDOW, NO.2 | ||||
| 62376-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 IVORY,TRIM4# |
1 | ||
| 62376-36010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 62391D - STOPPER, SIDE WINDOW, NO.1 LH | ||||
| 62391-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62777J - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36021 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62777-36020 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 62777-36010 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 62778 - CAP, SIDE WINDOW FRONT SASH | ||||
| 62778-36010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 62778-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 IVORY,TRIM4# |
1 | ||
| 62792C - PACKING, SIDE WINDOW LOCK, LH | ||||
| 62792-95A00 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62792C - PACKING, SIDE WINDOW LOCK, LH | ||||
| 62792-95A00 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62793C - RETAINER, SIDE WINDOW LOCK, LH | ||||
| 62793-95J00 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62793C - RETAINER, SIDE WINDOW LOCK, LH | ||||
| 62793-95J00 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62910J - LOCK ASSY, SIDE WINDOW, LH | ||||
| 62910-95702 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62910J - LOCK ASSY, SIDE WINDOW, LH | ||||
| 62910-95702 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 68142D - RUN, SIDE FRONT WINDOW, LH | ||||
| 68142-36011 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 68142-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 68142-36012 |
BB4#,58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 68217A - PIN, SIDE WINDOW , NO.1 | ||||
| 68217-36030 |
BB4#,58,HDB5#,HZB4#,5#..CBU,IV5 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ｵﾚﾝｼﾞ OR ﾌﾞﾗｯｸ |
1 | ||
| 68217-36020 |
HZB50..STD..WC;BB4#,55,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S,39S TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,ｸﾞﾚｰ OR ｸﾞﾘｰﾝ |
1 | ||
| 68217-36030 |
HZB50..STD..WC;BB4#,55,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S,39S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ｵﾚﾝｼﾞ OR ﾌﾞﾗｯｸ |
1 | ||
| 68217-36010 |
HZB50..STD..WC;BB4#,55,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S,39S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｵﾚﾝｼﾞ OR ﾌﾞﾗｯｸ |
1 | ||
| 68217-36020 |
BB4#,58,HDB5#,HZB4#,5#..CBU,IV5 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,ｸﾞﾚｰ OR ｸﾞﾘｰﾝ |
1 | ||
| 68217-36010 |
BB4#,58,HDB5#,HZB4#,5#..CBU,IV5 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｵﾚﾝｼﾞ OR ﾌﾞﾗｯｸ |
1 | ||
| 68218B - BUSH, SIDE WINDOW | ||||
| 68218-36010 |
HZB50..STD..WC;BB4#,55,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S,39S |
3 | ||
| 68218-36010 |
BB4#,58,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||

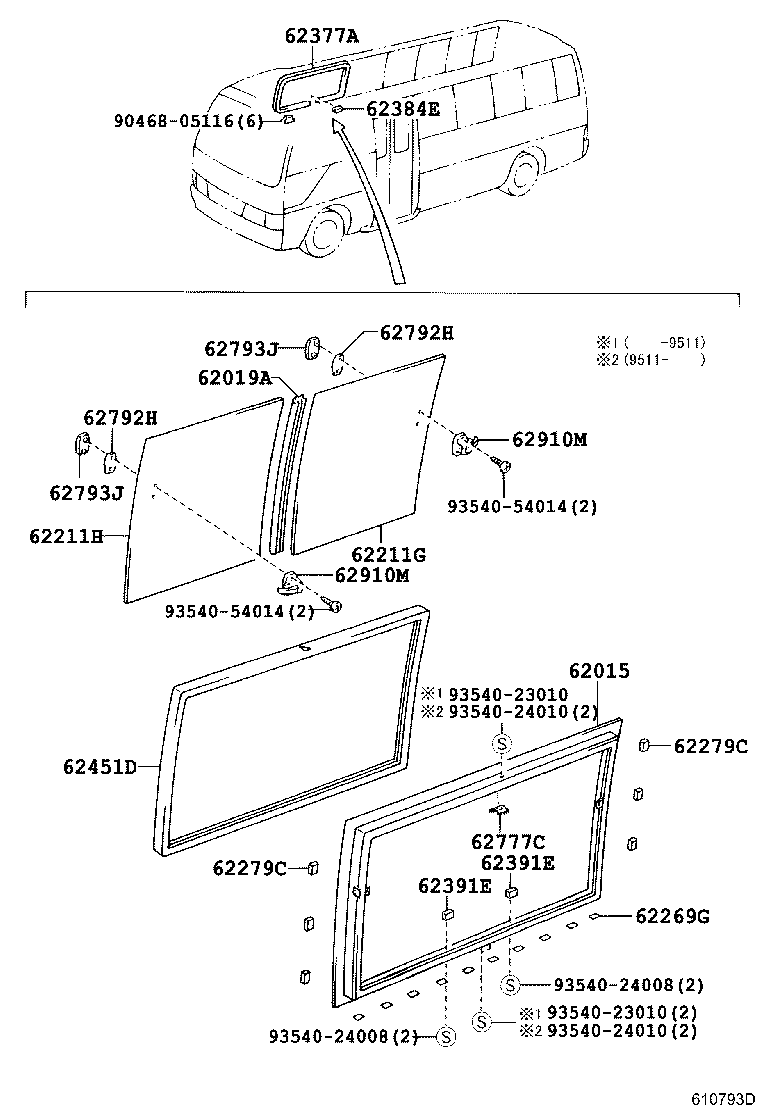

ILLUST NO. 2 OF 7(9301-0408)39S,49S ; (0408- )STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62015 - FRAME SUB-ASSY, SIDE WINDOW, RH | ||||
| 62015-36020 |
BB40,HZB50..39S,49S |
1 | ||
| 62015-36021 |
BB40,HZB40,50..39S,49S ｼﾙﾊﾞｰ |
1 | ||
| 62019A - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36031 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 62019-36032 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62019-36010 |
BB4#,55,HDB50,HZB40,5# |
1 | ||
| 62019-36033 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62211G - GLASS, SIDE WINDOW, REAR RH | ||||
| 62221-36020 |
BB40,HZB50..STD..WC;BB40,HZB50..DX,GX,LX;BB46,55,HDB50,HZB40,56..WC *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 62221-36070 |
BB4#,58,HDB50,HZB40,5# *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62211H - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62211-36020 |
BB40,HZB50..STD..WC;BB40,HZB50..DX,GX,LX;BB46,55,HDB50,HZB40,56..WC *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 62211-36080 |
BB4#,58,HDB50,HZB40,5# *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62269G - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
10 | ||
| 62279C - SPACER, SIDE WINDOW FRAME, RH | ||||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279C - SPACER, SIDE WINDOW FRAME, RH | ||||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM4# |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62384-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM4# |
5 | ||
| 62391E - STOPPER, SIDE WINDOW, NO.1 | ||||
| 62391-36010 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62391E - STOPPER, SIDE WINDOW, NO.1 | ||||
| 62391-36010 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62451D - RUN, REAR SIDE WINDOW, RH | ||||
| 62451-36040 |
BB40,HZB40,50..39S,49S |
1 | ||
| 62451-36041 |
BB40,HZB40,50..39S,49S |
1 | ||
| 62777C - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB4#,55,HDB50,HZB40,5# |
1 | ||
| 62777-36012 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62777-36011 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 62792H - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62792H - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62793J - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62793J - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62910M - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62910M - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB40,HZB40,50..39S,49S |
2 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||

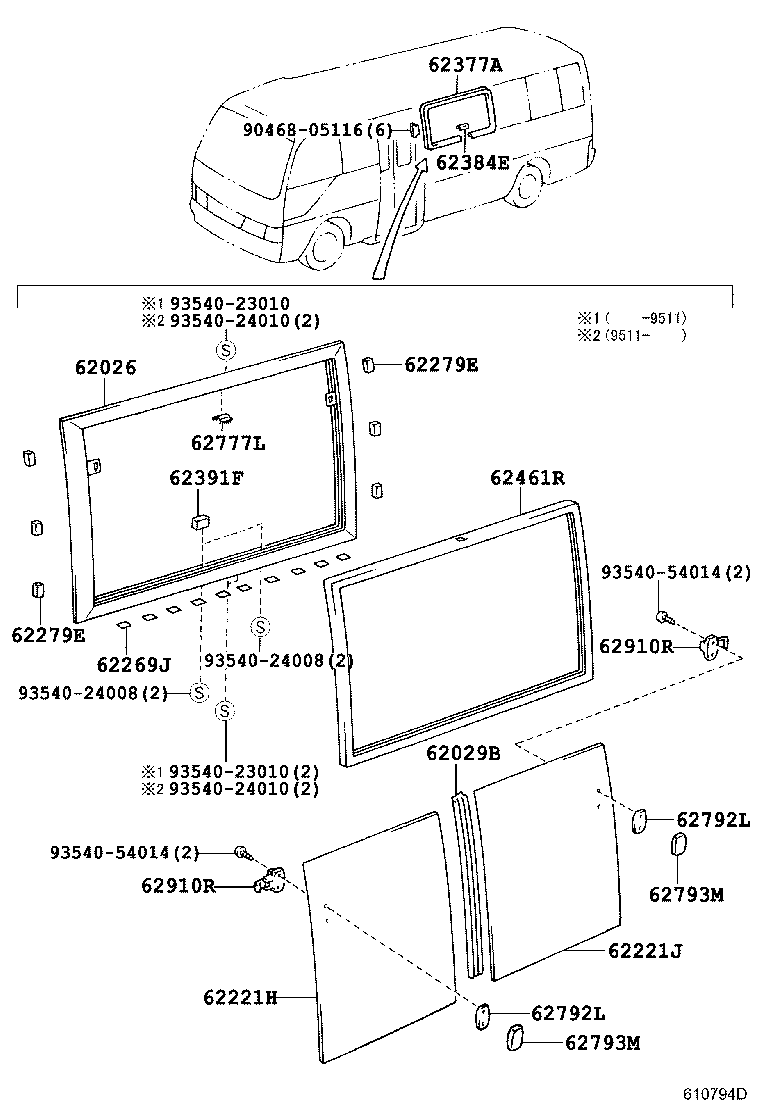

ILLUST NO. 3 OF 7(9301-0408)39S,49S ; (0408- )STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62026 - FRAME SUB-ASSY, SIDE NO.2 WINDOW, OUTER LH | ||||
| 62026-36020 |
BB40,HZB50..39S,49S |
1 | ||
| 62026-36021 |
BB40,HZB40,50..39S,49S ｼﾙﾊﾞｰ |
1 | ||
| 62029B - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36010 |
BB4#,55,HDB50,HZB40,5# |
1 | ||
| 62029-36032 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62029-36031 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 62029-36033 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62221H - GLASS, SIDE WINDOW, FRONT LH | ||||
| 62211-36020 |
BB40,HZB50..WC *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 62211-36080 |
BB40,HZB40,50..39S,49S *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62221J - GLASS, SIDE WINDOW, REAR LH | ||||
| 62221-36020 |
BB40,HZB50..WC *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 62221-36070 |
BB40,HZB40,50..39S,49S *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62269J - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
10 | ||
| 62279E - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279E - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM4# |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62384-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM4# |
5 | ||
| 62391F - STOPPER, SIDE WINDOW, NO.1 | ||||
| 62391-36010 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62461R - RUN, REAR SIDE WINDOW, LH | ||||
| 62461-36040 |
BB40,HZB40,50..39S,49S |
1 | ||
| 62461-36041 |
BB40,HZB40,50..39S,49S |
1 | ||
| 62777L - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB4#,55,HDB50,HZB40,5# |
1 | ||
| 62777-36011 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 62777-36012 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62792L - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62792L - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62793M - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62793M - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62910R - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62910R - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB40,HZB40,50..39S,49S |
2 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
ILLUST NO. 4 OF 7(9301-0408)39S,49S ; (0408- )STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62019C - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36032 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62019-36010 |
BB4#,55,HDB50,HZB40,5# |
1 | ||
| 62019-36033 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62019-36031 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 62211L - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62211-36080 |
BB4#,58,HDB50,HZB40,5# *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62211-36020 |
BB40,HZB50..STD..WC;BB40,HZB50..DX,GX,LX;BB46,55,HDB50,HZB40,56..WC *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 62211M - GLASS, SIDE WINDOW, REAR RH | ||||
| 62221-36020 |
BB40,HZB50..STD..WC;BB40,HZB50..DX,GX,LX;BB46,55,HDB50,HZB40,56..WC *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 62221-36070 |
BB4#,58,HDB50,HZB40,5# *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62269H - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
10 | ||
| 62279F - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279F - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM4# |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62384-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM4# |
5 | ||
| 62391G - STOPPER, SIDE WINDOW, NO.1 | ||||
| 62391-36010 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62391G - STOPPER, SIDE WINDOW, NO.1 | ||||
| 62391-36010 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62451G - RUN, REAR SIDE WINDOW, RH | ||||
| 62451-36040 |
BB40,HZB40,50..39S,49S |
1 | ||
| 62451-36041 |
BB40,HZB40,50..39S,49S |
1 | ||
| 62707A - FRAME SUB-ASSY, SIDE FRONT WINDOW, RH | ||||
| 62707-36020 |
BB40,HZB50..39S,49S |
1 | ||
| 62707-36021 |
BB40,HZB40,50..39S,49S ｼﾙﾊﾞｰ |
1 | ||
| 62777E - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36012 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62777-36010 |
BB4#,55,HDB50,HZB40,5# |
1 | ||
| 62777-36011 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 62792M - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62792M - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62793N - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62793N - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62910S - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62910S - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB40,HZB40,50..39S,49S |
2 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||

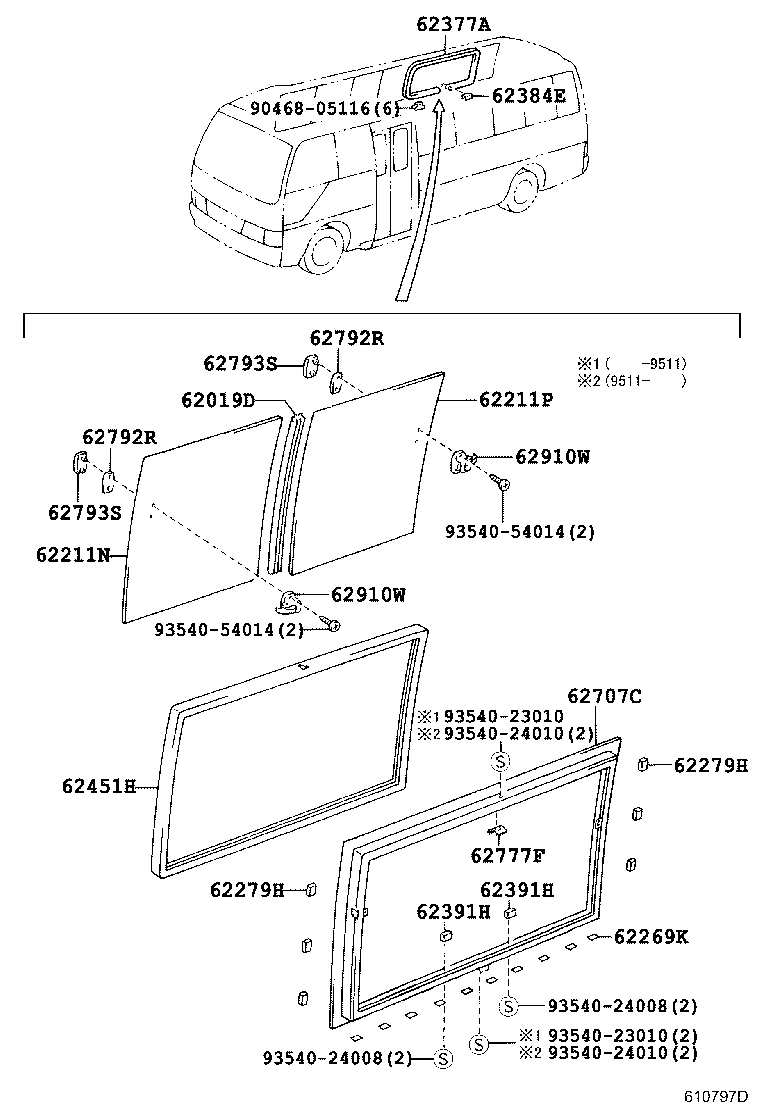

ILLUST NO. 5 OF 7(9301-0408)39S,49S ; (0408- )STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62019D - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36032 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62019-36033 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62019-36010 |
BB4#,55,HDB50,HZB40,5# |
1 | ||
| 62019-36031 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 62211N - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62211-36020 |
BB40,HZB50..STD..WC;BB40,HZB50..DX,GX,LX;BB46,55,HDB50,HZB40,56..WC *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 62211-36080 |
BB4#,58,HDB50,HZB40,5# *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62211P - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62221-36070 |
BB4#,58,HDB50,HZB40,5# *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62221-36020 |
BB40,HZB50..STD..WC;BB40,HZB50..DX,GX,LX;BB46,55,HDB50,HZB40,56..WC *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 62269K - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
10 | ||
| 62279H - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279H - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM4# |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62384-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM4# |
5 | ||
| 62391H - STOPPER, SIDE WINDOW, NO.1 | ||||
| 62391-36010 |
HDB51..EX..CBU;BB40,HZB40,50..39S,49S |
2 | ||
| 62391H - STOPPER, SIDE WINDOW, NO.1 | ||||
| 62391-36010 |
HDB51..EX..CBU;BB40,HZB40,50..39S,49S |
2 | ||
| 62451H - RUN, REAR SIDE WINDOW, RH | ||||
| 62451-36040 |
BB40,HZB40,50..39S,49S |
1 | ||
| 62451-36041 |
BB40,HZB40,50..39S,49S |
1 | ||
| 62707C - FRAME SUB-ASSY, SIDE REAR WINDOW, RH | ||||
| 62707-36020 |
BB40,HZB50..39S,49S |
1 | ||
| 62707-36021 |
BB40,HZB40,50..39S,49S ｼﾙﾊﾞｰ |
1 | ||
| 62777F - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36012 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62777-36011 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 62777-36010 |
BB4#,55,HDB50,HZB40,5# |
1 | ||
| 62792R - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62792R - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62793S - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62793S - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62910W - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62910W - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB40,HZB40,50..39S,49S |
2 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||

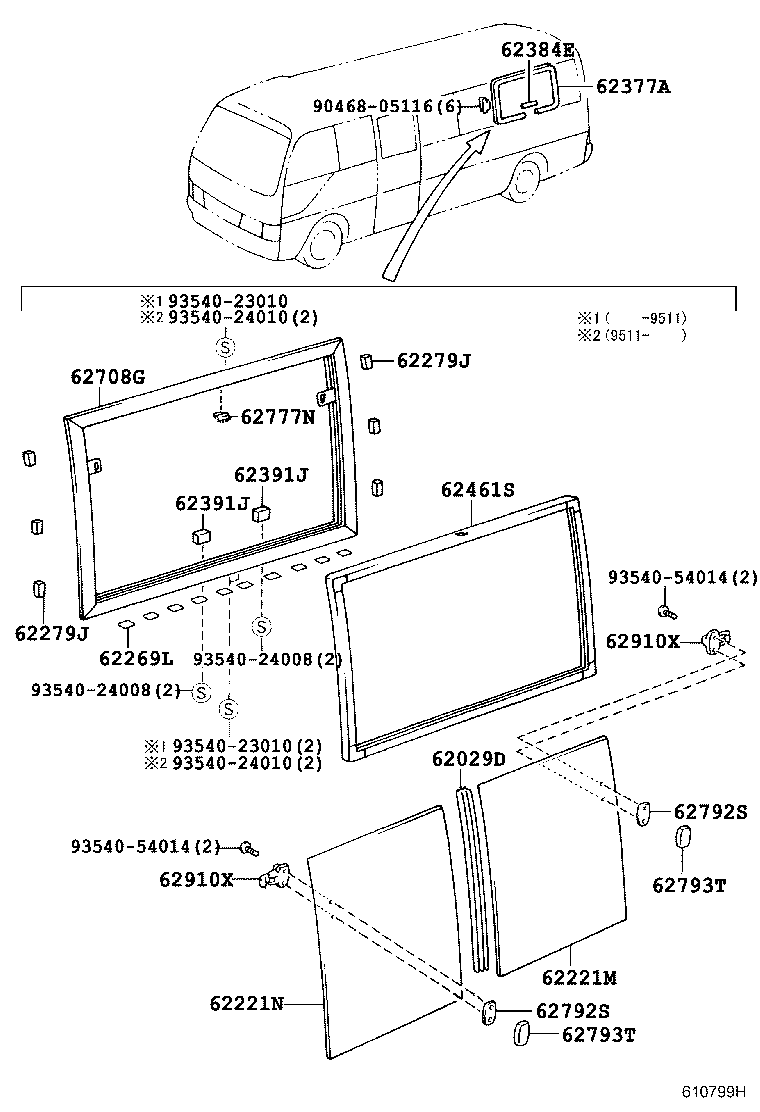

ILLUST NO. 6 OF 7(9301-0408)39S,49S ; (0408- )STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62029D - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36031 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 62029-36032 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62029-36010 |
BB4#,55,HDB50,HZB40,5# |
1 | ||
| 62029-36033 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62221M - GLASS, SIDE WINDOW, REAR LH | ||||
| 62211-36020 |
BB40,HZB50..STD..WC;BB40,HZB50..DX,GX,LX;BB46,55,HDB50,HZB40,56..WC *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 62211-36080 |
BB4#,58,HDB50,HZB40,5# *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62221N - GLASS, SIDE WINDOW, FRONT LH | ||||
| 62221-36020 |
BB40,HZB50..STD..WC;BB40,HZB50..DX,GX,LX;BB46,55,HDB50,HZB40,56..WC *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 62221-36070 |
BB4#,58,HDB50,HZB40,5# *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62269L - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
10 | ||
| 62279J - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279J - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM4# |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62384-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM4# |
5 | ||
| 62391J - STOPPER, SIDE WINDOW, NO.1 | ||||
| 62391-36010 |
HDB51..EX..CBU;BB40,HZB40,50..39S,49S |
2 | ||
| 62391J - STOPPER, SIDE WINDOW, NO.1 | ||||
| 62391-36010 |
HDB51..EX..CBU;BB40,HZB40,50..39S,49S |
2 | ||
| 62461S - RUN, REAR SIDE WINDOW, LH | ||||
| 62461-36041 |
BB40,HZB40,50..39S,49S |
1 | ||
| 62461-36040 |
BB40,HZB40,50..39S,49S |
1 | ||
| 62708G - FRAME SUB-ASSY, SIDE REAR WINDOW, LH | ||||
| 62706-36010 |
BB40,HZB50..39S,49S |
1 | ||
| 62706-36011 |
BB40,HZB40,50..39S,49S |
1 | ||
| 62777N - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB4#,55,HDB50,HZB40,5# |
1 | ||
| 62777-36011 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 62777-36012 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 62792S - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62792S - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62793T - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62793T - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62910X - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB40,HZB40,50..39S,49S |
2 | ||
| 62910X - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB40,HZB40,50..39S,49S |
2 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
