BB40-BKMSS (1993)
Toyota Coaster

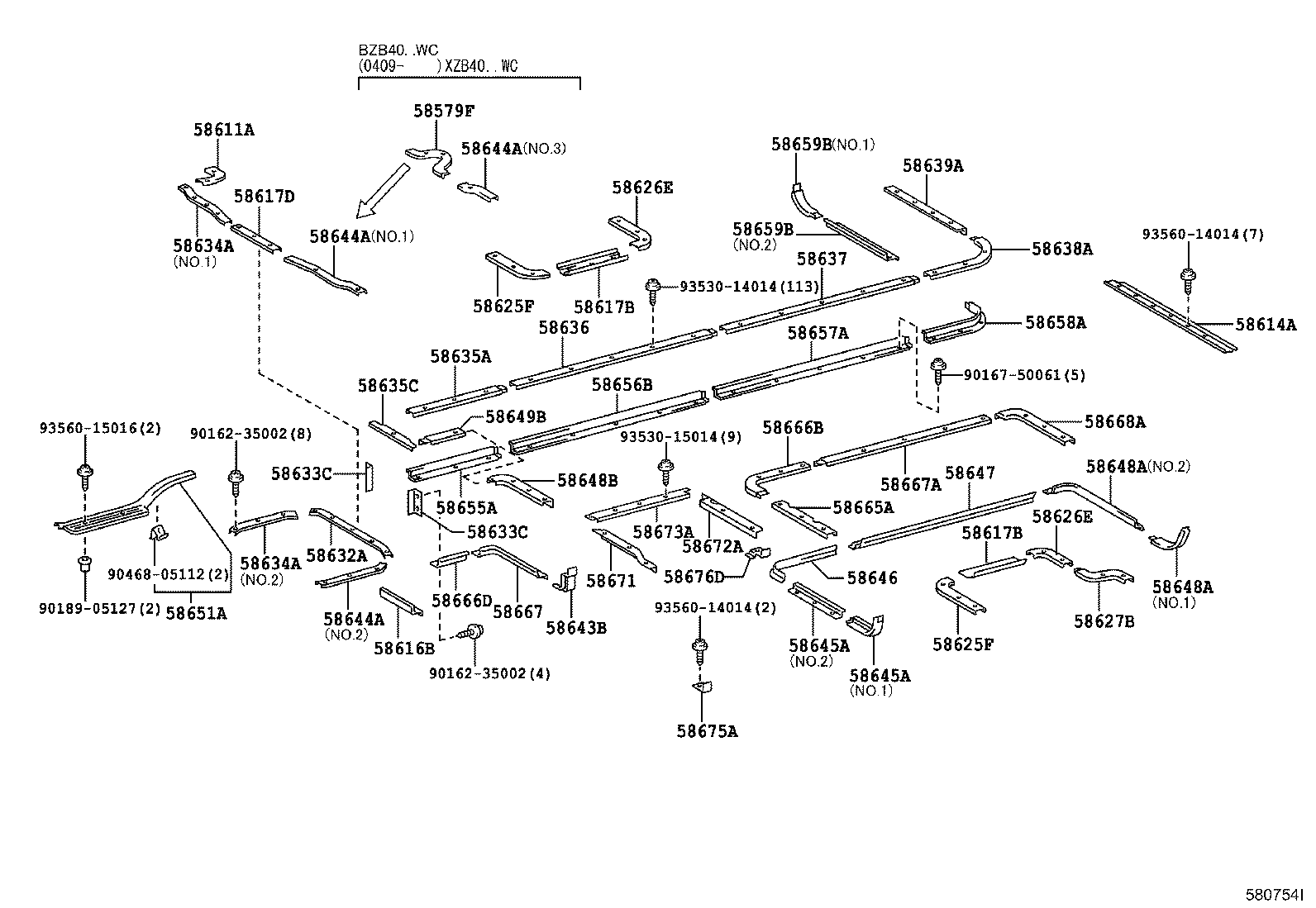

ILLUST NO. 2 OF 3(9301-9907)BB4#,HDB50,HZB4#,5#..09S,15S,26S,29S; (9907-0408)HDB51..IV5 ; (9907-040
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58614-36020E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58614-36020B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58617D - PLATE, REAR WHEEL HOUSE MAT | ||||
| 58574-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58617-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58632A - PLATE, ENGINE SERVICE HOLE MAT, REAR | ||||
| 58632-36010 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 58632-36040 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58634A - PLATE, ENGINE SERVICE HOLE MAT, RH | ||||
| 58634-36020 |
BB40,HZB50..39S,49S NO.2 |
1 | ||
| 58634-36060 |
BB40,HZB40,50..WC NO.1 |
1 | ||
| 58634-36010 |
BB40,HZB50..39S,49S NO.1 |
1 | ||
| 58634-36020 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 58634-36040 |
BB40,HZB50..39S,49S NO.2 |
1 | ||
| 58644A - PLATE, ENGINE SERVICE HOLE MAT, LH | ||||
| 58644-36030 |
BB4#,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 58644-36020 |
BB40,HZB50..39S,49S NO.2 |
1 | ||
| 58644-36010 |
BB40,HZB50..39S,49S NO.1 |
1 | ||
| 58584-36070 |
BB40,HZB40,50..39S,49S NO.1 |
1 | ||
| 58651A - PLATE, FRONT DOOR MAT, NO.1 | ||||
| 58651-36010E0 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 58656B - PLATE, REAR FLOOR, CENTER LOWER NO.2 RH | ||||
| 58658-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58658-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58656B - PLATE, REAR FLOOR, CENTER LOWER NO.2 RH | ||||
| 58658-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58658-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58671 - PLATE, CENTER DOOR STEP MAT, FRONT | ||||
| 58671-36020 |
HZB40..5F;HZB40..4FC..CBU;BB4#,HDB50,HZB5# ｱﾘ(*FD) |
1 | ||
| 58671-36020 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD ｱﾘ(*FD) |
1 | ||
| 58672A - PLATE, CENTER DOOR STEP MAT, REAR | ||||
| 58672-36020 |
BB5#;HZB50..IV5;HZB40..5F..IV5;BB40,HZB40,50..DX,STD ｱﾘ(ｵﾘﾀﾀﾐ ｻｲﾄﾞﾄﾞｱ) |
1 | ||
| 58673A - PLATE, CENTER DOOR STEP MAT SIDE | ||||
| 58673-36020 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58676D - PLATE, CENTER DOOR PILLAR MAT, REAR | ||||
| 58676-36030E0 |
HZB40..5F;HZB40..4FC..CBU;BB4#,5#,HDB50,HZB5# ｱﾘ(*FD),GREIGE,TRIM4# |
1 | ||
| 58676-36030B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90162-35002 | ||||
| 90162-40037 | ||||
| 90167-50062 | ||||
| 90189-04013 | ||||
| 90189-04035 | ||||
| 90189-05127 | ||||
| 90339-03003 | ||||
| 90468-05112 | ||||
| 93530-14014 | ||||
| 93530-15014 | ||||
| 93560-14014 | ||||
| 93560-15016 | ||||
| 93560-54014 | ||||
ILLUST NO. 2 OF 2(9301-0408)39S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58611A - PLATE, MAT SET, NO.1 RH | ||||
| 58611-36030E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58611-36030B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58614-36020E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58614-36020B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58616B - PLATE, MAT SET, NO.6 | ||||
| 58616-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58616-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58617B - PLATE, REAR WHEEL HOUSE MAT | ||||
| 58617-36010 |
BB40,HZB50..39S,49S |
2 | ||
| 58617B - PLATE, REAR WHEEL HOUSE MAT | ||||
| 58617-36010 |
BB40,HZB50..39S,49S |
2 | ||
| 58617D - PLATE, REAR WHEEL HOUSE MAT | ||||
| 58574-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58617-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58625F - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58626-36010 |
BB40,HZB40,50..39S,49S 右側 |
1 | ||
| 58625-36010 |
BB40,HZB40,50..39S,49S 左側 |
1 | ||
| 58625F - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58626-36010 |
BB40,HZB40,50..39S,49S 右側 |
1 | ||
| 58625-36010 |
BB40,HZB40,50..39S,49S 左側 |
1 | ||
| 58626E - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58625-36010 |
BB40,HZB40,50..39S,49S 右側 |
1 | ||
| 58626-36020 |
BB40,HZB40,50..39S,49S 左側 |
1 | ||
| 58626E - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58625-36010 |
BB40,HZB40,50..39S,49S 右側 |
1 | ||
| 58626-36020 |
BB40,HZB40,50..39S,49S 左側 |
1 | ||
| 58627B - PLATE, REAR WHEEL HOUSE MAT, LH | ||||
| 58627-36010 |
BB40,HZB40,50..39S,49S |
1 | ||
| 58632A - PLATE, ENGINE SERVICE HOLE MAT, REAR | ||||
| 58632-36010 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 58632-36040 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58633C - PLATE, MAT SET, NO.1 A | ||||
| 58633-36020E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
2 | ||
| 58633-36020B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
2 | ||
| 58633C - PLATE, MAT SET, NO.1 A | ||||
| 58633-36020E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
2 | ||
| 58633-36020B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
2 | ||
| 58634A - PLATE, ENGINE SERVICE HOLE MAT, RH | ||||
| 58634-36060 |
BB40,HZB40,50..WC NO.1 |
1 | ||
| 58634-36020 |
BB40,HZB50..39S,49S NO.2 |
1 | ||
| 58634-36010 |
BB40,HZB50..39S,49S NO.1 |
1 | ||
| 58634-36020 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 58634-36040 |
BB40,HZB50..39S,49S NO.2 |
1 | ||
| 58634A - PLATE, ENGINE SERVICE HOLE MAT, RH | ||||
| 58634-36060 |
BB40,HZB40,50..WC NO.1 |
1 | ||
| 58634-36020 |
BB40,HZB50..39S,49S NO.2 |
1 | ||
| 58634-36010 |
BB40,HZB50..39S,49S NO.1 |
1 | ||
| 58634-36020 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 58634-36040 |
BB40,HZB50..39S,49S NO.2 |
1 | ||
| 58635A - PLATE, REAR FLOOR, CENTER UPPER NO.1 RH | ||||
| 58636-36030B0 |
BB40..39S ORANGE,TRIM4# |
1 | ||
| 58636-36030E0 |
BB40,HZB40..39S GREIGE,TRIM4# |
1 | ||
| 58635C - PLATE, REAR FLOOR, CENTER UPPER NO.1 RH | ||||
| 58635-36040B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58635-36040E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58636 - PLATE, REAR FLOOR, CENTER UPPER NO.2 RH | ||||
| 58639-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58639-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58637 - PLATE, REAR FLOOR, CENTER UPPER NO.3 RH | ||||
| 58639-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58639-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58638A - PLATE, REAR FLOOR, CENTER UPPER NO.4 RH | ||||
| 58648-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58648-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58639A - PLATE, REAR FLOOR, CENTER UPPER NO.5 RH | ||||
| 58638-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58638-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58643B - PLATE, MAT SET, NO.2 B | ||||
| 58643-36020B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58643-36020E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58644A - PLATE, ENGINE SERVICE HOLE MAT, LH | ||||
| 58644-36030 |
BB4#,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 58644-36020 |
BB40,HZB50..39S,49S NO.2 |
1 | ||
| 58644-36010 |
BB40,HZB50..39S,49S NO.1 |
1 | ||
| 58584-36070 |
BB40,HZB40,50..39S,49S NO.1 |
1 | ||
| 58644A - PLATE, ENGINE SERVICE HOLE MAT, LH | ||||
| 58644-36030 |
BB4#,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 58644-36020 |
BB40,HZB50..39S,49S NO.2 |
1 | ||
| 58644-36010 |
BB40,HZB50..39S,49S NO.1 |
1 | ||
| 58584-36070 |
BB40,HZB40,50..39S,49S NO.1 |
1 | ||
| 58644A - PLATE, ENGINE SERVICE HOLE MAT, LH | ||||
| 58644-36030 |
BB4#,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 58644-36020 |
BB40,HZB50..39S,49S NO.2 |
1 | ||
| 58644-36010 |
BB40,HZB50..39S,49S NO.1 |
1 | ||
| 58584-36070 |
BB40,HZB40,50..39S,49S NO.1 |
1 | ||
| 58645A - PLATE, REAR FLOOR, CENTER UPPER NO.1 LH | ||||
| 58623-36020B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4#,NO.1 |
1 | ||
| 58657-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4#,NO.2 |
1 | ||
| 58657-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4#,NO.2 |
1 | ||
| 58623-36020E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4#,NO.1 |
1 | ||
| 58645A - PLATE, REAR FLOOR, CENTER UPPER NO.1 LH | ||||
| 58623-36020B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4#,NO.1 |
1 | ||
| 58657-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4#,NO.2 |
1 | ||
| 58657-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4#,NO.2 |
1 | ||
| 58623-36020E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4#,NO.1 |
1 | ||
| 58646 - PLATE, REAR FLOOR, CENTER UPPER NO.2 LH | ||||
| 58667-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58667-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58647 - PLATE, REAR FLOOR, CENTER UPPER NO.3 LH | ||||
| 58668-36030E1 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58668-36030B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58648A - PLATE, REAR FLOOR, CENTER UPPER NO.4 LH | ||||
| 58667-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4#,NO.2 |
1 | ||
| 58667-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4#,NO.2 |
1 | ||
| 58624-36030B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4#,NO.1 |
1 | ||
| 58624-36030E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4#,NO.1 |
1 | ||
| 58648A - PLATE, REAR FLOOR, CENTER UPPER NO.4 LH | ||||
| 58667-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4#,NO.2 |
1 | ||
| 58667-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4#,NO.2 |
1 | ||
| 58624-36030B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4#,NO.1 |
1 | ||
| 58624-36030E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4#,NO.1 |
1 | ||
| 58648B - PLATE, REAR FLOOR, CENTER UPPER NO.4 LH | ||||
| 58648-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58648-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58649B - PLATE, MAT SET, NO.6 | ||||
| 58649-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58649-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58651A - PLATE, FRONT DOOR MAT, NO.1 | ||||
| 58651-36010E0 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 58655A - PLATE, REAR FLOOR, CENTER LOWER NO.1 RH | ||||
| 58655-36020B0 |
BB40..39S ORANGE,TRIM4# |
1 | ||
| 58655-36020E0 |
BB40,HZB40..39S GREIGE,TRIM4# |
1 | ||
| 58656B - PLATE, REAR FLOOR, CENTER LOWER NO.2 RH | ||||
| 58658-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58658-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58657A - PLATE, REAR FLOOR, CENTER LOWER NO.3 RH | ||||
| 58658-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58658-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58658A - PLATE, REAR FLOOR, CENTER LOWER NO.4 RH | ||||
| 58667-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58667-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58659B - PLATE, REAR FLOOR CENTER LOWER, REAR END RH | ||||
| 58623-36020B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4#,NO.1 |
1 | ||
| 58623-36020E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4#,NO.1 |
1 | ||
| 58665-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4#,NO.2 |
1 | ||
| 58665-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4#,NO.2 |
1 | ||
| 58659B - PLATE, REAR FLOOR CENTER LOWER, REAR END RH | ||||
| 58623-36020B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4#,NO.1 |
1 | ||
| 58623-36020E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4#,NO.1 |
1 | ||
| 58665-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4#,NO.2 |
1 | ||
| 58665-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4#,NO.2 |
1 | ||
| 58665A - PLATE, REAR FLOOR, CENTER LOWER NO.1 LH | ||||
| 58647-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58647-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58666B - PLATE, REAR FLOOR, CENTER LOWER NO.2 LH | ||||
| 58648-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58648-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58666D - PLATE, REAR FLOOR, CENTER LOWER NO.2 LH | ||||
| 58666-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58666-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58667 - PLATE, REAR FLOOR, CENTER LOWER NO.3 LH | ||||
| 58667-36010E0 |
BB40,HZB40..39S GREIGE,TRIM4# |
1 | ||
| 58667-36010B0 |
BB40..39S ORANGE,TRIM4# |
1 | ||
| 58667A - PLATE, REAR FLOOR, CENTER LOWER NO.3 LH | ||||
| 58624-36010B0 |
BB40..39S ORANGE,TRIM4# |
1 | ||
| 58624-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4#,ﾌﾛﾝﾄ |
1 | ||
| 58668A - PLATE, REAR FLOOR, CENTER LOWER NO.4 LH | ||||
| 58648-36010E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58648-36010B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58671 - PLATE, CENTER DOOR STEP MAT, FRONT | ||||
| 58671-36020 |
HZB40..5F;HZB40..4FC..CBU;BB4#,HDB50,HZB5# ｱﾘ(*FD) |
1 | ||
| 58671-36020 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD ｱﾘ(*FD) |
1 | ||
| 58672A - PLATE, CENTER DOOR STEP MAT, REAR | ||||
| 58672-36020 |
BB5#;HZB50..IV5;HZB40..5F..IV5;BB40,HZB40,50..DX,STD ｱﾘ(ｵﾘﾀﾀﾐ ｻｲﾄﾞﾄﾞｱ) |
1 | ||
| 58673A - PLATE, CENTER DOOR STEP MAT SIDE | ||||
| 58673-36020 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58676D - PLATE, CENTER DOOR PILLAR MAT, REAR | ||||
| 58676-36030E0 |
HZB40..5F;HZB40..4FC..CBU;BB4#,5#,HDB50,HZB5# ｱﾘ(*FD),GREIGE,TRIM4# |
1 | ||
| 58676-36030B0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90162-35002 | ||||
| 90167-50061 | ||||
| 90189-05127 | ||||
| 90468-05112 | ||||
| 93530-14014 | ||||
| 93530-15014 | ||||
| 93560-14014 | ||||
| 93560-15016 | ||||
ILLUST NO. 1 OF 3(9301-0408)HZB50..DX,LX,STD ; (9301-0408)BB4#,BZB40,50,HDB5#,HZB4#,56..08S,09S,10S,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510 - MAT ASSY, FRONT FLOOR, FRONT NO.1 | ||||
| 58510-36380E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58510-36060E0 |
BB40,HZB50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58521D - MAT, ENGINE SERVICE HOLE COVER | ||||
| 58521-36020E0 |
HDB51..TD2;BB4#,HDB50,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 58521-36080E0 |
BB4#,HDB50,HZB40,5# GREIGE,TRIM4# |
1 | ||
| 58521D - MAT, ENGINE SERVICE HOLE COVER | ||||
| 58521-36020E0 |
HDB51..TD2;BB4#,HDB50,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 58521-36080E0 |
BB4#,HDB50,HZB40,5# GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 58775-90B00 | ||||
| 90530-04005 | ||||
| 90530-06001 | ||||
| 93540-14010 | ||||
| Linked diagrams | ||||
| 6759 | ||||
ILLUST NO. 1 OF 2(9301-0408)39S,49S ; (0408- )STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510 - MAT ASSY, FRONT FLOOR, FRONT NO.1 | ||||
| 58510-36380E0 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58510-36060E0 |
BB40,HZB50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58511J - MAT, FLOOR, RH | ||||
| 58511-36190E0 |
BB40..WC ORANGE,TRIM4# |
1 | ||
| 58511-36201E1 |
BB40..39S GREIGE,TRIM4# |
1 | ||
| 58511-36410E0 |
BB40,HZB40..39S GREIGE,TRIM4# |
1 | ||
| 58511-36201E0 |
BB40..39S ORANGE,TRIM4# |
1 | ||
| 58514C - MAT, FROOR, REAR | ||||
| 58514-36100E0 |
BB40..39S ORANGE,TRIM4# |
1 | ||
| 58514-36100E1 |
BB40,HZB40..39S GREIGE,TRIM4# |
1 | ||
| 58515C - MAT, FRONT FLOOR, REAR NO.1 | ||||
| 58515-36030E1 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58515-36030E0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58516B - MAT, FRONT FLOOR, REAR NO.2 | ||||
| 58516-36030E0 |
BB40,HZB50..39S,49S ORANGE,TRIM4# |
1 | ||
| 58516-36030E1 |
BB40,HZB40,50..39S,49S GREIGE,TRIM4# |
1 | ||
| 58518B - MAT, REAR FLOOR, NO.2 | ||||
| 58518-36040E0 |
BB40..39S ORANGE,TRIM4# |
1 | ||
| 58518-36040E1 |
BB40,HZB40..39S GREIGE,TRIM4# |
1 | ||
| 58521D - MAT, ENGINE SERVICE HOLE COVER | ||||
| 58521-36020E0 |
HDB51..TD2;BB4#,HDB50,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 58521-36080E0 |
BB4#,HDB50,HZB40,5# GREIGE,TRIM4# |
1 | ||
| 58527B - MAT, REAR FLOOR, NO.3 | ||||
| 58527-36040E0 |
BB40..39S ORANGE,TRIM4# |
1 | ||
| 58527-36040E1 |
BB40,HZB40..39S GREIGE,TRIM4# |
1 | ||
| 58557 - MAT, REAR FLOOR VERTICAL, NO.1 | ||||
| 58557-36020E1 |
BB40,HZB40..39S GREIGE,TRIM4# |
1 | ||
| 58557-36020E0 |
BB40..39S ORANGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90530-06001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
