BB40-BKMSS (1993)

Toyota Coaster

Production Jan 1993 - Jul 1999
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(9301-9907)BB4#,HDB5#,HZB4#,5#

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47313B 47313B 47313B 47313H 47313P 47313P 47313P 47313P 47313P 47313P 47314 47315 47316 47317 47321 47322 47324 47342 47351B 47352B 47353B 47354B 47371A 47371A 47372 47373B 47374 47374B 47381 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9017906161 9046106112 9046206017 9046400549 9046808044 9046808044 9048001187 9048001335 9048001359 9048001359 9048001359 9048001359 9090480004 9094902081 9094902085 9094902086 91611B0816 91611B0816 9164280825 9165160614 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9413000802 9413000802 9413000802
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-36480

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-12045

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-36270

BB4#,HDB5#,HZB4#,5#

 1
47312-36271

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10210

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-36250

BB4#,HDB5#,HZB4#,5#

 1
47313-36251

BB4#,HDB5#,HZB4#,5#..(4FC,5F)..(CBU,IV5)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02707

HZB50;BB4#,HDB5#,HZB4#,56..WC

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02707

HZB50;BB4#,HDB5#,HZB4#,56..WC

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10023

HZB50;BB4#,HDB5#,HZB4#,56..WC

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10023

HZB50;BB4#,HDB5#,HZB4#,56..WC

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10023

HZB50;BB4#,HDB5#,HZB4#,56..WC

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90413-10270

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,HDB5#,HZB4#,5#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,HDB5#,HZB4#,5#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,HDB5#,HZB4#,5#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,HDB5#,HZB4#,5#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,HDB5#,HZB4#,5#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,HDB5#,HZB4#,5#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-36300

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-36220

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-36260

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-36120

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-36300

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-36330

BB4#,HDB5#,HZB4#,5#

 1
47322-36331

BB4#,HDB5#,HZB4#,5#..(4FC,5F)..(CBU,IV5)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-36290

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-36210

BB4#,HDB5#,HZB4#,5#

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-36200

BB4#,HDB5#,HZB4#,5#

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-36210

BB4#,HDB5#,HZB4#,5#

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-36090

BB4#,HDB5#,HZB4#,5#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-36040

BB4#,5#,HDB5#,HZB4#,5#

 2
47371A - CLAMP, BRAKE TUBE, NO.1
47371-36040

BB4#,5#,HDB5#,HZB4#,5#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
47371-36060

BB4#,HDB5#,HZB4#,5#

 2
47373B - CLAMP, BRAKE TUBE, NO.3
47372-36050

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47374 - CONNECTOR, TUBE
47307-36010

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-36050

BB4#,HDB51,HZB40..CBU,IV5

NO.1

 2
47372-36060

BB4#,HDB5#,HZB4#,5#

NO.2

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36120

BB4#,HDB5#,HZB4#,5#

 1
Common parts
90119-08A46
90179-06161
90461-06112
90462-06017
90464-00549
90468-08044
90480-01187
90480-01335
90480-01359
90904-80004
90949-02081
90949-02085
90949-02086
91611-B0816
91642-80825
91651-60614
91651-60616
94130-00802

ILLUST NO. 4 OF 4(9301- )BB4#,5#,BZB40,50,HDB50,HZB40,46,5#,XZB4#,50,56

Click highlighted areas on diagram

diagram 04477 31478D 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47936 47937 90015AA103 90015AA103 9011908703 9017008016 9017908146 9017908146 9017908146 9017910016 9020108062 9020123360 9020123360 91611B0816 9413000802 9413000802 9413000802 9413000802 9413000802 9451200800 9451200800 9451200800 9451200800 9461210800 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-60010

BB4#,HDB50,HZB40,5#

 1
31478D - CAP, BLEEDER PLUG(FOR LSPV)
31478-30010

BB4#,5#,HDB5#,HZB4#,5#..WT

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-36170

BB58,HZB50;BB4#,55,HDB50,HZB40,56..WC..WT

 1
47920 - SPRING ASSY, LOAD SENSING
47920-36170

BB4#,5#,HDB50,HZB40,5#..WT

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

BB4#,HDB50,HZB40,5#

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

BB4#,HDB50,HZB40,5#

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

BB4#,HDB50,HZB40,5#

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

BB4#,HDB50,HZB40,5#

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

BB4#,HDB50,HZB40,5#

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-36120

BB4#,5#,HDB50,HZB40,5#..WT

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-36060

BB4#,5#,HDB50,HZB40,5#..WT

 1
47933-36061

BB4#,58,HDB50,HZB40,5#

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35020

BB4#,HDB50,HZB40,5#

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

BB4#,HDB50,HZB40,5#

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

BB4#,HDB50,HZB40,5#

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

BB4#,HDB50,HZB40,5#

 2
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-60020

BB4#,HDB50,HZB40,5#

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

BB4#,HDB50,HZB40,5#

 1
Common parts
90015-AA103
90119-08703
90170-08016
90179-08146
90179-10016
90201-08062
90201-23360
91611-B0816
94130-00802
94512-00800
94612-10800
95381-02020

ILLUST NO. 2 OF 4(9301-9907)BB4#,HDB51,HZB4#

Click highlighted areas on diagram

diagram 47316A 47318 47318 47318 47321D 47322B 47325 47325 47325 47326 47326 47326 47327 47328 47345 47346 47353 47374B 47374B 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9046108779 9046110616 9046808044 9094901006 9094901834 91612B1020 9165160614 91651B0814 9413000802 9413000802
Part # Description Qty Price
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96912-33805

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-36210

BB4#,HZB40

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-36210

BB4#,HZB40

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-36210

BB4#,HZB40

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12042

BB4#,HDB5#,HZB4#,5#

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10277

BB4#,5#,HDB5#,HZB4#,5#..WT..(CBU,IV5)

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36420

BB4#,HZB40

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36420

BB4#,HZB40

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36420

BB4#,HZB40

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-36200

BB4#,HDB50,HZB40,5#

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-36200

BB4#,HDB50,HZB40,5#

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-36200

BB4#,HDB50,HZB40,5#

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-36241

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47327-36240

BB4#,HDB5#,HZB4#,5#

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-36260

BB4#,5#,HDB5#,HZB4#,5#..WT..(CBU,IV5)

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36050

BB4#,5#,HDB5#,HZB4#,5#..WT

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36050

BB4#,5#,HDB5#,HZB4#,5#..WT

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-36190

BB4#,HDB5#,HZB4#,5#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-36050

BB4#,HDB51,HZB40..CBU,IV5

NO.1

 2
47372-36060

BB4#,HDB5#,HZB4#,5#

NO.2

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-36050

BB4#,HDB51,HZB40..CBU,IV5

NO.1

 2
47372-36060

BB4#,HDB5#,HZB4#,5#

NO.2

 1
Common parts
90119-08A46
90461-08779
90461-10616
90468-08044
90949-01006
90949-01834
91612-B1020
91651-60614
91651-B0814
94130-00802

ILLUST NO. 1 OF 4(9705-9907)HDB50,HZB40,5#

Click highlighted areas on diagram

ｱﾘ(ABS)

diagram 47311 47311B 47312E 47313 47313A 47313A 47313B 47313B 47313P 47313P 47313P 47313P 47317 47321 47322 47331 47332 47351B 47352B 47353B 47354B 47361A 47362 47363 47364 47371A 47371A 47372 47373B 47374 47374B 47381 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9017906161 9046106112 9046400549 9046808044 9046808044 9048001268 9048001268 9048001268 9048001268 9048001335 9090480004 9094902082 9094902083 9094902084 91611B0816 91611B0816 91611B0816 9164280825 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9413000802 9413000802 9413000802
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-36480

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-12045

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10210

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-36250

BB4#,HDB5#,HZB4#,5#

 1
47313-36251

BB4#,HDB5#,HZB4#,5#..(4FC,5F)..(CBU,IV5)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02707

HZB50;BB4#,HDB5#,HZB4#,56..WC

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02707

HZB50;BB4#,HDB5#,HZB4#,56..WC

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10023

HZB50;BB4#,HDB5#,HZB4#,56..WC

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10023

HZB50;BB4#,HDB5#,HZB4#,56..WC

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,HDB5#,HZB4#,5#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,HDB5#,HZB4#,5#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,HDB5#,HZB4#,5#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,HDB5#,HZB4#,5#

 4
47317 - TUBE, FRONT BRAKE, NO.7
47317-36120

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-36300

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-36330

BB4#,HDB5#,HZB4#,5#

 1
47322-36331

BB4#,HDB5#,HZB4#,5#..(4FC,5F)..(CBU,IV5)

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-36210

BB4#,HDB5#,HZB4#,5#

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-36200

BB4#,HDB5#,HZB4#,5#

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-36210

BB4#,HDB5#,HZB4#,5#

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-36090

BB4#,HDB5#,HZB4#,5#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-36040

BB4#,5#,HDB5#,HZB4#,5#

 2
47371A - CLAMP, BRAKE TUBE, NO.1
47371-36040

BB4#,5#,HDB5#,HZB4#,5#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
47371-36060

BB4#,HDB5#,HZB4#,5#

 2
47373B - CLAMP, BRAKE TUBE, NO.3
47372-36050

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47374 - CONNECTOR, TUBE
47307-36010

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-36050

BB4#,HDB51,HZB40..CBU,IV5

NO.1

 2
47372-36060

BB4#,HDB5#,HZB4#,5#

NO.2

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36120

BB4#,HDB5#,HZB4#,5#

 1
Common parts
90119-08A46
90179-06161
90461-06112
90464-00549
90468-08044
90480-01268
90480-01335
90904-80004
90949-02082
90949-02083
90949-02084
91611-B0816
91642-80825
91651-60616
94130-00802

ILLUST NO. 1 OF 4(9512-9705)ST

Click highlighted areas on diagram

diagram 47311 47311A 47311B 47312 47312E 47313 47313H 47314 47315 47318 47319 47321 47321D 47322 47323 47324 47325 47326 47327 47371A 47374 47381 47547J 47900 47931 47933 5151 9017908146 9046110811 9046110822 9046110828 9046400549 9048001335 9090480004 9161260850 9161260850 9165160616 9165160616 91651B0814 91651B0814 91651B0814 91651B0814 91651B0814 91651B0814 91651G0816 91651G0816 91651G0816 9165260814 9622130905
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-36480

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-12045

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-36270

BB4#,HDB5#,HZB4#,5#

 1
47312-36271

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10210

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-36250

BB4#,HDB5#,HZB4#,5#

 1
47313-36251

BB4#,HDB5#,HZB4#,5#..(4FC,5F)..(CBU,IV5)

 1

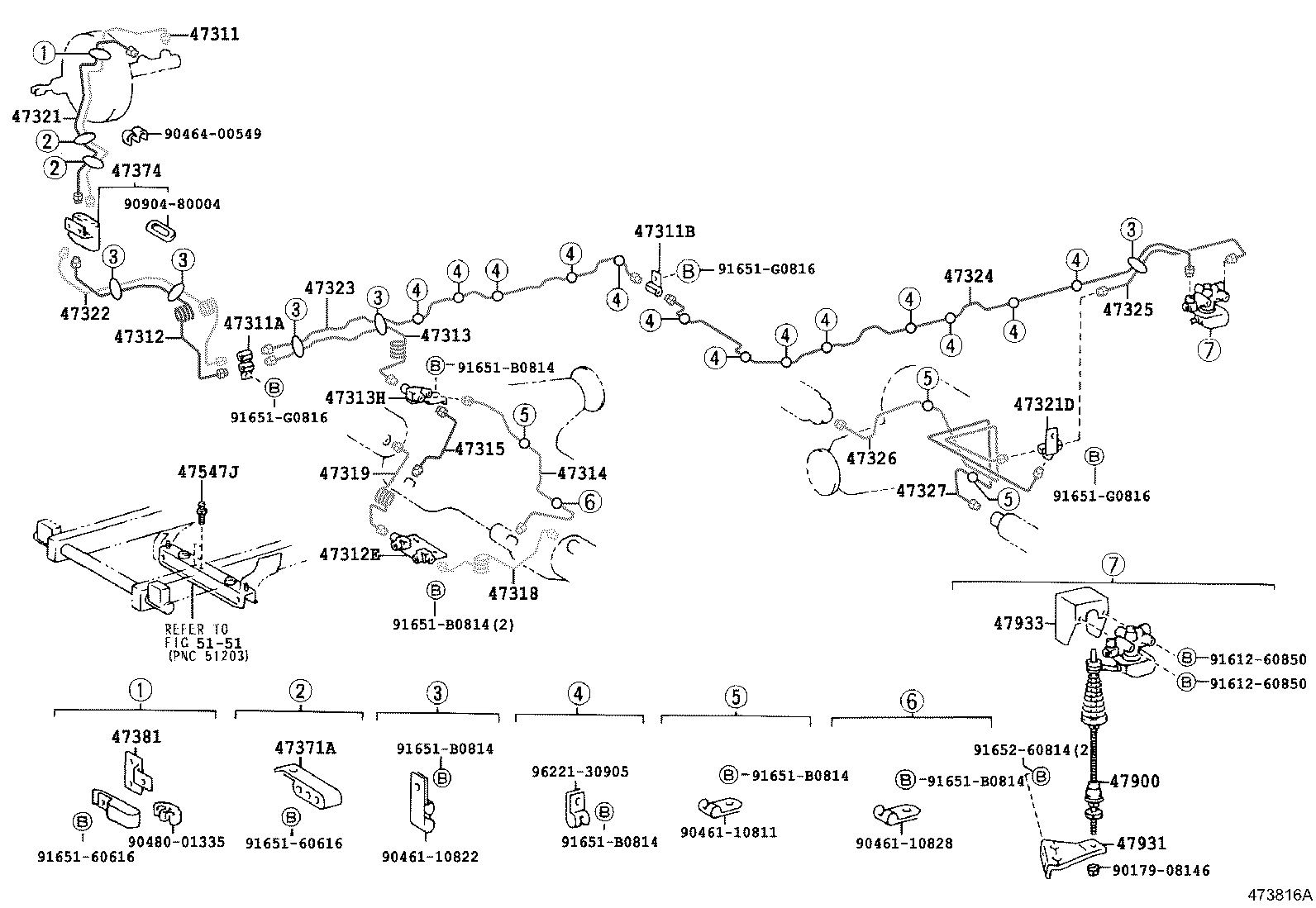

47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90413-10270

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-36300

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-36220

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-36210

BB4#,HZB40

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-36300

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12042

BB4#,HDB5#,HZB4#,5#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-36330

BB4#,HDB5#,HZB4#,5#

 1
47322-36331

BB4#,HDB5#,HZB4#,5#..(4FC,5F)..(CBU,IV5)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-36290

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36420

BB4#,HZB40

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-36200

BB4#,HDB50,HZB40,5#

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-36241

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47327-36240

BB4#,HDB5#,HZB4#,5#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-36040

BB4#,5#,HDB5#,HZB4#,5#

 2
47374 - CONNECTOR, TUBE
47307-36010

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36120

BB4#,HDB5#,HZB4#,5#

 1
47931 - BRACKET, LOAD SENSING VALVE
47931-36120

BB4#,5#,HDB50,HZB40,5#..WT

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-36060

BB4#,5#,HDB50,HZB40,5#..WT

 1
47933-36061

BB4#,58,HDB50,HZB40,5#

 1
Common parts
90179-08146
90461-10811
90461-10822
90461-10828
90464-00549
90480-01335
90904-80004
91612-60850
91651-60616
91651-B0814
91651-G0816
91652-60814
96221-30905
Linked diagrams
5151

ILLUST NO. 3 OF 4(9705-9907)HDB50,HZB40,5#

Click highlighted areas on diagram

ｱﾘ(ABS)

diagram 44510 44545D 44545D 44545D 44545D 44546A 44546A 44546A 44546A 44551A 44552 44553 44554 44591 44592 44597 9009140608 9009140617 9017906009 9017906009 9017906009 9017906009 9017908104 9017910071
Part # Description Qty Price
Common parts
90091-40608
90091-40617
90179-06009
90179-08104
90179-10071
