BB40-BKMSS (1993)

Toyota Coaster

Production Jan 1993 - Jul 1999
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-9907)HDB5#,HZB4#,5#

Click highlighted areas on diagram

diagram 44348A 44411 44411C 44411D 44411D 44415 44416 44416C 44416E 44416F 44416F 44423 44423F 44423G 44423G 44447A 44448B 44457C 9046716008 9046716008 9046721005 9046721005 9046808045 9046808045 9163360840 9163360840 9164280825 9164280825 9164280825 9165160830 91651B0816 91651B0816 9461310800 9461310800
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-36250

HDB5#,HZB4#,5#

 1
44348-36250

BB55,HDB5#,HZB4#,5#

 1
44348-36260

BB4#

 1
44411 - HOSE, PRESSURE FEED
44411-36401

BB4#

 1
44411-36410

HDB5#,HZB4#,5#

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90404-16024

BB4#,5#,HDB5#,HZB4#,5#

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

BB4#,5#,HDB5#,HZB4#,5#

 2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

BB4#,5#,HDB5#,HZB4#,5#

 2
44415 - HOSE, PRESSURE FEED, NO.2
44415-36020

HDB5#,HZB4#,5#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-36350

BB4#,HDB5#,HZB4#,5#

 1
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
90445-18139

HDB5#,HZB4#,5#

 1
44416E - BOLT, UNION(FOR RETURN TUBE)
90401-14003

BB4#,5#,HDB5#,HZB4#,5#

 1
44416F - GASKET(FOR RETURN TUBE)
90430-14235

BB4#,5#,HDB5#,HZB4#,5#

 2
44416F - GASKET(FOR RETURN TUBE)
90430-14235

BB4#,5#,HDB5#,HZB4#,5#

 2
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-36270

HDB5#,HZB4#,5#

 1
44423-36310

BB4#

 1
44423-36310

BB4#,HDB5#,HZB4#,5#

 1
44423F - BOLT, UNION
90401-14003

BB4#,5#,HDB5#,HZB4#,5#

 1
44423G - GASKET, UNION BOLT
90430-14235

BB4#,5#,HDB5#,HZB4#,5#

 2
44423G - GASKET, UNION BOLT
90430-14235

BB4#,5#,HDB5#,HZB4#,5#

 2
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-36200

BB4#,HDB5#,HZB4#,5#

 1
44448B - BRACKET, HOSE SUPPORT, NO.2
44448-36050

HDB5#,HZB4#,5#

 1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-36090

HDB5#,HZB4#,5#

 1
44457-36040

BB4#

 1
Common parts
90467-16008
90467-21005
90468-08045
91633-60840
91642-80825
91651-60830
91651-B0816
94613-10800

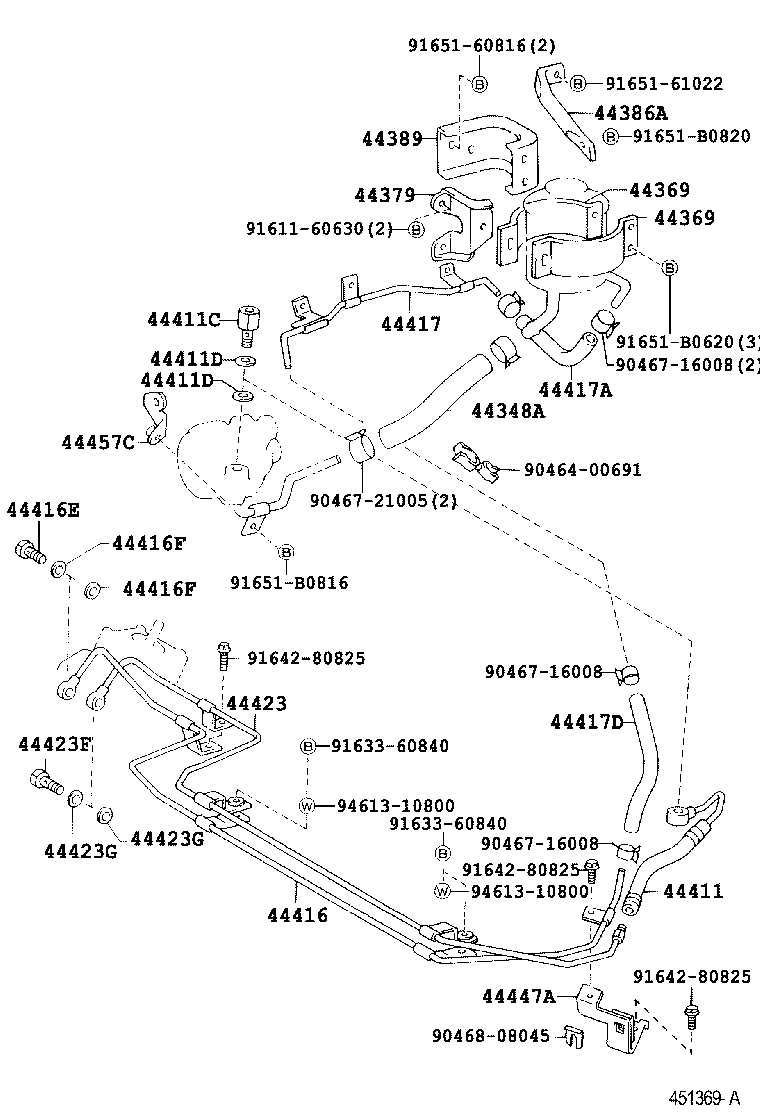

(9301-9907)BB4#

Click highlighted areas on diagram

diagram 44348A 44369 44369 44379 44386A 44389 44411 44411C 44411D 44411D 44416 44416E 44416F 44416F 44417 44417A 44417D 44423 44423F 44423G 44423G 44447A 44457C 9046400691 9046716008 9046716008 9046716008 9046721005 9046808045 9161160630 9163360840 9163360840 9164280825 9164280825 9164280825 9165160816 9165161022 91651B0620 91651B0816 91651B0820 9461310800 9461310800
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-36250

HDB5#,HZB4#,5#

 1
44348-36250

BB55,HDB5#,HZB4#,5#

 1
44348-36260

BB4#

 1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36020

BB4#

 2
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36020

BB4#

 2
44379 - BRACKET, OIL RESERVOIR, NO.2
44379-36150

BB4#

 1
44379-37020

BB4#

 1
44386A - SUPPORT, OIL RESERVOIR
44386-36100

BB4#

 1
44389 - BRACKET, OIL RESERVOIR, NO.3
44389-36060

BB4#

 1
44411 - HOSE, PRESSURE FEED
44411-36401

BB4#

 1
44411-36410

HDB5#,HZB4#,5#

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90404-16024

BB4#,5#,HDB5#,HZB4#,5#

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

BB4#,5#,HDB5#,HZB4#,5#

 2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

BB4#,5#,HDB5#,HZB4#,5#

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-36350

BB4#,HDB5#,HZB4#,5#

 1
44416E - BOLT, UNION(FOR RETURN TUBE)
90401-14003

BB4#,5#,HDB5#,HZB4#,5#

 1
44416F - GASKET(FOR RETURN TUBE)
90430-14235

BB4#,5#,HDB5#,HZB4#,5#

 2
44416F - GASKET(FOR RETURN TUBE)
90430-14235

BB4#,5#,HDB5#,HZB4#,5#

 2
44417 - TUBE, RETURN, NO.2
44417-36210

BB4#

 1
44417A - HOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2)
90445-18146

BB4#

 1
44417D - HOSE(FOR RETURN TUBE TO RESERVOIR)
90445-18082

BB4#

 1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-36270

HDB5#,HZB4#,5#

 1
44423-36310

BB4#

 1
44423-36310

BB4#,HDB5#,HZB4#,5#

 1
44423F - BOLT, UNION
90401-14003

BB4#,5#,HDB5#,HZB4#,5#

 1
44423G - GASKET, UNION BOLT
90430-14235

BB4#,5#,HDB5#,HZB4#,5#

 2
44423G - GASKET, UNION BOLT
90430-14235

BB4#,5#,HDB5#,HZB4#,5#

 2
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-36200

BB4#,HDB5#,HZB4#,5#

 1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-36090

HDB5#,HZB4#,5#

 1
44457-36040

BB4#

 1
Common parts
90464-00691
90467-16008
90467-21005
90468-08045
91611-60630
91633-60840
91642-80825
91651-60816
91651-61022
91651-B0620
91651-B0816
91651-B0820
94613-10800
