BB40-BKMSS (1993)
Toyota Coaster
Production
Jan 1993
-
Jul 1999
Engine
3B
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9301-9907)3B

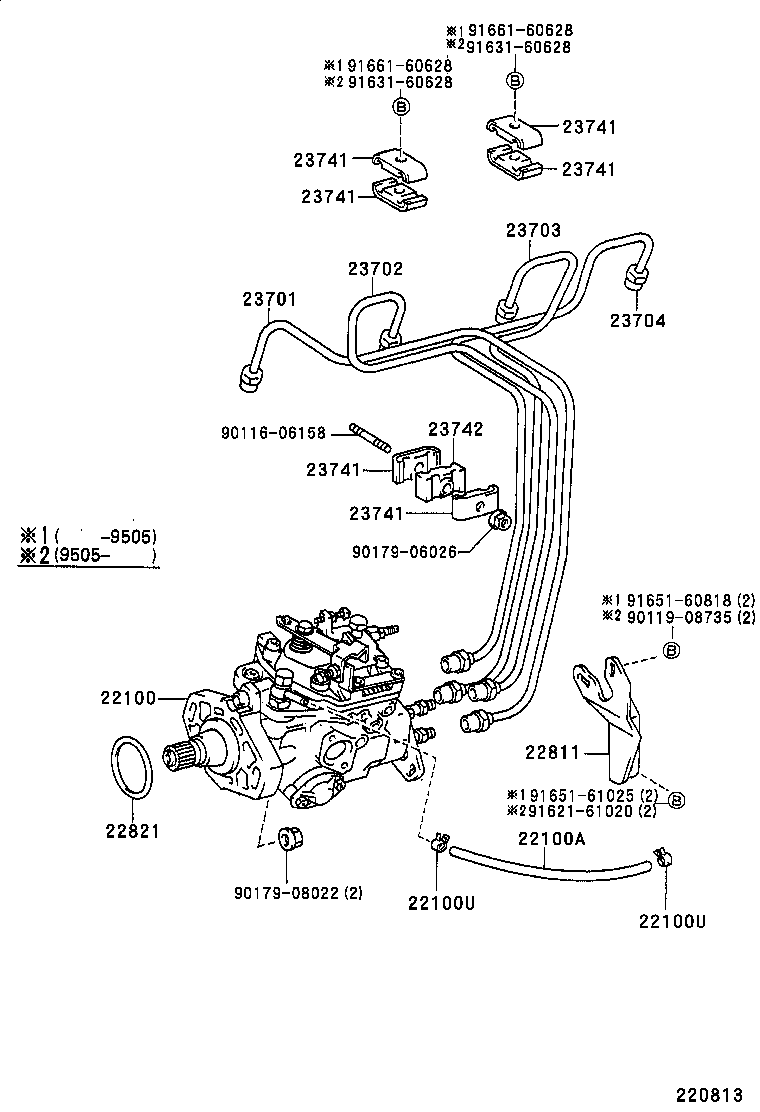

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-5C310 |
3B..BB4# |
1 | ||
| 22100-58870 |
3B..BB4# |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 95332-10040 |
3B..BB4# *H,L=340 |
1 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 96132-41500 |
15BF,3B..BB4#,5# |
2 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 96132-41500 |
15BF,3B..BB4#,5# |
2 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-58030 |
15BF,3B..BB4#,5# |
1 | ||
| 22811-56050 |
3B..BB4# |
1 | ||
| 22821 - GASKET, INJECTION PUMP | ||||
| 90301-49003 |
15BF,3B..BB4#,5# |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-58010 |
3B..BB4# |
1 | ||
| 23701-58011 |
3B..BB4# |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-58011 |
3B..BB4# |
1 | ||
| 23702-58010 |
3B..BB4# |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-58010 |
3B..BB4# |
1 | ||
| 23703-58011 |
3B..BB4# |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-58011 |
3B..BB4# |
1 | ||
| 23704-58010 |
3B..BB4# |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
3B..BB4# |
6 | ||
| 23741-56010 |
3B..BB4# |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
3B..BB4# |
6 | ||
| 23741-56010 |
3B..BB4# |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
3B..BB4# |
6 | ||
| 23741-56010 |
3B..BB4# |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
3B..BB4# |
6 | ||
| 23741-56010 |
3B..BB4# |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
3B..BB4# |
6 | ||
| 23741-56010 |
3B..BB4# |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
3B..BB4# |
6 | ||
| 23741-56010 |
3B..BB4# |
6 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23741-56020 |
3B..BB4# |
1 | ||
| 23741-56021 |
3B..BB4# |
1 | ||
| Common parts | ||||
| 90116-06158 | ||||
| 90119-08735 | ||||
| 90179-06026 | ||||
| 90179-08022 | ||||
| 91621-61020 | ||||
| 91631-60628 | ||||
| 91651-60818 | ||||
| 91651-61025 | ||||
| 91661-60628 | ||||
