BB40-BKMSS (1993)
Toyota Coaster
Production
Jan 1993
-
Jul 1999
Engine
3B
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9301-9907)3B

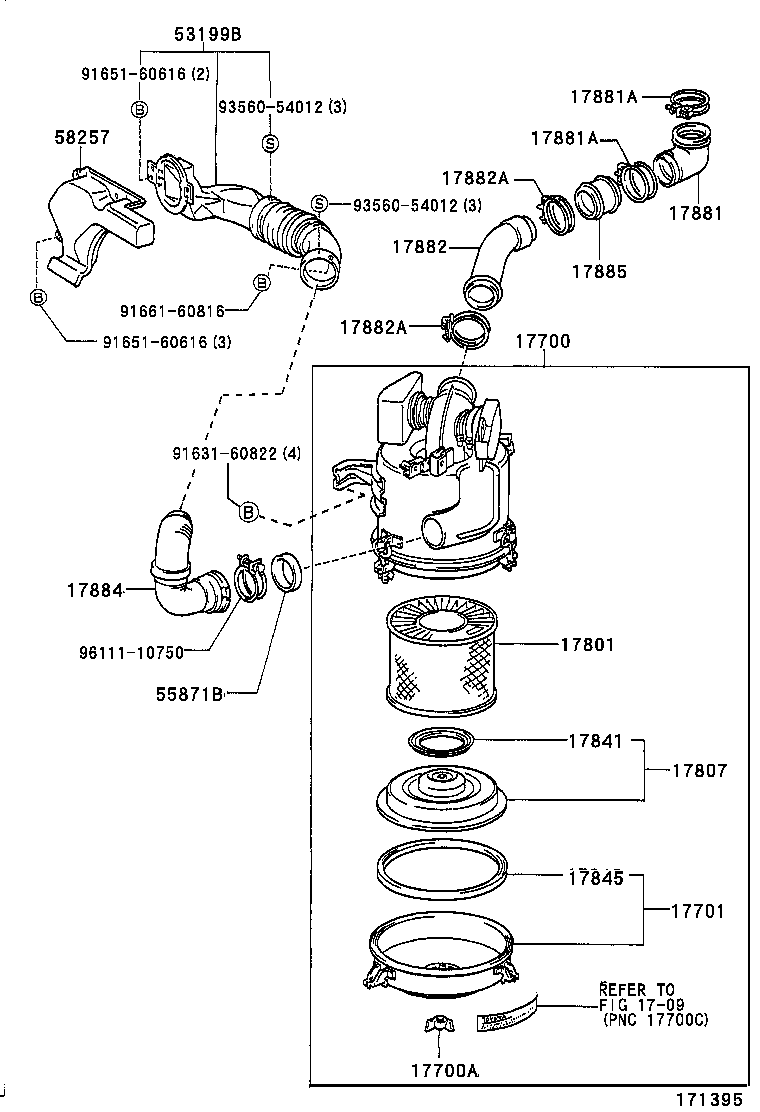

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-58380 |
3B..BB4# |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
15BF,3B..BB4#,5# |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-44263 |
3B..BB4# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-56020 |
3B..BB4# |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56011 |
3B..BB4# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
3B..BB4# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
3B..BB4# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58200 |
3B..BB4# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
3B..BB4# AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
3B..BB4# PIPE SIDE |
1 | ||
| 96111-10690 |
3B..BB4# ｴﾝｼﾞﾝ側 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
3B..BB4# AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
3B..BB4# PIPE SIDE |
1 | ||
| 96111-10690 |
3B..BB4# ｴﾝｼﾞﾝ側 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-58130 |
3B..BB4# |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
3B..BB4# |
2 | ||
| 96111-10780 |
3B..BB4# PIPE SIDE |
1 | ||
| 96111-10750 |
3B..BB4# AIR CLEANER SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
3B..BB4# |
2 | ||
| 96111-10780 |
3B..BB4# PIPE SIDE |
1 | ||
| 96111-10750 |
3B..BB4# AIR CLEANER SIDE |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 59132-36010 |
3B..BB4# |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-17010 |
3B..BB4# |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-36030 |
HDB5#,HZB4#,5# |
1 | ||
| 53207-36020 |
BB4# |
1 | ||
| 55871B - SEAL, AIR DUCT | ||||
| 55871-36020 |
HDB5#,HZB4#,5# |
1 | ||
| 55871-36020 |
BB4#,5# |
1 | ||
| 58257 - PLATE, AIR CLEANER HOUSE | ||||
| 58257-36020 |
HDB5#,HZB4#,5# |
1 | ||
| 58257-36030 |
BB4#,5# |
1 | ||
| Common parts | ||||
| 91631-60822 | ||||
| 91651-60616 | ||||
| 91661-60816 | ||||
| 93560-54012 | ||||
| 96111-10750 | ||||
| Linked diagrams | ||||
| 1709 | ||||
