BB40-BKMSS (1993)

Toyota Coaster

Production Jan 1993 - Jul 1999
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

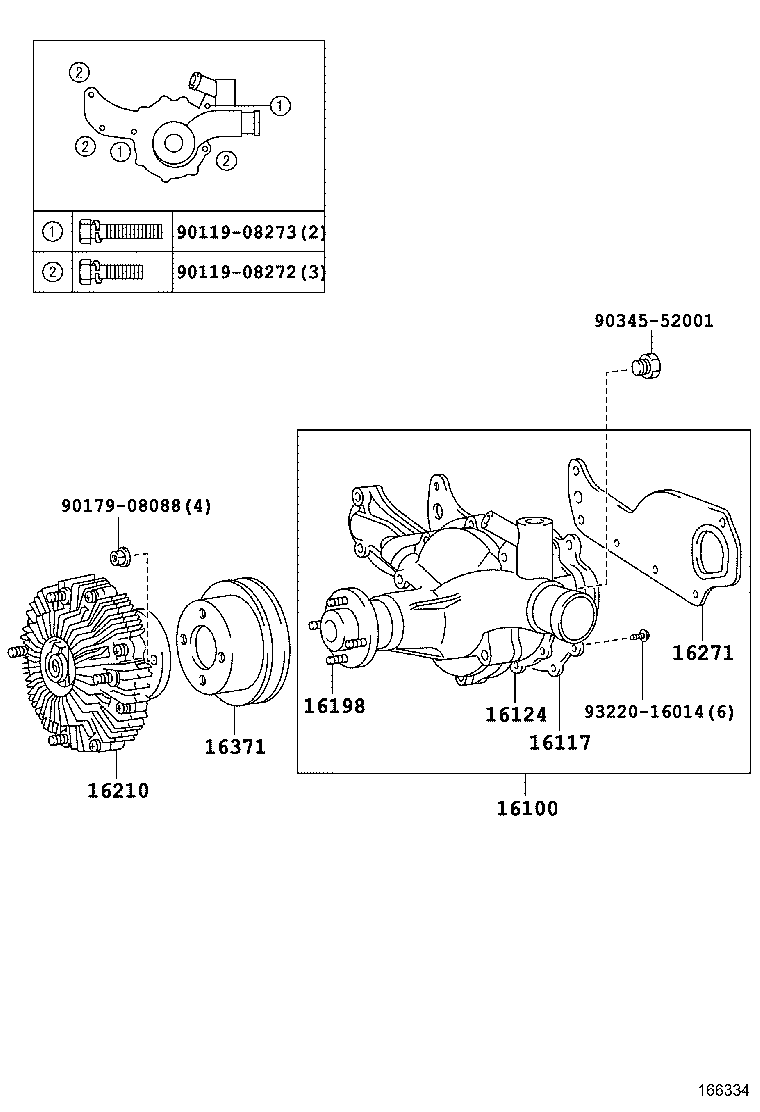

(9301-9505)3B

Click highlighted areas on diagram

diagram 16100 16117 16124 16198 16210 16271 16371 9011908272 9011908273 9017908088 9034552001 9322016014
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-59185

3B..BB4#

 1
16100-59186

15BF,3B..BB4#,5#

 1
16117 - PLATE, WATER PUMP
16117-58010

15BF,3B..BB4#,5#

 1
16124 - GASKET, WATER PUMP COVER
16124-58010

15BF,3B..BB4#,5#

 1
16198 - BOLT, STUD(FOR WATER PUMP PULLEY SEAT)
16198-41170

15BF,3B..BB4#,5#

 4
16210 - COUPLING ASSY, FLUID
16210-58041

15BF,3B..BB4#,5#

 1
16271 - GASKET, WATER PUMP
16271-56030

3B..BB4#

 1
16271-56031

15BF,3B..BB4#,5#

 1
16271-58010

15BF,3B..BB4#,58

 1
16371 - PULLEY, FAN
16371-58040

3B..BB40..STD..WC;15BF,3B..BB4#,5#..DX,LX

 1
Common parts
90119-08272
90119-08273
90179-08088
90345-52001
93220-16014

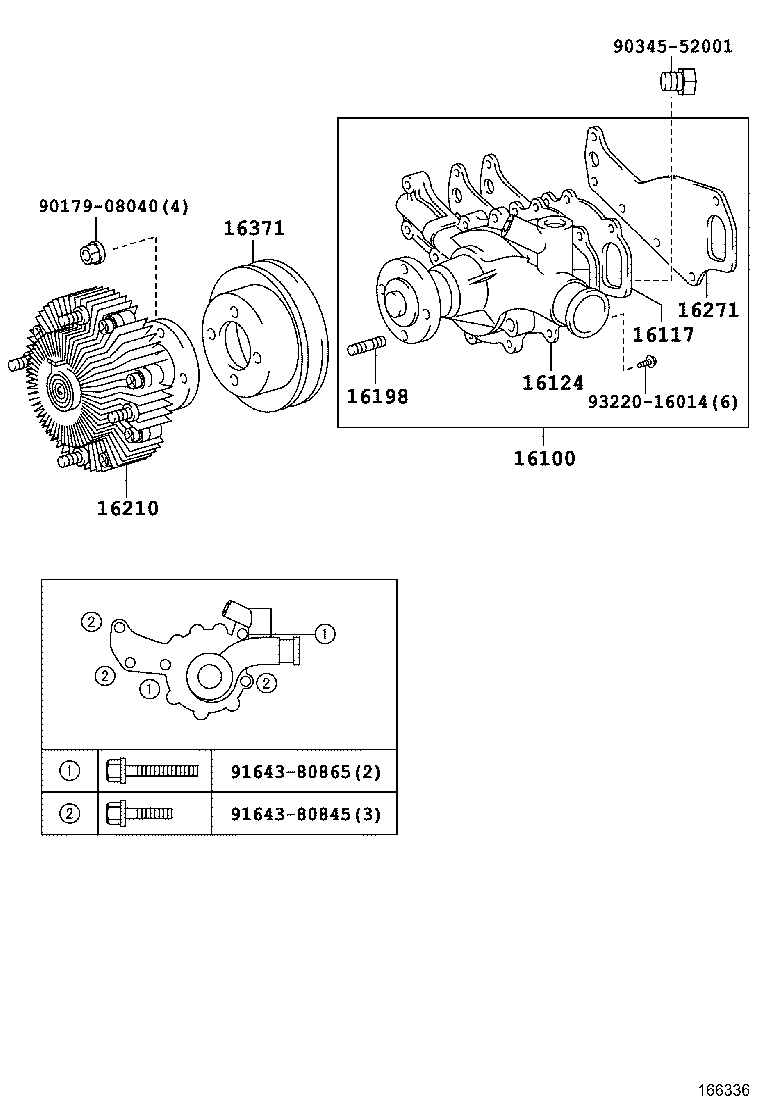

(9505-9907)3B

Click highlighted areas on diagram

diagram 16100 16117 16124 16198 16210 16271 16371 9017908040 9034552001 9164380845 9164380865 9322016014
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-59185

3B..BB4#

 1
16100-59186

15BF,3B..BB4#,5#

 1
16117 - PLATE, WATER PUMP
16117-58010

15BF,3B..BB4#,5#

 1
16124 - GASKET, WATER PUMP COVER
16124-58010

15BF,3B..BB4#,5#

 1
16198 - BOLT, STUD(FOR WATER PUMP PULLEY SEAT)
16198-41170

15BF,3B..BB4#,5#

 4
16210 - COUPLING ASSY, FLUID
16210-58041

15BF,3B..BB4#,5#

 1
16271 - GASKET, WATER PUMP
16271-56030

3B..BB4#

 1
16271-56031

15BF,3B..BB4#,5#

 1
16271-58010

15BF,3B..BB4#,58

 1
16371 - PULLEY, FAN
16371-58040

3B..BB40..STD..WC;15BF,3B..BB4#,5#..DX,LX

 1
Common parts
90179-08040
90345-52001
91643-80845
91643-80865
93220-16014
