BB40-BKMSS (1993)

Toyota Coaster

Production Jan 1993 - Jul 1999
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

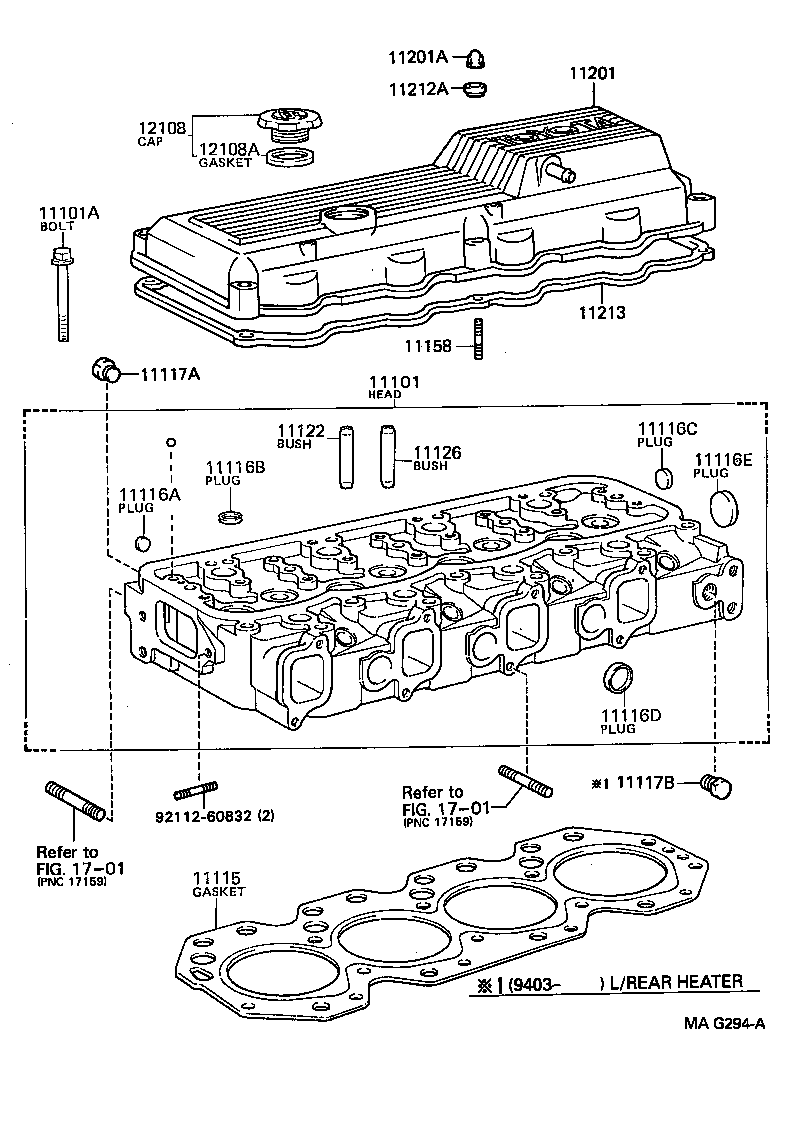

(9301-9505)3B

Click highlighted areas on diagram

diagram 11101 11101A 11115 11116A 11116B 11116C 11116D 11116E 11117A 11117B 11122 11126 11158 11201 11201A 11212A 11213 12108 12108A 1701 1701 9211260832
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-58051

3B..BB4#

 1
11101-58050

3B..BB4#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02084

15BF,3B..BB4#,5#

 18
11115 - GASKET, CYLINDER HEAD
11115-58080

3B..BB4#

厚さ=1.50

 1
11115-58081

3B..BB4#

厚さ=1.50

 1
11116A - PLUG, TIGHT, NO.1
90331-12004

3B..BB4#

 4
96411-41200

3B..BB4#

 4
11116B - PLUG, TIGHT, NO.2
96411-64000

3B..BB4#

 4
96411-44000

3B..BB4#

 4
11116C - PLUG, TIGHT, NO.3
96411-62000

3B..BB4#

 5
90331-21001

3B..BB4#

 5
11116D - PLUG, TIGHT, NO.4
96411-42800

3B..BB4#

 3
96411-62800

3B..BB4#

 3
11116E - PLUG, TIGHT, NO.5
96411-44000

3B..BB4#

 1
96411-64000

3B..BB4#

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54005

3B..BB4#

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-56030

3B..BB4#

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-56030

3B..BB4#

STD

 4
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-08282

3B..BB4#

長さ=60

 6
92112-60850

3B..BB4#

 2
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-56101

3B..BB4#

 1
11201-58050

3B..BB4#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90179-08159

3B..BB4#

 6
90176-08038

3B..BB4#

 6
90179-08040

15BF,3B..BB4#,58

 2
90179-08025

15BF,3B..BB4#,5#

 2
11212A - CUSHION, CYLINDER HEAD COVER
11228-56010

15BF,3B..BB4#,5#

 6
11213 - GASKET, CYLINDER HEAD COVER
11213-58030

3B..BB4#

 1
11213-56030

3B..BB4#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13030

3B..BB4#

 1
12180-55010

15BF,3B..BB4#,5#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

15BF,3B..BB4#,5#

 1
Common parts
92112-60832
Linked diagrams
1701

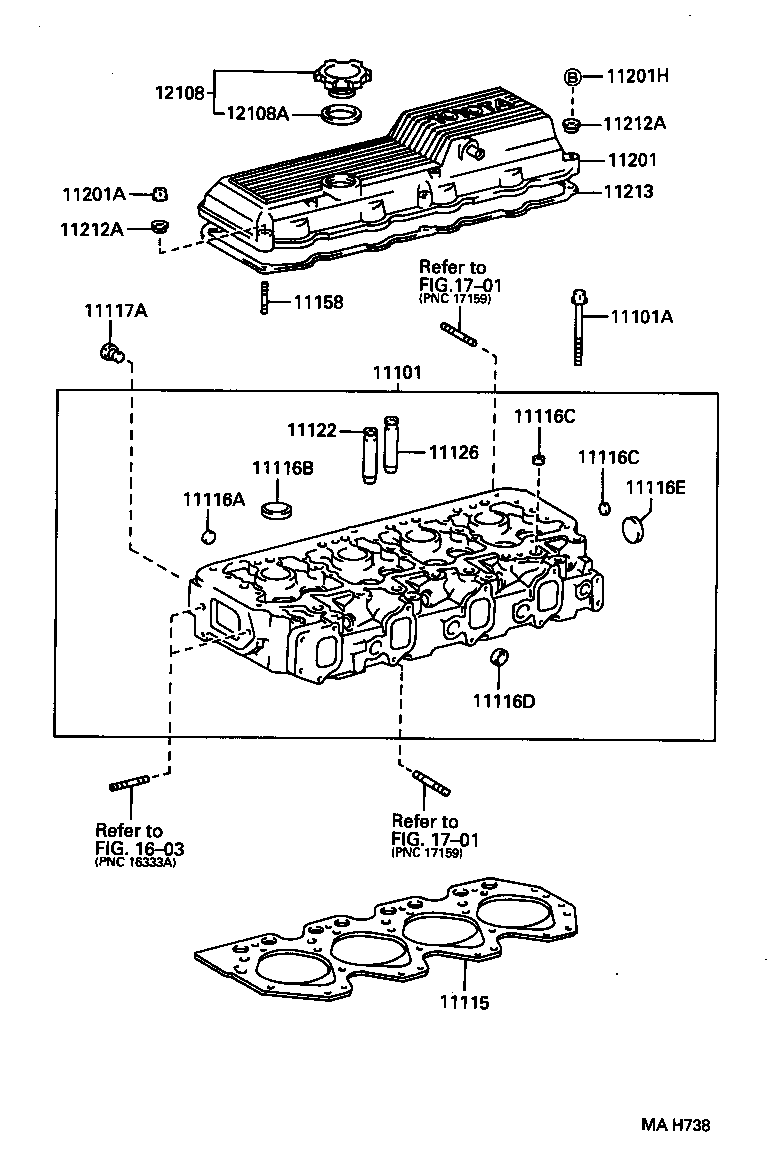

(9505-9907)3B

Click highlighted areas on diagram

diagram 11101 11101A 11115 11116A 11116B 11116C 11116C 11116D 11116E 11117A 11122 11126 11158 11201 11201A 11201H 11212A 11212A 11213 12108 12108A 1603 1701 1701
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-58051

3B..BB4#

 1
11101-58050

3B..BB4#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02084

15BF,3B..BB4#,5#

 18
11115 - GASKET, CYLINDER HEAD
11115-58080

3B..BB4#

厚さ=1.50

 1
11115-58081

3B..BB4#

厚さ=1.50

 1
11116A - PLUG, TIGHT, NO.1
90331-12004

3B..BB4#

 4
96411-41200

3B..BB4#

 4
11116B - PLUG, TIGHT, NO.2
96411-64000

3B..BB4#

 4
96411-44000

3B..BB4#

 4
11116C - PLUG, TIGHT, NO.3
96411-62000

3B..BB4#

 5
90331-21001

3B..BB4#

 5
11116C - PLUG, TIGHT, NO.3
96411-62000

3B..BB4#

 5
90331-21001

3B..BB4#

 5
11116D - PLUG, TIGHT, NO.4
96411-42800

3B..BB4#

 3
96411-62800

3B..BB4#

 3
11116E - PLUG, TIGHT, NO.5
96411-44000

3B..BB4#

 1
96411-64000

3B..BB4#

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54005

3B..BB4#

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-56030

3B..BB4#

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-56030

3B..BB4#

STD

 4
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-08282

3B..BB4#

長さ=60

 6
92112-60850

3B..BB4#

 2
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-56101

3B..BB4#

 1
11201-58050

3B..BB4#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90179-08159

3B..BB4#

 6
90176-08038

3B..BB4#

 6
90179-08040

15BF,3B..BB4#,58

 2
90179-08025

15BF,3B..BB4#,5#

 2
11201H - BOLT(FOR CYLINDER HEAD COVER)
91511-60850

3B..BB4#

 4
11212A - CUSHION, CYLINDER HEAD COVER
11228-56010

15BF,3B..BB4#,5#

 6
11212A - CUSHION, CYLINDER HEAD COVER
11228-56010

15BF,3B..BB4#,5#

 6
11213 - GASKET, CYLINDER HEAD COVER
11213-58030

3B..BB4#

 1
11213-56030

3B..BB4#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13030

3B..BB4#

 1
12180-55010

15BF,3B..BB4#,5#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

15BF,3B..BB4#,5#

 1
Linked diagrams
1603
1701
