BB40-BKMRS (1993)
Toyota Coaster

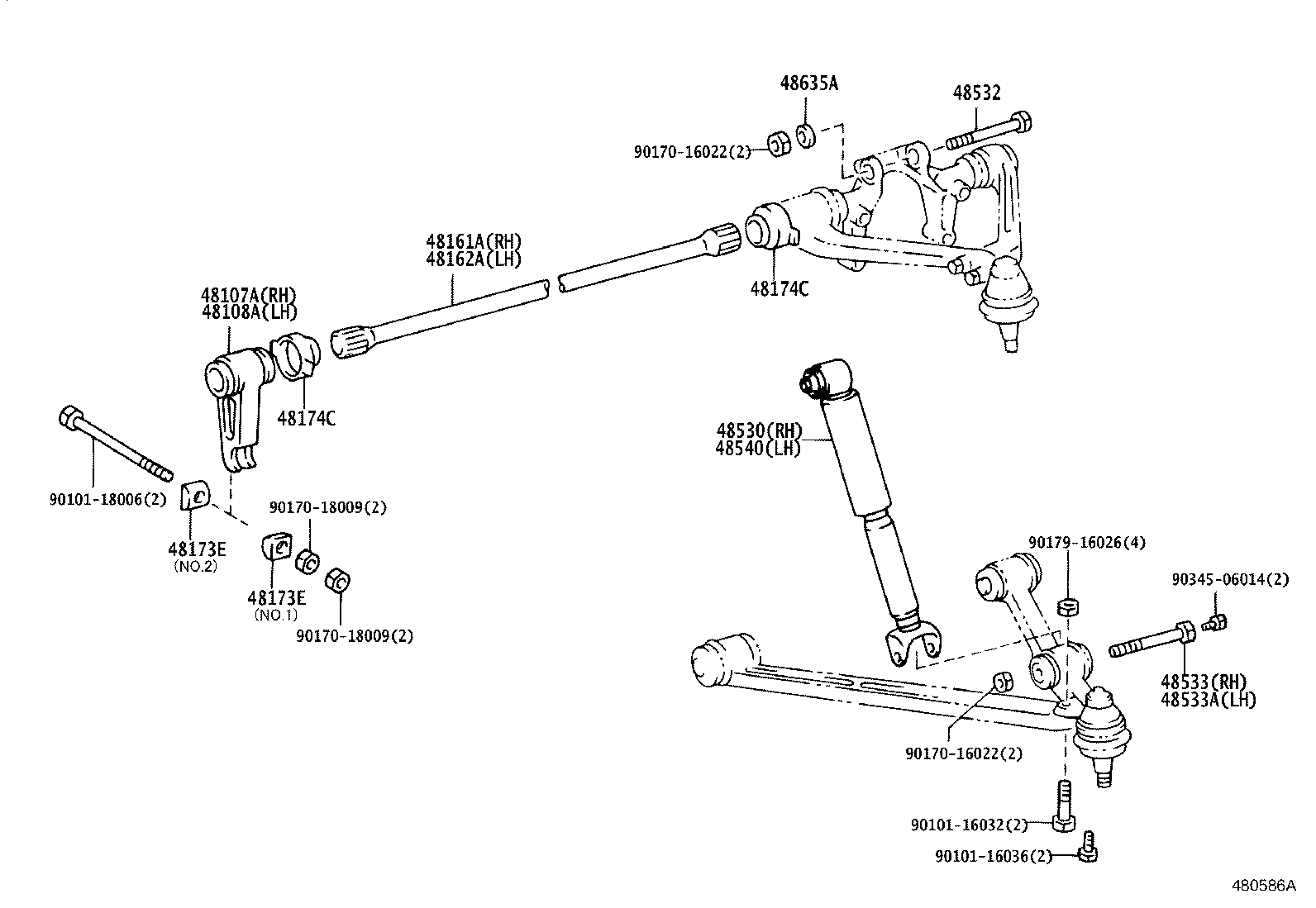

ILLUST NO. 2 OF 2(9512-9705)ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80582 |
BB4#,HDB50,HZB40,5# ﾏｰｸ 48531−36180 |
1 | ||
| 48531-80169 |
BB4#,55,HDB50,HZB40,5#..WT ﾏｰｸ 48531−36180 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80169 |
BB4#,55,HDB50,HZB40,5#..WT ﾏｰｸ 48531−36180 |
1 | ||
| 48531-80582 |
BB4#,HDB50,HZB40,5# ﾏｰｸ 48531−36180 |
1 | ||
| Common parts | ||||
| 90101-16032 | ||||
| 90101-16036 | ||||
| 90101-18006 | ||||
| 90170-16022 | ||||
| 90170-18009 | ||||
| 90179-16026 | ||||
| 90345-06014 | ||||

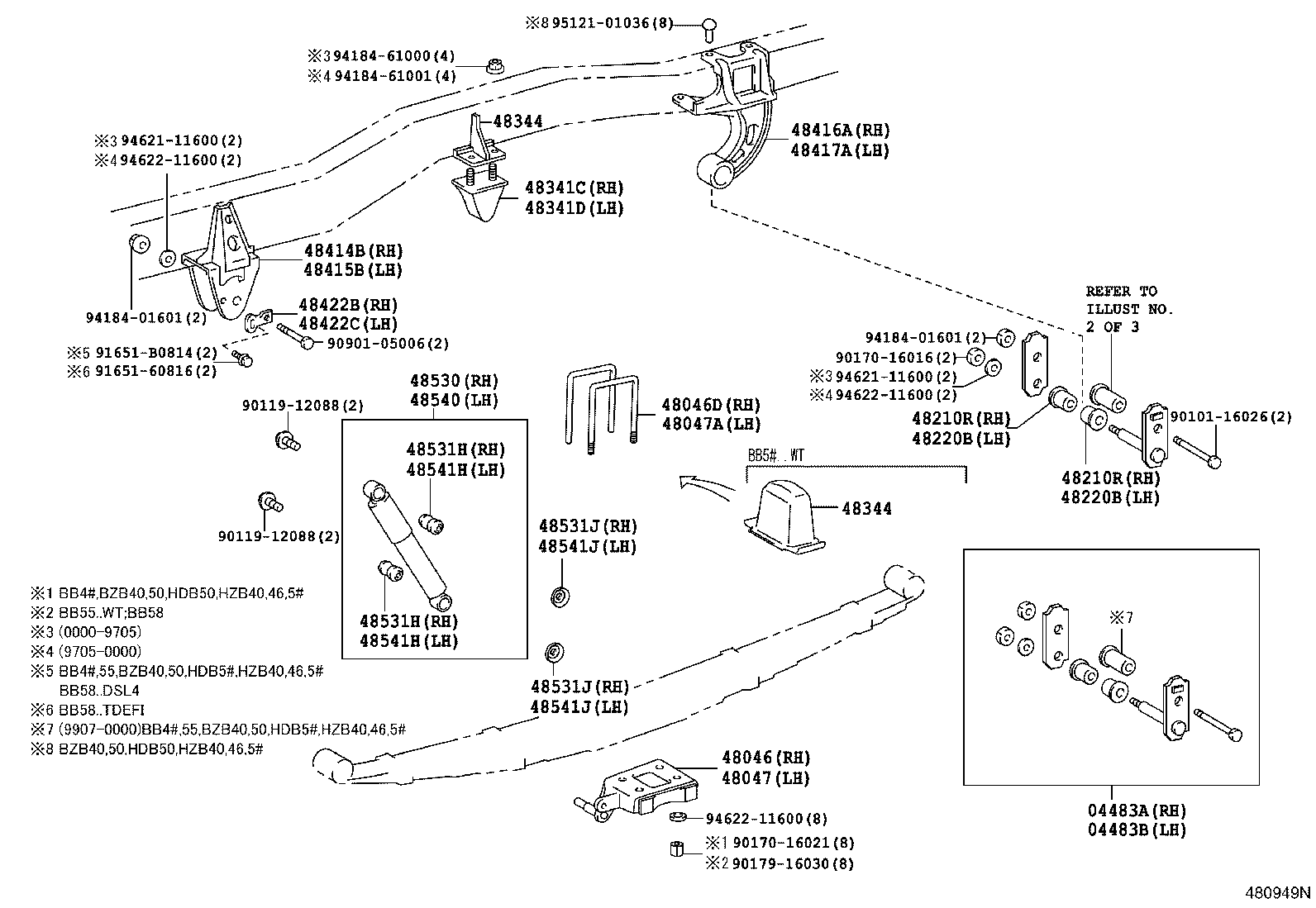

ILLUST NO. 1 OF 3(9301-0408)BB4#,5#,BZB40,50,HDB50,HZB40,46,5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483A - SHACKLE KIT, REAR SPRING, RH | ||||
| 04483-36080 |
BB4#,5#,HDB50,HZB40,5#..WT |
1 | ||
| 04483B - SHACKLE KIT, REAR SPRING, LH | ||||
| 04483-36080 |
BB4#,5#,HDB50,HZB40,5#..WT |
1 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-36260 |
BB4#,HZB56;HZB40,50..DX,STD |
1 | ||
| 48046D - BOLT, U(FOR REAR SPRING RH) | ||||
| 90117-16042 |
BB4#,HDB50,HZB40,5# |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-36260 |
BB4#,HZB56;HZB40,50..DX,STD |
1 | ||
| 48047A - BOLT, U(FOR REAR SPRING LH) | ||||
| 90117-16042 |
BB4#,HDB50,HZB40,5# |
2 | ||
| 48210R - BUSH(FOR REAR SPRING SHACKLE LOWER RH) | ||||
| 90385-23002 |
BB4#,5#,HDB50,HZB40,5#..WT |
2 | ||
| 48210R - BUSH(FOR REAR SPRING SHACKLE LOWER RH) | ||||
| 90385-23002 |
BB4#,5#,HDB50,HZB40,5#..WT |
2 | ||
| 48220B - BUSH(FOR REAR SPRING SHACKLE LOWER LH) | ||||
| 90385-23002 |
BB4#,5#,HDB50,HZB40,5#..WT |
2 | ||
| 48220B - BUSH(FOR REAR SPRING SHACKLE LOWER LH) | ||||
| 90385-23002 |
BB4#,5#,HDB50,HZB40,5#..WT |
2 | ||
| 48341C - BUMPER, REAR SPRING, NO.2 RH | ||||
| 48306-36081 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 48306-36080 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 48341D - BUMPER, REAR SPRING, NO.2 LH | ||||
| 48306-36080 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 48306-36081 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36420 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 48345-36060 |
BB4#,HDB5#,HZB4#,5# 左側 |
1 | ||
| 48344-36450 |
BB4#,HDB5#,HZB4#,5# 右側 |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36420 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 48345-36060 |
BB4#,HDB5#,HZB4#,5# 左側 |
1 | ||
| 48344-36450 |
BB4#,HDB5#,HZB4#,5# 右側 |
1 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-36330 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 48414-36330 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48415-36110 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 48415-36110 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 48416A - BRACKET, SPRING, NO.4 RH | ||||
| 48416-36290 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 48416-36290 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 48417A - BRACKET, SPRING, NO.4 LH | ||||
| 48417-36160 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 48417-36160 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 48422B - SUPPORT, REAR SPRING PIN, RH | ||||
| 48422-36030 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
1 | ||
| 48422C - SUPPORT, REAR SPRING PIN, LH | ||||
| 48422-36030 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80582 |
BB4#,HDB50,HZB40,5# ﾏｰｸ 48531−36180 |
1 | ||
| 48531-80169 |
BB4#,55,HDB50,HZB40,5#..WT ﾏｰｸ 48531−36180 |
1 | ||
| 48531H - BUSH(FOR REAR SHOCK ABSORBER RH) | ||||
| 90385-19006 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
2 | ||
| 48531H - BUSH(FOR REAR SHOCK ABSORBER RH) | ||||
| 90385-19006 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
2 | ||
| 48531J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH | ||||
| 90948-03011 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
2 | ||
| 48531J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH | ||||
| 90948-03011 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80169 |
BB4#,55,HDB50,HZB40,5#..WT ﾏｰｸ 48531−36180 |
1 | ||
| 48531-80582 |
BB4#,HDB50,HZB40,5# ﾏｰｸ 48531−36180 |
1 | ||
| 48541H - BUSH(FOR REAR SHOCK ABSORBER LH) | ||||
| 90385-19006 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
2 | ||
| 48541H - BUSH(FOR REAR SHOCK ABSORBER LH) | ||||
| 90385-19006 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
2 | ||
| 48541J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH | ||||
| 90948-03011 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
2 | ||
| 48541J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH | ||||
| 90948-03011 |
BB4#,5#,HDB5#,HZB4#,5#..WT |
2 | ||
| Common parts | ||||
| 90101-16026 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90170-16021 | ||||
| 90179-16030 | ||||
| 90901-05006 | ||||
| 91651-60816 | ||||
| 91651-B0814 | ||||
| 94184-01601 | ||||
| 94184-61000 | ||||
| 94184-61001 | ||||
| 94621-11600 | ||||
| 94622-11600 | ||||
| 95121-01036 | ||||

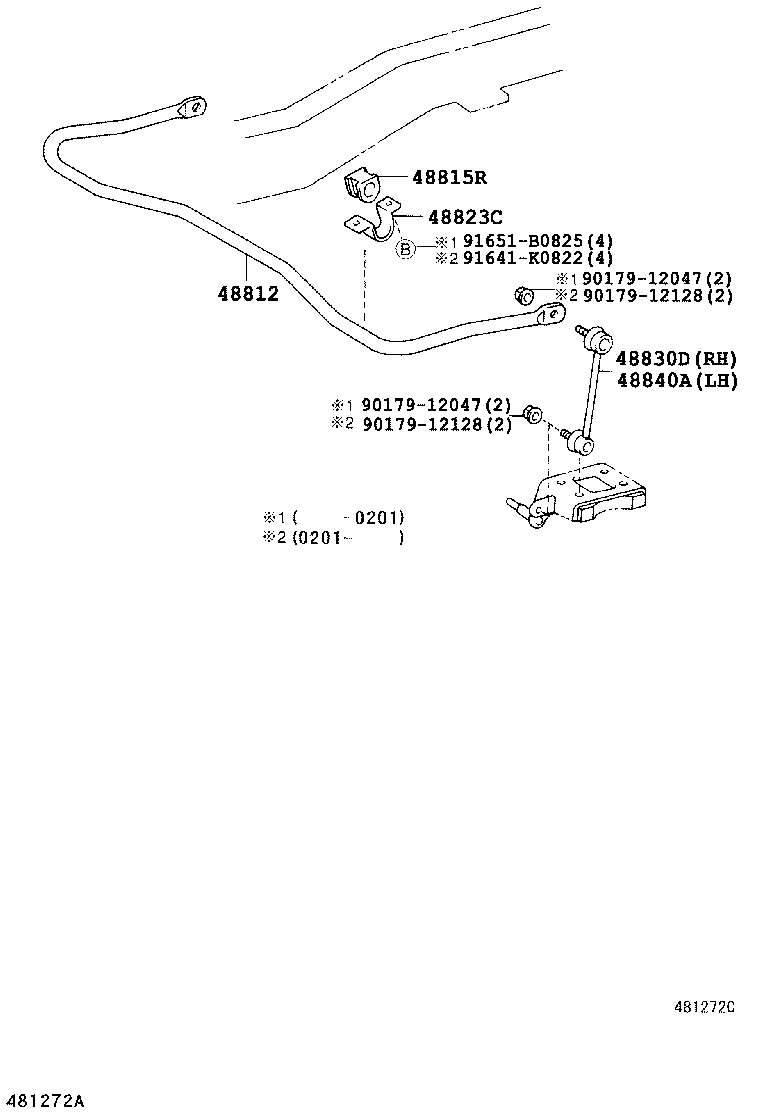

ILLUST NO. 3 OF 3(9301- )BB4#,BZB40,50,HDB50,HZB40,46,5#,XZB4#,50,56
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-12047 | ||||
| 90179-12128 | ||||
| 91641-K0822 | ||||
| 91651-B0825 | ||||

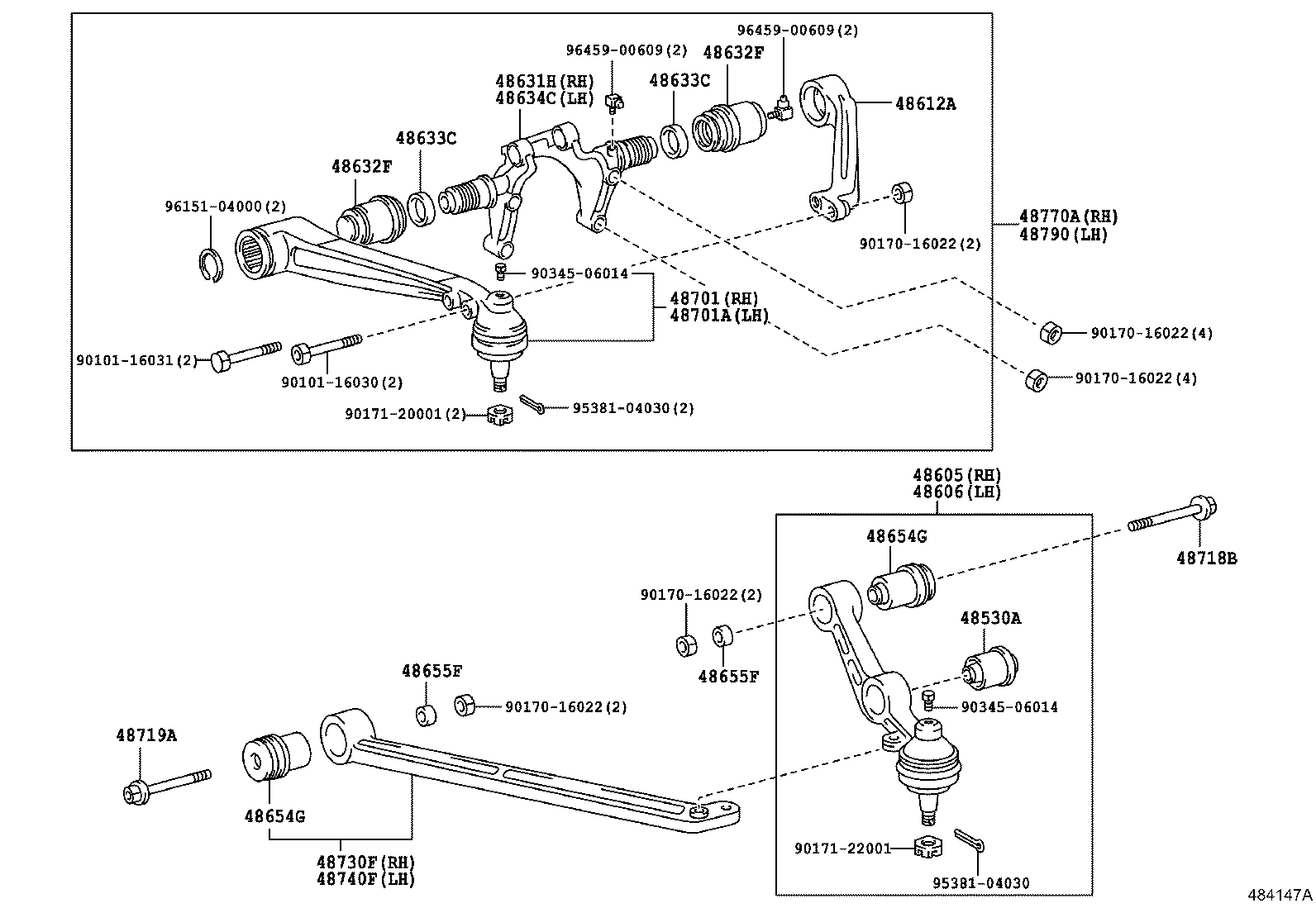

ILLUST NO. 1 OF 2(9512-9705)ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-16030 | ||||
| 90101-16031 | ||||
| 90170-16022 | ||||
| 90171-20001 | ||||
| 90171-22001 | ||||
| 90345-06014 | ||||
| 95381-04030 | ||||
| 96151-04000 | ||||
| 96459-00609 | ||||

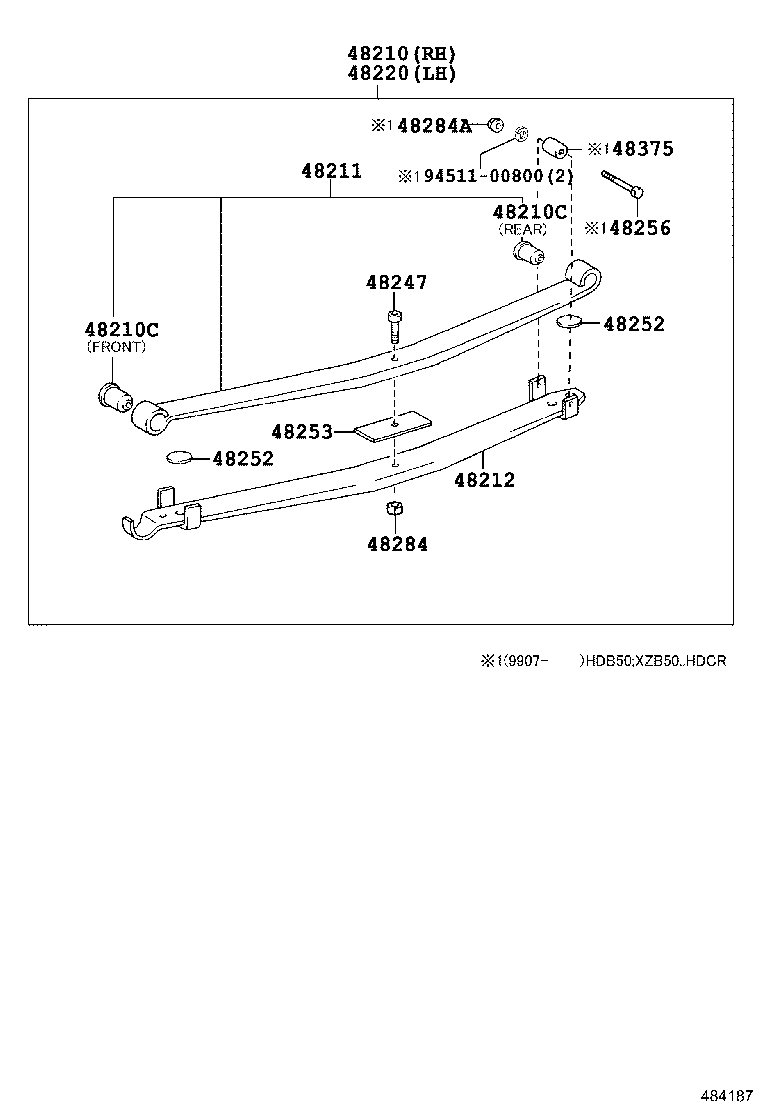

ILLUST NO. 2 OF 3(9301- )BB4#,BZB40,50,HDB50,HZB40,46,5#,XZB4#,50,56
2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B860 |
BB4#,HZB5#..09S,39S,49S 2枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16018 |
BB4#,5#,HDB50,HZB40,5#..WT ﾌﾛﾝﾄ |
2 | ||
| 90389-16015 |
BB4#,5#,HDB50,HZB40,5#..WT ﾘﾔ |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16018 |
BB4#,5#,HDB50,HZB40,5#..WT ﾌﾛﾝﾄ |
2 | ||
| 90389-16015 |
BB4#,5#,HDB50,HZB40,5#..WT ﾘﾔ |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B870 |
BB4#,HZB40,5#..09S,39S,49S 運転席側 |
1 | ||
| 48201-3B860 |
BB4#,HZB40,5#..09S,39S,49S 助手席側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B860 |
BB4#,HZB40,5#..09S,39S,49S 助手席側 |
1 | ||
| 48202-3B870 |
BB4#,HZB40,5#..09S,39S,49S 運転席側 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B870 |
BB4#,HZB5#..09S,39S,49S 2枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3B840 |
BB4#,5#,HDB50,HZB40,5#..WT |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-3B800 |
BB4#,5#,HDB50,HZB40,5#..WT |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-3B800 |
BB4#,5#,HDB50,HZB40,5#..WT |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-3B730 |
BB4#,5#,HDB50,HZB40,5#..WT |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 94110-51000 |
BB4#,HDB50,HZB40,5# |
2 | ||
| 48284-37130 |
BB4#,5#,HDB50,HZB40,5#..WT |
2 | ||
| Common parts | ||||
| 94511-00800 | ||||
