BB31-MRZ (1983)

Toyota Coaster

Production Feb 1983 - Jan 1993
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8304)26S,29S..WOC

Click highlighted areas on diagram

diagram 74622 74703 74707 74708 9011906184 9011906184 9026005001 9026005001 9331126012
Part # Description Qty Price
74622 - BRACKET, HAND GRIP
74622-90500

BB2#,3#,HB30,RB20..(26S,29S)..WOC

 1
74703 - FRAME SUB-ASSY, HAND GRIP SIDE
74703-90B00

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#

W/FOLDING DOOR

 1
74707 - FRAME SUB-ASSY, HAND GRIP, NO.1
74707-90B00

BB2#,3#,HB30,RB20..(26S,29S)..WOC

 1
74707-90B03

BB21,31,HB30,RB20..(26S,29S)..WOC

W/GLIDE DOOR

 1
74708 - FRAME SUB-ASSY, HAND GRIP, NO.2
74708-90B00

BB2#,3#,HB30,RB20..(26S,29S)..WOC

 1
74708-90B02

BB21,31,HB30,RB20..(26S,29S)..WOC

W/GLIDE DOOR

 1
Common parts
90119-06184
90260-05001
93311-26012

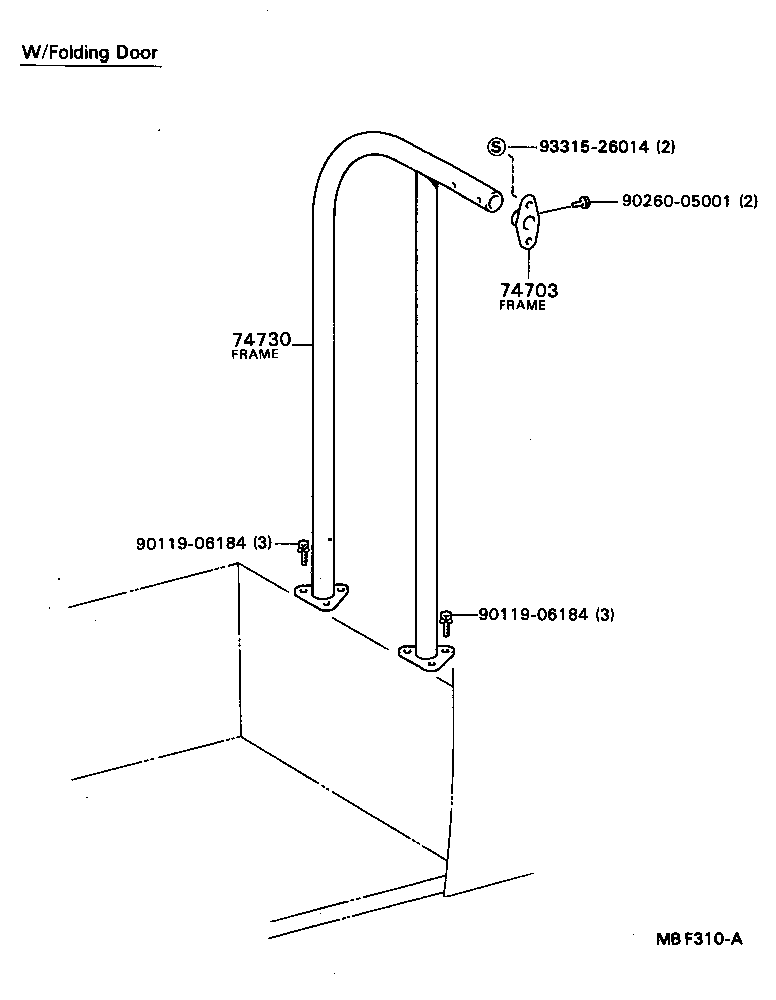

(8304- )26S,29S..WOC ; (8408- )BB26,36,HB36,RB26

Click highlighted areas on diagram

diagram 74703 74730 9011906184 9011906184 9026005001 9331526014
Part # Description Qty Price
74703 - FRAME SUB-ASSY, HAND GRIP SIDE
74703-90B00

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#

W/FOLDING DOOR

 1
74730 - FRAME ASSY, HAND GRIP
74730-90B00

BB21,31,HB30,RB20..(26S,29S)..WOC

 1
74730-90B00

BB2#,3#,HB3#,HDB3#,HZB30,31,RB2#..10S,20S,26S,29S

W/FOLDING DOOR

 1
Common parts
90119-06184
90260-05001
93315-26014

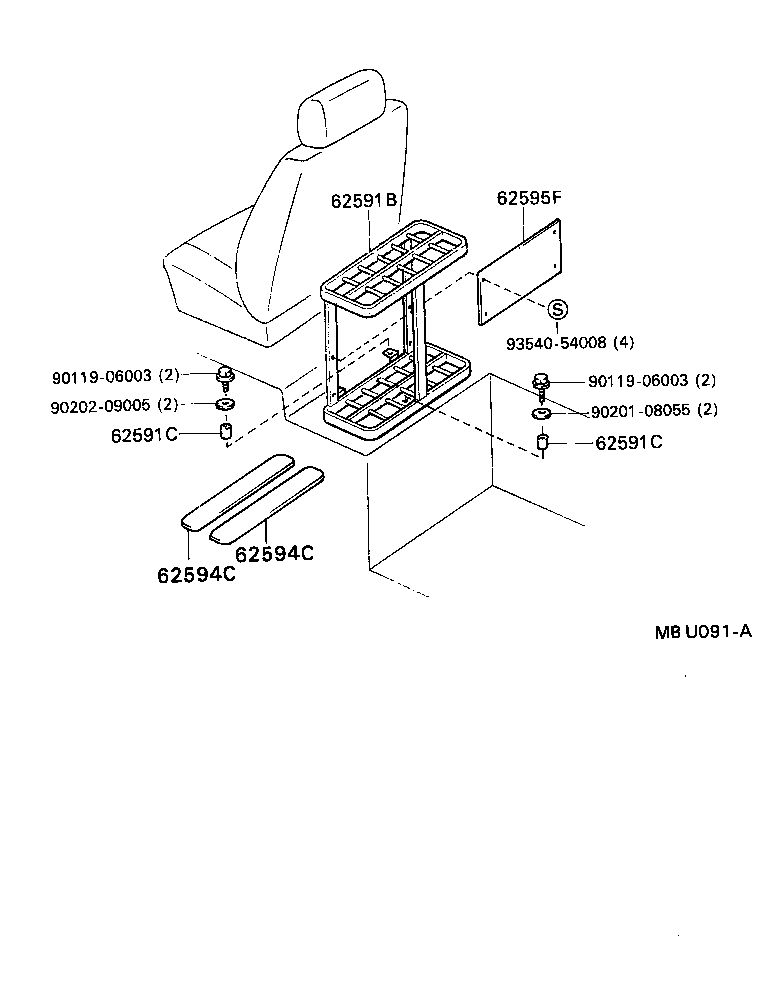

(9001- )

Click highlighted areas on diagram

ｱﾘ(ｶｻﾀﾃ)

diagram 62591B 62591C 62591C 62594C 62594C 62595F 9011906003 9011906003 9020108055 9020209005 9354054008
Part # Description Qty Price
Common parts
90119-06003
90201-08055
90202-09005
93540-54008
