BB31-MRZ (1983)
Toyota Coaster

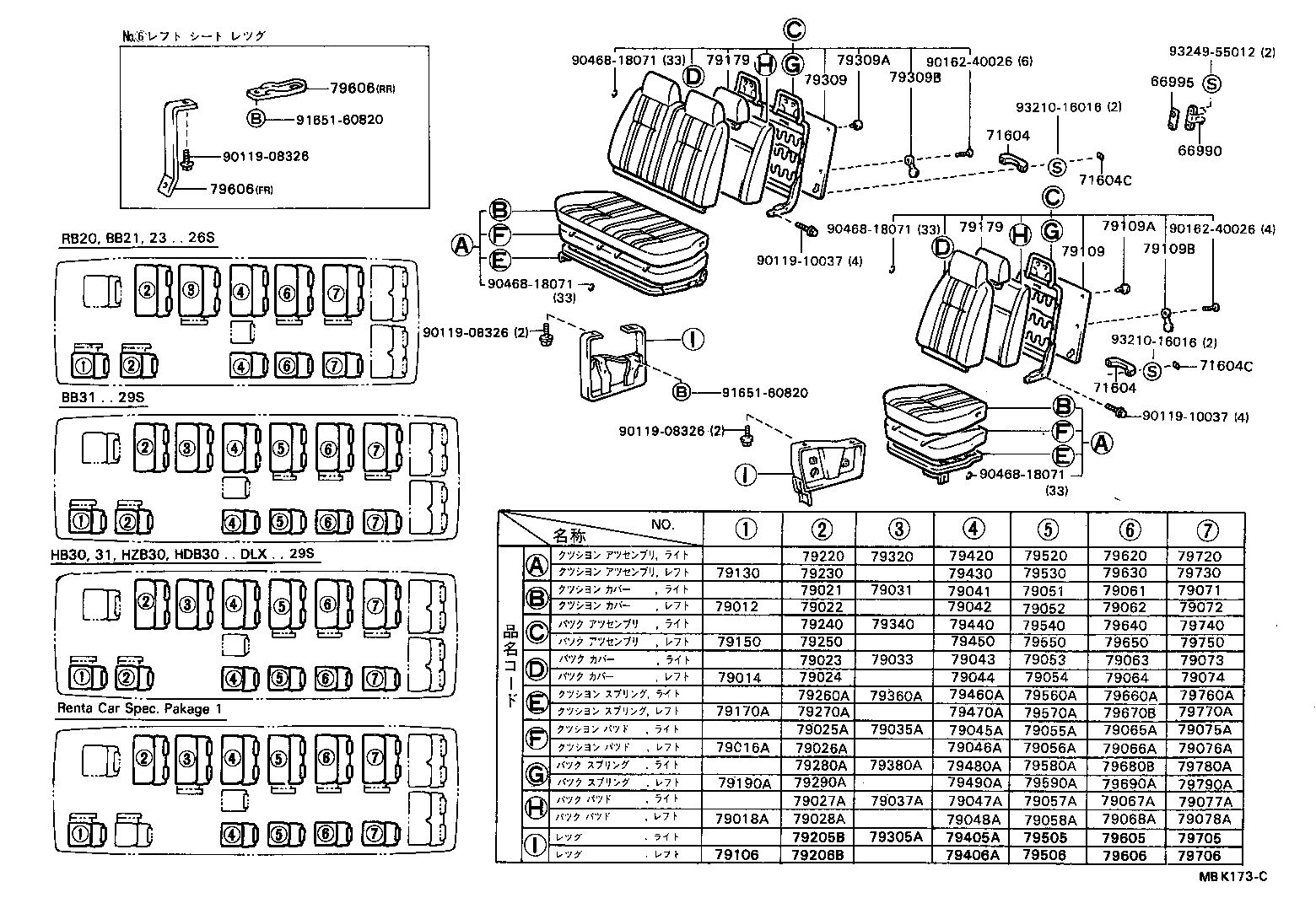

ILLUST NO. 1 OF 3(8205-8504)10S,26S,29S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 71071-90B16 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 71071-90B1606 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-90B24 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 71073-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 71073-90B3502 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 71073-90B3506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 71410-90B16 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 71410-90B1606 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 71430-90B19 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 71430-90B1906 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,26S,29S,39C |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,26S,29S,39C |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S |
1 | ||
| 71910-90B0006 |
BB21,23,26,31,HB30,31,36,RB20..10S,26S,29S SABLE,SABLE |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-90B00 |
BB2#,3#,HB3#,RB2# W/O LOCK |
1 | ||
| 71956-3002010 |
BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 ﾛｯｸ無,W/O LOCK,SABLE,SABLE |
1 | ||
| 71990-3002002 |
BB2#,3#,HB3#,RB2# ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE |
1 | ||
| 71930-90B00 |
BB2#,3#,HB3#,RB2# W/LOCK |
1 | ||
| 71990-3002010 |
BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 ﾛｯｸ付,W/LOCK,SABLE,SABLE |
1 | ||
| 71956-3002002 |
BB2#,3#,HB3#,RB2# ﾛｯｸ無,W/O LOCK,DARK WINE,DARK WINE |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-90B00 |
BB2#,3#,HB3#,RB2# W/O LOCK |
1 | ||
| 71956-3002010 |
BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 ﾛｯｸ無,W/O LOCK,SABLE,SABLE |
1 | ||
| 71990-3002002 |
BB2#,3#,HB3#,RB2# ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE |
1 | ||
| 71930-90B00 |
BB2#,3#,HB3#,RB2# W/LOCK |
1 | ||
| 71990-3002010 |
BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 ﾛｯｸ付,W/LOCK,SABLE,SABLE |
1 | ||
| 71956-3002002 |
BB2#,3#,HB3#,RB2# ﾛｯｸ無,W/O LOCK,DARK WINE,DARK WINE |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-90B00 |
HDB20,3#,HZB3# |
1 | ||
| 72110-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 72130-90B00 |
HDB20,3#,HZB3# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-90B00 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S |
1 | ||
| 72510-90B00 |
HDB20,3#,HZB3# |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 90506-14508 |
HDB20,3#,HZB3# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401002 |
BB2#,3#,HB3#,RB2# DARK WINE,DARK WINE |
1 | ||
| 72525-1401020 |
BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 SABLE,SABLE |
1 | ||
| 72525-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 72551 - COVER, RECLINING HINGE, NO.1 | ||||
| 72551-90B00 |
BB2#,3#,HB30,36,RB2# |
1 | ||
| 72551-90A0036 |
BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 SABLE,SABLE |
1 | ||
| 72551-90A0002 |
BB2#,3#,HB3#,RB2# DARK WINE,DARK WINE |
1 | ||
| 78071 - COVER SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78071-90B01 |
BB30,31..STD..29S VL |
5 | ||
| 78071-90B17 |
BB31..STD..29S VL |
5 | ||
| 78071-90B1902 |
BB31..STD..29S VL,RED,RED |
5 | ||
| 78071-90B1906 |
BB31..STD..29S VL,SABLE,SABLE |
5 | ||
| 78072 - COVER SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78072-90B01 |
BB30,31..STD..29S VL |
1 | ||
| 78072-90B19 |
BB31..STD..29S VL |
1 | ||
| 78072-90B2206 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 78072-90B2202 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-90B01 |
BB30,31..STD..29S VL |
5 | ||
| 78073-90B19 |
BB31..STD..29S VL |
5 | ||
| 78073-90B2206 |
BB31..STD..29S VL,SABLE,SABLE |
5 | ||
| 78073-90B2202 |
BB31..STD..29S VL,RED,RED |
5 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-90B01 |
BB30,31..STD..29S VL |
5 | ||
| 78073-90B19 |
BB31..STD..29S VL |
5 | ||
| 78073-90B2206 |
BB31..STD..29S VL,SABLE,SABLE |
5 | ||
| 78073-90B2202 |
BB31..STD..29S VL,RED,RED |
5 | ||
| 78074 - COVER SUB-ASSY, SUB SEAT BACK, LH | ||||
| 78073-90B01 |
BB30,31..STD..29S VL |
1 | ||
| 78073-90B19 |
BB31..STD..29S VL |
1 | ||
| 78073-90B2202 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 78073-90B2206 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 78074 - COVER SUB-ASSY, SUB SEAT BACK, LH | ||||
| 78073-90B01 |
BB30,31..STD..29S VL |
1 | ||
| 78073-90B19 |
BB31..STD..29S VL |
1 | ||
| 78073-90B2202 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 78073-90B2206 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 78705 - BRACKET SUB-ASSY, SUB SEAT CUSHION | ||||
| 78705-90B00 |
BB20,21,30,31,HB30,31,RB20..26S,29S |
6 | ||
| 78705-90B0006 |
BB21,23,24,31,HB30,31,32,HDB3#,HZB30,31,RB20..26S,29S SABLE,SABLE |
3 | ||
| 78720 - CUSHION ASSY, SUB SEAT, RH | ||||
| 78720-90B01 |
BB30,31..STD..29S VL |
5 | ||
| 78720-90B17 |
BB31..STD..29S VL |
5 | ||
| 78720-90B1906 |
BB31..STD..29S VL,SABLE,SABLE |
5 | ||
| 78720-90B1902 |
BB31..STD..29S VL,RED,RED |
5 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-90B00 |
BB20,21,23,24,30,31,HB30,31,32,HDB3#,HZB30,31,RB20..26S,29S T=23.2 |
12 | ||
| 78730 - CUSHION ASSY, SUB SEAT, LH | ||||
| 78730-90B24 |
BB31..STD..29S VL |
1 | ||
| 78730-90B01 |
BB30,31..STD..29S VL |
1 | ||
| 78730-90B2602 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 78730-90B2606 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-90B23 |
BB31..STD..29S VL |
1 | ||
| 78740-90B01 |
BB30,31..STD..29S VL |
5 | ||
| 78740-90B2802 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 78740-90B2806 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-90B23 |
BB31..STD..29S VL |
1 | ||
| 78740-90B01 |
BB30,31..STD..29S VL |
5 | ||
| 78740-90B2802 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 78740-90B2806 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 78750A - BACK ASSY, SUB SEAT, LH | ||||
| 78740-90B01 |
BB30,31..STD..29S VL |
1 | ||
| 78740-90B23 |
BB31..STD..29S VL |
1 | ||
| 78740-90B2806 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 78740-90B2802 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 78750A - BACK ASSY, SUB SEAT, LH | ||||
| 78740-90B01 |
BB30,31..STD..29S VL |
1 | ||
| 78740-90B23 |
BB31..STD..29S VL |
1 | ||
| 78740-90B2806 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 78740-90B2802 |
BB31..STD..29S VL,RED,RED |
1 | ||
| Common parts | ||||
| 90101-10055 | ||||
| 90119-08079 | ||||
| 90119-08258 | ||||
| 90119-08301 | ||||
| 90119-10037 | ||||
| 90154-80045 | ||||
| 90179-08143 | ||||
| 90240-08044 | ||||
| 90255-08002 | ||||
| 90386-12005 | ||||
| 90389-08007 | ||||
| 90389-08037 | ||||
| 90468-16012 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 90560-10026 | ||||
| 91651-40620 | ||||
| 91656-60830 | ||||
| 93249-55012 | ||||
| 93510-16020 | ||||
| 93540-55010 | ||||
| 93560-13520 | ||||
| 94120-41000 | ||||
| 94543-01200 | ||||
| 94611-20800 | ||||

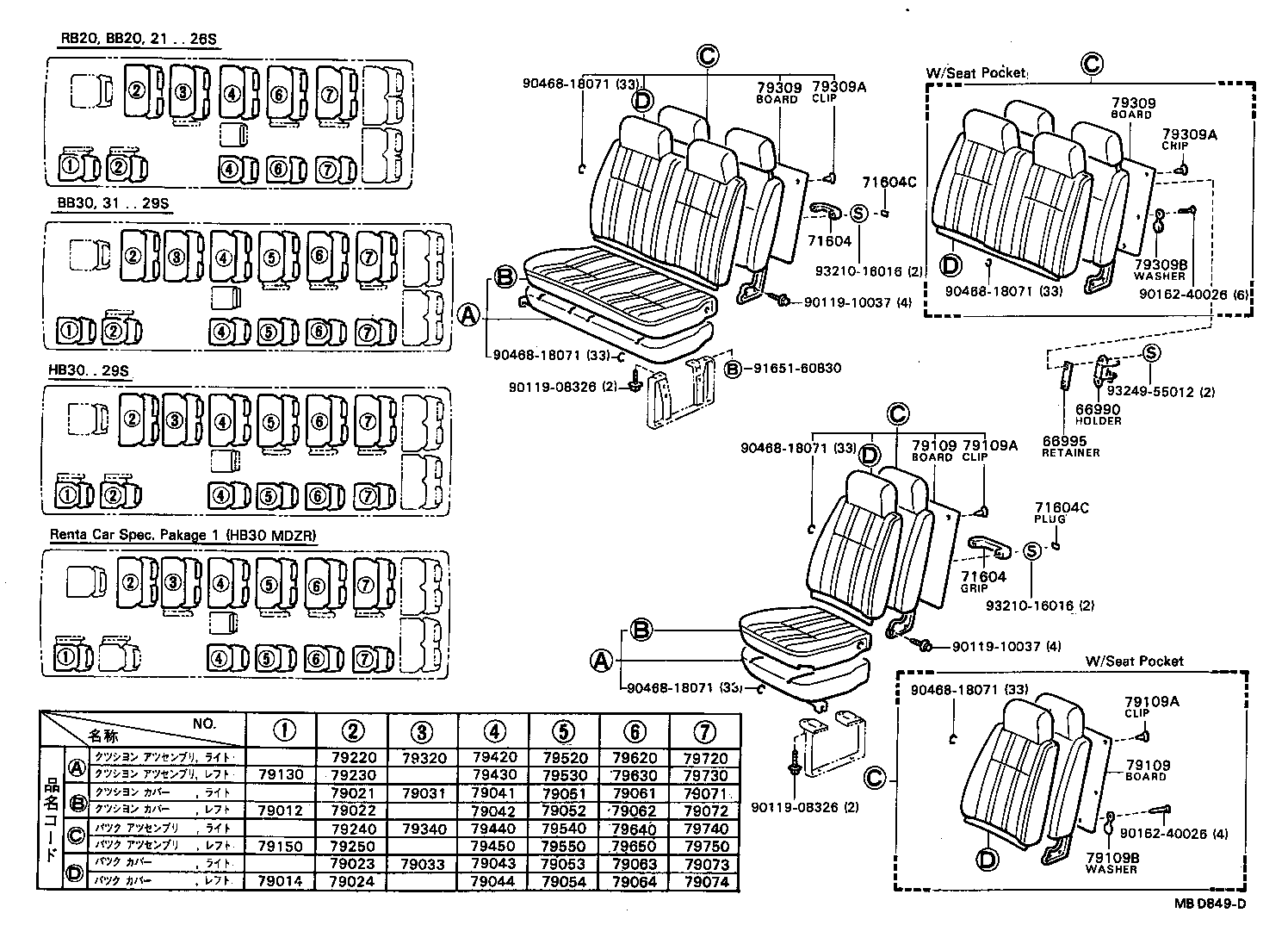

ILLUST NO. 2 OF 3(8205-8504)DLX,STD..26S,29S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74610-90B01 |
BB30,31,HB30,31..29S |
16 | ||
| 74610-1002026 |
BB31,HB30,31,32,HDB3#,HZB30,31..29S SABLE,SABLE |
16 | ||
| 74610-1002008 |
BB31,HB30,31..29S IVORY,IVORY |
16 | ||
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74610-90B01 |
BB30,31,HB30,31..29S |
16 | ||
| 74610-1002026 |
BB31,HB30,31,32,HDB3#,HZB30,31..29S SABLE,SABLE |
16 | ||
| 74610-1002008 |
BB31,HB30,31..29S IVORY,IVORY |
16 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-1401008 |
BB31,HB30,31..29S IVORY,IVORY |
32 | ||
| 74617-1401040 |
BB31,HB30,31,32,HDB3#,HZB30,31 SABLE,SABLE |
32 | ||
| 74617-90B00 |
BB30,31,HB30,31..29S |
32 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-1401008 |
BB31,HB30,31..29S IVORY,IVORY |
32 | ||
| 74617-1401040 |
BB31,HB30,31,32,HDB3#,HZB30,31 SABLE,SABLE |
32 | ||
| 74617-90B00 |
BB30,31,HB30,31..29S |
32 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79022-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79022-90B3206 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79022-90B32 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79013-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79013-90B33 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79013-90B3306 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-90B08 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79021-90B2506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79021-90B25 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-90B00 |
BB20,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79022-90B3206 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79022-90B32 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79033-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033-90B27 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033-90B2502 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79033-90B2506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79013-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79013-90B33 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79013-90B4402 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79013-90B4406 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,BROWN |
1 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79031-90B1706 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79031-90B17 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79031-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79033-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033-90B27 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033-90B2502 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79033-90B2506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79031-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79031-90B17 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79031-90B1706 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79022-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79022-90B3206 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79022-90B32 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79033-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033-90B27 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033-90B2502 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79033-90B2506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79013-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79013-90B4402 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79013-90B15 |
HB30,31..26S,29S FB |
1 | ||
| 79013-90B4702 |
HB30,31..26S,29S FB,RED,RED |
1 | ||
| 79013-90B33 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79013-90B4406 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,BROWN |
1 | ||
| 79051 - COVER SUB-ASSY, NO.5 SEAT CUSHION, RH | ||||
| 79031-90B07 |
HB30,31..26S,29S FB |
1 | ||
| 79031-90B00 |
BB30,31..STD..29S VL |
1 | ||
| 79031-90B17 |
BB31..STD..29S VL |
1 | ||
| 79031-90B2606 |
HB30,31,32,HDB3#,HZB30,31..26S,29S MOQUETTE,SABLE,SABLE |
1 | ||
| 79031-90B1706 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 79052 - COVER SUB-ASSY, NO.5 SEAT CUSHION, LH | ||||
| 79012-90B04 |
HB30,31..26S,29S FB |
1 | ||
| 79022-90B00 |
BB30,31..STD..29S VL |
1 | ||
| 79022-90B3206 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 79022-90B32 |
BB31..STD..29S VL |
1 | ||
| 79012-90B2206 |
HB30,31,32,HDB3#,HZB30,31..26S,29S MOQUETTE,SABLE |
1 | ||
| 79053 - COVER SUB-ASSY, NO.5 SEAT BACK, RH | ||||
| 79033-90B00 |
BB30,31..STD..29S VL |
1 | ||
| 79033-90B27 |
BB31..STD..29S VL |
1 | ||
| 79033-90B2502 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 79013-90B4402 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 79033-90B2506 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 79054 - COVER SUB-ASSY, NO.5 SEAT BACK, LH | ||||
| 79013-90B00 |
BB30,31..STD..29S VL |
1 | ||
| 79013-90B15 |
HB30,31..26S,29S FB |
1 | ||
| 79013-90B4702 |
HB30,31..26S,29S FB,RED,RED |
1 | ||
| 79013-90B4402 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 79013-90B33 |
BB31..STD..29S VL |
1 | ||
| 79014-90B0806 |
HB30,31,32,HDB3#,HZB30,31..26S,29S MOQUETTE,SABLE,SABLE |
1 | ||
| 79013-90B4406 |
BB31..STD..29S VL,SABLE,BROWN |
1 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79031-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79031-90B17 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79031-90B1706 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79022-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79022-90B32 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79022-90B3206 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79033-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033-90B27 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033-90B2506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79033-90B2502 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79013-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79013-90B4402 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79013-90B4406 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,BROWN |
1 | ||
| 79013-90B33 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79031-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79031-90B17 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79031-90B1706 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79022-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79022-90B32 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79022-90B3206 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79033-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033-90B27 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033-90B2502 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79033-90B2506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79013-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79013-90B4406 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,BROWN |
1 | ||
| 79013-90B33 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79013-90B4402 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79109 - BOARD SUB-ASSY, NO.1 SEAT BACK | ||||
| 79109-90B0206 |
HB30,31,HDB30,HZB30 W/RECLINING SEAT,SABLE,SABLE |
6 | ||
| 79980-90B0106 |
HB30,31,32,HDB3#,HZB30,31..29S W/*SPO,RECLININGSEAT,SABLE,SABLE |
18 | ||
| 79980-90B01 |
HB30,31..29S W/*SPO,RECLINING SEAT |
18 | ||
| 79109 - BOARD SUB-ASSY, NO.1 SEAT BACK | ||||
| 79109-90B0206 |
HB30,31,HDB30,HZB30 W/RECLINING SEAT,SABLE,SABLE |
6 | ||
| 79980-90B0106 |
HB30,31,32,HDB3#,HZB30,31..29S W/*SPO,RECLININGSEAT,SABLE,SABLE |
18 | ||
| 79980-90B01 |
HB30,31..29S W/*SPO,RECLINING SEAT |
18 | ||
| 79109A - CLIP (FOR NO.1 SEAT BACK BOARD) | ||||
| 90467-0807502 |
HB30,31..29S W/RECLINING SEAT,DARK WINE,DARK WINE |
72 | ||
| 90467-0807506 |
HB30,31,HDB30,HZB30..29S W/RECLINING SEAT,SABLE,SABLE |
72 | ||
| 79109A - CLIP (FOR NO.1 SEAT BACK BOARD) | ||||
| 90467-0807502 |
HB30,31..29S W/RECLINING SEAT,DARK WINE,DARK WINE |
72 | ||
| 90467-0807506 |
HB30,31,HDB30,HZB30..29S W/RECLINING SEAT,SABLE,SABLE |
72 | ||
| 79109B - WASHER (FOR NO.1 SEAT BACK BOARD) | ||||
| 71788-2201002 |
HB30,31..29S W/*SPO,RECLINING SEAT,RED/MAROON |
72 | ||
| 71788-2201036 |
HB30,31,HDB3#,HZB30,31..29S W/*SPO,RECLINING SEAT,SABLE,SABLE |
72 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79230-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79230-90B29 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79230-90B2906 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79140-90B1906 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79140-90B19 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79140-90B3006 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79220-90B33 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79220-90B4602 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79220-90B09 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79220-90B4606 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79230-90B2906 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79230-90B29 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79340-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79340-90B2306 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79340-90B23 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79240-90B4606 |
BB23,24,HB30,31,HZB30,31..26S,29S RH,MOQUETTE,W/*CUH,SABLE,SABLE |
1 | ||
| 79240-90B6106 |
BB23,24,HB30,31,HZB30,31..26S,29S LH,MOQUETTE,W/*CUH,SABLE,SABLE |
1 | ||
| 79250-90B3406 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79250-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79150-90B00 |
BB21,31,RB20..STD..(26S,29S) VL,W/GLIDE DOOR |
1 | ||
| 79250-90B24 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79250-90B2406 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE |
1 | ||
| 79320 - CUSHION ASSY, NO.3 SEAT, RH | ||||
| 79320-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79320-90B22 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79320-90B3202 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79320-90B3206 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79340 - BACK ASSY, NO.3 SEAT, RH | ||||
| 79340-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79340-90B23 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79340-90B2306 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79250-90B3406 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79420 - CUSHION ASSY, NO.4 SEAT, RH | ||||
| 79320-90B22 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79320-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79320-90B3202 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79320-90B3206 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79430 - CUSHION ASSY, NO.4 SEAT, LH | ||||
| 79430-90B15 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79430-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79430-90B1506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79430-90B1606 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79440 - BACK ASSY, NO.4 SEAT, RH | ||||
| 79340-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79340-90B23 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79340-90B2306 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79250-90B3406 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79450 - BACK ASSY, NO.4 SEAT, LH | ||||
| 79150-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79140-90B19 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79140-90B1906 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79140-90B3006 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79520 - CUSHION ASSY, NO.5 SEAT, RH | ||||
| 79320-90B00 |
BB30,31..STD..29S VL |
1 | ||
| 79320-90B08 |
HB30,31..26S,29S FB |
1 | ||
| 79320-90B3202 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 79320-90B22 |
BB31..STD..29S VL |
1 | ||
| 79320-90B3406 |
HB30,31,32,HDB3#,HZB30,31..26S,29S MOQUETTE,SABLE,SABLE |
1 | ||
| 79320-90B3206 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 79530 - CUSHION ASSY, NO.5 SEAT, LH | ||||
| 79430-90B08 |
HB30,31..26S,29S FB |
1 | ||
| 79430-90B15 |
BB31..STD..29S VL |
1 | ||
| 79430-90B00 |
BB30,31..STD..29S VL |
1 | ||
| 79430-90B2806 |
HB30,31,32,HDB3#,HZB30,31..26S,29S MOQUETTE,SABLE,SABLE |
1 | ||
| 79430-90B1606 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 79430-90B1506 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 79540 - BACK ASSY, NO.5 SEAT, RH | ||||
| 79340-90B00 |
BB30,31..STD..29S VL |
1 | ||
| 79340-90B2306 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 79340-90B23 |
BB31..STD..29S VL |
1 | ||
| 79250-90B3406 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 79550 - BACK ASSY, NO.5 SEAT, LH | ||||
| 79150-90B00 |
BB30,31..STD..29S VL |
1 | ||
| 79140-90B19 |
BB31..STD..29S VL |
1 | ||
| 79140-90B1906 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 79140-90B3006 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 79620 - CUSHION ASSY, NO.6 SEAT, RH | ||||
| 79620-90B31 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79620-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79620-90B3902 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79620-90B3906 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79630 - CUSHION ASSY, NO.6 SEAT, LH | ||||
| 79630-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79630-90B25 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79630-90B2506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79630-90B2606 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79640 - BACK ASSY, NO.6 SEAT, RH | ||||
| 79340-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79340-90B23 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79340-90B2306 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79250-90B3406 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79650 - BACK ASSY, NO.6 SEAT, LH | ||||
| 79150-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79140-90B1906 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79140-90B19 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79140-90B3006 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79720 - CUSHION ASSY, NO.7 SEAT, RH | ||||
| 79620-90B31 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79620-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79620-90B3902 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79620-90B3906 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79730 - CUSHION ASSY, NO.7 SEAT, LH | ||||
| 79630-90B25 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79630-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79630-90B2606 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79630-90B2506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79740 - BACK ASSY, NO.7 SEAT, RH | ||||
| 79340-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79340-90B2306 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79340-90B23 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79250-90B3406 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79750 - BACK ASSY, NO.7 SEAT, LH | ||||
| 79150-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79140-90B19 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79140-90B1906 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79140-90B3006 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||

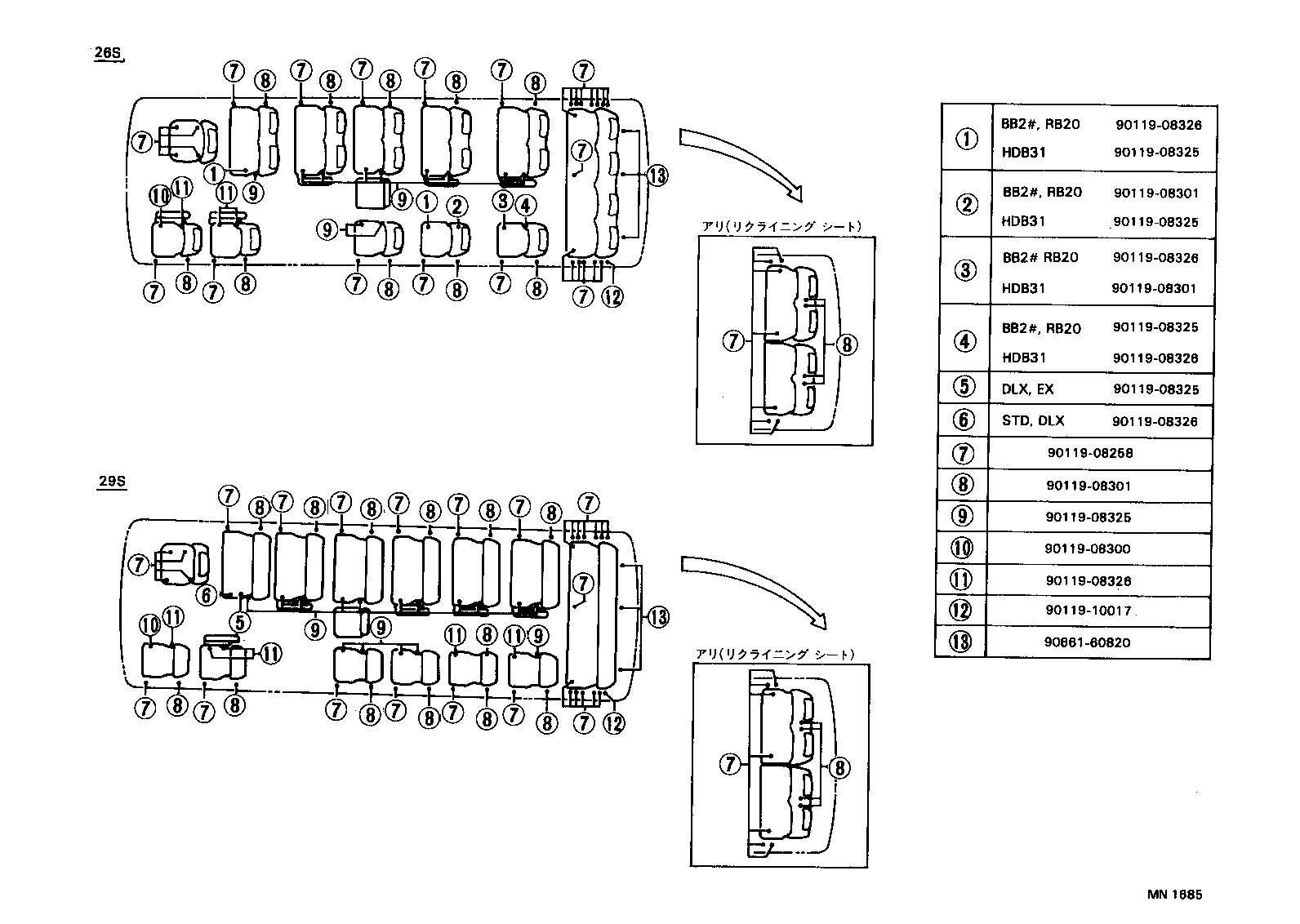

| Common parts | ||||
| 90119-08326 | ||||
| 90119-10037 | ||||
| 90162-40026 | ||||
| 90468-18071 | ||||
| 91651-60830 | ||||
| 93210-16016 | ||||
| 93249-55012 | ||||

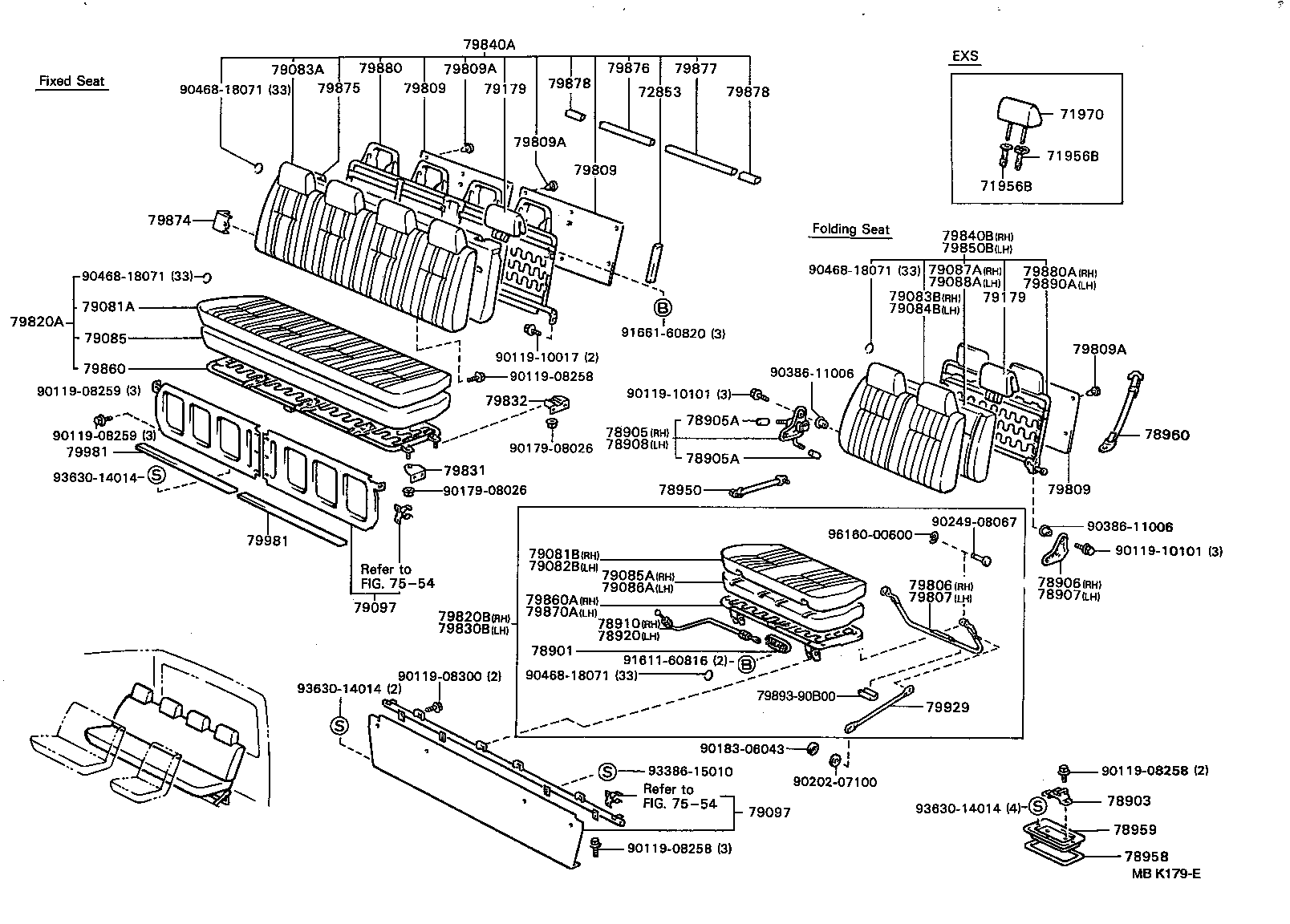

ILLUST NO. 3 OF 3(8205-8504)20S,26S,29S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78901 - LOCK SUB-ASSY, FOLD SEAT LEG | ||||
| 78901-90B0106 |
HDB3#,HZB30,31 SABLE,SABLE |
2 | ||
| 78903 - STRIKER SUB-ASSY, FOLD SEAT LEG LOCK | ||||
| 78903-90B00 |
HDB3#,HZB30,31 |
2 | ||
| 78905 - LOCK SUB-ASSY, FOLD RH SEAT BACK, RH | ||||
| 78905-90B0006 |
HDB3#,HZB30,31 SABLE,SABLE |
1 | ||
| 78905A - KNOB, FOLDING SEAT BACK LOCK | ||||
| 72591-90B00 |
HDB3#,HZB30,31 |
4 | ||
| 78905A - KNOB, FOLDING SEAT BACK LOCK | ||||
| 72591-90B00 |
HDB3#,HZB30,31 |
4 | ||
| 78906 - LOCK SUB-ASSY, FOLD RH SEAT BACK, LH | ||||
| 78906-90B0006 |
HDB3#,HZB30,31 SABLE,SABLE |
1 | ||
| 78907 - LOCK SUB-ASSY, FOLD LH SEAT BACK, RH | ||||
| 78907-90B0006 |
HDB3#,HZB30,31 SABLE,SABLE |
1 | ||
| 78908 - LOCK SUB-ASSY, FOLD LH SEAT BACK, LH | ||||
| 78908-90B0006 |
HDB3#,HZB30,31 SABLE,SABLE |
1 | ||
| 78910 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 | ||||
| 78910-90B00 |
HDB3#,HZB30,31 |
1 | ||
| 78920 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2 | ||||
| 78920-90B00 |
HDB3#,HZB30,31 |
1 | ||
| 78958 - SEAL, REAR FLOOR FOLD STRIKER BASE | ||||
| 78958-90B01 |
HDB3#,HZB30,31 |
2 | ||
| 78959 - PLATE, REAR FLOOR FOLD STRIKER BASE | ||||
| 78959-90B00 |
HDB3#,HZB30,31 |
2 | ||
| 79081A - COVER SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79081-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79081-90B2806 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79081-90B30 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79081-90B2802 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79083A - COVER SUB-ASSY, NO.8 SEAT BACK | ||||
| 79083-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79083-90B27 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79083-90B3506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79083-90B3502 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-90B03 |
BB20,21,30,31,HB30,31,RB20..(DLX,STD)..(26S,29S) RH,W/O FOLDING SEAT |
1 | ||
| 79098-90B00 |
BB20,21,30,31,HB30,31,RB20..(DLX,STD)..(26S,29S) LH,W/O FOLDING SEAT |
1 | ||
| 79098-90B0006 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) LH,W/O FOLDING SEAT,SABLE |
1 | ||
| 79097-90B0306 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) RH,W/O FOLDING SEAT,SABLE |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-90B03 |
BB20,21,30,31,HB30,31,RB20..(DLX,STD)..(26S,29S) RH,W/O FOLDING SEAT |
1 | ||
| 79098-90B00 |
BB20,21,30,31,HB30,31,RB20..(DLX,STD)..(26S,29S) LH,W/O FOLDING SEAT |
1 | ||
| 79098-90B0006 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) LH,W/O FOLDING SEAT,SABLE |
1 | ||
| 79097-90B0306 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) RH,W/O FOLDING SEAT,SABLE |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-90B03 |
BB20,21,30,31,HB30,31,RB20..(DLX,STD)..(26S,29S) RH,W/O FOLDING SEAT |
1 | ||
| 79098-90B00 |
BB20,21,30,31,HB30,31,RB20..(DLX,STD)..(26S,29S) LH,W/O FOLDING SEAT |
1 | ||
| 79098-90B0006 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) LH,W/O FOLDING SEAT,SABLE |
1 | ||
| 79097-90B0306 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) RH,W/O FOLDING SEAT,SABLE |
1 | ||
| 79809A - CLIP (FOR NO.8 SEAT BACK BOARD) | ||||
| 90467-0807506 |
HDB3#,HZB30,31 SABLE,SABLE |
12 | ||
| 79809A - CLIP (FOR NO.8 SEAT BACK BOARD) | ||||
| 90467-0807506 |
HDB3#,HZB30,31 SABLE,SABLE |
12 | ||
| 79809A - CLIP (FOR NO.8 SEAT BACK BOARD) | ||||
| 90467-0807506 |
HDB3#,HZB30,31 SABLE,SABLE |
12 | ||
| 79820A - CUSHION ASSY, NO.8 SEAT | ||||
| 79820-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79820-90B40 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79820-90B6006 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79820-90B6002 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79840A - BACK ASSY, NO.8 SEAT | ||||
| 79840-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79840-90B2806 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79840-90B28 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79840-90B4206 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79981 - SILENCER, LUGGAGE COMPARTMENT WALL | ||||
| 79981-90B00 |
BB20,21,23,30,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) W/O FOLDING SEAT |
2 | ||
| 79981 - SILENCER, LUGGAGE COMPARTMENT WALL | ||||
| 79981-90B00 |
BB20,21,23,30,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) W/O FOLDING SEAT |
2 | ||
| Common parts | ||||
| 90119-08258 | ||||
| 90119-08259 | ||||
| 90119-08300 | ||||
| 90119-10017 | ||||
| 90119-10101 | ||||
| 90179-08026 | ||||
| 90386-11006 | ||||
| 90468-18071 | ||||
| 91611-60816 | ||||
| 91661-60820 | ||||
| 93386-15010 | ||||
| 93630-14014 | ||||
| Linked diagrams | ||||
| 7554 | ||||
ILLUST NO. 1 OF 4(8504- )10S,20S,26S,29S ; (9001- )HDB20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 71071-90B16 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 71071-90B1606 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-90B24 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 71073-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 71073-90B3502 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 71073-90B3506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 71109A - LEG SUB-ASSY, FRONT SEAT | ||||
| 71109-90B0006 |
BB2#,31,HDB20,3#,HZB3#,RB20 SABLE,SABLE |
1 | ||
| 71146 - SILENCER, FRONT SEAT BACK | ||||
| 71146-90304 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 71148 - SILENCER, FRONT SEAT CUSHION | ||||
| 71148-90304 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 71410-90B16 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 71410-90B1606 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 71430-90B19 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 71430-90B1906 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-90B01 |
HDB20,31,HZB31 |
1 | ||
| 71505-90B00 |
BB2#,3#,HB3#,HDB30,HZB30,36,RB2# |
1 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71524-50010 |
BB23,24,26,HDB20,3#,HZB3# 40X60 |
1 | ||
| 71524-50010 |
BB21,31,RB20..26S,29S 40X60 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-90A03 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-90B04 |
HDB20,31,HZB31 |
1 | ||
| 71630-90B02 |
BB2#,3#,HB3#,HDB30,HZB30,36,RB2# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,26S,29S,39C |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,26S,29S,39C |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S |
1 | ||
| 71910-90B0006 |
BB21,23,26,31,HB30,31,36,RB20..10S,26S,29S SABLE,SABLE |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-90B00 |
BB2#,3#,HB3#,RB2# W/O LOCK |
1 | ||
| 71956-3002010 |
BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 ﾛｯｸ無,W/O LOCK,SABLE,SABLE |
1 | ||
| 71990-3002002 |
BB2#,3#,HB3#,RB2# ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE |
1 | ||
| 71930-90B00 |
BB2#,3#,HB3#,RB2# W/LOCK |
1 | ||
| 71990-3002010 |
BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 ﾛｯｸ付,W/LOCK,SABLE,SABLE |
1 | ||
| 71956-3002002 |
BB2#,3#,HB3#,RB2# ﾛｯｸ無,W/O LOCK,DARK WINE,DARK WINE |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-90B00 |
BB2#,3#,HB3#,RB2# W/O LOCK |
1 | ||
| 71956-3002010 |
BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 ﾛｯｸ無,W/O LOCK,SABLE,SABLE |
1 | ||
| 71990-3002002 |
BB2#,3#,HB3#,RB2# ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE |
1 | ||
| 71930-90B00 |
BB2#,3#,HB3#,RB2# W/LOCK |
1 | ||
| 71990-3002010 |
BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 ﾛｯｸ付,W/LOCK,SABLE,SABLE |
1 | ||
| 71956-3002002 |
BB2#,3#,HB3#,RB2# ﾛｯｸ無,W/O LOCK,DARK WINE,DARK WINE |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-90B00 |
HDB20,3#,HZB3# |
1 | ||
| 72110-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 72130-90B00 |
HDB20,3#,HZB3# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-90B00 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S |
1 | ||
| 72510-90B00 |
HDB20,3#,HZB3# |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 90506-14508 |
HDB20,3#,HZB3# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401002 |
BB2#,3#,HB3#,RB2# DARK WINE,DARK WINE |
1 | ||
| 72525-1401020 |
BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 SABLE,SABLE |
1 | ||
| 72525-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 72551 - COVER, RECLINING HINGE, NO.1 | ||||
| 72551-90B00 |
BB2#,3#,HB30,36,RB2# |
1 | ||
| 72551-90A0036 |
BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 SABLE,SABLE |
1 | ||
| 72551-90A0002 |
BB2#,3#,HB3#,RB2# DARK WINE,DARK WINE |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-20090 |
BB24,HDB20,31,HZB31 |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-30030E1 |
BB24,HDB20,31,HZB31 SABLE,SABLE,TRIM4# |
1 | ||
| 72791-2202046 |
BB24,HDB20,31,HZB31 SABLE,SABLE,TRIM4# |
1 | ||
| 78071 - COVER SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78071-90B01 |
BB30,31..STD..29S VL |
5 | ||
| 78071-90B17 |
BB31..STD..29S VL |
5 | ||
| 78071-90B1902 |
BB31..STD..29S VL,RED,RED |
5 | ||
| 78071-90B1906 |
BB31..STD..29S VL,SABLE,SABLE |
5 | ||
| 78072 - COVER SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78072-90B01 |
BB30,31..STD..29S VL |
1 | ||
| 78072-90B19 |
BB31..STD..29S VL |
1 | ||
| 78072-90B2206 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 78072-90B2202 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-90B01 |
BB30,31..STD..29S VL |
5 | ||
| 78073-90B19 |
BB31..STD..29S VL |
5 | ||
| 78073-90B2206 |
BB31..STD..29S VL,SABLE,SABLE |
5 | ||
| 78073-90B2202 |
BB31..STD..29S VL,RED,RED |
5 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-90B01 |
BB30,31..STD..29S VL |
5 | ||
| 78073-90B19 |
BB31..STD..29S VL |
5 | ||
| 78073-90B2206 |
BB31..STD..29S VL,SABLE,SABLE |
5 | ||
| 78073-90B2202 |
BB31..STD..29S VL,RED,RED |
5 | ||
| 78074 - COVER SUB-ASSY, SUB SEAT BACK, LH | ||||
| 78073-90B01 |
BB30,31..STD..29S VL |
1 | ||
| 78073-90B19 |
BB31..STD..29S VL |
1 | ||
| 78073-90B2202 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 78073-90B2206 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 78074 - COVER SUB-ASSY, SUB SEAT BACK, LH | ||||
| 78073-90B01 |
BB30,31..STD..29S VL |
1 | ||
| 78073-90B19 |
BB31..STD..29S VL |
1 | ||
| 78073-90B2202 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 78073-90B2206 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 78077 - BOARD SUB-ASSY, SUB SEAT CUSHION | ||||
| 78078-90B0002 |
BB31..29S LH,DARK WINE,DARK WINE |
1 | ||
| 78077-90B00 |
BB21,23,24,HB30,31,32,HDB3#,HZB30,31,RB20..26S,29S RH |
4 | ||
| 78077-90B00 |
BB31..29S RH |
5 | ||
| 78077-90B00 |
HB30,31,32,HDB3#,HZB30,31..HRF..(26S,29S) RH,*RC1 |
5 | ||
| 78078-90B0006 |
BB31..29S LH,SABLE,SABLE |
1 | ||
| 78701 - FRAME SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78701-90B00 |
BB31..29S |
5 | ||
| 78701-90B00 |
BB21,23,24,HB30,31,32,HDB3#,HZB30,31,RB20 |
4 | ||
| 78701-36010E0 |
BB31..29S SABLE,SABLE |
1 | ||
| 78701-36010E0 |
BB23,HDB31,HZB30,31 *RC1,SABLE,SABLE |
1 | ||
| 78702 - FRAME SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78702-36010E0 |
BB31..STD..29S SABLE,SABLE |
1 | ||
| 78702-90B00 |
BB31..29S |
1 | ||
| 78702-36010E0 |
BB23,HDB30,HZB30,31 *RC1,SABLE,SABLE |
1 | ||
| 78703 - FRAME SUB-ASSY, SUB SEAT BACK | ||||
| 78703-90B0006 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..26S,29S SABLE,SABLE |
6 | ||
| 78703-90B00 |
BB21,31,HB30,31,RB20..(DLX,STD)..(26S,29S) |
6 | ||
| 78703 - FRAME SUB-ASSY, SUB SEAT BACK | ||||
| 78703-90B0006 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..26S,29S SABLE,SABLE |
6 | ||
| 78703-90B00 |
BB21,31,HB30,31,RB20..(DLX,STD)..(26S,29S) |
6 | ||
| 78705 - BRACKET SUB-ASSY, SUB SEAT CUSHION | ||||
| 78705-90B00 |
BB20,21,30,31,HB30,31,RB20..26S,29S |
6 | ||
| 78705-90B0006 |
BB21,23,24,31,HB30,31,32,HDB3#,HZB30,31,RB20..26S,29S SABLE,SABLE |
3 | ||
| 78709 - PANEL SUB-ASSY, SUB SEAT CUSHION | ||||
| 78709-90B00E0 |
HB30,31,32,HDB3#,HZB30,31..26S,29S SABLE,SABLE |
6 | ||
| 78709-90B00 |
BB21,31,HB30,31,RB20..26S,29S |
6 | ||
| 78709-90B00E0 |
BB21,23,24,31,RB20..26S,29S SABLE,SABLE |
6 | ||
| 78720 - CUSHION ASSY, SUB SEAT, RH | ||||
| 78720-90B01 |
BB30,31..STD..29S VL |
5 | ||
| 78720-90B17 |
BB31..STD..29S VL |
5 | ||
| 78720-90B1906 |
BB31..STD..29S VL,SABLE,SABLE |
5 | ||
| 78720-90B1902 |
BB31..STD..29S VL,RED,RED |
5 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-90B00 |
BB20,21,23,24,30,31,HB30,31,32,HDB3#,HZB30,31,RB20..26S,29S T=23.2 |
12 | ||
| 78730 - CUSHION ASSY, SUB SEAT, LH | ||||
| 78730-90B24 |
BB31..STD..29S VL |
1 | ||
| 78730-90B01 |
BB30,31..STD..29S VL |
1 | ||
| 78730-90B2602 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 78730-90B2606 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 78735 - PAD, SUB SEAT CUSHION | ||||
| 78735-90B00 |
BB21,23,24,31,HB30,31,32,HDB3#,HZB30,31,RB20..26S,29S |
6 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-90B23 |
BB31..STD..29S VL |
1 | ||
| 78740-90B01 |
BB30,31..STD..29S VL |
5 | ||
| 78740-90B2802 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 78740-90B2806 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-90B23 |
BB31..STD..29S VL |
1 | ||
| 78740-90B01 |
BB30,31..STD..29S VL |
5 | ||
| 78740-90B2802 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 78740-90B2806 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 78750A - BACK ASSY, SUB SEAT, LH | ||||
| 78740-90B01 |
BB30,31..STD..29S VL |
1 | ||
| 78740-90B23 |
BB31..STD..29S VL |
1 | ||
| 78740-90B2806 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 78740-90B2802 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 78750A - BACK ASSY, SUB SEAT, LH | ||||
| 78740-90B01 |
BB30,31..STD..29S VL |
1 | ||
| 78740-90B23 |
BB31..STD..29S VL |
1 | ||
| 78740-90B2806 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 78740-90B2802 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 78775 - PAD, SUB SEAT BACK | ||||
| 78775-90B00 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) |
6 | ||
| 78775 - PAD, SUB SEAT BACK | ||||
| 78775-90B00 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) |
6 | ||
| Common parts | ||||
| 90101-10055 | ||||
| 90119-08079 | ||||
| 90119-08258 | ||||
| 90119-08301 | ||||
| 90119-10037 | ||||
| 90154-80045 | ||||
| 90179-08143 | ||||
| 90240-08044 | ||||
| 90255-08002 | ||||
| 90255-08007 | ||||
| 90386-08053 | ||||
| 90386-12005 | ||||
| 90389-08007 | ||||
| 90389-08037 | ||||
| 90468-16012 | ||||
| 90468-18071 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 90560-10026 | ||||
| 91651-40620 | ||||
| 91656-60830 | ||||
| 93249-55012 | ||||
| 93386-16016 | ||||
| 93510-16020 | ||||
| 93540-55010 | ||||
| 93560-13520 | ||||
| 94120-41000 | ||||
| 94543-01200 | ||||
| 94611-20800 | ||||
ILLUST NO. 2 OF 4(8504- )DLX,STD..26S,29S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74610-90B01 |
BB30,31,HB30,31..29S |
16 | ||
| 74610-1002026 |
BB31,HB30,31,32,HDB3#,HZB30,31..29S SABLE,SABLE |
16 | ||
| 74610-1002008 |
BB31,HB30,31..29S IVORY,IVORY |
16 | ||
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74610-90B01 |
BB30,31,HB30,31..29S |
16 | ||
| 74610-1002026 |
BB31,HB30,31,32,HDB3#,HZB30,31..29S SABLE,SABLE |
16 | ||
| 74610-1002008 |
BB31,HB30,31..29S IVORY,IVORY |
16 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-1401008 |
BB31,HB30,31..29S IVORY,IVORY |
32 | ||
| 74617-1401040 |
BB31,HB30,31,32,HDB3#,HZB30,31 SABLE,SABLE |
32 | ||
| 74617-90B00 |
BB30,31,HB30,31..29S |
32 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-1401008 |
BB31,HB30,31..29S IVORY,IVORY |
32 | ||
| 74617-1401040 |
BB31,HB30,31,32,HDB3#,HZB30,31 SABLE,SABLE |
32 | ||
| 74617-90B00 |
BB30,31,HB30,31..29S |
32 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79022-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79022-90B3206 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79022-90B32 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79013-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79013-90B33 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79013-90B3306 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE |
1 | ||
| 79016A - PAD SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79015-90B00 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,26S,29S |
1 | ||
| 79018A - PAD SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79175-90B03 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-90B08 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79021-90B2506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79021-90B25 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-90B00 |
BB20,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79022-90B3206 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79022-90B32 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79033-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033-90B27 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033-90B2502 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79033-90B2506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79013-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79013-90B33 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79013-90B4402 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79013-90B4406 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,BROWN |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79035-90B00 |
BB21,23,26,3#,HB30,31,36,HDB30,HZB30,36,RB2#..(DLX,STD)..(10S,26S,29S) |
1 | ||
| 79035-90B01 |
BB21,23,26,3#,HB30,31,36,HDB30,HZB30,36,RB2#..(DLX,STD)..(10S,26S,29S) W/*RRS |
1 | ||
| 79026A - PAD SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79015-90B00 |
BB2#,3#,HB3#,RB2#..(DLX,STD)..(10S,26S,29S) |
1 | ||
| 79015-90B00 |
BB3#,HB30,31..(DLX,STD)..(10S,29S) |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79375-90B01 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79175-90B03 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79031-90B1706 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79031-90B17 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79031-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79033-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033-90B27 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033-90B2502 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79033-90B2506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79035A - PAD SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79035-90B00 |
BB21,23,26,3#,HB30,31,36,HDB30,HZB30,36,RB2#..(DLX,STD)..(10S,26S,29S) |
1 | ||
| 79037A - PAD SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79375-90B01 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79031-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79031-90B17 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79031-90B1706 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79022-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79022-90B3206 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79022-90B32 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79033-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033-90B27 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033-90B2502 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79033-90B2506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79013-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79013-90B4402 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79013-90B15 |
HB30,31..26S,29S FB |
1 | ||
| 79013-90B4702 |
HB30,31..26S,29S FB,RED,RED |
1 | ||
| 79013-90B33 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79013-90B4406 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,BROWN |
1 | ||
| 79045A - PAD SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79035-90B00 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) |
1 | ||
| 79046A - PAD SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79015-90B00 |
BB21,23,24,31,HB30,31,32,HDB3#,HZB30,31,RB20..26S,29S |
1 | ||
| 79047A - PAD SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79375-90B01 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79048A - PAD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79175-90B03 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79051 - COVER SUB-ASSY, NO.5 SEAT CUSHION, RH | ||||
| 79031-90B07 |
HB30,31..26S,29S FB |
1 | ||
| 79031-90B00 |
BB30,31..STD..29S VL |
1 | ||
| 79031-90B17 |
BB31..STD..29S VL |
1 | ||
| 79031-90B2606 |
HB30,31,32,HDB3#,HZB30,31..26S,29S MOQUETTE,SABLE,SABLE |
1 | ||
| 79031-90B1706 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 79052 - COVER SUB-ASSY, NO.5 SEAT CUSHION, LH | ||||
| 79012-90B04 |
HB30,31..26S,29S FB |
1 | ||
| 79022-90B00 |
BB30,31..STD..29S VL |
1 | ||
| 79022-90B3206 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 79022-90B32 |
BB31..STD..29S VL |
1 | ||
| 79012-90B2206 |
HB30,31,32,HDB3#,HZB30,31..26S,29S MOQUETTE,SABLE |
1 | ||
| 79053 - COVER SUB-ASSY, NO.5 SEAT BACK, RH | ||||
| 79033-90B00 |
BB30,31..STD..29S VL |
1 | ||
| 79033-90B27 |
BB31..STD..29S VL |
1 | ||
| 79033-90B2502 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 79013-90B4402 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 79033-90B2506 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 79054 - COVER SUB-ASSY, NO.5 SEAT BACK, LH | ||||
| 79013-90B00 |
BB30,31..STD..29S VL |
1 | ||
| 79013-90B15 |
HB30,31..26S,29S FB |
1 | ||
| 79013-90B4702 |
HB30,31..26S,29S FB,RED,RED |
1 | ||
| 79013-90B4402 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 79013-90B33 |
BB31..STD..29S VL |
1 | ||
| 79014-90B0806 |
HB30,31,32,HDB3#,HZB30,31..26S,29S MOQUETTE,SABLE,SABLE |
1 | ||
| 79013-90B4406 |
BB31..STD..29S VL,SABLE,BROWN |
1 | ||
| 79055A - PAD SUB-ASSY, NO.5 SEAT CUSHION, RH | ||||
| 79035-90B00 |
BB31,HB30,31,HDB30,HZB30..26S,29S |
1 | ||
| 79035-90B01 |
HB30,31,32,HDB3#,HZB30,31..26S,29S W/*RRS |
1 | ||
| 79056A - PAD SUB-ASSY, NO.5 SEAT CUSHION, LH | ||||
| 79015-90B00 |
BB31,HB30,31,32,HDB3#,HZB30,31..26S,29S |
1 | ||
| 79057A - PAD SUB-ASSY, NO.5 SEAT BACK, RH | ||||
| 79375-90B01 |
BB31..STD..29S |
1 | ||
| 79017-90B01 |
HDB3#,HZB30,31..26S,29S W/*RRS |
2 | ||
| 79017-90B01 |
HB30,31,32..26S,29S W/*RRS |
1 | ||
| 79058A - PAD SUB-ASSY, NO.5 SEAT BACK, LH | ||||
| 79175-90B03 |
BB31..STD..29S |
1 | ||
| 79018-90B00 |
HB30,31,32..26S,29S W/*RRS |
1 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79031-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79031-90B17 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79031-90B1706 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79022-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79022-90B32 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79022-90B3206 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79033-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033-90B27 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033-90B2506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79033-90B2502 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79013-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79013-90B4402 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79013-90B4406 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,BROWN |
1 | ||
| 79013-90B33 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79065A - PAD SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79035-90B00 |
BB21,31,HB30,31,RB20..(DLX,STD)..(26S,29S) W/O SEAT BELT |
1 | ||
| 79015-90B00 |
BB21,23,31,HB30,31,RB20..(DLX,STD)..(26S,29S) W/SEAT BELT |
1 | ||
| 79066A - PAD SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79015-90B00 |
BB21,23,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) |
1 | ||
| 79015-90B00 |
HB30..29S;BB21,31,RB20..26S,29S |
1 | ||
| 79067A - PAD SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79375-90B01 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79068A - PAD SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79175-90B03 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79031-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79031-90B17 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79031-90B1706 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79022-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79022-90B32 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79022-90B3206 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79033-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033-90B27 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79033-90B2502 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79033-90B2506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79013-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79013-90B4406 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,BROWN |
1 | ||
| 79013-90B33 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79013-90B4402 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79075A - PAD SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79035-90B00 |
BB21,31,HB30,31,RB20..(DLX,STD)..(26S,29S) W/O SEAT BELT |
1 | ||
| 79035-90B00 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79076A - PAD SUB-ASSY, NO.7 SEAT CUSHION | ||||
| 79015-90B00 |
BB21,23,24,31,HB30,31,32,HDB3#,HZB30,31,RB20..26S,29S |
1 | ||
| 79077A - PAD SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79375-90B01 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79078A - PAD SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79175-90B03 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79105-90B0206 |
BB31..29S SABLE,SABLE |
1 | ||
| 79109 - BOARD SUB-ASSY, NO.1 SEAT BACK | ||||
| 79109-90B0206 |
HB30,31,HDB30,HZB30 W/RECLINING SEAT,SABLE,SABLE |
6 | ||
| 79980-90B0106 |
HB30,31,32,HDB3#,HZB30,31..29S W/*SPO,RECLININGSEAT,SABLE,SABLE |
18 | ||
| 79980-90B01 |
HB30,31..29S W/*SPO,RECLINING SEAT |
18 | ||
| 79109A - CLIP (FOR NO.1 SEAT BACK BOARD) | ||||
| 90467-0807502 |
HB30,31..29S W/RECLINING SEAT,DARK WINE,DARK WINE |
72 | ||
| 90467-0807506 |
HB30,31,HDB30,HZB30..29S W/RECLINING SEAT,SABLE,SABLE |
72 | ||
| 79109B - WASHER (FOR NO.1 SEAT BACK BOARD) | ||||
| 71788-2201002 |
HB30,31..29S W/*SPO,RECLINING SEAT,RED/MAROON |
72 | ||
| 71788-2201036 |
HB30,31,HDB3#,HZB30,31..29S W/*SPO,RECLINING SEAT,SABLE,SABLE |
72 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79230-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79230-90B29 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79230-90B2906 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79140-90B1906 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79140-90B19 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79140-90B3006 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79170A - SPRING ASSY, NO.1 SEAT CUSUION, LH | ||||
| 79270-90B00 |
BB2#,3#,HB3#,RB2#..(DLX,STD)..(10S,26S,29S) |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79103-90B01 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79103-90B0106 |
BB21,31,RB20..STD..(26S,29S) SABLE,SABLE |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79234-90B0106 |
BB2#,31,RB20..10S,26S,29S SABLE,SABLE |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79133-90B0406 |
BB2#,31,HDB3#,HZB3#,RB20..10S,26S,29S SABLE,SABLE |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79220-90B33 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79220-90B4602 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79220-90B09 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79220-90B4606 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79230-90B2906 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79230-90B29 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79340-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79340-90B2306 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79340-90B23 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79240-90B4606 |
BB23,24,HB30,31,HZB30,31..26S,29S RH,MOQUETTE,W/*CUH,SABLE,SABLE |
1 | ||
| 79240-90B6106 |
BB23,24,HB30,31,HZB30,31..26S,29S LH,MOQUETTE,W/*CUH,SABLE,SABLE |
1 | ||
| 79250-90B3406 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79250-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79150-90B00 |
BB21,31,RB20..STD..(26S,29S) VL,W/GLIDE DOOR |
1 | ||
| 79250-90B24 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79250-90B2406 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE |
1 | ||
| 79260A - SPRING ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79360-90B03 |
BB2#,3#,HB3#,RB2#..(DLX,STD)..(10S,26S,29S) |
1 | ||
| 79360-90B03E0 |
BB21,23,26,31,HB30,31,36,HDB30,HZB30,36,RB20..(DLX,STD)..(10S,26S,29S) SABLE,SABLE |
1 | ||
| 79270A - SPRING ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79270-90B00 |
BB3#,HB30,31..(DLX,STD)..(10S,29S) |
1 | ||
| 79270-90B00 |
HB30..26S;BB2#,3#,HB3#,RB2#..(DLX,STD)..(10S,26S,29S) |
1 | ||
| 79270-90B0006 |
BB2#,31,HB3#,HDB3#,HZB3#,RB20 SABLE,SABLE |
1 | ||
| 79280A - SPRING ASSY, NO.2 SEAT BACK, RH | ||||
| 79303-90B01 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79303-90B0106 |
BB21,31,RB20..STD..(26S,29S) SABLE,SABLE |
1 | ||
| 79290A - SPRING ASSY, NO.2 SEAT BACK, LH | ||||
| 79204-90B01 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79204-90B0106 |
BB21,31,RB20..STD..(26S,29S) SABLE,SABLE |
1 | ||
| 79305A - LEG SUB-ASSY, NO.3 SEAT, RH | ||||
| 79406-90B0006 |
BB21,23,24,31,RB20..26S,29S SABLE,SABLE |
1 | ||
| 79320 - CUSHION ASSY, NO.3 SEAT, RH | ||||
| 79320-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79320-90B22 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79320-90B3202 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79320-90B3206 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79340 - BACK ASSY, NO.3 SEAT, RH | ||||
| 79340-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79340-90B23 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79340-90B2306 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79250-90B3406 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79360A - SPRING ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79360-90B00 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) W/O SEAT BELT |
1 | ||
| 79360-90B03E0 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) SABLE,SABLE |
1 | ||
| 79360-90B03 |
BB21,31,HB30,31,RB20..(DLX,STD)..(26S,29S) |
1 | ||
| 79380A - SPRING ASSY, NO.3 SEAT BACK, RH | ||||
| 79303-90B01 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79303-90B0106 |
BB21,31,RB20..STD..(26S,29S) SABLE,SABLE |
1 | ||
| 79405A - LEG SUB-ASSY, NO.4 SEAT, RH | ||||
| 79406-90B0006 |
BB21,23,24,31,HB31,HDB3#,HZB30,31,RB20..26S,29S SABLE,SABLE |
1 | ||
| 79406A - LEG SUB-ASSY, NO.4 SEAT, LH | ||||
| 79433-90B0206 |
BB21,23,24,31,HB31,HDB3#,HZB30,31,RB20..26S,29S SABLE,SABLE |
1 | ||
| 79420 - CUSHION ASSY, NO.4 SEAT, RH | ||||
| 79320-90B22 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79320-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79320-90B3202 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79320-90B3206 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79430 - CUSHION ASSY, NO.4 SEAT, LH | ||||
| 79430-90B15 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79430-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79430-90B1506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79430-90B1606 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79440 - BACK ASSY, NO.4 SEAT, RH | ||||
| 79340-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79340-90B23 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79340-90B2306 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79250-90B3406 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79450 - BACK ASSY, NO.4 SEAT, LH | ||||
| 79150-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79140-90B19 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79140-90B1906 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79140-90B3006 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79460A - SPRING ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79360-90B0106 |
HDB3#,HZB30,31..26S,29S W/*RRS,SABLE,SABLE |
1 | ||
| 79360-90B03 |
BB21,31,HB30,31,RB20..(DLX,STD)..(26S,29S) |
1 | ||
| 79360-90B03E0 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) SABLE,SABLE |
1 | ||
| 79470A - SPRING ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79470-90B01 |
BB21,31,HB30,31,RB20..(DLX,STD)..(26S,29S) |
1 | ||
| 79470-90B0106 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) SABLE,SABLE |
1 | ||
| 79480A - SPRING ASSY, NO.4 SEAT BACK, RH | ||||
| 79303-90B01 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79380-90B0206 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20 W/*SPO,SABLE,SABLE |
1 | ||
| 79303-90B0106 |
BB21,31,RB20..STD..(26S,29S) SABLE,SABLE |
1 | ||
| 79490A - SPRING ASSY, NO.4 SEAT BACK, LH | ||||
| 79103-90B01 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79103-90B0106 |
BB21,31,RB20..STD..(26S,29S) SABLE,SABLE |
1 | ||
| 79505 - LEG SUB-ASSY, NO.5 SEAT, RH | ||||
| 79406-90B0006 |
BB31,HB31,HDB3#,HZB30,31..26S,29S SABLE,SABLE |
1 | ||
| 79506 - LEG SUB-ASSY, NO.5 SEAT, LH | ||||
| 79433-90B0206 |
BB31,HB31,HDB3#,HZB30,31..26S,29S SABLE,SABLE |
1 | ||
| 79520 - CUSHION ASSY, NO.5 SEAT, RH | ||||
| 79320-90B00 |
BB30,31..STD..29S VL |
1 | ||
| 79320-90B08 |
HB30,31..26S,29S FB |
1 | ||
| 79320-90B3202 |
BB31..STD..29S VL,RED,RED |
1 | ||
| 79320-90B22 |
BB31..STD..29S VL |
1 | ||
| 79320-90B3406 |
HB30,31,32,HDB3#,HZB30,31..26S,29S MOQUETTE,SABLE,SABLE |
1 | ||
| 79320-90B3206 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 79530 - CUSHION ASSY, NO.5 SEAT, LH | ||||
| 79430-90B08 |
HB30,31..26S,29S FB |
1 | ||
| 79430-90B15 |
BB31..STD..29S VL |
1 | ||
| 79430-90B00 |
BB30,31..STD..29S VL |
1 | ||
| 79430-90B2806 |
HB30,31,32,HDB3#,HZB30,31..26S,29S MOQUETTE,SABLE,SABLE |
1 | ||
| 79430-90B1606 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 79430-90B1506 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 79540 - BACK ASSY, NO.5 SEAT, RH | ||||
| 79340-90B00 |
BB30,31..STD..29S VL |
1 | ||
| 79340-90B2306 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 79340-90B23 |
BB31..STD..29S VL |
1 | ||
| 79250-90B3406 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 79550 - BACK ASSY, NO.5 SEAT, LH | ||||
| 79150-90B00 |
BB30,31..STD..29S VL |
1 | ||
| 79140-90B19 |
BB31..STD..29S VL |
1 | ||
| 79140-90B1906 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 79140-90B3006 |
BB31..STD..29S VL,SABLE,SABLE |
1 | ||
| 79560A - SPRING ASSY, NO.5 SEAT CUSHION, RH | ||||
| 79360-90B03 |
BB31,HB30,31..(DLX,STD)..29S SEAT BELT |
1 | ||
| 79360-90B0106 |
HB30,31,32,HDB3#,HZB30,31..26S,29S W/*RRS,SABLE,SABLE |
1 | ||
| 79360-90B03E0 |
BB31,HB30,31,HDB30,HZB30..(DLX,STD)..29S SABLE,SABLE |
1 | ||
| 79360-90B01 |
HB30,31..26S,29S W/*RRS |
1 | ||
| 79570A - SPRING ASSY, NO.5 SEAT CUSHION, LH | ||||
| 79470-90B00 |
HB30,31 W/*RRS |
1 | ||
| 79470-90B01 |
BB31,HB30,31..(DLX,STD)..29S |
1 | ||
| 79470-90B0106 |
BB31,HB30,31,HDB30,HZB30..(DLX,STD)..29S SABLE,SABLE |
1 | ||
| 79580A - SPRING ASSY, NO.5 SEAT BACK, RH | ||||
| 79303-90B01 |
BB31..STD..29S |
1 | ||
| 79180-90B04 |
HB30,31..26S,29S W/*RRS,*SPO |
2 | ||
| 79303-90B0106 |
BB31..STD..29S SABLE,SABLE |
1 | ||
| 79180-90B0406 |
HB30,31,32,HDB3#,HZB30,31..26S,29S W/*RRS,*SPO,SABLE,SABLE |
2 | ||
| 79590A - SPRING ASSY, NO.5 SEAT BACK, LH | ||||
| 79103-90B01 |
BB31..STD..29S |
1 | ||
| 79190-90B03 |
HB30,31..26S,29S W/*RRS,*SPO |
1 | ||
| 79103-90B0106 |
BB31..STD..29S SABLE,SABLE |
1 | ||
| 79190-90B0306 |
HB30,31,32,HDB3#,HZB30,31..26S,29S W/*RRS,*SPO,SABLE,SABLE |
1 | ||
| 79605 - LEG SUB-ASSY, NO.6 SEAT, RH | ||||
| 79606-90B0006 |
BB21,23,24,31,RB20..26S,29S SABLE,SABLE |
1 | ||
| 79606-90B0006 |
HB31,HDB3#,HZB30,31..29S SABLE,SABLE |
1 | ||
| 79606 - LEG SUB-ASSY, NO.6 SEAT, LH | ||||
| 79643-90B0006 |
BB21,23,24,31,RB20..26S,29S FR,SABLE,SABLE |
1 | ||
| 79644-90B0106 |
BB21,23,24,31,RB20..26S,29S RR,SABLE,SABLE |
1 | ||
| 79643-90B0006 |
HB31,HDB3#,HZB30,31..29S FR,SABLE,SABLE |
1 | ||
| 79644-90B0106 |
HB31,HDB3#,HZB30,31..29S RR,SABLE,SABLE |
1 | ||
| 79606 - LEG SUB-ASSY, NO.6 SEAT, LH | ||||
| 79643-90B0006 |
BB21,23,24,31,RB20..26S,29S FR,SABLE,SABLE |
1 | ||
| 79644-90B0106 |
BB21,23,24,31,RB20..26S,29S RR,SABLE,SABLE |
1 | ||
| 79643-90B0006 |
HB31,HDB3#,HZB30,31..29S FR,SABLE,SABLE |
1 | ||
| 79644-90B0106 |
HB31,HDB3#,HZB30,31..29S RR,SABLE,SABLE |
1 | ||
| 79606 - LEG SUB-ASSY, NO.6 SEAT, LH | ||||
| 79643-90B0006 |
BB21,23,24,31,RB20..26S,29S FR,SABLE,SABLE |
1 | ||
| 79644-90B0106 |
BB21,23,24,31,RB20..26S,29S RR,SABLE,SABLE |
1 | ||
| 79643-90B0006 |
HB31,HDB3#,HZB30,31..29S FR,SABLE,SABLE |
1 | ||
| 79644-90B0106 |
HB31,HDB3#,HZB30,31..29S RR,SABLE,SABLE |
1 | ||
| 79620 - CUSHION ASSY, NO.6 SEAT, RH | ||||
| 79620-90B31 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79620-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79620-90B3902 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79620-90B3906 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79630 - CUSHION ASSY, NO.6 SEAT, LH | ||||
| 79630-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79630-90B25 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79630-90B2506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79630-90B2606 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79640 - BACK ASSY, NO.6 SEAT, RH | ||||
| 79340-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79340-90B23 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79340-90B2306 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79250-90B3406 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79650 - BACK ASSY, NO.6 SEAT, LH | ||||
| 79150-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79140-90B1906 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79140-90B19 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79140-90B3006 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79660A - SPRING ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79660-90B04 |
BB21,31,HB30,31,RB20..(DLX,STD)..(26S,29S) |
1 | ||
| 79660-90B0406 |
BB21,23,31,HB30,31,RB20..(DLX,STD)..(26S,29S) SABLE,SABLE |
1 | ||
| 79670B - SPRING ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79670-90B0206 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) SABLE,SABLE |
1 | ||
| 79670-90B02 |
BB21,31,HB30,31,RB20..(DLX,STD)..(26S,29S) |
1 | ||
| 79680B - SPRING ASSY, NO.6 SEAT BACK, RH | ||||
| 79303-90B01 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79303-90B0106 |
BB21,31,RB20..STD..(26S,29S) SABLE,SABLE |
1 | ||
| 79690A - SPRING ASSY, NO.6 SEAT BACK, LH | ||||
| 79103-90B01 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79103-90B0106 |
BB21,31,RB20..STD..(26S,29S) SABLE,SABLE |
1 | ||
| 79705 - LEG SUB-ASSY, NO.7 SEAT, RH | ||||
| 79606-90B0006 |
HB31,HDB3#,HZB30,31..29S SABLE,SABLE |
1 | ||
| 79606-90B0006 |
BB21,23,24,31,RB20..26S,29S SABLE,SABLE |
1 | ||
| 79706 - LEG SUB-ASSY, NO.7 SEAT, LH | ||||
| 79733-90B0006 |
HB31,HDB3#,HZB30,31..29S SABLE,SABLE |
1 | ||
| 79733-90B0006 |
BB21,23,24,31,RB20..26S,29S SABLE,SABLE |
1 | ||
| 79720 - CUSHION ASSY, NO.7 SEAT, RH | ||||
| 79620-90B31 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79620-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79620-90B3902 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79620-90B3906 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79730 - CUSHION ASSY, NO.7 SEAT, LH | ||||
| 79630-90B25 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79630-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79630-90B2606 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79630-90B2506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79740 - BACK ASSY, NO.7 SEAT, RH | ||||
| 79340-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79340-90B2306 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79340-90B23 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79250-90B3406 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79750 - BACK ASSY, NO.7 SEAT, LH | ||||
| 79150-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79140-90B19 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79140-90B1906 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79140-90B3006 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79760A - SPRING ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79660-90B0406 |
BB21,23,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) SABLE,SABLE |
1 | ||
| 79660-90B04 |
BB21,31,HB30,31,RB20..(DLX,STD)..(26S,29S) |
1 | ||
| 79770A - SPRING ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79670-90B0206 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) SABLE,SABLE |
1 | ||
| 79670-90B02 |
BB21,31,HB30,31,RB20..(DLX,STD)..(26S,29S) |
1 | ||
| 79780A - SPRING ASSY, NO.7 SEAT BACK, RH | ||||
| 79303-90B01 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79303-90B0106 |
BB21,31,RB20..STD..(26S,29S) SABLE,SABLE |
1 | ||
| 79790A - SPRING ASSY, NO.7 SEAT BACK, LH | ||||
| 79103-90B01 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79103-90B0106 |
BB21,31,RB20..STD..(26S,29S) SABLE,SABLE |
1 | ||
| Common parts | ||||
| 90119-08326 | ||||
| 90119-10037 | ||||
| 90162-40026 | ||||
| 90468-18071 | ||||
| 91651-60820 | ||||
| 93210-16016 | ||||
| 93249-55012 | ||||
ILLUST NO. 3 OF 4(8504- )20S,26S,29S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72853 - PAD, JUNIOR SEAT ARMREST | ||||
| 72853-90B00 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) |
1 | ||
| 78901 - LOCK SUB-ASSY, FOLD SEAT LEG | ||||
| 78901-90B0106 |
HDB3#,HZB30,31 SABLE,SABLE |
2 | ||
| 78903 - STRIKER SUB-ASSY, FOLD SEAT LEG LOCK | ||||
| 78903-90B00 |
HDB3#,HZB30,31 |
2 | ||
| 78905 - LOCK SUB-ASSY, FOLD RH SEAT BACK, RH | ||||
| 78905-90B0006 |
HDB3#,HZB30,31 SABLE,SABLE |
1 | ||
| 78905A - KNOB, FOLDING SEAT BACK LOCK | ||||
| 72591-90B00 |
HDB3#,HZB30,31 |
4 | ||
| 78905A - KNOB, FOLDING SEAT BACK LOCK | ||||
| 72591-90B00 |
HDB3#,HZB30,31 |
4 | ||
| 78906 - LOCK SUB-ASSY, FOLD RH SEAT BACK, LH | ||||
| 78906-90B0006 |
HDB3#,HZB30,31 SABLE,SABLE |
1 | ||
| 78907 - LOCK SUB-ASSY, FOLD LH SEAT BACK, RH | ||||
| 78907-90B0006 |
HDB3#,HZB30,31 SABLE,SABLE |
1 | ||
| 78908 - LOCK SUB-ASSY, FOLD LH SEAT BACK, LH | ||||
| 78908-90B0006 |
HDB3#,HZB30,31 SABLE,SABLE |
1 | ||
| 78910 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 | ||||
| 78910-90B00 |
HDB3#,HZB30,31 |
1 | ||
| 78920 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2 | ||||
| 78920-90B00 |
HDB3#,HZB30,31 |
1 | ||
| 78958 - SEAL, REAR FLOOR FOLD STRIKER BASE | ||||
| 78958-90B01 |
HDB3#,HZB30,31 |
2 | ||
| 78959 - PLATE, REAR FLOOR FOLD STRIKER BASE | ||||
| 78959-90B00 |
HDB3#,HZB30,31 |
2 | ||
| 79081A - COVER SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79081-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79081-90B2806 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79081-90B30 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79081-90B2802 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79083A - COVER SUB-ASSY, NO.8 SEAT BACK | ||||
| 79083-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79083-90B27 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79083-90B3506 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79083-90B3502 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79085 - PAD SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79085-90B00 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-90B03 |
BB20,21,30,31,HB30,31,RB20..(DLX,STD)..(26S,29S) RH,W/O FOLDING SEAT |
1 | ||
| 79098-90B00 |
BB20,21,30,31,HB30,31,RB20..(DLX,STD)..(26S,29S) LH,W/O FOLDING SEAT |
1 | ||
| 79098-90B0006 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) LH,W/O FOLDING SEAT,SABLE |
1 | ||
| 79097-90B0306 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) RH,W/O FOLDING SEAT,SABLE |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-90B03 |
BB20,21,30,31,HB30,31,RB20..(DLX,STD)..(26S,29S) RH,W/O FOLDING SEAT |
1 | ||
| 79098-90B00 |
BB20,21,30,31,HB30,31,RB20..(DLX,STD)..(26S,29S) LH,W/O FOLDING SEAT |
1 | ||
| 79098-90B0006 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) LH,W/O FOLDING SEAT,SABLE |
1 | ||
| 79097-90B0306 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) RH,W/O FOLDING SEAT,SABLE |
1 | ||
| 79809A - CLIP (FOR NO.8 SEAT BACK BOARD) | ||||
| 90467-0807506 |
HDB3#,HZB30,31 SABLE,SABLE |
12 | ||
| 79809A - CLIP (FOR NO.8 SEAT BACK BOARD) | ||||
| 90467-0807506 |
HDB3#,HZB30,31 SABLE,SABLE |
12 | ||
| 79809A - CLIP (FOR NO.8 SEAT BACK BOARD) | ||||
| 90467-0807506 |
HDB3#,HZB30,31 SABLE,SABLE |
12 | ||
| 79820A - CUSHION ASSY, NO.8 SEAT | ||||
| 79820-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79820-90B40 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79820-90B6006 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79820-90B6002 |
BB21,31,RB20..STD..(26S,29S) VL,RED,RED |
1 | ||
| 79831 - LEG, NO.8 SEAT, FR | ||||
| 79831-90B0006 |
BB21,23,31,HDB30,HZB30,RB20..26S,29S SABLE,SABLE |
2 | ||
| 79832 - LEG, NO.8 SEAT, RR | ||||
| 79832-90B0006 |
BB21,23,31,HDB30,HZB30,RB20..26S,29S SABLE,SABLE |
2 | ||
| 79840A - BACK ASSY, NO.8 SEAT | ||||
| 79840-90B00 |
BB20,21,30,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79840-90B2806 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79840-90B28 |
BB21,31,RB20..STD..(26S,29S) VL |
1 | ||
| 79840-90B4206 |
BB21,31,RB20..STD..(26S,29S) VL,SABLE,SABLE |
1 | ||
| 79860 - SPRING ASSY, NO.8 SEAT CUSHION | ||||
| 79860-90B0602 |
BB21,31,HB30,31,RB20..(DLX,STD)..(26S,29S) DARK WINE |
1 | ||
| 79860-90B0606 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) SABLE,SABLE |
1 | ||
| 79860-90B06 |
BB21,31,HB30,31,RB20..(DLX,STD)..(26S,29S) |
1 | ||
| 79860A - SPRING ASSY, FOLD SEAT CUSHION, RH | ||||
| 79860-90B0406 |
HDB3#,HZB30,31 SABLE,SABLE |
1 | ||
| 79870A - SPRING ASSY, FOLD SEAT CUSHION, LH | ||||
| 79860-90B0406 |
HDB3#,HZB30,31 SABLE,SABLE |
1 | ||
| 79874 - BRACKET, NO.8 SEAT BACK SET | ||||
| 79874-90B0006 |
BB21,23,31,HDB30,HZB30,RB20..26S,29S SABLE,SABLE |
1 | ||
| 79875 - PAD, NO.8 SEAT BACK | ||||
| 79875-90B00 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79876 - PAD, NO.8 SEAT BACK, A | ||||
| 79876-90B00 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) |
1 | ||
| 79877 - PAD, NO.8 SEAT BACK, B | ||||
| 79877-90B00 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) |
1 | ||
| 79878 - PAD, NO.8 SEAT BACK, C | ||||
| 79878-90B00 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) |
2 | ||
| 79878 - PAD, NO.8 SEAT BACK, C | ||||
| 79878-90B00 |
BB21,23,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) |
2 | ||
| 79880 - SPRING ASSY, NO.8 SEAT BACK | ||||
| 79803-90B0706 |
BB21,31,RB20..STD..(26S,29S) SABLE,SABLE |
1 | ||
| 79803-90B07 |
BB21,31,RB20..STD..(26S,29S) |
1 | ||
| 79981 - SILENCER, LUGGAGE COMPARTMENT WALL | ||||
| 79981-90B00 |
BB20,21,23,30,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) W/O FOLDING SEAT |
2 | ||
| 79981 - SILENCER, LUGGAGE COMPARTMENT WALL | ||||
| 79981-90B00 |
BB20,21,23,30,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) W/O FOLDING SEAT |
2 | ||
| Common parts | ||||
| 79893-90B00 | ||||
| 90119-08258 | ||||
| 90119-08259 | ||||
| 90119-08300 | ||||
| 90119-10017 | ||||
| 90119-10101 | ||||
| 90179-08026 | ||||
| 90183-06043 | ||||
| 90202-07100 | ||||
| 90249-08067 | ||||
| 90386-11006 | ||||
| 90468-18071 | ||||
| 91611-60816 | ||||
| 91661-60820 | ||||
| 93386-15010 | ||||
| 93630-14014 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7554 | ||||
ILLUST NO. 4 OF 4(9001- )26S,29S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08258 | ||||
| 90119-08300 | ||||
| 90119-08301 | ||||
| 90119-08325 | ||||
| 90119-08326 | ||||
| 90119-10017 | ||||
| 90661-60820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
