BB31-MRZ (1983)
Toyota Coaster

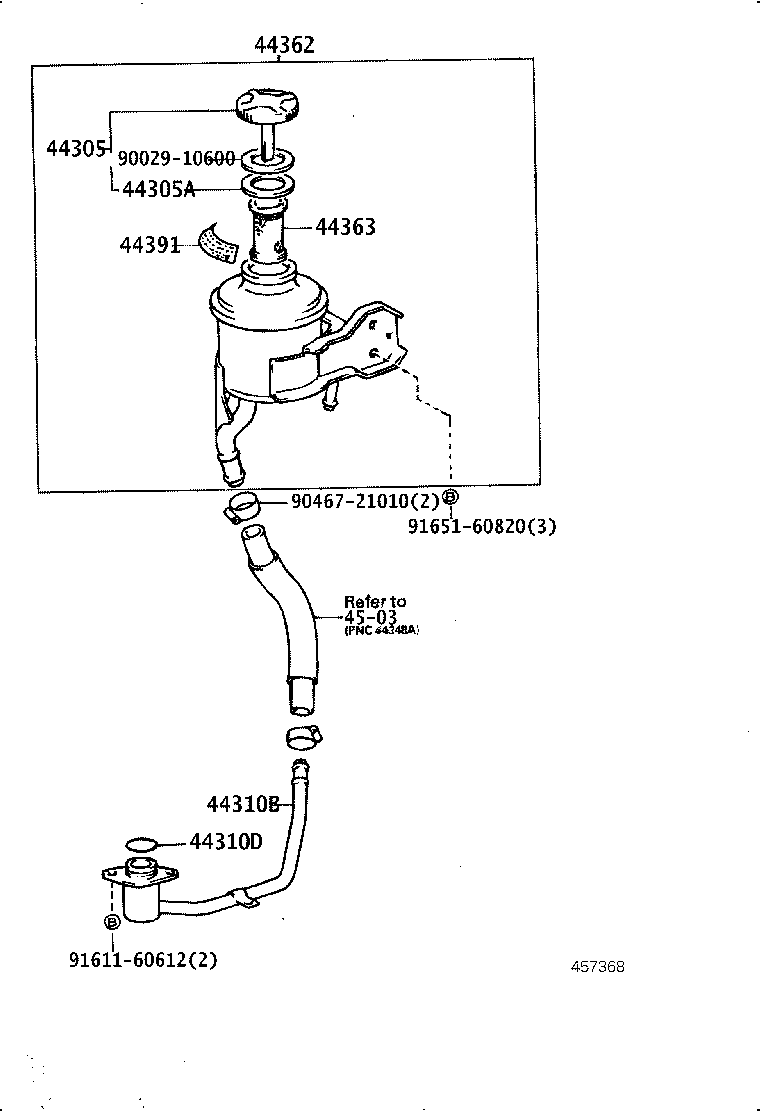

ILLUST NO. 2 OF 2(9001- )HDB20,3#,HZB3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44037-36070 |
HB30,31,36 |
1 | ||
| 44037-36041 |
BB2#,3#,RB20 |
1 | ||
| 44037-36041 |
BB2#,3# |
1 | ||
| 44305-36070 |
HDB20,3#,HZB3# |
1 | ||
| 44305A - SEAL, DUST(FOR RESERVOIR CAP) | ||||
| 90029-20701 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 44310B - UNION(FOR VANE PUMP) | ||||
| 90405-16030 |
HDB20,3#,HZB3# |
1 | ||
| 90405-16017 |
BB2#,3# |
1 | ||
| 90405-16021 |
BB2#,31 |
1 | ||
| 90405-16025 |
BB2#,3# |
1 | ||
| 44310D - RING, O(FOR VANE PUMP UNION) | ||||
| 96711-19019 |
BB2#,3#,HDB20,3#,HZB3# |
1 | ||
| 44362 - RESERVOIR, OIL(FOR VANE PUMP) | ||||
| 44360-36100 |
BB21,26,31 |
1 | ||
| 44360-36041 |
BB2#,3# |
1 | ||
| 44360-36280 |
HDB20,3#,HZB30 |
1 | ||
| 44363 - STRAINER, OIL(FOR VANE PUMP) | ||||
| 44363-36040 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-36020 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44391-36010 |
BB2#,3#,HB3#,RB2# |
1 | ||
| Common parts | ||||
| 90029-10600 | ||||
| 90467-21010 | ||||
| 91611-60612 | ||||
| 91651-60820 | ||||
| Linked diagrams | ||||
| 4503 | ||||

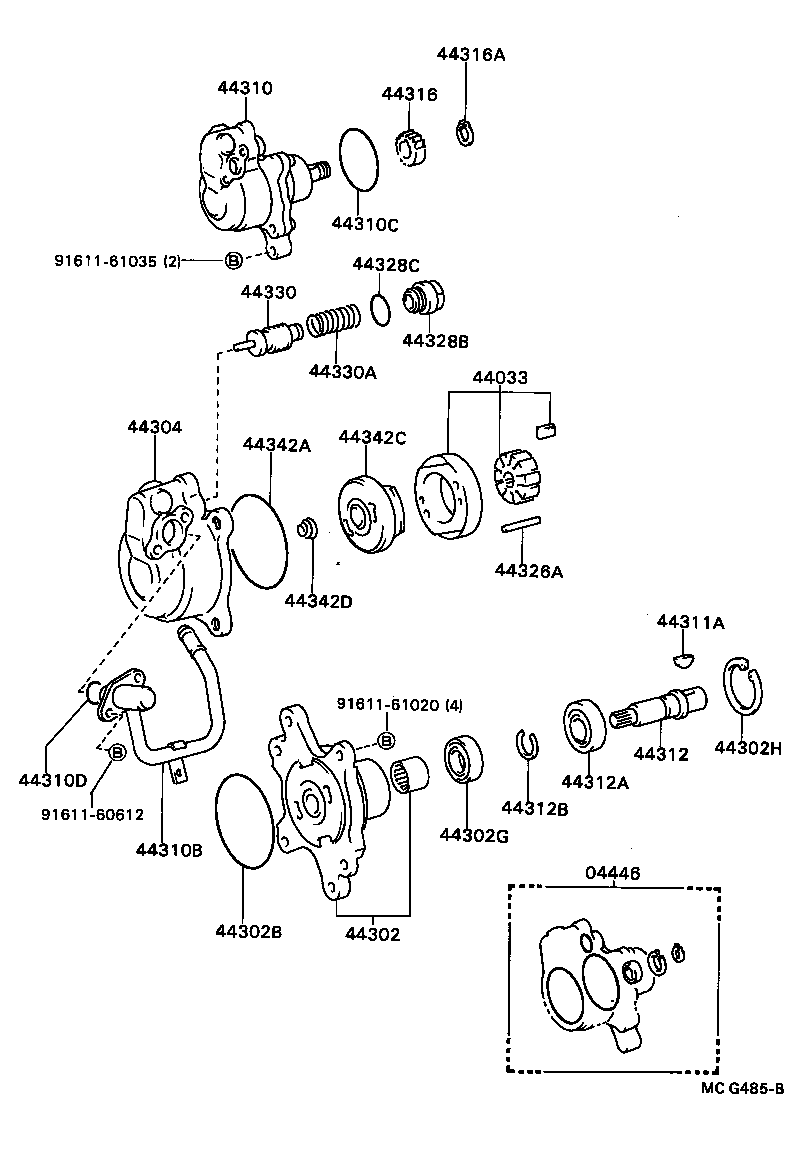

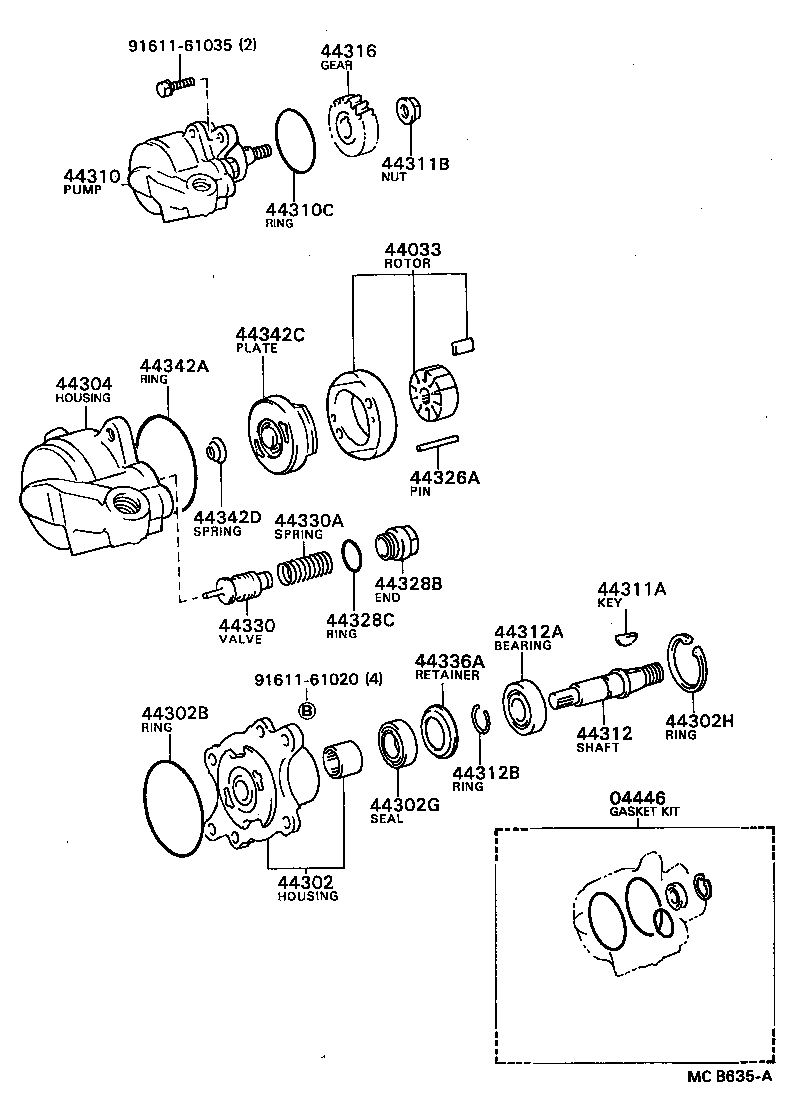

ILLUST NO. 2 OF 2(8205-8408) ; (8408-8510)HB3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-36030 |
BB2#,3#,RB2# |
1 | ||
| 04446-36010 |
BB2#,3#,HB30,RB20 |
1 | ||
| 04446-36030 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 04446-36050 |
BB2#,3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 04446-36030 |
HB30,31,36 |
1 | ||
| 44032 - HOUSING SUB-ASSY, PUMP W/NAME PLATE | ||||
| 44032-36021 |
BB2#,3# |
1 | ||
| 44032A - BEARING, NEEDLE ROLLER(FOR VANE PUMP SHAFT) | ||||
| 90029-36300 |
BB2#,3#,HB30,RB20 |
1 | ||
| 44033 - ROTOR SUB-ASSY, W/CAM & VANE | ||||
| 44033-89102 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 44033-89102 |
BB2#,3#,RB2# |
1 | ||
| 44033-36030 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44033-36021 |
BB2#,3#,HB30,RB20 |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-20001 |
BB2#,3#,HB30,RB20 ID=68 |
1 | ||
| 90029-20002 |
BB2#,3#,HB30,RB20 ID=66 |
1 | ||
| 90029-20003 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# ID=64 |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-20001 |
BB2#,3#,HB30,RB20 ID=68 |
1 | ||
| 90029-20002 |
BB2#,3#,HB30,RB20 ID=66 |
1 | ||
| 90029-20003 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# ID=64 |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-20001 |
BB2#,3#,HB30,RB20 ID=68 |
1 | ||
| 90029-20002 |
BB2#,3#,HB30,RB20 ID=66 |
1 | ||
| 90029-20003 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# ID=64 |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-52001 |
BB2#,3#,HB30,RB20 |
1 | ||
| 96151-04000 |
BB2#,3#,RB2# |
1 | ||
| 96151-04000 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-36120 |
HB30,31,36 |
1 | ||
| 44320-36022 |
BB21,31 |
1 | ||
| 44320-36220 |
HDB20,31,HZB31 |
1 | ||
| 44320-36021 |
BB2#,3# |
1 | ||
| 44310-36150 |
BB2#,31 |
1 | ||
| 44320-36080 |
BB2#,3# |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-36020 |
BB2#,3#,HB30 |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90029-18001 |
BB2#,3#,HB30,RB20 |
1 | ||
| 90029-18001 |
BB2#,31 |
1 | ||
| 90029-18002 |
HDB20,3#,HZB3# |
1 | ||
| 90029-18002 |
BB2#,3# |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90029-07001 |
BB2#,3#,HB30,RB20 |
1 | ||
| 90179-14009 |
HDB20,3#,HZB3# |
1 | ||
| 90179-14009 |
BB2#,3# |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-89101 |
HDB20,3#,HZB3# |
1 | ||
| 44312-36021 |
BB2#,3#,HB30 |
1 | ||
| 44312-36110 |
BB2#,31 |
1 | ||
| 44312-89101 |
BB2#,3# |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90029-36003 |
BB2#,3#,HDB20,3#,HZB3# |
1 | ||
| 90029-36001 |
BB2#,3#,HB30 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90029-52400 |
BB2#,3#,HB30,RB20 |
1 | ||
| 90029-52402 |
BB2#,3#,HB3# |
1 | ||
| 90029-52402 |
BB2#,3# |
1 | ||
| 44312C - SEAL, OIL(FOR VANE PUMP SHAFT) | ||||
| 90029-21001 |
BB2#,3#,HB30,RB20 |
1 | ||
| 44312D - RING, O(FOR VANE PUMP SHAFT) | ||||
| 90029-20004 |
BB2#,3#,HB30,RB20 ID=20.8 |
1 | ||
| 44312E - WASHER(FOR VANE PUMP SHAFT) | ||||
| 90029-11800 |
BB2#,3#,HB30,RB20 |
1 | ||
| 44324 - COVER, PUMP | ||||
| 44324-36021 |
BB2#,3#,HB30,RB20 |
1 | ||
| 44328 - SCREW, LOCK(FOR VANE PUMP) | ||||
| 44328-36021 |
BB2#,3#,HB30,RB20 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-36030 |
BB2#,3#,RB2# 一本溝,ONE GROOVE |
1 | ||
| 44330-36040 |
BB2#,3#,RB2# 溝無し,TWO GROOVE |
1 | ||
| 44330-25020 |
HB30,31,36 ﾏｰｸ B,ONE GROOVE |
1 | ||
| 44330-36021 |
BB2#,3#,RB2# 二本溝,NO GROOVE |
1 | ||
| 44330-25010 |
HB30,31,36 ﾏｰｸ A,NO GROOVE |
1 | ||
| 44330-25030 |
BB2#,31,HDB30,HZB30 ﾏｰｸ C,TWO GROOVE |
1 | ||
| 44330-25030 |
HB30,31,36 ﾏｰｸ C,TWO GROOVE |
1 | ||
| 44330-25010 |
BB2#,31,HDB30,HZB30 ﾏｰｸ A,NO GROOVE |
1 | ||
| 44330-25020 |
BB2#,31,HDB30,HZB30 ﾏｰｸ B,ONE GROOVE |
1 | ||
| 44330-36060 |
HB32,HDB20,31,HZB31 一本溝,ONE GROOVE |
1 | ||
| 44330-36050 |
HB32,HDB20,31,HZB31 二本溝,NO GROOVE |
1 | ||
| 44330-36070 |
HB32,HDB20,31,HZB31 溝無し,TWO GROOVE |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90029-60002 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44330B - WASHER, PLATE(FOR FLOW CONTROL VALVE) | ||||
| 90029-10001 |
BB2#,3#,HB30,RB20 |
1 | ||
| 44336 - RING, HOOK SPRING | ||||
| 44336-36021 |
BB2#,3#,HB30,RB20 |
1 | ||
| 44341C - PLATE, THRUST, VANE PUMP | ||||
| 44341-36030 |
BB21,31,HB30,RB20 |
1 | ||
| 44341-36021 |
BB2#,3#,HB30,RB20 |
1 | ||
| 44342C - PLATE, PRESSURE | ||||
| 44342-89102 |
BB2#,3#,RB2# |
1 | ||
| 44342-36030 |
BB21,31,HB30,RB20 |
1 | ||
| 44342-36021 |
BB2#,3#,HB30,RB20 |
1 | ||
| 44342-89102 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44342D - SPRING, COMPRESSION(FOR PRESSURE PLATE) | ||||
| 90029-60003 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 90029-60003 |
BB2#,3#,RB2# |
1 | ||
| 90029-60001 |
BB2#,3#,HB30,RB20 |
1 | ||
| 44347A - PIN, VANE PUMP | ||||
| 44347-36021 |
BB2#,3#,HB30,RB20 |
1 | ||
| 44366A - SEAT, PUMP PULLEY | ||||
| 44366-36021 |
BB2#,3#,HB30,RB20 |
1 | ||
| Common parts | ||||
| 90206-15081 | ||||
| 91611-60812 | ||||

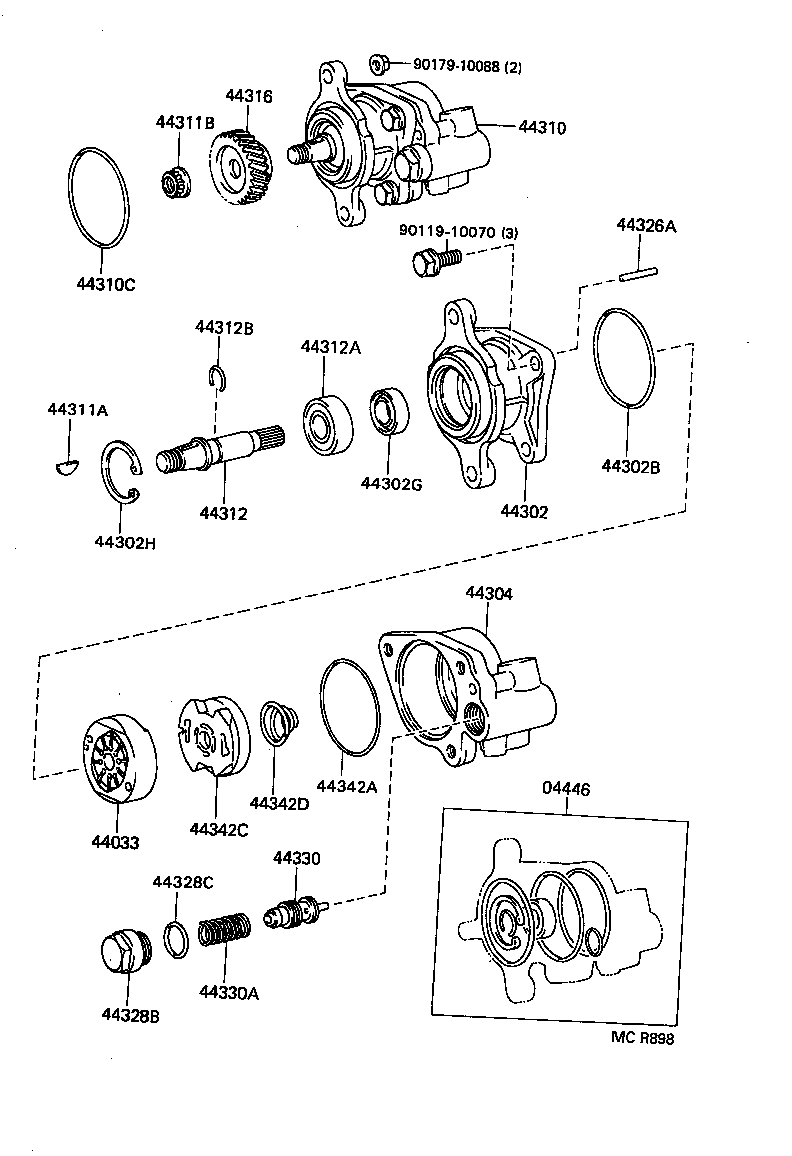

ILLUST NO. 2 OF 2(8408- )RB2# ; (8510-9001)HB30,31,36
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-36030 |
BB2#,3#,RB2# |
1 | ||
| 04446-36010 |
BB2#,3#,HB30,RB20 |
1 | ||
| 04446-36030 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 04446-36050 |
BB2#,3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 04446-36030 |
HB30,31,36 |
1 | ||
| 44033 - ROTOR SUB-ASSY, W/CAM & VANE | ||||
| 44033-89102 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 44033-89102 |
BB2#,3#,RB2# |
1 | ||
| 44033-36030 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44033-36021 |
BB2#,3#,HB30,RB20 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-36200 |
HDB20,3#,HZB3# |
1 | ||
| 44302-36070 |
BB2#,3# |
1 | ||
| 44302-36160 |
BB2#,3# |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-20001 |
BB2#,3#,HB30,RB20 ID=68 |
1 | ||
| 90029-20002 |
BB2#,3#,HB30,RB20 ID=66 |
1 | ||
| 90029-20003 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# ID=64 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90029-21004 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 90029-21004 |
BB2#,3#,RB2# |
1 | ||
| 90029-21015 |
HDB20,3#,HZB3# |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-52001 |
BB2#,3#,HB30,RB20 |
1 | ||
| 96151-04000 |
BB2#,3#,RB2# |
1 | ||
| 96151-04000 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-36160 |
BB2#,3# |
1 | ||
| 44304-36070 |
BB2#,3# |
1 | ||
| 44304-36190 |
HDB20,3#,HZB3# |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-36120 |
HB30,31,36 |
1 | ||
| 44320-36022 |
BB21,31 |
1 | ||
| 44320-36220 |
HDB20,31,HZB31 |
1 | ||
| 44320-36021 |
BB2#,3# |
1 | ||
| 44310-36150 |
BB2#,31 |
1 | ||
| 44320-36080 |
BB2#,3# |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-36020 |
BB2#,3#,HB30 |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90029-18001 |
BB2#,3#,HB30,RB20 |
1 | ||
| 90029-18001 |
BB2#,31 |
1 | ||
| 90029-18002 |
HDB20,3#,HZB3# |
1 | ||
| 90029-18002 |
BB2#,3# |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90029-07001 |
BB2#,3#,HB30,RB20 |
1 | ||
| 90179-14009 |
HDB20,3#,HZB3# |
1 | ||
| 90179-14009 |
BB2#,3# |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-89101 |
HDB20,3#,HZB3# |
1 | ||
| 44312-36021 |
BB2#,3#,HB30 |
1 | ||
| 44312-36110 |
BB2#,31 |
1 | ||
| 44312-89101 |
BB2#,3# |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90029-36003 |
BB2#,3#,HDB20,3#,HZB3# |
1 | ||
| 90029-36001 |
BB2#,3#,HB30 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90029-52400 |
BB2#,3#,HB30,RB20 |
1 | ||
| 90029-52402 |
BB2#,3#,HB3# |
1 | ||
| 90029-52402 |
BB2#,3# |
1 | ||
| 44312D - RING, O(FOR VANE PUMP SHAFT) | ||||
| 90029-20004 |
BB2#,3#,HB30,RB20 ID=20.8 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 44347-89101 |
BB2#,3#,RB2# 長さ=29.1 |
1 | ||
| 44347-89101 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# 長さ=29.1 |
1 | ||
| 44328B - END, VANE PUMP HOUSING | ||||
| 44328-89101 |
BB2#,3#,RB2# |
1 | ||
| 44328-89101 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44328C - RING, O(FOR PUMP HOUSING END) | ||||
| 96711-19020 |
BB2#,3#,RB2# |
1 | ||
| 96711-19020 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-36030 |
BB2#,3#,RB2# 一本溝,ONE GROOVE |
1 | ||
| 44330-36040 |
BB2#,3#,RB2# 溝無し,TWO GROOVE |
1 | ||
| 44330-25020 |
HB30,31,36 ﾏｰｸ B,ONE GROOVE |
1 | ||
| 44330-36021 |
BB2#,3#,RB2# 二本溝,NO GROOVE |
1 | ||
| 44330-25010 |
HB30,31,36 ﾏｰｸ A,NO GROOVE |
1 | ||
| 44330-25030 |
BB2#,31,HDB30,HZB30 ﾏｰｸ C,TWO GROOVE |
1 | ||
| 44330-25030 |
HB30,31,36 ﾏｰｸ C,TWO GROOVE |
1 | ||
| 44330-25010 |
BB2#,31,HDB30,HZB30 ﾏｰｸ A,NO GROOVE |
1 | ||
| 44330-25020 |
BB2#,31,HDB30,HZB30 ﾏｰｸ B,ONE GROOVE |
1 | ||
| 44330-36060 |
HB32,HDB20,31,HZB31 一本溝,ONE GROOVE |
1 | ||
| 44330-36050 |
HB32,HDB20,31,HZB31 二本溝,NO GROOVE |
1 | ||
| 44330-36070 |
HB32,HDB20,31,HZB31 溝無し,TWO GROOVE |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90029-60002 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44336A - RETAINER, VANE PUMP OIL SEAL | ||||
| 44336-89101 |
BB21,26,3#,HB3#,RB2# |
1 | ||
| 44336-89101 |
BB2#,3#,RB2# |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 96711-24060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 96711-24060 |
BB2#,3#,RB2# |
1 | ||
| 44342C - PLATE, PRESSURE | ||||
| 44342-89102 |
BB2#,3#,RB2# |
1 | ||
| 44342-36030 |
BB21,31,HB30,RB20 |
1 | ||
| 44342-36021 |
BB2#,3#,HB30,RB20 |
1 | ||
| 44342-89102 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44342D - SPRING, COMPRESSION(FOR PRESSURE PLATE) | ||||
| 90029-60003 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 90029-60003 |
BB2#,3#,RB2# |
1 | ||
| 90029-60001 |
BB2#,3#,HB30,RB20 |
1 | ||
| 44366A - SEAT, PUMP PULLEY | ||||
| 44366-36021 |
BB2#,3#,HB30,RB20 |
1 | ||
| Common parts | ||||
| 90206-15081 | ||||
| 91611-60812 | ||||
| 91611-61020 | ||||
ILLUST NO. 2 OF 2(8408-8808)BB2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-36030 |
BB2#,3#,RB2# |
1 | ||
| 04446-36010 |
BB2#,3#,HB30,RB20 |
1 | ||
| 04446-36030 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 04446-36050 |
BB2#,3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 04446-36030 |
HB30,31,36 |
1 | ||
| 44033 - ROTOR SUB-ASSY, W/CAM & VANE | ||||
| 44033-89102 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 44033-89102 |
BB2#,3#,RB2# |
1 | ||
| 44033-36030 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44033-36021 |
BB2#,3#,HB30,RB20 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-36200 |
HDB20,3#,HZB3# |
1 | ||
| 44302-36070 |
BB2#,3# |
1 | ||
| 44302-36160 |
BB2#,3# |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-20001 |
BB2#,3#,HB30,RB20 ID=68 |
1 | ||
| 90029-20002 |
BB2#,3#,HB30,RB20 ID=66 |
1 | ||
| 90029-20003 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# ID=64 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90029-21004 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 90029-21004 |
BB2#,3#,RB2# |
1 | ||
| 90029-21015 |
HDB20,3#,HZB3# |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-52001 |
BB2#,3#,HB30,RB20 |
1 | ||
| 96151-04000 |
BB2#,3#,RB2# |
1 | ||
| 96151-04000 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-36160 |
BB2#,3# |
1 | ||
| 44304-36070 |
BB2#,3# |
1 | ||
| 44304-36190 |
HDB20,3#,HZB3# |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-36120 |
HB30,31,36 |
1 | ||
| 44320-36022 |
BB21,31 |
1 | ||
| 44320-36220 |
HDB20,31,HZB31 |
1 | ||
| 44320-36021 |
BB2#,3# |
1 | ||
| 44310-36150 |
BB2#,31 |
1 | ||
| 44320-36080 |
BB2#,3# |
1 | ||
| 44310C - RING, O(FOR VANE PUMP) | ||||
| 90301-60002 |
BB2#,3#,HDB20,3#,HZB3# |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90029-18001 |
BB2#,3#,HB30,RB20 |
1 | ||
| 90029-18001 |
BB2#,31 |
1 | ||
| 90029-18002 |
HDB20,3#,HZB3# |
1 | ||
| 90029-18002 |
BB2#,3# |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90029-07001 |
BB2#,3#,HB30,RB20 |
1 | ||
| 90179-14009 |
HDB20,3#,HZB3# |
1 | ||
| 90179-14009 |
BB2#,3# |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-89101 |
HDB20,3#,HZB3# |
1 | ||
| 44312-36021 |
BB2#,3#,HB30 |
1 | ||
| 44312-36110 |
BB2#,31 |
1 | ||
| 44312-89101 |
BB2#,3# |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90029-36003 |
BB2#,3#,HDB20,3#,HZB3# |
1 | ||
| 90029-36001 |
BB2#,3#,HB30 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90029-52400 |
BB2#,3#,HB30,RB20 |
1 | ||
| 90029-52402 |
BB2#,3#,HB3# |
1 | ||
| 90029-52402 |
BB2#,3# |
1 | ||
| 44316 - GEAR, VANE PUMP | ||||
| 44316-36010 |
BB2#,3# |
1 | ||
| 44316-60010 |
HDB20,3#,HZB3# |
1 | ||
| 44316-36020 |
BB2#,31 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 44347-89101 |
BB2#,3#,RB2# 長さ=29.1 |
1 | ||
| 44347-89101 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# 長さ=29.1 |
1 | ||
| 44328B - END, VANE PUMP HOUSING | ||||
| 44328-89101 |
BB2#,3#,RB2# |
1 | ||
| 44328-89101 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44328C - RING, O(FOR PUMP HOUSING END) | ||||
| 96711-19020 |
BB2#,3#,RB2# |
1 | ||
| 96711-19020 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-36030 |
BB2#,3#,RB2# 一本溝,ONE GROOVE |
1 | ||
| 44330-36040 |
BB2#,3#,RB2# 溝無し,TWO GROOVE |
1 | ||
| 44330-25020 |
HB30,31,36 ﾏｰｸ B,ONE GROOVE |
1 | ||
| 44330-36021 |
BB2#,3#,RB2# 二本溝,NO GROOVE |
1 | ||
| 44330-25010 |
HB30,31,36 ﾏｰｸ A,NO GROOVE |
1 | ||
| 44330-25030 |
BB2#,31,HDB30,HZB30 ﾏｰｸ C,TWO GROOVE |
1 | ||
| 44330-25030 |
HB30,31,36 ﾏｰｸ C,TWO GROOVE |
1 | ||
| 44330-25010 |
BB2#,31,HDB30,HZB30 ﾏｰｸ A,NO GROOVE |
1 | ||
| 44330-25020 |
BB2#,31,HDB30,HZB30 ﾏｰｸ B,ONE GROOVE |
1 | ||
| 44330-36060 |
HB32,HDB20,31,HZB31 一本溝,ONE GROOVE |
1 | ||
| 44330-36050 |
HB32,HDB20,31,HZB31 二本溝,NO GROOVE |
1 | ||
| 44330-36070 |
HB32,HDB20,31,HZB31 溝無し,TWO GROOVE |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90029-60002 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44336A - RETAINER, VANE PUMP OIL SEAL | ||||
| 44336-89101 |
BB21,26,3#,HB3#,RB2# |
1 | ||
| 44336-89101 |
BB2#,3#,RB2# |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 96711-24060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 96711-24060 |
BB2#,3#,RB2# |
1 | ||
| 44342C - PLATE, PRESSURE | ||||
| 44342-89102 |
BB2#,3#,RB2# |
1 | ||
| 44342-36030 |
BB21,31,HB30,RB20 |
1 | ||
| 44342-36021 |
BB2#,3#,HB30,RB20 |
1 | ||
| 44342-89102 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44342D - SPRING, COMPRESSION(FOR PRESSURE PLATE) | ||||
| 90029-60003 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 90029-60003 |
BB2#,3#,RB2# |
1 | ||
| 90029-60001 |
BB2#,3#,HB30,RB20 |
1 | ||
| Common parts | ||||
| 91611-61020 | ||||
| 91611-61035 | ||||
ILLUST NO. 2 OF 2(8808- )BB2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-36030 |
BB2#,3#,RB2# |
1 | ||
| 04446-36010 |
BB2#,3#,HB30,RB20 |
1 | ||
| 04446-36030 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 04446-36050 |
BB2#,3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 04446-36030 |
HB30,31,36 |
1 | ||
| 44033 - ROTOR SUB-ASSY, W/CAM & VANE | ||||
| 44033-89102 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 44033-89102 |
BB2#,3#,RB2# |
1 | ||
| 44033-36030 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44033-36021 |
BB2#,3#,HB30,RB20 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-36200 |
HDB20,3#,HZB3# |
1 | ||
| 44302-36070 |
BB2#,3# |
1 | ||
| 44302-36160 |
BB2#,3# |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-20001 |
BB2#,3#,HB30,RB20 ID=68 |
1 | ||
| 90029-20002 |
BB2#,3#,HB30,RB20 ID=66 |
1 | ||
| 90029-20003 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# ID=64 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90029-21004 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 90029-21004 |
BB2#,3#,RB2# |
1 | ||
| 90029-21015 |
HDB20,3#,HZB3# |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-52001 |
BB2#,3#,HB30,RB20 |
1 | ||
| 96151-04000 |
BB2#,3#,RB2# |
1 | ||
| 96151-04000 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-36160 |
BB2#,3# |
1 | ||
| 44304-36070 |
BB2#,3# |
1 | ||
| 44304-36190 |
HDB20,3#,HZB3# |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-36120 |
HB30,31,36 |
1 | ||
| 44320-36022 |
BB21,31 |
1 | ||
| 44320-36220 |
HDB20,31,HZB31 |
1 | ||
| 44320-36021 |
BB2#,3# |
1 | ||
| 44310-36150 |
BB2#,31 |
1 | ||
| 44320-36080 |
BB2#,3# |
1 | ||
| 44310B - UNION(FOR VANE PUMP) | ||||
| 90405-16030 |
HDB20,3#,HZB3# |
1 | ||
| 90405-16017 |
BB2#,3# |
1 | ||
| 90405-16021 |
BB2#,31 |
1 | ||
| 90405-16025 |
BB2#,3# |
1 | ||
| 44310C - RING, O(FOR VANE PUMP) | ||||
| 90301-60002 |
BB2#,3#,HDB20,3#,HZB3# |
1 | ||
| 44310D - RING, O(FOR VANE PUMP UNION) | ||||
| 96711-19019 |
BB2#,3#,HDB20,3#,HZB3# |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90029-18001 |
BB2#,3#,HB30,RB20 |
1 | ||
| 90029-18001 |
BB2#,31 |
1 | ||
| 90029-18002 |
HDB20,3#,HZB3# |
1 | ||
| 90029-18002 |
BB2#,3# |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-89101 |
HDB20,3#,HZB3# |
1 | ||
| 44312-36021 |
BB2#,3#,HB30 |
1 | ||
| 44312-36110 |
BB2#,31 |
1 | ||
| 44312-89101 |
BB2#,3# |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90029-36003 |
BB2#,3#,HDB20,3#,HZB3# |
1 | ||
| 90029-36001 |
BB2#,3#,HB30 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90029-52400 |
BB2#,3#,HB30,RB20 |
1 | ||
| 90029-52402 |
BB2#,3#,HB3# |
1 | ||
| 90029-52402 |
BB2#,3# |
1 | ||
| 44316 - GEAR, VANE PUMP | ||||
| 44316-36010 |
BB2#,3# |
1 | ||
| 44316-60010 |
HDB20,3#,HZB3# |
1 | ||
| 44316-36020 |
BB2#,31 |
1 | ||
| 44316A - RING | ||||
| 96150-01700 |
BB2#,31 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 44347-89101 |
BB2#,3#,RB2# 長さ=29.1 |
1 | ||
| 44347-89101 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# 長さ=29.1 |
1 | ||
| 44328B - END, VANE PUMP HOUSING | ||||
| 44328-89101 |
BB2#,3#,RB2# |
1 | ||
| 44328-89101 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44328C - RING, O(FOR PUMP HOUSING END) | ||||
| 96711-19020 |
BB2#,3#,RB2# |
1 | ||
| 96711-19020 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-36030 |
BB2#,3#,RB2# 一本溝,ONE GROOVE |
1 | ||
| 44330-36040 |
BB2#,3#,RB2# 溝無し,TWO GROOVE |
1 | ||
| 44330-25020 |
HB30,31,36 ﾏｰｸ B,ONE GROOVE |
1 | ||
| 44330-36021 |
BB2#,3#,RB2# 二本溝,NO GROOVE |
1 | ||
| 44330-25010 |
HB30,31,36 ﾏｰｸ A,NO GROOVE |
1 | ||
| 44330-25030 |
BB2#,31,HDB30,HZB30 ﾏｰｸ C,TWO GROOVE |
1 | ||
| 44330-25030 |
HB30,31,36 ﾏｰｸ C,TWO GROOVE |
1 | ||
| 44330-25010 |
BB2#,31,HDB30,HZB30 ﾏｰｸ A,NO GROOVE |
1 | ||
| 44330-25020 |
BB2#,31,HDB30,HZB30 ﾏｰｸ B,ONE GROOVE |
1 | ||
| 44330-36060 |
HB32,HDB20,31,HZB31 一本溝,ONE GROOVE |
1 | ||
| 44330-36050 |
HB32,HDB20,31,HZB31 二本溝,NO GROOVE |
1 | ||
| 44330-36070 |
HB32,HDB20,31,HZB31 溝無し,TWO GROOVE |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90029-60002 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 96711-24060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 96711-24060 |
BB2#,3#,RB2# |
1 | ||
| 44342C - PLATE, PRESSURE | ||||
| 44342-89102 |
BB2#,3#,RB2# |
1 | ||
| 44342-36030 |
BB21,31,HB30,RB20 |
1 | ||
| 44342-36021 |
BB2#,3#,HB30,RB20 |
1 | ||
| 44342-89102 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44342D - SPRING, COMPRESSION(FOR PRESSURE PLATE) | ||||
| 90029-60003 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 90029-60003 |
BB2#,3#,RB2# |
1 | ||
| 90029-60001 |
BB2#,3#,HB30,RB20 |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91611-61020 | ||||
| 91611-61035 | ||||
ILLUST NO. 1 OF 2(9001- )HDB20,3#,HZB3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-36030 |
BB2#,3#,RB2# |
1 | ||
| 04446-36010 |
BB2#,3#,HB30,RB20 |
1 | ||
| 04446-36030 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 04446-36050 |
BB2#,3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 04446-36030 |
HB30,31,36 |
1 | ||
| 44033 - ROTOR SUB-ASSY, W/CAM & VANE | ||||
| 44033-89102 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 44033-89102 |
BB2#,3#,RB2# |
1 | ||
| 44033-36030 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44033-36021 |
BB2#,3#,HB30,RB20 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-36200 |
HDB20,3#,HZB3# |
1 | ||
| 44302-36070 |
BB2#,3# |
1 | ||
| 44302-36160 |
BB2#,3# |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-20001 |
BB2#,3#,HB30,RB20 ID=68 |
1 | ||
| 90029-20002 |
BB2#,3#,HB30,RB20 ID=66 |
1 | ||
| 90029-20003 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# ID=64 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90029-21004 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 90029-21004 |
BB2#,3#,RB2# |
1 | ||
| 90029-21015 |
HDB20,3#,HZB3# |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-52001 |
BB2#,3#,HB30,RB20 |
1 | ||
| 96151-04000 |
BB2#,3#,RB2# |
1 | ||
| 96151-04000 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-36160 |
BB2#,3# |
1 | ||
| 44304-36070 |
BB2#,3# |
1 | ||
| 44304-36190 |
HDB20,3#,HZB3# |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-36120 |
HB30,31,36 |
1 | ||
| 44320-36022 |
BB21,31 |
1 | ||
| 44320-36220 |
HDB20,31,HZB31 |
1 | ||
| 44320-36021 |
BB2#,3# |
1 | ||
| 44310-36150 |
BB2#,31 |
1 | ||
| 44320-36080 |
BB2#,3# |
1 | ||
| 44310C - RING, O(FOR VANE PUMP) | ||||
| 90301-60002 |
BB2#,3#,HDB20,3#,HZB3# |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90029-18001 |
BB2#,3#,HB30,RB20 |
1 | ||
| 90029-18001 |
BB2#,31 |
1 | ||
| 90029-18002 |
HDB20,3#,HZB3# |
1 | ||
| 90029-18002 |
BB2#,3# |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90029-07001 |
BB2#,3#,HB30,RB20 |
1 | ||
| 90179-14009 |
HDB20,3#,HZB3# |
1 | ||
| 90179-14009 |
BB2#,3# |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-89101 |
HDB20,3#,HZB3# |
1 | ||
| 44312-36021 |
BB2#,3#,HB30 |
1 | ||
| 44312-36110 |
BB2#,31 |
1 | ||
| 44312-89101 |
BB2#,3# |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90029-36003 |
BB2#,3#,HDB20,3#,HZB3# |
1 | ||
| 90029-36001 |
BB2#,3#,HB30 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90029-52400 |
BB2#,3#,HB30,RB20 |
1 | ||
| 90029-52402 |
BB2#,3#,HB3# |
1 | ||
| 90029-52402 |
BB2#,3# |
1 | ||
| 44316 - GEAR, VANE PUMP | ||||
| 44316-36010 |
BB2#,3# |
1 | ||
| 44316-60010 |
HDB20,3#,HZB3# |
1 | ||
| 44316-36020 |
BB2#,31 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 44347-89101 |
BB2#,3#,RB2# 長さ=29.1 |
1 | ||
| 44347-89101 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# 長さ=29.1 |
1 | ||
| 44328B - END, VANE PUMP HOUSING | ||||
| 44328-89101 |
BB2#,3#,RB2# |
1 | ||
| 44328-89101 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44328C - RING, O(FOR PUMP HOUSING END) | ||||
| 96711-19020 |
BB2#,3#,RB2# |
1 | ||
| 96711-19020 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-36030 |
BB2#,3#,RB2# 一本溝,ONE GROOVE |
1 | ||
| 44330-36040 |
BB2#,3#,RB2# 溝無し,TWO GROOVE |
1 | ||
| 44330-25020 |
HB30,31,36 ﾏｰｸ B,ONE GROOVE |
1 | ||
| 44330-36021 |
BB2#,3#,RB2# 二本溝,NO GROOVE |
1 | ||
| 44330-25010 |
HB30,31,36 ﾏｰｸ A,NO GROOVE |
1 | ||
| 44330-25030 |
BB2#,31,HDB30,HZB30 ﾏｰｸ C,TWO GROOVE |
1 | ||
| 44330-25030 |
HB30,31,36 ﾏｰｸ C,TWO GROOVE |
1 | ||
| 44330-25010 |
BB2#,31,HDB30,HZB30 ﾏｰｸ A,NO GROOVE |
1 | ||
| 44330-25020 |
BB2#,31,HDB30,HZB30 ﾏｰｸ B,ONE GROOVE |
1 | ||
| 44330-36060 |
HB32,HDB20,31,HZB31 一本溝,ONE GROOVE |
1 | ||
| 44330-36050 |
HB32,HDB20,31,HZB31 二本溝,NO GROOVE |
1 | ||
| 44330-36070 |
HB32,HDB20,31,HZB31 溝無し,TWO GROOVE |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90029-60002 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 96711-24060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 96711-24060 |
BB2#,3#,RB2# |
1 | ||
| 44342C - PLATE, PRESSURE | ||||
| 44342-89102 |
BB2#,3#,RB2# |
1 | ||
| 44342-36030 |
BB21,31,HB30,RB20 |
1 | ||
| 44342-36021 |
BB2#,3#,HB30,RB20 |
1 | ||
| 44342-89102 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 44342D - SPRING, COMPRESSION(FOR PRESSURE PLATE) | ||||
| 90029-60003 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 90029-60003 |
BB2#,3#,RB2# |
1 | ||
| 90029-60001 |
BB2#,3#,HB30,RB20 |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90179-10088 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
