BB31-MRKR (1983)
Toyota Coaster

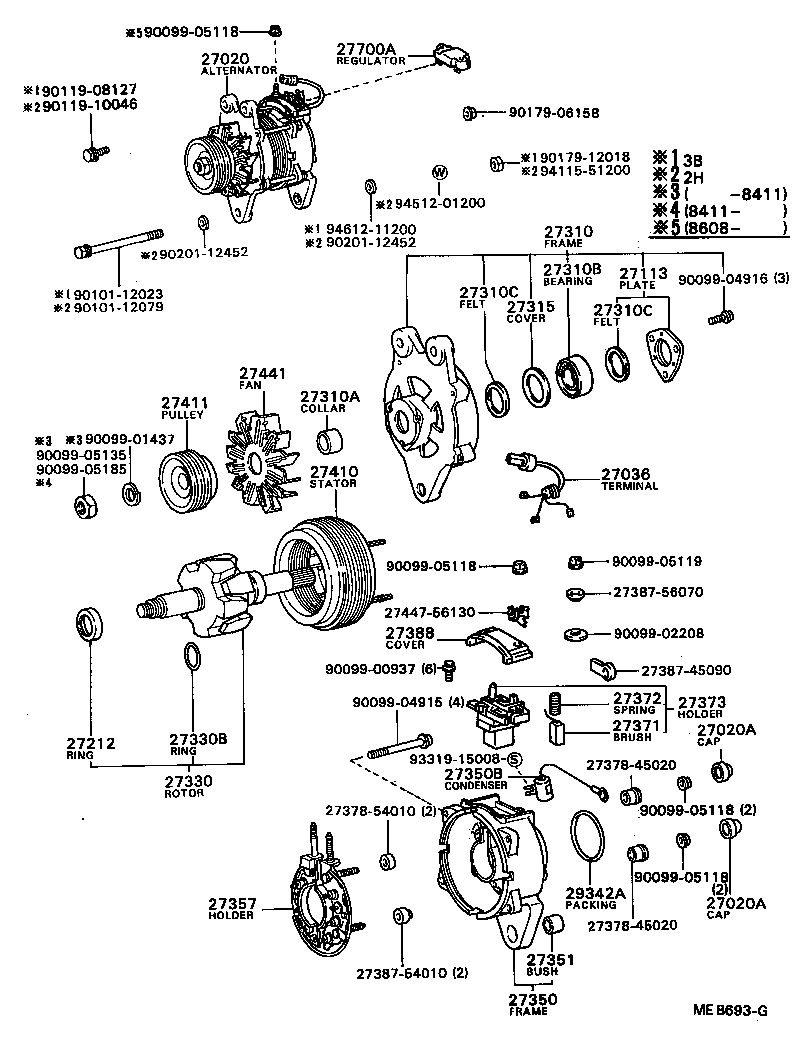

(8205-8808)12HT,3B,2H..BB2#,30,31,HB3#..WC ; (8808-9001)12HT,2H..WC
24V 55A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56130 |
3B..BB2#,3#..WC 24V 55A |
1 | ||
| 27020-56130 |
3B..BB2#,31..WC 24V 55A |
1 | ||
| 27060-58050 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27020A - CAP, ALTERNATOR TERMINAL | ||||
| 90099-34013 |
3B,2H..BB2#,3#,HB30..WC 24V 55A |
2 | ||
| 90099-34013 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A,85A |
2 | ||
| 27020A - CAP, ALTERNATOR TERMINAL | ||||
| 90099-34013 |
3B,2H..BB2#,3#,HB30..WC 24V 55A |
2 | ||
| 90099-34013 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A,85A |
2 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-57121 |
3B,2H..BB2#,3#,HB30..WC 24V 55A |
1 | ||
| 27036-57121 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A,85A |
1 | ||
| 27312-42010 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-54040 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56120 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27310-58080 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-19251 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10160 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 90099-10120 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A,85A |
2 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A,85A |
2 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A,85A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-68060 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A |
1 | ||
| 27330-68060 |
3B,2H..BB2#,3#,HB30..WC 24V 55A |
1 | ||
| 27330-58050 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07108 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-56120 |
3B..BB2#,3# 24V 40A,55A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52082 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A |
1 | ||
| 90099-52094 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 90099-52082 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-57120 |
3B,2H..BB2#,3#,HB30..WC 24V 55A |
1 | ||
| 27357-57120 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A |
1 | ||
| 27357-58050 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 20A,25A,40A,55A,85A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 20A,25A,40A,55A,85A |
2 | ||
| 27373 - HOLDER, ALTERNATOR BRUSH, A | ||||
| 27373-57120 |
3B,2H..BB2#,3#,HB30..WC 24V 55A |
1 | ||
| 27373-57120 |
12HT,3B,2H..BB21,26,31,HB3#..WC 24V 55A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27388-56130 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-57120 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A |
1 | ||
| 27410-57120 |
3B,2H..BB2#,3#,HB30..WC 24V 55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-56121 |
3B..BB2#,3# 24V 40A,55A |
1 | ||
| 27411-58080 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-57030 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A,85A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-57050 |
3B,2H..BB2#,3#,HB30..WC 24V 55A |
1 | ||
| 27700-57050 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A |
1 | ||
| 27700-57051 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A |
1 | ||
| 27700-58020 |
14B,3B..BB2#,31 24V 25A,55A |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 90099-14055 |
12HT,3B,2H..BB20,21,26,3#,HB3# 24V 20A,25A,40A,55A,85A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 27447-56130 | ||||
| 90099-00937 | ||||
| 90099-01437 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90099-05185 | ||||
| 90101-12023 | ||||
| 90101-12079 | ||||
| 90119-08127 | ||||
| 90119-10046 | ||||
| 90179-06158 | ||||
| 90179-12018 | ||||
| 90201-12452 | ||||
| 93319-15008 | ||||
| 94115-51200 | ||||
| 94512-01200 | ||||
| 94612-11200 | ||||

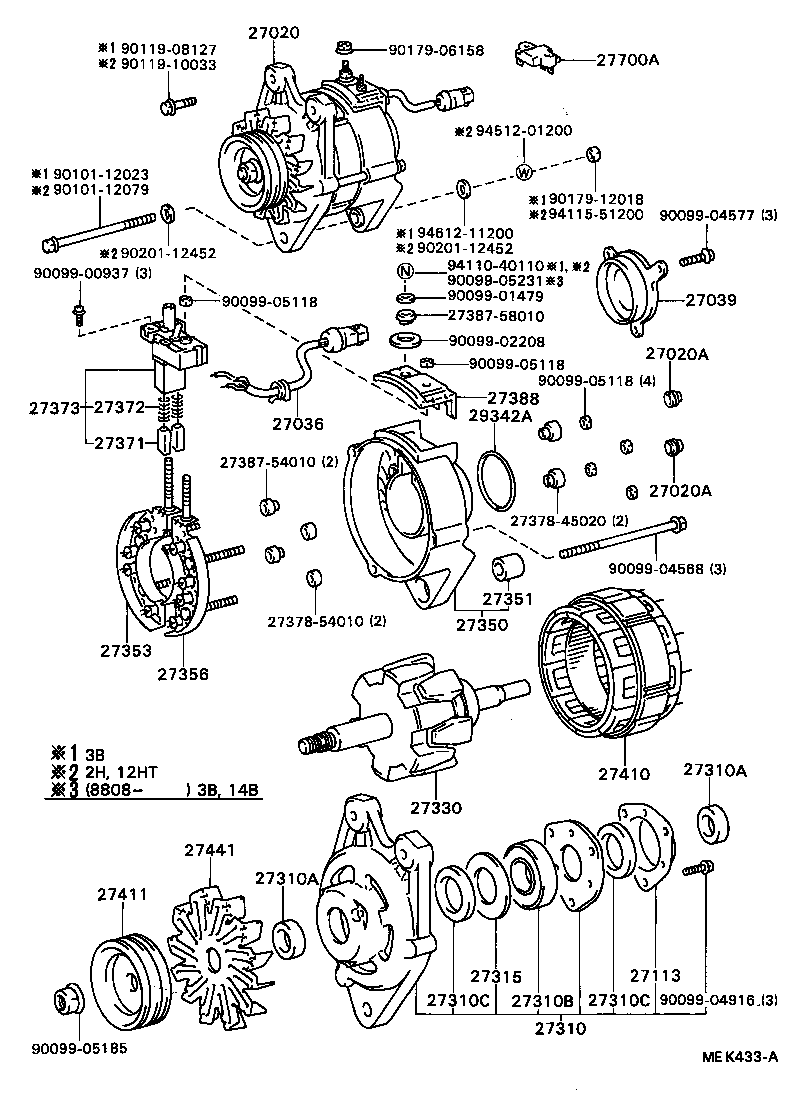

(8708- )12HT,14B,3B,2H
24V 85A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56130 |
3B..BB2#,3#..WC 24V 55A |
1 | ||
| 27020-56130 |
3B..BB2#,31..WC 24V 55A |
1 | ||
| 27060-58050 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27020A - CAP, ALTERNATOR TERMINAL | ||||
| 90099-34013 |
3B,2H..BB2#,3#,HB30..WC 24V 55A |
2 | ||
| 90099-34013 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A,85A |
2 | ||
| 27020A - CAP, ALTERNATOR TERMINAL | ||||
| 90099-34013 |
3B,2H..BB2#,3#,HB30..WC 24V 55A |
2 | ||
| 90099-34013 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A,85A |
2 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-57121 |
3B,2H..BB2#,3#,HB30..WC 24V 55A |
1 | ||
| 27036-57121 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-42020 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A,85A |
1 | ||
| 27312-42010 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56120 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27310-58080 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-19251 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-19251 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10160 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 90099-10120 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A,85A |
2 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A,85A |
2 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A,85A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-68060 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A |
1 | ||
| 27330-68060 |
3B,2H..BB2#,3#,HB30..WC 24V 55A |
1 | ||
| 27330-58050 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-56120 |
3B..BB2#,3# 24V 40A,55A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 20A,25A,40A,55A,85A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 20A,25A,40A,55A,85A |
2 | ||
| 27373 - HOLDER, ALTERNATOR BRUSH, A | ||||
| 27373-57120 |
3B,2H..BB2#,3#,HB30..WC 24V 55A |
1 | ||
| 27373-57120 |
12HT,3B,2H..BB21,26,31,HB3#..WC 24V 55A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27388-56130 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-57120 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A |
1 | ||
| 27410-57120 |
3B,2H..BB2#,3#,HB30..WC 24V 55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-56121 |
3B..BB2#,3# 24V 40A,55A |
1 | ||
| 27411-58080 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-57030 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A,85A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-57050 |
3B,2H..BB2#,3#,HB30..WC 24V 55A |
1 | ||
| 27700-57050 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A |
1 | ||
| 27700-57051 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A |
1 | ||
| 27700-58020 |
14B,3B..BB2#,31 24V 25A,55A |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 90099-14055 |
12HT,3B,2H..BB20,21,26,3#,HB3# 24V 20A,25A,40A,55A,85A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27387-54010 | ||||
| 27387-58010 | ||||
| 90099-00937 | ||||
| 90099-01479 | ||||
| 90099-02208 | ||||
| 90099-04568 | ||||
| 90099-04577 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05185 | ||||
| 90099-05231 | ||||
| 90101-12023 | ||||
| 90101-12079 | ||||
| 90119-08127 | ||||
| 90119-10033 | ||||
| 90179-06158 | ||||
| 90179-12018 | ||||
| 90201-12452 | ||||
| 94110-40110 | ||||
| 94115-51200 | ||||
| 94512-01200 | ||||
| 94612-11200 | ||||

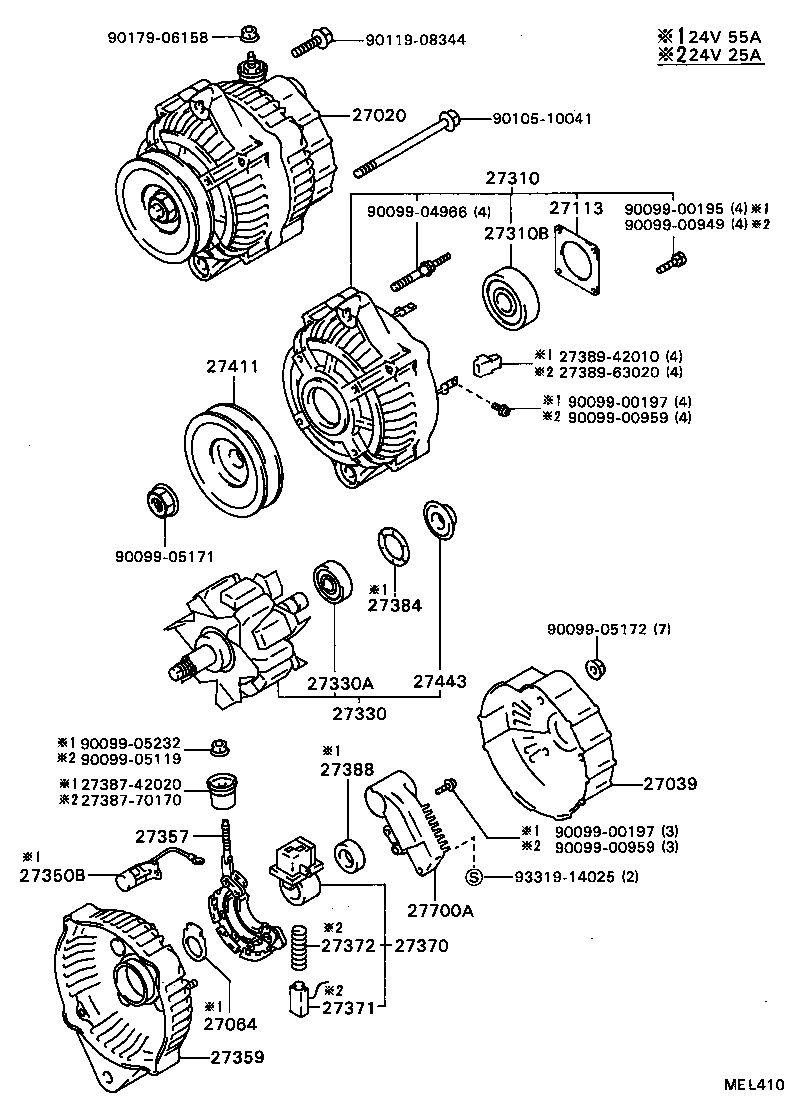

(8808- )14B,3B
24V 25A,55A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56130 |
3B..BB2#,3#..WC 24V 55A |
1 | ||
| 27020-56130 |
3B..BB2#,31..WC 24V 55A |
1 | ||
| 27060-58050 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-42020 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A,85A |
1 | ||
| 27312-42010 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56120 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27310-58080 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10160 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 90099-10120 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-68060 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A |
1 | ||
| 27330-68060 |
3B,2H..BB2#,3#,HB30..WC 24V 55A |
1 | ||
| 27330-58050 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
14B,3B..BB2#,31 24V 25A,55A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52082 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A |
1 | ||
| 90099-52094 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 90099-52082 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-57120 |
3B,2H..BB2#,3#,HB30..WC 24V 55A |
1 | ||
| 27357-57120 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A |
1 | ||
| 27357-58050 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-58050 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-42010 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 20A,25A,40A,55A,85A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 20A,25A,40A,55A,85A |
2 | ||
| 27384 - WASHER | ||||
| 27384-42010 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27388-56130 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-56121 |
3B..BB2#,3# 24V 40A,55A |
1 | ||
| 27411-58080 |
14B,3B..BB2#,31 24V 55A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
14B,3B..BB2#,31 24V 25A,55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-57050 |
3B,2H..BB2#,3#,HB30..WC 24V 55A |
1 | ||
| 27700-57050 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A |
1 | ||
| 27700-57051 |
12HT,3B,2H..BB2#,31,HB3#..WC 24V 55A |
1 | ||
| 27700-58020 |
14B,3B..BB2#,31 24V 25A,55A |
1 | ||
| Common parts | ||||
| 27387-42020 | ||||
| 27387-70170 | ||||
| 27389-42010 | ||||
| 27389-63020 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90105-10041 | ||||
| 90119-08344 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
