BB31-MDZ (1983)
Toyota Coaster

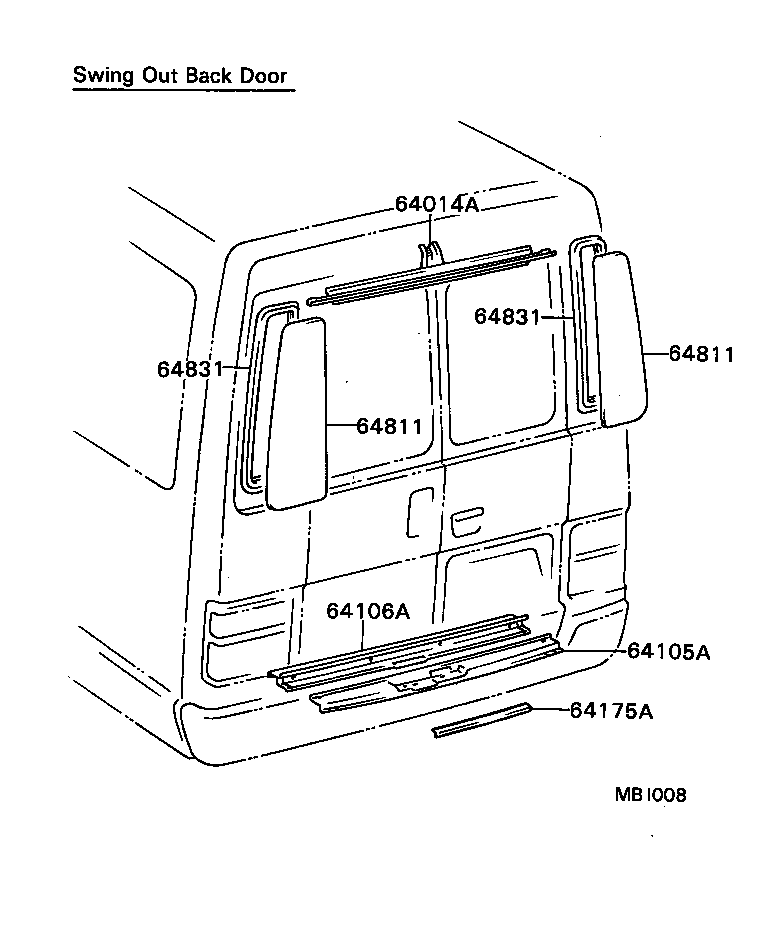

ILLUST NO. 2 OF 3(8302- )10S,20S,26S,29S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64014A - RAIL SUB-ASSY, UPPER BACK | ||||
| 64014-90B00 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/*SOBD |
1 | ||
| 64105A - RAIL SUB-ASSY, LOWER BACK, OUTER | ||||
| 64105-90B02 |
BB21,31,HB30,RB20..20S,26S,29S W/*SOBD |
1 | ||
| 64105-90B00 |
BB20,21,23,24,30,31,HB30,31,32,RB20..20S,26S,29S |
1 | ||
| 64105-90B02 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) W/*SOBD |
1 | ||
| 64105-90B00 |
HDB20,3#,HZB30,31 |
1 | ||
| 64105-90B02 |
HDB3#,HZB30,31 W/*SOBD |
1 | ||
| 64105-90B02 |
BB21,23,24,31,HB30,31,32,RB20..20S,26S,29S W/*SOBD |
1 | ||
| 64105-90B02 |
BB21,HB30,31,RB20..DLX,EX,EXS W/*SOBD |
1 | ||
| 64106A - RAIL SUB-ASSY, LOWER BACK, INNER | ||||
| 64106-90B03 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) W/*SOBD |
1 | ||
| 64106-90B03 |
BB21,31,HB30,RB20..20S,26S,29S W/*SOBD |
1 | ||
| 64106-90B00 |
BB20,21,30,31,HB30,31,RB20..20S,26S,29S |
1 | ||
| 64106-90B03 |
BB21,HB30,31,RB20..DLX,EX,EXS W/*SOBD |
1 | ||
| 64106-90B02 |
HDB20,3#,HZB30,31 |
1 | ||
| 64106-90B03 |
BB21,31,HB30,31,RB20..20S,26S,29S W/*SOBD |
1 | ||
| 64106-90B04 |
HDB3#,HZB30,31 W/*SOBD |
1 | ||
| 64106-90B02 |
BB21,23,24,31,HB30,31,32,RB20..20S,26S,29S |
1 | ||
| 64106-90B04 |
BB21,23,24,31,HB30,31,32,RB20..20S,26S,29S W/*SOBD |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64813-90B03 |
BB21,31,HB30,RB20..DLX *TEM,厚さ=3.5,RH,W/*SOBD,*TT,T=3.5 |
1 | ||
| 64811-90B01 |
BB20,21,23,30,31,HB30,31,RB20..DLX *TT,厚さ=4.0,*TT,T=4.0 |
1 | ||
| 64811-90B02 |
BB20,21,23,24,30,31,HB30,31,32..DLX,EX,EXS *EHTT,厚さ=4.0,*EHTT,T=4.0 |
1 | ||
| 64814-90B01 |
BB21,23,24,31,HB30,31,32,RB20..DLX,EX,EXS *TT,厚さ=3.5,LH,W/*SOBD,*TT,T=3.5 |
1 | ||
| 64814-90B01 |
BB21,31,HB30,RB20..DLX *TT,厚さ=3.5,LH,W/*SOBD,*TT,T=3.5 |
1 | ||
| 64813-90B03 |
BB21,23,24,31,HB30,31,32,RB20..DLX,EX,EXS *TEM,厚さ=3.5,RH,W/*SOBD,*TT,T=3.5 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64813-90B03 |
BB21,31,HB30,RB20..DLX *TEM,厚さ=3.5,RH,W/*SOBD,*TT,T=3.5 |
1 | ||
| 64811-90B01 |
BB20,21,23,30,31,HB30,31,RB20..DLX *TT,厚さ=4.0,*TT,T=4.0 |
1 | ||
| 64811-90B02 |
BB20,21,23,24,30,31,HB30,31,32..DLX,EX,EXS *EHTT,厚さ=4.0,*EHTT,T=4.0 |
1 | ||
| 64814-90B01 |
BB21,23,24,31,HB30,31,32,RB20..DLX,EX,EXS *TT,厚さ=3.5,LH,W/*SOBD,*TT,T=3.5 |
1 | ||
| 64814-90B01 |
BB21,31,HB30,RB20..DLX *TT,厚さ=3.5,LH,W/*SOBD,*TT,T=3.5 |
1 | ||
| 64813-90B03 |
BB21,23,24,31,HB30,31,32,RB20..DLX,EX,EXS *TEM,厚さ=3.5,RH,W/*SOBD,*TT,T=3.5 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64832-90B00 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) LH,W/*SOBD |
1 | ||
| 64831-90B01 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) RH,W/*SOBD |
1 | ||
| 64831-90B01 |
BB21,31,HB30,RB20..20S,26S,29S RH,W/*SOBD |
1 | ||
| 64831-90B01 |
BB21,HB30,31,RB20..DLX,EX,EXS RH,W/*SOBD |
1 | ||
| 64812-90B00 |
BB20,21,23,24,30,31,HB30,31,32,RB20..20S,26S,29S |
1 | ||
| 64832-90B00 |
BB21,HB30,31,RB20..DLX,EX,EXS LH,W/*SOBD |
1 | ||
| 64832-90B00 |
BB21,23,24,31,HB30,31,32,RB20..20S,26S,29S LH,W/*SOBD |
1 | ||
| 64812-90B00 |
HDB3#,HZB30,31 |
1 | ||
| 64831-90B01 |
BB21,23,24,31,HB30,31,32,RB20..20S,26S,29S RH,W/*SOBD |
1 | ||
| 64832-90B00 |
BB21,31,HB30,RB20..20S,26S,29S LH,W/*SOBD |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64832-90B00 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) LH,W/*SOBD |
1 | ||
| 64831-90B01 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) RH,W/*SOBD |
1 | ||
| 64831-90B01 |
BB21,31,HB30,RB20..20S,26S,29S RH,W/*SOBD |
1 | ||
| 64831-90B01 |
BB21,HB30,31,RB20..DLX,EX,EXS RH,W/*SOBD |
1 | ||
| 64812-90B00 |
BB20,21,23,24,30,31,HB30,31,32,RB20..20S,26S,29S |
1 | ||
| 64832-90B00 |
BB21,HB30,31,RB20..DLX,EX,EXS LH,W/*SOBD |
1 | ||
| 64832-90B00 |
BB21,23,24,31,HB30,31,32,RB20..20S,26S,29S LH,W/*SOBD |
1 | ||
| 64812-90B00 |
HDB3#,HZB30,31 |
1 | ||
| 64831-90B01 |
BB21,23,24,31,HB30,31,32,RB20..20S,26S,29S RH,W/*SOBD |
1 | ||
| 64832-90B00 |
BB21,31,HB30,RB20..20S,26S,29S LH,W/*SOBD |
1 | ||

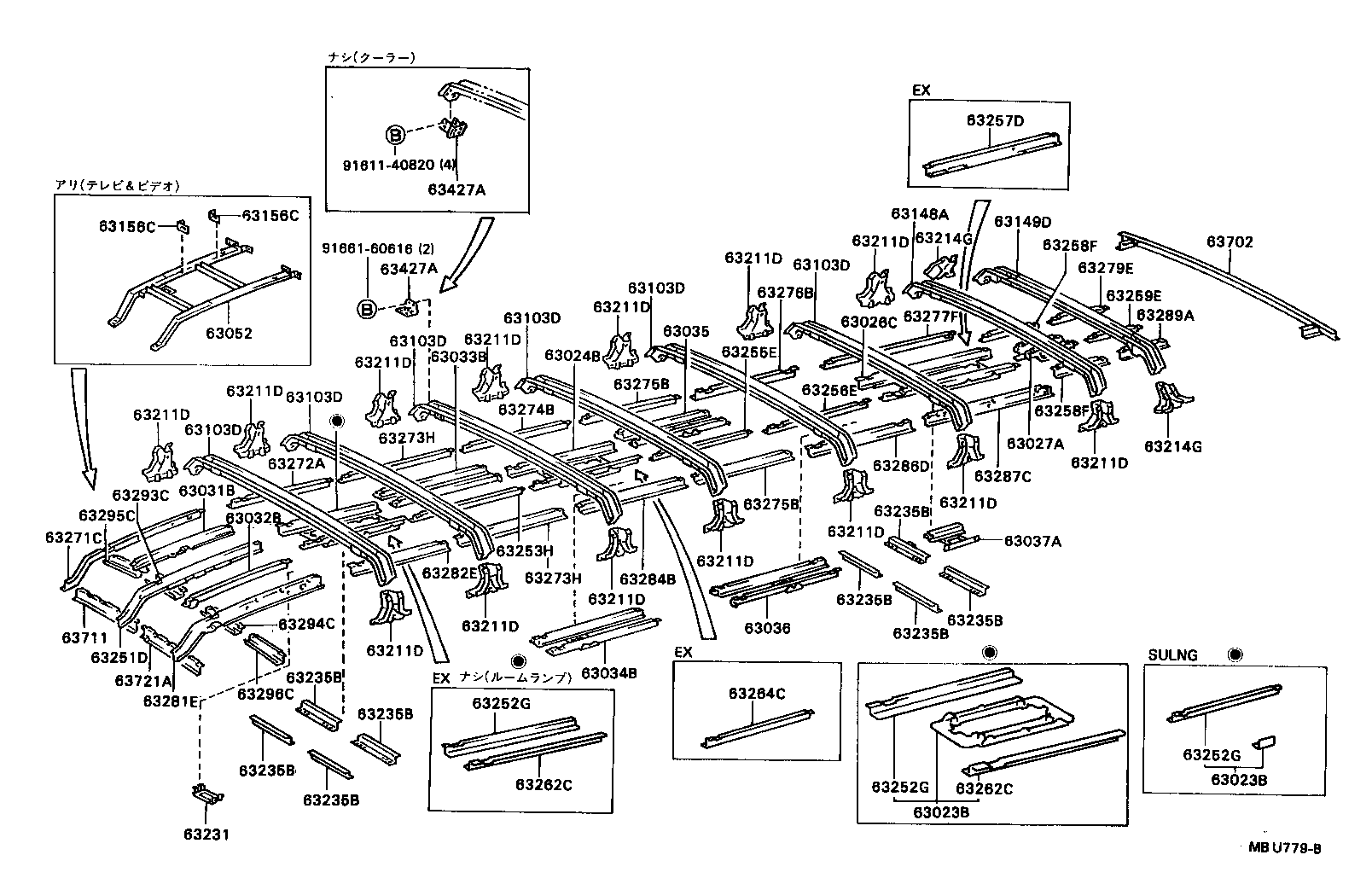

ILLUST NO. 3 OF 3(9001- )BB31,HDB3#,HZB3#..HRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63023B - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.2 | ||||
| 63023-90B00 |
BB21,23,26,31,RB20..HRF |
1 | ||
| 63023B - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.2 | ||||
| 63023-90B00 |
BB21,23,26,31,RB20..HRF |
1 | ||
| 63024B - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.4 | ||||
| 63024-90B01 |
BB31,HDB30,HZB30,36..HRF |
1 | ||
| 63026C - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.7 | ||||
| 63026-90B00 |
BB31,HDB30,HZB30,36..HRF |
1 | ||
| 63031B - STRENGTH SUB-ASSY, ROOF PANEL, CENTER RH NO.1 | ||||
| 63031-90B00 |
BB21,26,31,HZB30..HRF..WOC |
1 | ||
| 63032B - STRENGTH SUB-ASSY, ROOF PANEL, CENTER LH, NO.1 | ||||
| 63032-90B00 |
BB21,26,31,HZB30..HRF..WOC |
1 | ||
| 63103D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63103-90B00 |
BB31,HDB30,HZB30..HRF W/BAGGAGE RACK |
2 | ||
| 63103-90B00 |
BB31,HDB30,HZB30..HRF |
6 | ||
| 63105-90B03 |
BB31,HZB30..HRF..WOC W/BAGGAGE RACK |
4 | ||
| 63103D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63103-90B00 |
BB31,HDB30,HZB30..HRF W/BAGGAGE RACK |
2 | ||
| 63103-90B00 |
BB31,HDB30,HZB30..HRF |
6 | ||
| 63105-90B03 |
BB31,HZB30..HRF..WOC W/BAGGAGE RACK |
4 | ||
| 63103D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63103-90B00 |
BB31,HDB30,HZB30..HRF W/BAGGAGE RACK |
2 | ||
| 63103-90B00 |
BB31,HDB30,HZB30..HRF |
6 | ||
| 63105-90B03 |
BB31,HZB30..HRF..WOC W/BAGGAGE RACK |
4 | ||
| 63103D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63103-90B00 |
BB31,HDB30,HZB30..HRF W/BAGGAGE RACK |
2 | ||
| 63103-90B00 |
BB31,HDB30,HZB30..HRF |
6 | ||
| 63105-90B03 |
BB31,HZB30..HRF..WOC W/BAGGAGE RACK |
4 | ||
| 63103D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63103-90B00 |
BB31,HDB30,HZB30..HRF W/BAGGAGE RACK |
2 | ||
| 63103-90B00 |
BB31,HDB30,HZB30..HRF |
6 | ||
| 63105-90B03 |
BB31,HZB30..HRF..WOC W/BAGGAGE RACK |
4 | ||
| 63103D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63103-90B00 |
BB31,HDB30,HZB30..HRF W/BAGGAGE RACK |
2 | ||
| 63103-90B00 |
BB31,HDB30,HZB30..HRF |
6 | ||
| 63105-90B03 |
BB31,HZB30..HRF..WOC W/BAGGAGE RACK |
4 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63207-90B07 |
BB21,31,HZB30..HRF..WOC W/BAGGAGE RACK |
1 | ||
| 63207-90B04 |
BB21,23,26,31,RB20..HRF |
1 | ||
| 63149D - REINFORCEMENT, ROOF PANEL, NO.8 | ||||
| 63208-90B01 |
BB21,31,HZB30..HRF..WOC |
1 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63214G - BRACKET, ROOF REINFORCEMENT, INNER, NO.4 | ||||
| 63214-90B01 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
2 | ||
| 63214G - BRACKET, ROOF REINFORCEMENT, INNER, NO.4 | ||||
| 63214-90B01 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
2 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 4 SPEAKER |
8 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 4 SPEAKER |
8 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 4 SPEAKER |
8 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 4 SPEAKER |
8 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 4 SPEAKER |
8 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 4 SPEAKER |
8 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 4 SPEAKER |
8 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 4 SPEAKER |
8 | ||
| 63251D - STRENGTH, ROOF PANEL, CENTER NO.1 | ||||
| 63251-90B01 |
BB2#,3#,HDB3#,HZB3#,RB20..HRF |
1 | ||
| 63252G - STRENGTH, ROOF PANEL, CENTER NO.2 | ||||
| 63252-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
1 | ||
| 63252G - STRENGTH, ROOF PANEL, CENTER NO.2 | ||||
| 63252-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
1 | ||
| 63252G - STRENGTH, ROOF PANEL, CENTER NO.2 | ||||
| 63252-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
1 | ||
| 63253H - STRENGTH, ROOF PANEL, CENTER NO.3 | ||||
| 63253-90B02 |
BB31,HDB30,HZB30..HRF |
2 | ||
| 63255E - STRENGTH, ROOF PANEL, CENTER NO.5 | ||||
| 63255-90B01 |
BB31,HDB30,HZB30,36..HRF |
2 | ||
| 63256E - STRENGTH, ROOF PANEL, CENTER NO.6 | ||||
| 63256-90B01 |
BB31,HDB30,HZB30,36..HRF |
2 | ||
| 63258F - STRENGTH, ROOF PANEL, CENTER NO.8 | ||||
| 63258-90B01 |
BB21,26,31,HZB30..HRF..WOC |
3 | ||
| 63258F - STRENGTH, ROOF PANEL, CENTER NO.8 | ||||
| 63258-90B01 |
BB21,26,31,HZB30..HRF..WOC |
3 | ||
| 63259E - STRENGTH, ROOF PANEL, CENTER NO.9 | ||||
| 63259-90B01 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63262C - STRENGTH, ROOF PANEL, CENTER NO.2 LH | ||||
| 63262-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
1 | ||
| 63262C - STRENGTH, ROOF PANEL, CENTER NO.2 LH | ||||
| 63262-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
1 | ||
| 63272A - STRENGTH, ROOF PANEL, NO.2 RH | ||||
| 63272-90B03 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63273H - STRENGTH, ROOF PANEL, NO.3 | ||||
| 63273-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
2 | ||
| 63273H - STRENGTH, ROOF PANEL, NO.3 | ||||
| 63273-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
2 | ||
| 63274B - STRENGTH, ROOF PANEL, NO.4 RH | ||||
| 63274-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63275B - STRENGTH, ROOF PANEL, NO.5 | ||||
| 63275-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
2 | ||
| 63275B - STRENGTH, ROOF PANEL, NO.5 | ||||
| 63275-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
2 | ||
| 63276B - STRENGTH, ROOF PANEL, NO.6 RH | ||||
| 63276-90B01 |
BB31,HDB3#,HZB3#..HRF |
1 | ||
| 63277F - STRENGTH, ROOF PANEL, NO.7 RH | ||||
| 63277-90B01 |
BB31,HDB3#,HZB3#..HRF |
1 | ||
| 63279E - STRENGTH, ROOF PANEL, NO.9 RH | ||||
| 63279-90B01 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63281E - STRENGTH, ROOF PANEL, NO.1 LH | ||||
| 63022-90B00 |
BB21,26,31,HZB30..HRF..WOC |
1 | ||
| 63282E - STRENGTH, ROOF PANEL, NO.2 LH | ||||
| 63282-90B02 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63284B - STRENGTH, ROOF PANEL, NO.4 LH | ||||
| 63284-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63286D - STRENGTH, ROOF PANEL, NO.6 LH | ||||
| 63286-90B01 |
BB31,HDB3#,HZB3#..HRF |
1 | ||
| 63289A - STRENGTH, ROOF PANEL, NO.9 LH | ||||
| 63289-90B01 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63293C - STRENGTH, ROOF PANEL, NO.11 RH | ||||
| 63293-90B03 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63294C - STRENGTH, ROOF PANEL, NO.11 LH | ||||
| 63294-90B01 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63295C - STRENGTH, ROOF PANEL, NO.12 RH | ||||
| 63295-90B02 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63296C - STRENGTH, ROOF PANEL, NO.12 LH | ||||
| 63296-90B01 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63427A - BRACKET, ROOM RACK FLAME | ||||
| 63427-90B02 |
BB31,HZB30..HRF..WOC W/BAGGAGE RACK |
5 | ||
| 63427A - BRACKET, ROOM RACK FLAME | ||||
| 63427-90B02 |
BB31,HZB30..HRF..WOC W/BAGGAGE RACK |
5 | ||
| 63702 - BRACKET SUB-ASSY, ROOF LINING REAR | ||||
| 63702-90B01 |
BB21,26,31,HZB30..HRF..WOC |
1 | ||
| 63711 - BRACKET, ROOF LINING, FRONT RH | ||||
| 63711-90B02 |
BB2#,3#,HDB3#,HZB3#,RB20..HRF |
1 | ||
| 63721A - BRACKET, ROOF LINING, FRONT LH | ||||
| 63721-90B02 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| Common parts | ||||
| 91611-40820 | ||||
| 91661-60616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
