BB31-MD (1983)

Toyota Coaster

Production Feb 1983 - Jan 1993
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

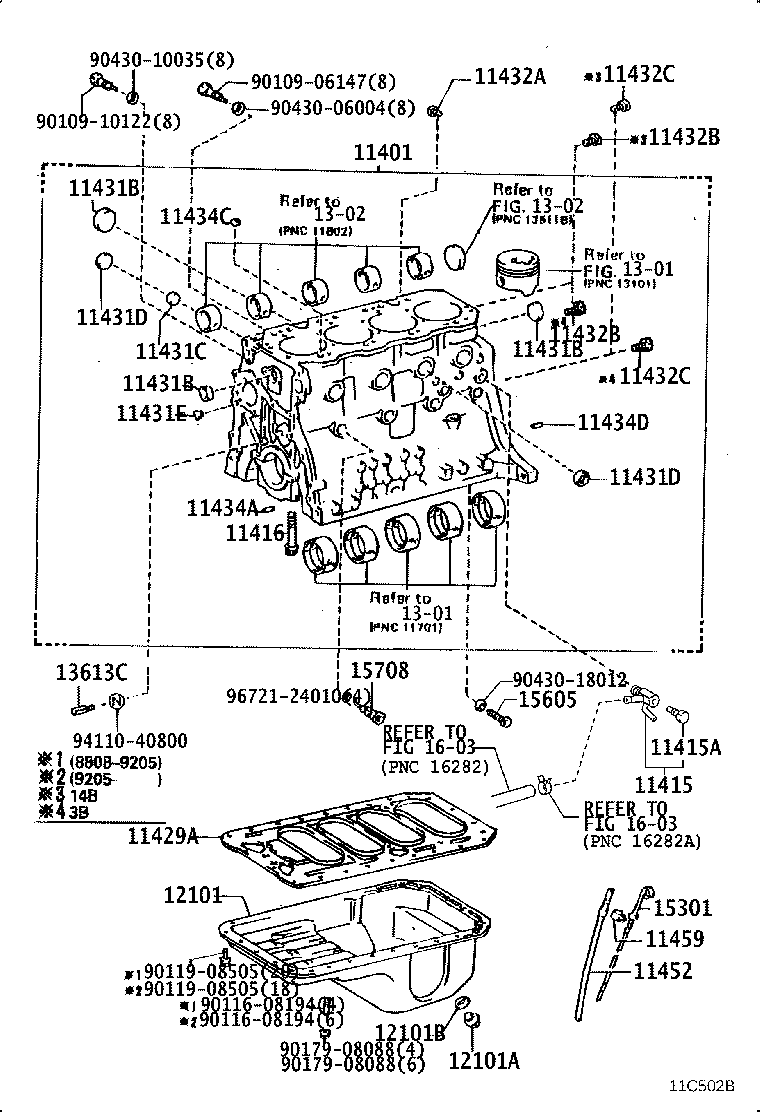

(8808- )14B,3B

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11429A 11431B 11431B 11431B 11431C 11431D 11431D 11431E 11432A 11432B 11432B 11432C 11432C 11434A 11434C 11434D 11452 11459 12101 12101A 12101B 1301 1301 1302 1302 13613C 15301 15605 15708 1603 1603 9010906147 9010910122 9011608194 9011608194 9011908505 9011908505 9017908088 9017908088 9043006004 9043010035 9043018012 9411040800 9672124010
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-59226

3B..BB21,31

 1
11401-59305

3B..BB2#,3#

 1
11401-59415

3B..BB21,26,31

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09070

3B..BB2#,3#

 1
96431-03833

3B..BB2#,3#

 1
96431-53828

3B..BB21,26,3#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

3B..BB2#,3#

 1
90910-09072

3B..BB2#,3#

 1
96432-23814

14B,3B..BB2#,3#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90101-13001

3B..BB2#,3#

 10
90109-16001

3B..BB2#,3#

*16-2PX88.5-32

 10
90910-02082

14B,3B..BB2#,31

*16-2PX93.5-32

 10
90910-02083

14B,3B..BB2#,31

*16-2PX129.5-32

 5
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-42800

3B..BB2#,3#

OD=28

 4
96411-12800

3B..BB2#,3#

OD=28

 4
96411-45000

14B,3B..BB2#,3#

OD=50

 5
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-42800

3B..BB2#,3#

OD=28

 4
96411-12800

3B..BB2#,3#

OD=28

 4
96411-45000

14B,3B..BB2#,3#

OD=50

 5
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-42800

3B..BB2#,3#

OD=28

 4
96411-12800

3B..BB2#,3#

OD=28

 4
96411-45000

14B,3B..BB2#,3#

OD=50

 5
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-13000

3B..BB2#,3#

OD=30

 4
96411-43000

14B,3B..BB2#,3#

OD=30

 4
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-43500

14B,3B..BB2#,31

OD=35

 6
96411-13500

3B..BB2#,3#

OD=35

 4
96411-43500

3B..BB2#,3#

OD=35

 4
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-43500

14B,3B..BB2#,31

OD=35

 6
96411-13500

3B..BB2#,3#

OD=35

 4
96411-43500

3B..BB2#,3#

OD=35

 4
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-41400

14B,3B..BB2#,3#

OD=14

 3
96411-11400

3B..BB2#,3#

OD=14

 3
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90043-45027

3B..BB2#,3#

 4
90345-51007

14B,3B..BB2#,31

 4
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-53001

3B..BB2#,3#

 1
90345-53004

14B,3B..BB2#,31

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-53001

3B..BB2#,3#

 1
90345-53004

14B,3B..BB2#,31

 1
11432C - PLUG, W/HEAD TAPER SCREW, NO.3
90345-52001

14B,3B..BB2#,3#

 1
11432C - PLUG, W/HEAD TAPER SCREW, NO.3
90345-52001

14B,3B..BB2#,3#

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

14B,3B..BB2#,3#

長さ=18,外径=8,L=18,OD=8

 4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-15005

14B,3B..BB2#,3#

長さ=7,外径=14.5,L=7,OD=14.5

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-08120

14B,3B..BB2#,3#

長さ=18,外径=8,L=18,OD=8

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-56050

14B,3B..BB2#,3#

 1
11452-56040

3B..BB2#,3#

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-56040

14B,3B..BB2#,3#

 1
12101 - PAN SUB-ASSY, OIL
12101-58080

14B,3B..BB2#,31

 1
12101-59175

3B..BB2#,3#

 1
12101-58040

3B..BB2#,3#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

3B..BB2#,3#

18-1.5P

 1
90341-18089

14B,3B..BB2#,3#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

3B..BB2#,3#

ID=18

 1
90430-18244

3B..BB2#,3#

 1
90430-12019

3B..BB2#,3#

 1
90430-18018

14B,3B..BB2#,31

 1
90430-18026

14B,3B..BB2#,31

 1
13613C - NOZZLE, OIL
90915-01015

14B,3B..BB2#,3#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-56050

14B,3B..BB2#,31

 1
15301-56040

3B..BB2#,3#

 1
15301-56020

3B..BB2#,3#

 1
15301-56060

14B,3B..BB2#,31

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-58010

3B..BB2#,3#

 1
15605-56010

14B,3B..BB2#,31

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-58010

3B..BB2#,3#

 4
15708-58020

3B..BB21,26,3#

 4
Common parts
90109-06147
90109-10122
90116-08194
90119-08505
90179-08088
90430-06004
90430-10035
90430-18012
94110-40800
96721-24010
Linked diagrams
1301
1302
1603

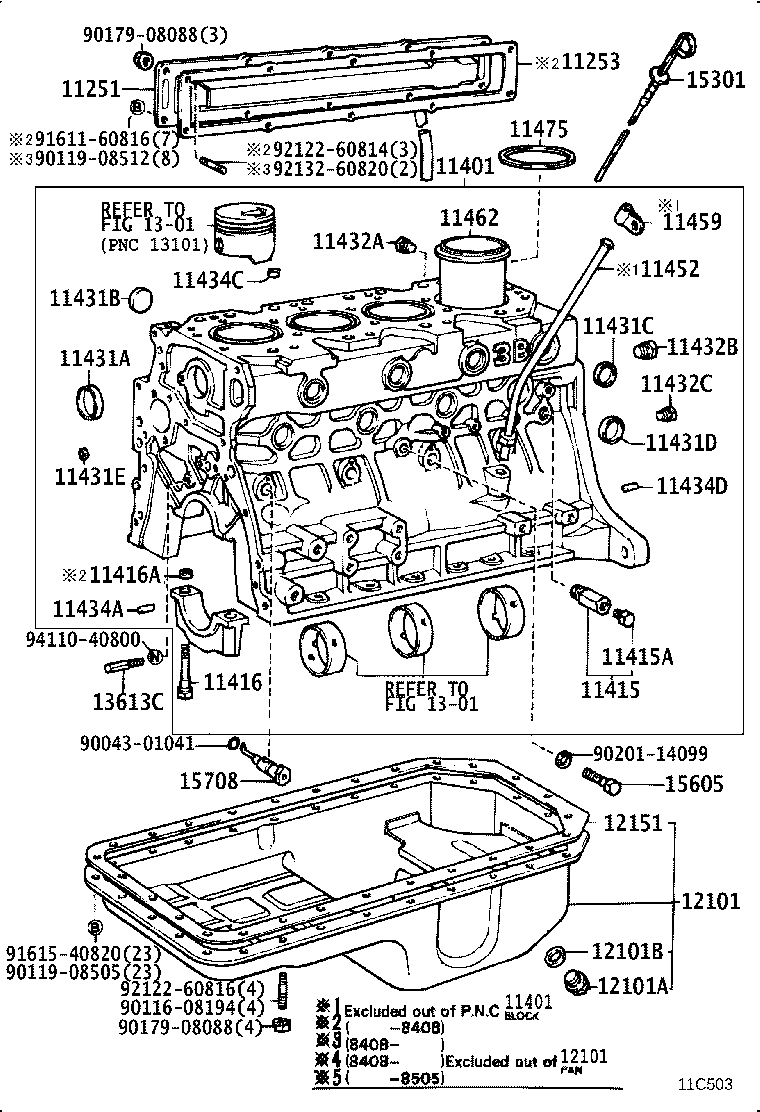

(8205-8808)3B

Click highlighted areas on diagram

diagram 11251 11253 11401 11415 11415A 11416 11416A 11431A 11431B 11431C 11431D 11431E 11432A 11432B 11432C 11434A 11434C 11434D 11452 11459 11462 11475 12101 12101A 12101B 12151 1301 1301 13613C 15301 15605 15708 9004301041 9011608194 9011908505 9011908512 9017908088 9017908088 9020114099 9161160816 9161540820 9212260814 9212260816 9213260820 9411040800
Part # Description Qty Price
11251 - COVER, VALVE PUSH ROD
11203-56040

3B..BB2#,3#

 1
11203-56041

3B..BB2#,3#

 1
11203-56030

3B..BB2#,3#

 1
11253 - GASKET, VALVE PUSH ROD COVER
11253-56010

3B..BB2#,3#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-59226

3B..BB21,31

 1
11401-59305

3B..BB2#,3#

 1
11401-59415

3B..BB21,26,31

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09070

3B..BB2#,3#

 1
96431-03833

3B..BB2#,3#

 1
96431-53828

3B..BB21,26,3#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

3B..BB2#,3#

 1
90910-09072

3B..BB2#,3#

 1
96432-23814

14B,3B..BB2#,3#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90101-13001

3B..BB2#,3#

 10
90109-16001

3B..BB2#,3#

*16-2PX88.5-32

 10
90910-02082

14B,3B..BB2#,31

*16-2PX93.5-32

 10
90910-02083

14B,3B..BB2#,31

*16-2PX129.5-32

 5
11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET)
90253-18002

3B..BB2#,3#

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-51032

3B..BB2#,3#

OD=51

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-42800

3B..BB2#,3#

OD=28

 4
96411-12800

3B..BB2#,3#

OD=28

 4
96411-45000

14B,3B..BB2#,3#

OD=50

 5
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-13000

3B..BB2#,3#

OD=30

 4
96411-43000

14B,3B..BB2#,3#

OD=30

 4
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-43500

14B,3B..BB2#,31

OD=35

 6
96411-13500

3B..BB2#,3#

OD=35

 4
96411-43500

3B..BB2#,3#

OD=35

 4
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-41400

14B,3B..BB2#,3#

OD=14

 3
96411-11400

3B..BB2#,3#

OD=14

 3
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90043-45027

3B..BB2#,3#

 4
90345-51007

14B,3B..BB2#,31

 4
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-53001

3B..BB2#,3#

 1
90345-53004

14B,3B..BB2#,31

 1
11432C - PLUG, W/HEAD TAPER SCREW, NO.3
90345-52001

14B,3B..BB2#,3#

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

14B,3B..BB2#,3#

長さ=18,外径=8,L=18,OD=8

 4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-15005

14B,3B..BB2#,3#

長さ=7,外径=14.5,L=7,OD=14.5

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-08120

14B,3B..BB2#,3#

長さ=18,外径=8,L=18,OD=8

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-56050

14B,3B..BB2#,3#

 1
11452-56040

3B..BB2#,3#

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-56040

14B,3B..BB2#,3#

 1
11462 - LINER, CYLINDER
11461-58010

3B..BB2#,3#

 4
11461-58020

3B..BB2#,3#

 4
11475 - SHIM, CYLINDER LINER
11475-58010

3B..BB2#,3#

T=0.05

 1
11476-58010

3B..BB2#,3#

T=0.10

 1
12101 - PAN SUB-ASSY, OIL
12101-58080

14B,3B..BB2#,31

 1
12101-59175

3B..BB2#,3#

 1
12101-58040

3B..BB2#,3#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

3B..BB2#,3#

18-1.5P

 1
90341-18089

14B,3B..BB2#,3#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

3B..BB2#,3#

ID=18

 1
90430-18244

3B..BB2#,3#

 1
90430-12019

3B..BB2#,3#

 1
90430-18018

14B,3B..BB2#,31

 1
90430-18026

14B,3B..BB2#,31

 1
12151 - GASKET, OIL PAN
12151-56030

3B..BB2#,3#

 1
13613C - NOZZLE, OIL
90915-01015

14B,3B..BB2#,3#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-56050

14B,3B..BB2#,31

 1
15301-56040

3B..BB2#,3#

 1
15301-56020

3B..BB2#,3#

 1
15301-56060

14B,3B..BB2#,31

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-58010

3B..BB2#,3#

 1
15605-56010

14B,3B..BB2#,31

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-58010

3B..BB2#,3#

 4
15708-58020

3B..BB21,26,3#

 4
Common parts
90043-01041
90116-08194
90119-08505
90119-08512
90179-08088
90201-14099
91611-60816
91615-40820
92122-60814
92122-60816
92132-60820
94110-40800
Linked diagrams
1301
