BB30-MRY (1982)

Toyota Coaster

Production May 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )BB20,21,26,3#

Click highlighted areas on diagram

diagram 1605 44319 44319 44319B 44350 44369 44369 44379 44386A 44389 44411 44416 44417 44417A 44417B 44423 44423F 44423F 44423F 44423G 44423G 44423G 44423G 44423G 44423G 44423H 44423P 44441 44442 44447 44457C 44458 44459 9010508052 9010508052 9011910080 9017008204 9046001001 9046110494 9046110494 9046110494 9046716019 9161160614 9161160630 9161160814 9161160816 9161160816 9161160816 9161160820 9161160820 9161160820 9161160820 9161160845 9161161025 9161161025 9161660825 9165140820 9165160620 9165160620 9165161022 9165161022 9165660825 9165961230 9699114080
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
44319-36010

BB2#,3#..WOC

 1
44319-36020

BB2#,3#..WOC

COLD SPEC

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-36010

BB2#,3#..WOC

 1
44319-36020

BB2#,3#..WOC

COLD SPEC

 1
44319B - PIN(FOR VANE PUMP DRIVE PULLEY)
90250-05007

BB2#,3#

 2
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-36010

BB26..WC;BB20..IV;BB31..44C;BB20,31..HRF;BB21,30..STD..CBU;BB21..DLX..SRF..WOC;BB20,30,31..DLX..SRF

 1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36010

BB20,21,26,3#,HB30,31,36

 2
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36010

BB20,21,26,3#,HB30,31,36

 2
44379 - BRACKET, OIL RESERVOIR, NO.2
44379-36040

BB20,21,26,3#

 1
44386A - SUPPORT, OIL RESERVOIR
44386-36040

BB20,21,26,3#

 1
44389 - BRACKET, OIL RESERVOIR, NO.3
44389-36030

BB20,21,26,3#

 1
44411 - HOSE, PRESSURE FEED
44411-36050

BB2#,3#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-36020

BB2#,3#

 1
44417 - TUBE, RETURN, NO.2
44417-36020

BB2#,3#

 1
44417A - HOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2)
90445-18109

BB2#,3#

 1
44417B - HOSE, RETURN TUBE(FOR RETURN TUBE TO VANE PUMP)
90445-18110

BB2#,3#

 1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-36050

BB2#,3#

 1
44423F - BOLT, UNION
90401-14003

BB2#,3#,HB30

 3
44423F - BOLT, UNION
90401-14003

BB2#,3#,HB30

 3
44423F - BOLT, UNION
90401-14003

BB2#,3#,HB30

 3
44423G - GASKET, UNION BOLT
90430-14235

BB2#,3#,HB30

 6
44423G - GASKET, UNION BOLT
90430-14235

BB2#,3#,HB30

 6
44423G - GASKET, UNION BOLT
90430-14235

BB2#,3#,HB30

 6
44423G - GASKET, UNION BOLT
90430-14235

BB2#,3#,HB30

 6
44423G - GASKET, UNION BOLT
90430-14235

BB2#,3#,HB30

 6
44423G - GASKET, UNION BOLT
90430-14235

BB2#,3#,HB30

 6
44423H - NUT, UNION
90402-16005

BB2#,3#,HB30

 1
44423P - GASKET, UNION NUT
90430-16168

BB2#,3#,HB30

 1
44441 - BRACKET, PUMP, FRONT
44441-36040

BB2#,3#

 1
44442 - BRACKET, PUMP, REAR
44442-36030

BB2#,3#

 1
44447 - BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT
44447-36040

BB2#,3#

 1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-36030

BB2#,3#,HB3#

 1
44459 - BRACKET, TUBE SUPPORT, NO.3
44459-36030

BB2#,3#

 1
Common parts
90105-08052
90119-10080
90170-08204
90460-01001
90461-10494
90467-16019
91611-60614
91611-60630
91611-60814
91611-60816
91611-60820
91611-60845
91611-61025
91616-60825
91651-40820
91651-60620
91651-61022
91656-60825
91659-61230
96991-14080
Linked diagrams
1605

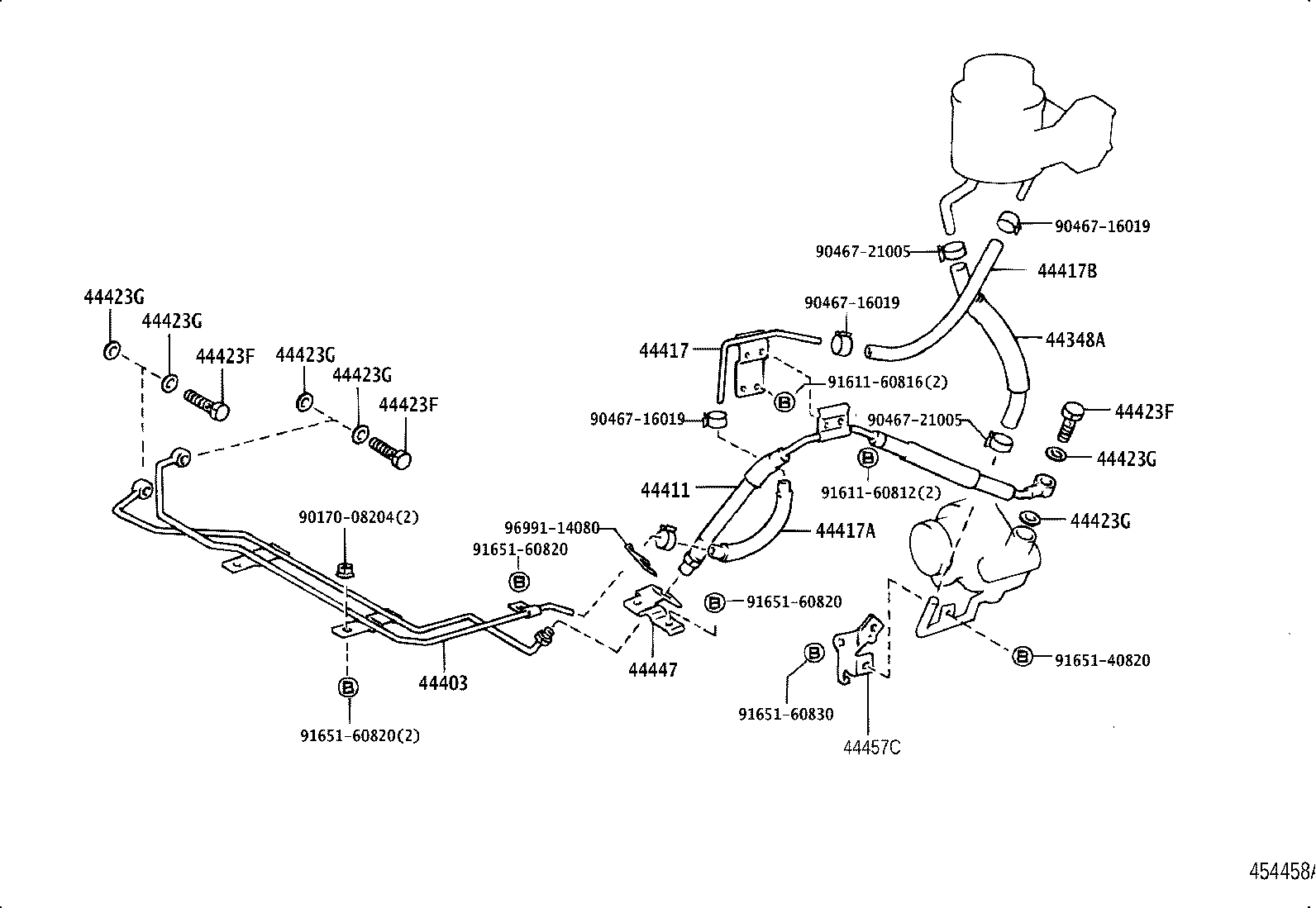

(8205- )HDB20,3#,HZB3#

Click highlighted areas on diagram

diagram 44348A 44403 44411 44417 44417A 44417B 44423F 44423F 44423F 44423G 44423G 44423G 44423G 44423G 44423G 44447 44457C 9017008204 9046716019 9046716019 9046716019 9046721005 9046721005 9161160812 9161160816 9165140820 9165160820 9165160820 9165160820 9165160830 9699114080
Part # Description Qty Price
44411 - HOSE, PRESSURE FEED
44411-36050

BB2#,3#

 1
44417 - TUBE, RETURN, NO.2
44417-36020

BB2#,3#

 1
44417A - HOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2)
90445-18109

BB2#,3#

 1
44417B - HOSE, RETURN TUBE(FOR RETURN TUBE TO VANE PUMP)
90445-18110

BB2#,3#

 1
44423F - BOLT, UNION
90401-14003

BB2#,3#,HB30

 3
44423F - BOLT, UNION
90401-14003

BB2#,3#,HB30

 3
44423F - BOLT, UNION
90401-14003

BB2#,3#,HB30

 3
44423G - GASKET, UNION BOLT
90430-14235

BB2#,3#,HB30

 6
44423G - GASKET, UNION BOLT
90430-14235

BB2#,3#,HB30

 6
44423G - GASKET, UNION BOLT
90430-14235

BB2#,3#,HB30

 6
44423G - GASKET, UNION BOLT
90430-14235

BB2#,3#,HB30

 6
44423G - GASKET, UNION BOLT
90430-14235

BB2#,3#,HB30

 6
44423G - GASKET, UNION BOLT
90430-14235

BB2#,3#,HB30

 6
44447 - BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT
44447-36040

BB2#,3#

 1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-36030

BB2#,3#,HB3#

 1
Common parts
90170-08204
90467-16019
90467-21005
91611-60812
91611-60816
91651-40820
91651-60820
91651-60830
96991-14080
