BB30-MRKRY (1982)

Toyota Coaster

Production May 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

Click highlighted areas on diagram

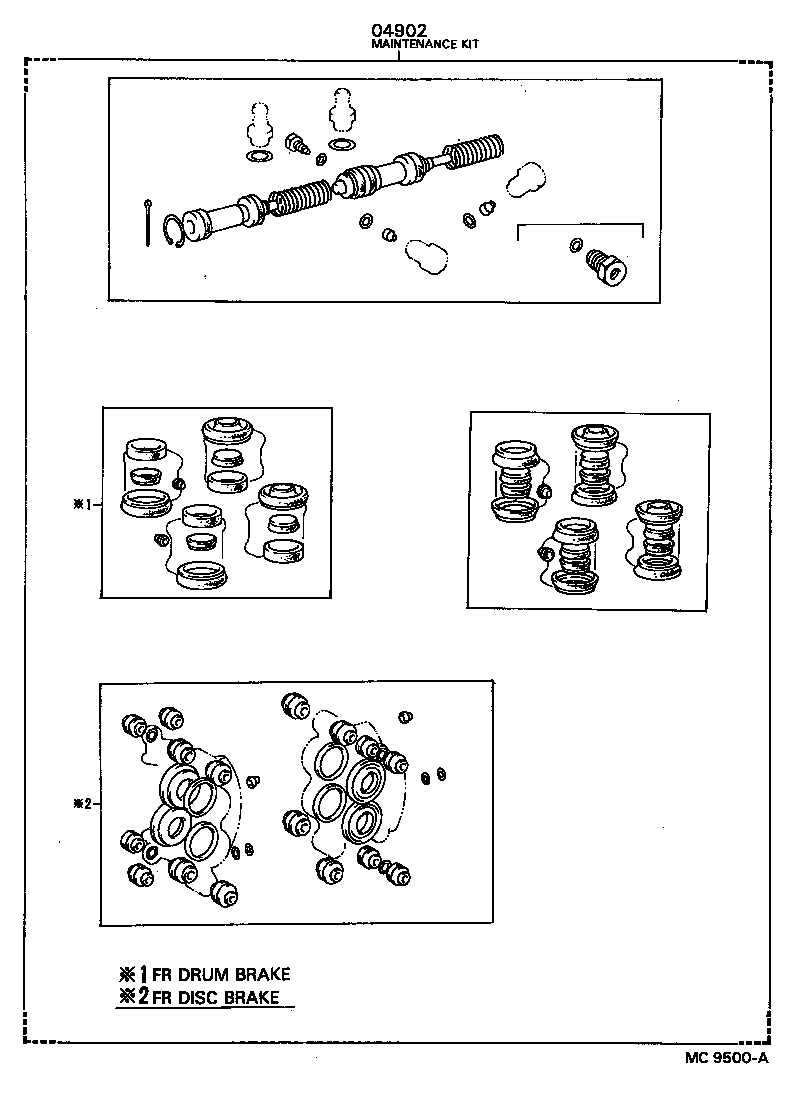

diagram 04902
Part # Description Qty Price
04902 - MAINTENACE KIT, BRAKE
04901-36070

BB2#,3#,HB30,RB20..(DLX,STD)..CBU

FR DRUM BRAKE

 1
04901-36080

BB2#,3#,HB30,RB20..CBU

FR DISC BRAKE

 1
