BB30-MRKRY (1982)

Toyota Coaster

Production May 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8808)3B

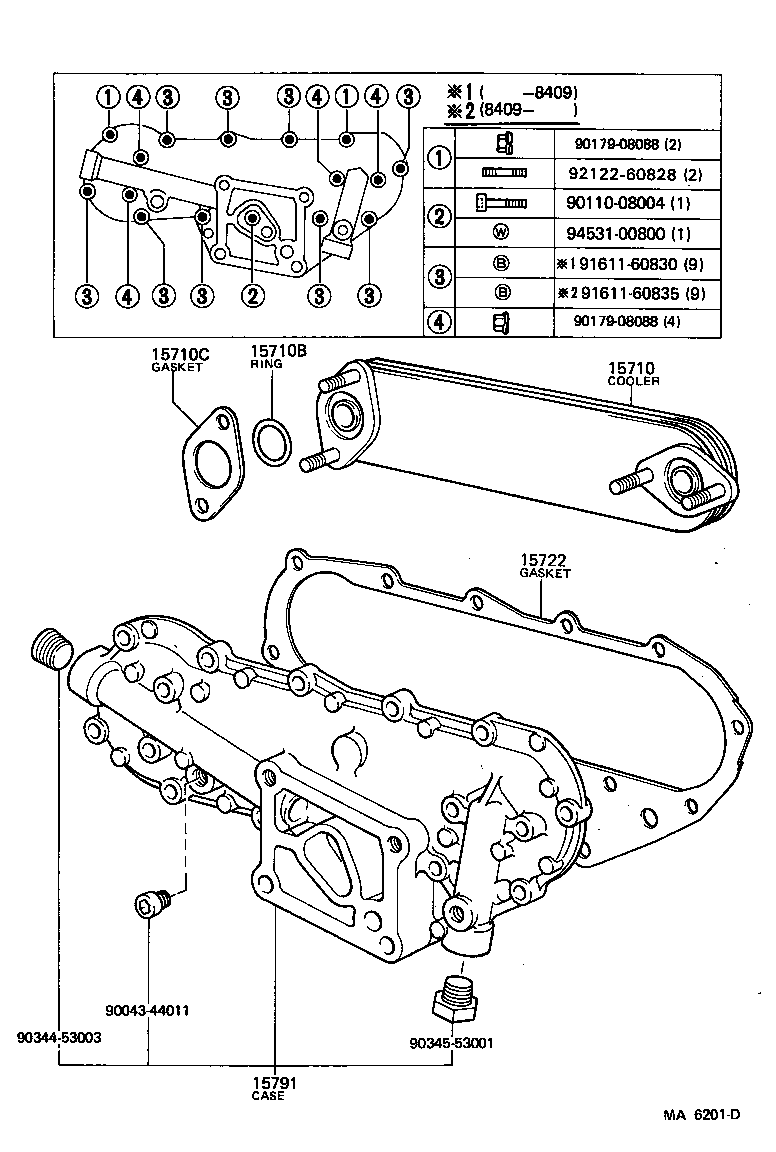

Click highlighted areas on diagram

diagram 15710 15710B 15710C 15722 15791 9004344011 9011008004 9017908088 9017908088 9034453003 9034553001 9161160830 9161160835 9212260828 9453100800
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15710-56040

3B..BB2#,3#

 1
15710B - RING, O(FOR OIL COOLER)
90301-20001

14B,3B..BB2#,3#

 2
15710C - GASKET(FOR OIL COOLER)
90923-05014

3B..BB2#,3#

 2
15722 - GASKET, OIL COOLER
15725-56010

3B..BB2#,3#

 1
15791 - CASE, OIL COOLER
15701-56010

3B..BB2#,3#

 1
Common parts
90043-44011
90110-08004
90179-08088
90344-53003
90345-53001
91611-60830
91611-60835
92122-60828
94531-00800
