BB30-MDZY (1982)
Toyota Coaster
Production
May 1982
-
Feb 1983
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8205-8808)3B

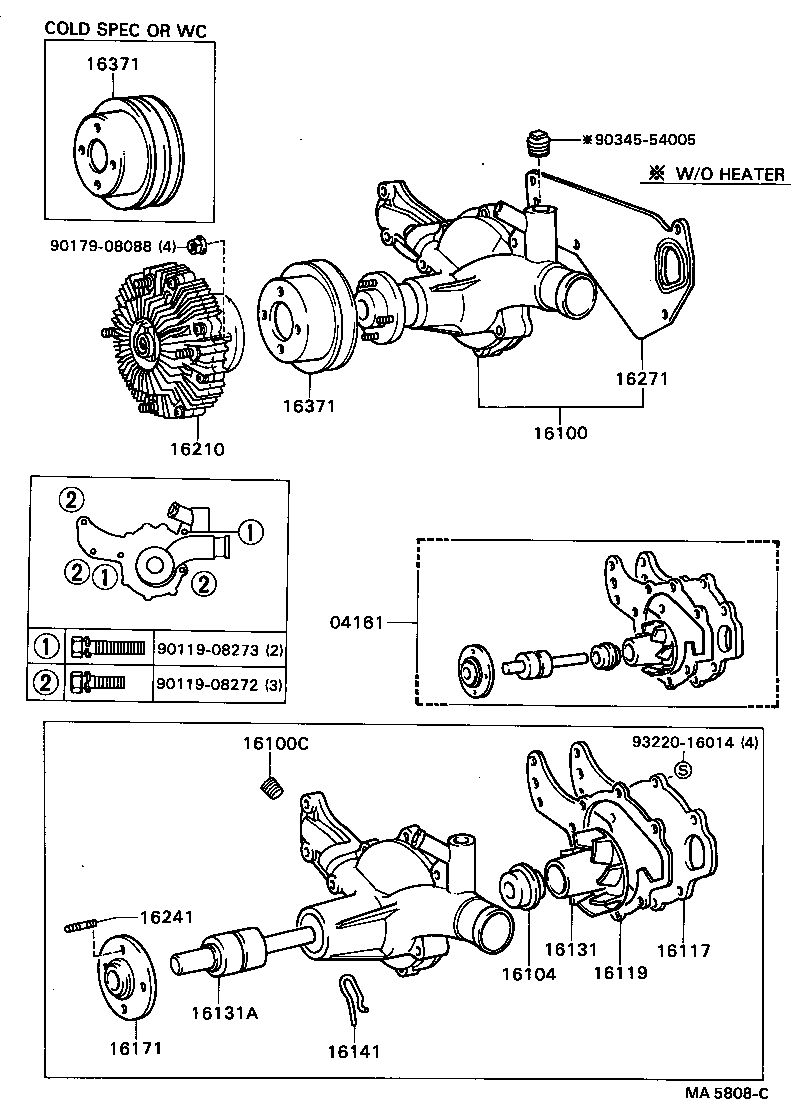

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04161 - PUMP KIT, WATER | ||||
| 04161-56080 |
3B..BB2#,3# |
1 | ||
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-59105 |
3B..BB2#,3# |
1 | ||
| 16100C - PLUG, W/HEAD TAPER SCREW | ||||
| 15184-15010 |
3B..BB2#,3# |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-52011 |
3B..BB2#,3# |
1 | ||
| 16117 - PLATE, WATER PUMP | ||||
| 16117-56040 |
3B..BB2#,3# |
1 | ||
| 16119 - GASKET, WATER PUMP BODY | ||||
| 16119-56040 |
3B..BB2#,3# |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-56040 |
3B..BB2#,3# |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90369-38002 |
3B..BB2#,3# |
1 | ||
| 16141 - WIRE, WATER PUMP BEARING RETAINING | ||||
| 16141-76010 |
3B..BB2#,3# |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-61071 |
3B..BB2#,3# |
1 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-58011 |
3B..BB2#,3# |
1 | ||
| 16241 - BOLT, STUD(FOR WATER PUMP COUPLING) | ||||
| 16198-41170 |
3B..BB2#,3# |
4 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-56020 |
3B..BB2#,3# |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-56040 |
3B..BB2#,3#..WOC |
1 | ||
| 16371-58020 |
3B..BB2#,3#..WOC COLD SPEC |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-56040 |
3B..BB2#,3#..WOC |
1 | ||
| 16371-58020 |
3B..BB2#,3#..WOC COLD SPEC |
1 | ||
| Common parts | ||||
| 90119-08272 | ||||
| 90119-08273 | ||||
| 90179-08088 | ||||
| 90345-54005 | ||||
| 93220-16014 | ||||
