BB30-MDY (1982)

Toyota Coaster

Production May 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

Click highlighted areas on diagram

diagram 8712490B00 8712490B00 8712490B00 8712490B03 8871895412 9046027001 9046108104 9046400427 9165140616 9165140616 9338590B00 9338615020 9411540500 9451100500
Part # Description Qty Price
Common parts
87124-90B00
87124-90B03
88718-95412
90460-27001
90461-08104
90464-00427
91651-40616
93385-90B00
93386-15020
94115-40500
94511-00500

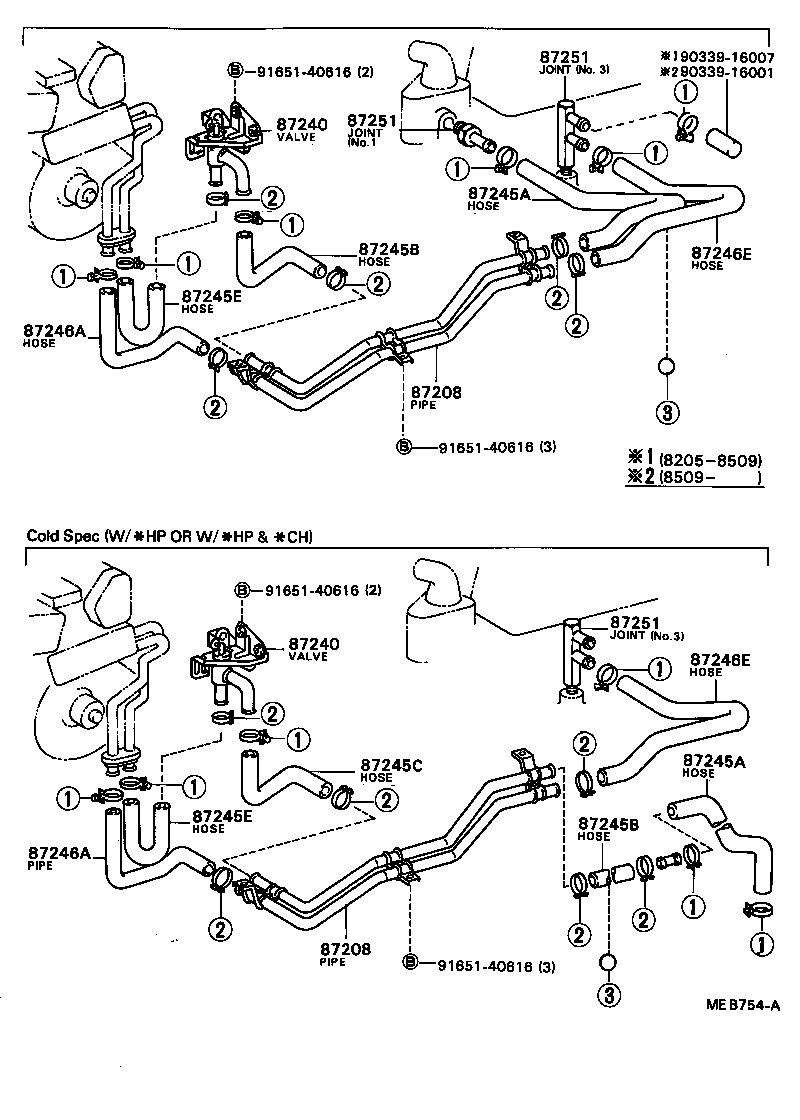

(8205- )BB2#,3#

Click highlighted areas on diagram

diagram 87208 87208 87240 87240 87245A 87245A 87245B 87245B 87245C 87245E 87245E 87246A 87246A 87246E 87246E 87251 87251 87251 9033916001 9033916007 9165140616 9165140616 9165140616 9165140616
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-90B05

BB2#,3#

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-90B05

BB2#,3#

 1
87240 - VALVE ASSY, HEATER WATER
87240-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
87240 - VALVE ASSY, HEATER WATER
87240-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-90B11

BB2#,3#

 1
87245-90B24

BB2#,3#,HB3#..10S,20S,26S,29S

COLD SPEC

 1
87245A - HOSE, HEATER WATER, INLET A
87245-90B11

BB2#,3#

 1
87245-90B24

BB2#,3#,HB3#..10S,20S,26S,29S

COLD SPEC

 1
87245B - HOSE, HEATER WATER, INLET B
87245-90B03

BB2#,3#

 1
99552-30700

BB2#,3#,RB20..26S,29S

*H,L=650,COLD SPEC

 1
87245B - HOSE, HEATER WATER, INLET B
87245-90B03

BB2#,3#

 1
99552-30700

BB2#,3#,RB20..26S,29S

*H,L=650,COLD SPEC

 1
87245E - HOSE, HEATER WATER, INLET E
87245-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-90B04

BB2#,3#,RB2#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-90B04

BB2#,3#,RB2#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-90B25

BB2#,3#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-90B25

BB2#,3#

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-60010

BB2#,3#,HB30,36

NO.2

 1
87251-30200

BB2#,3#,HB3#

NO.1

 2
87251-90B00

BB2#,3#

NO.3

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-60010

BB2#,3#,HB30,36

NO.2

 1
87251-30200

BB2#,3#,HB3#

NO.1

 2
87251-90B00

BB2#,3#

NO.3

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-60010

BB2#,3#,HB30,36

NO.2

 1
87251-30200

BB2#,3#,HB3#

NO.1

 2
87251-90B00

BB2#,3#

NO.3

 1
Common parts
90339-16001
90339-16007
91651-40616

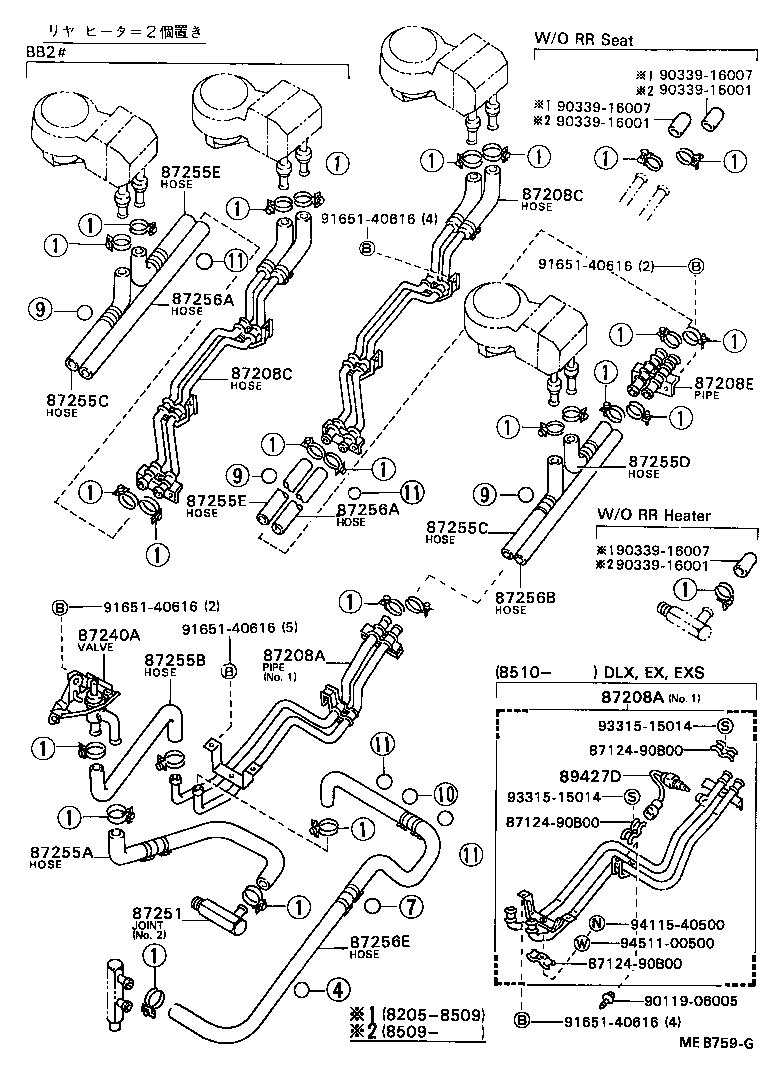

(8205- )BB20,21,30,31..26S,29S ; (8507- )BB26,36 ; (8808- )BB23,24

Click highlighted areas on diagram

diagram 8712490B00 8712490B00 8712490B00 87208A 87208A 87208C 87208C 87208E 87240A 87251 87255A 87255B 87255C 87255C 87255D 87255E 87255E 87256A 87256A 87256B 87256E 89427D 9011906005 9033916001 9033916001 9033916001 9033916007 9033916007 9033916007 9165140616 9165140616 9165140616 9165140616 9165140616 9331515014 9331515014 9411540500 9451100500
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-90B03

BB2#,3#,HB3#,RB2#..10S,20S,26S,29S

NO.1

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-90B03

BB2#,3#,HB3#,RB2#..10S,20S,26S,29S

NO.1

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87209-90B13

BB20,21,30,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S)

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87209-90B13

BB20,21,30,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S)

 1
87208E - PIPE SUB-ASSY, HEATER WATER, E
87208-90B09

BB30,31,HB30,31,32..20S,26S,29S

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-90B01

BB2#,3#,HB3#,RB2#

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-60010

BB2#,3#,HB30,36

NO.2

 1
87251-30200

BB2#,3#,HB3#

NO.1

 2
87251-90B00

BB2#,3#

NO.3

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87209-90B22

BB2#,3#,HB3#,RB2#..10S,20S,26S,29S

COLD SPEC

 1
87209-90B05

BB2#,3#

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-90B09

BB2#,3#,HB3#,RB2#

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87209-90B11

BB20,21,30,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S)

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87209-90B11

BB20,21,30,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S)

 1
87255D - HOSE, REAR HEATER WATER INLET, D
87209-90B12

BB30,31,HB30,31,32,HDB3#,HZB30,31..20S,29S

NO.1

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-30700

BB3#,HB30..20S,26S,29S

*H,L=630

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-30700

BB3#,HB30..20S,26S,29S

*H,L=630

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-30700

BB3#,HB30..20S,26S,29S

*H,L=630

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-30700

BB3#,HB30..20S,26S,29S

*H,L=630

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99552-31000

BB3#,HB30..20S,26S,29S

*H,L=730

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87209-90B21

BB2#,3#

 1
Common parts
87124-90B00
90119-06005
90339-16001
90339-16007
91651-40616
93315-15014
94115-40500
94511-00500

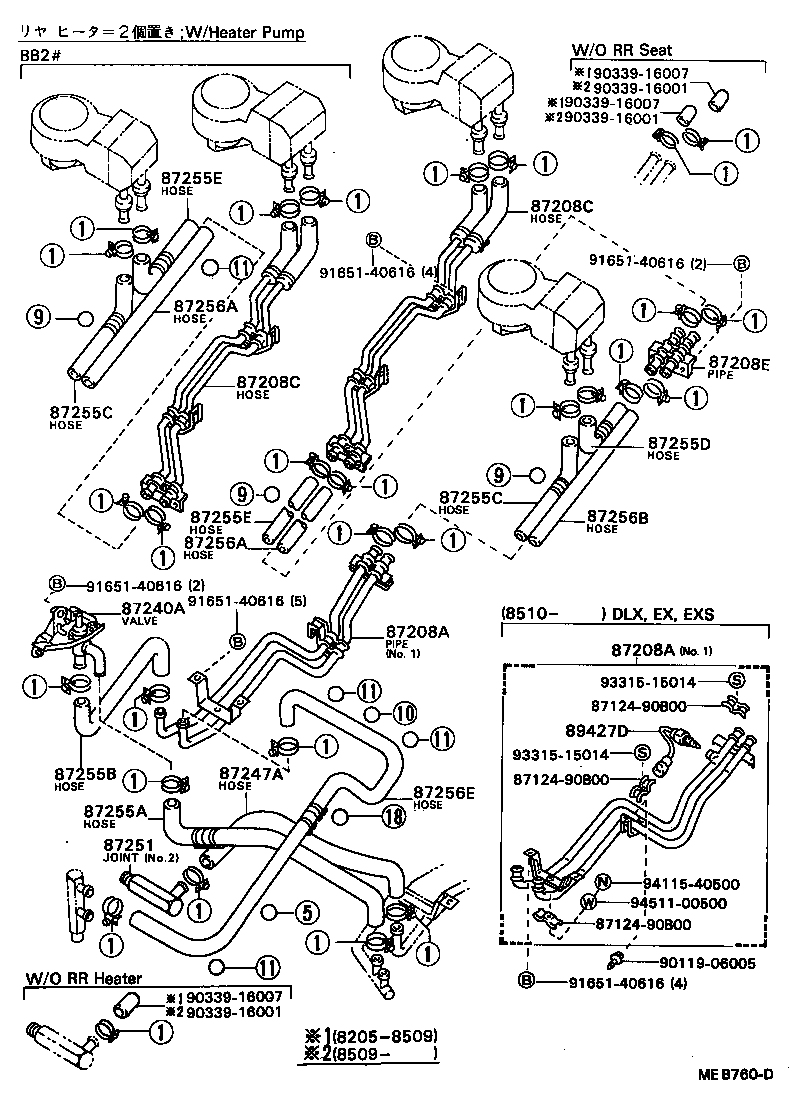

(8205- )BB20,21,30,31..26S,29S ; (8507- )BB26,36 ; (8808- )BB23,24

Click highlighted areas on diagram

diagram 8712490B00 8712490B00 8712490B00 87208A 87208A 87208C 87208C 87208E 87240A 87247A 87251 87255A 87255B 87255C 87255C 87255D 87255E 87255E 87256A 87256A 87256B 87256E 89427D 9011906005 9033916001 9033916001 9033916001 9033916007 9033916007 9033916007 9165140616 9165140616 9165140616 9165140616 9165140616 9331515014 9331515014 9411540500 9451100500
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-90B03

BB2#,3#,HB3#,RB2#..10S,20S,26S,29S

NO.1

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-90B03

BB2#,3#,HB3#,RB2#..10S,20S,26S,29S

NO.1

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87209-90B13

BB20,21,30,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S)

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87209-90B13

BB20,21,30,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S)

 1
87208E - PIPE SUB-ASSY, HEATER WATER, E
87208-90B09

BB30,31,HB30,31,32..20S,26S,29S

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-90B01

BB2#,3#,HB3#,RB2#

 1
87247A - HOSE, HEATER WATER, A
87245-90B12

BB2#,3#..10S,26S,29S

COLD SPEC

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-60010

BB2#,3#,HB30,36

NO.2

 1
87251-30200

BB2#,3#,HB3#

NO.1

 2
87251-90B00

BB2#,3#

NO.3

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87209-90B22

BB2#,3#,HB3#,RB2#..10S,20S,26S,29S

COLD SPEC

 1
87209-90B05

BB2#,3#

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-90B09

BB2#,3#,HB3#,RB2#

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87209-90B11

BB20,21,30,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S)

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87209-90B11

BB20,21,30,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S)

 1
87255D - HOSE, REAR HEATER WATER INLET, D
87209-90B12

BB30,31,HB30,31,32,HDB3#,HZB30,31..20S,29S

NO.1

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-30700

BB3#,HB30..20S,26S,29S

*H,L=630

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-30700

BB3#,HB30..20S,26S,29S

*H,L=630

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-30700

BB3#,HB30..20S,26S,29S

*H,L=630

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-30700

BB3#,HB30..20S,26S,29S

*H,L=630

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99552-31000

BB3#,HB30..20S,26S,29S

*H,L=730

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87209-90B21

BB2#,3#

 1
Common parts
87124-90B00
90119-06005
90339-16001
90339-16007
91651-40616
93315-15014
94115-40500
94511-00500

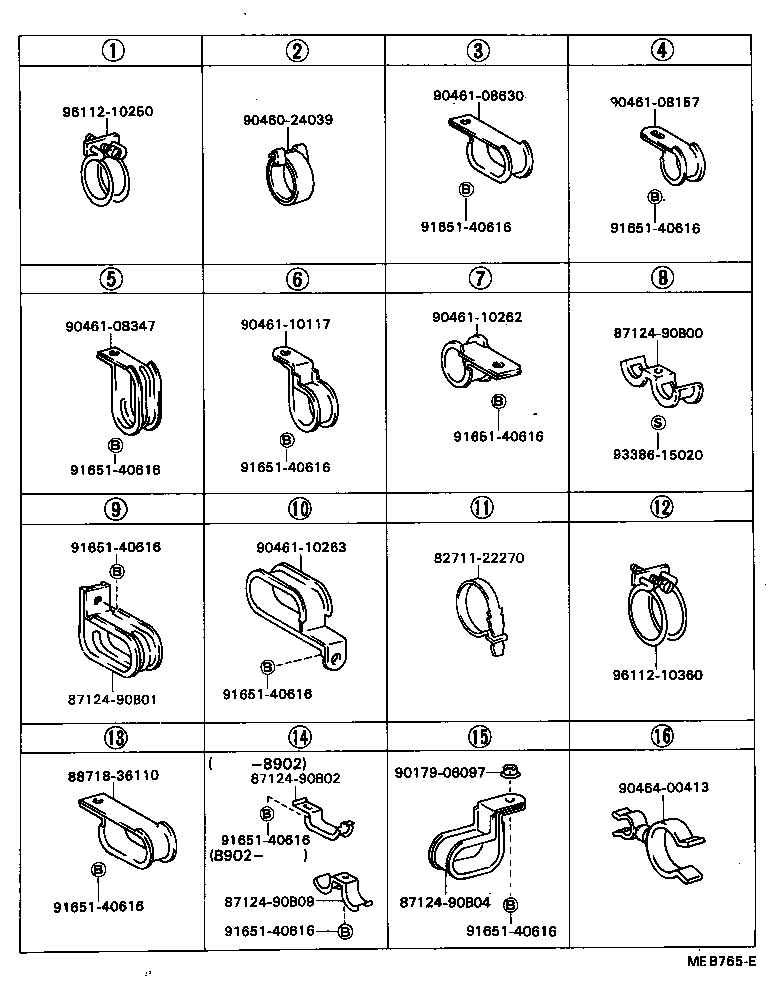

(8205- )

Click highlighted areas on diagram

diagram 8271122270 8712490B00 8712490B01 8712490B02 8712490B04 8712490B09 8871836110 9017906097 9046024039 9046108157 9046108347 9046108630 9046110117 9046110262 9046110263 9046400413 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9338615020 9611210250 9611210360
Part # Description Qty Price
Common parts
82711-22270
87124-90B00
87124-90B01
87124-90B02
87124-90B04
87124-90B09
88718-36110
90179-06097
90460-24039
90461-08157
90461-08347
90461-08630
90461-10117
90461-10262
90461-10263
90464-00413
91651-40616
93386-15020
96112-10250
96112-10360
