BB30-MDY (1982)

Toyota Coaster

Production May 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

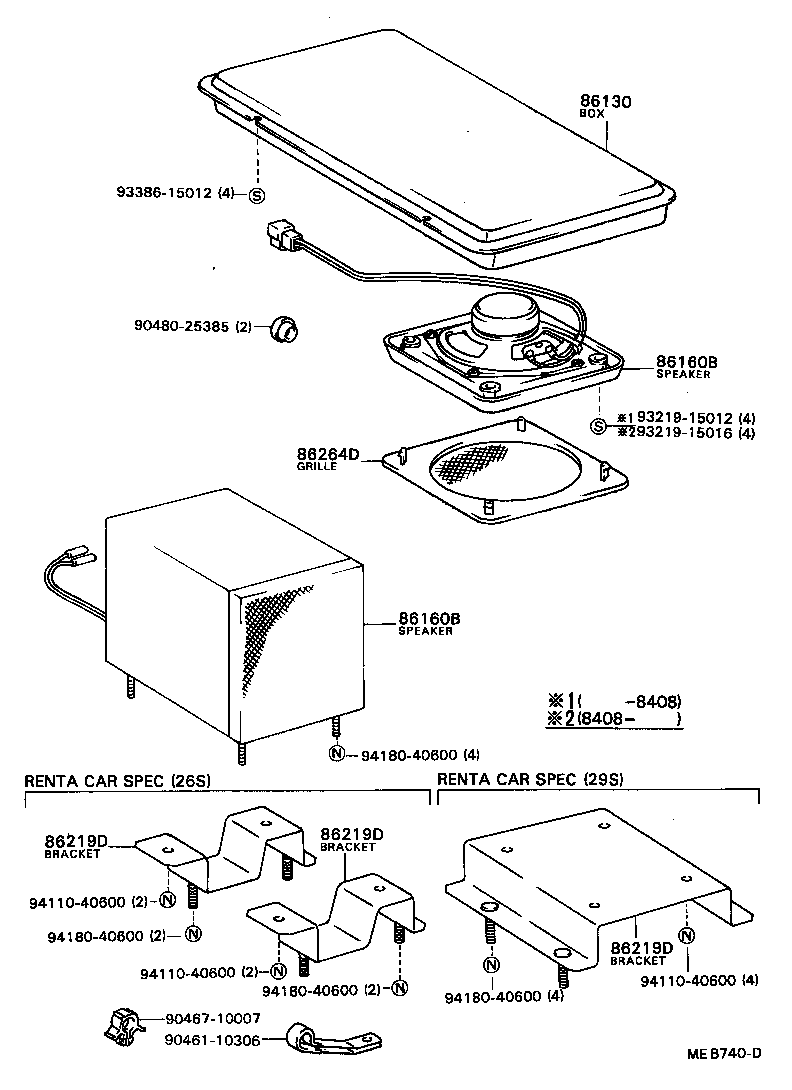

Click highlighted areas on diagram

diagram 86130 86160B 86160B 86219D 86219D 86219D 86264D 9046110306 9046710007 9048025385 9321915012 9321915016 9338615012 9411040600 9411040600 9411040600 9418040600 9418040600 9418040600 9418040600
Part # Description Qty Price
86130 - BOX ASSY, SPEAKER, ROOF
86103-90B00

BB20,21,30,31,HB30,31,RB20..DLX,STD

AM

 2
86103-90B00

BB2#,3#,HB30,RB20..DLX,EX,EXS

AM/FM MPX OR TAPE PLAYER

 4
86160B - SPEAKER ASSY, REAR
86150-90B02

BB20,21,30,31,HB30..DLX,STD

AM

 2
86150-90B02

BB2#,3#,HB30..DLX,EX,EXS

AM/FM MPX

 4
86160B - SPEAKER ASSY, REAR
86150-90B02

BB20,21,30,31,HB30..DLX,STD

AM

 2
86150-90B02

BB2#,3#,HB30..DLX,EX,EXS

AM/FM MPX

 4
Common parts
90461-10306
90467-10007
90480-25385
93219-15012
93219-15016
93386-15012
94110-40600
94180-40600
