BB30-MDY (1982)

Toyota Coaster

Production May 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

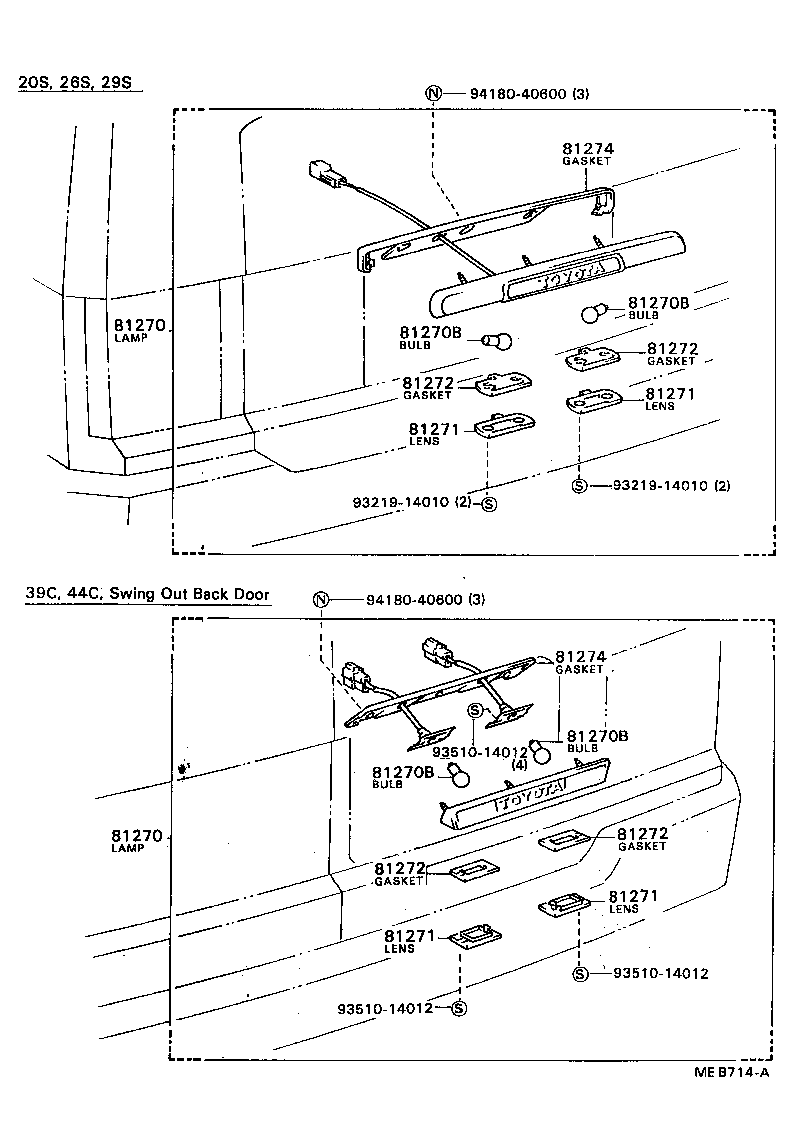

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81270B 81270B 81271 81271 81271 81271 81272 81272 81272 81272 81274 81274 9321914010 9321914010 9351014012 9351014012 9351014012 9418040600 9418040600
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-39375

BB20,21,23,24,30,31,HB30,31,32..20S,26S,29S

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-39375

BB20,21,23,24,30,31,HB30,31,32..20S,26S,29S

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-16016

BB2#,31,HB3#,HDB20,3#,HZB3#

24V 5W,24V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-16016

BB2#,31,HB3#,HDB20,3#,HZB3#

24V 5W,24V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-16016

BB2#,31,HB3#,HDB20,3#,HZB3#

24V 5W,24V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-16016

BB2#,31,HB3#,HDB20,3#,HZB3#

24V 5W,24V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-13070

BB20,21,23,24,30,31,HB30,31,32,RB20..20S,26S,29S

 2
81271 - LENS, LICENSE PLATE LAMP
81271-13070

BB20,21,23,24,30,31,HB30,31,32,RB20..20S,26S,29S

 2
81271 - LENS, LICENSE PLATE LAMP
81271-13070

BB20,21,23,24,30,31,HB30,31,32,RB20..20S,26S,29S

 2
81271 - LENS, LICENSE PLATE LAMP
81271-13070

BB20,21,23,24,30,31,HB30,31,32,RB20..20S,26S,29S

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-13070

BB20,21,23,24,30,31,HB30,31,32,RB20..20S,26S,29S

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-13070

BB20,21,23,24,30,31,HB30,31,32,RB20..20S,26S,29S

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-13070

BB20,21,23,24,30,31,HB30,31,32,RB20..20S,26S,29S

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-13070

BB20,21,23,24,30,31,HB30,31,32,RB20..20S,26S,29S

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-95A00

BB20,21,23,24,30,31,HB30,31,32,RB20..20S,26S,29S

 1
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-95A00

BB20,21,23,24,30,31,HB30,31,32,RB20..20S,26S,29S

 1
Common parts
93219-14010
93510-14012
94180-40600
