BB30-MDY (1982)

Toyota Coaster

Production May 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

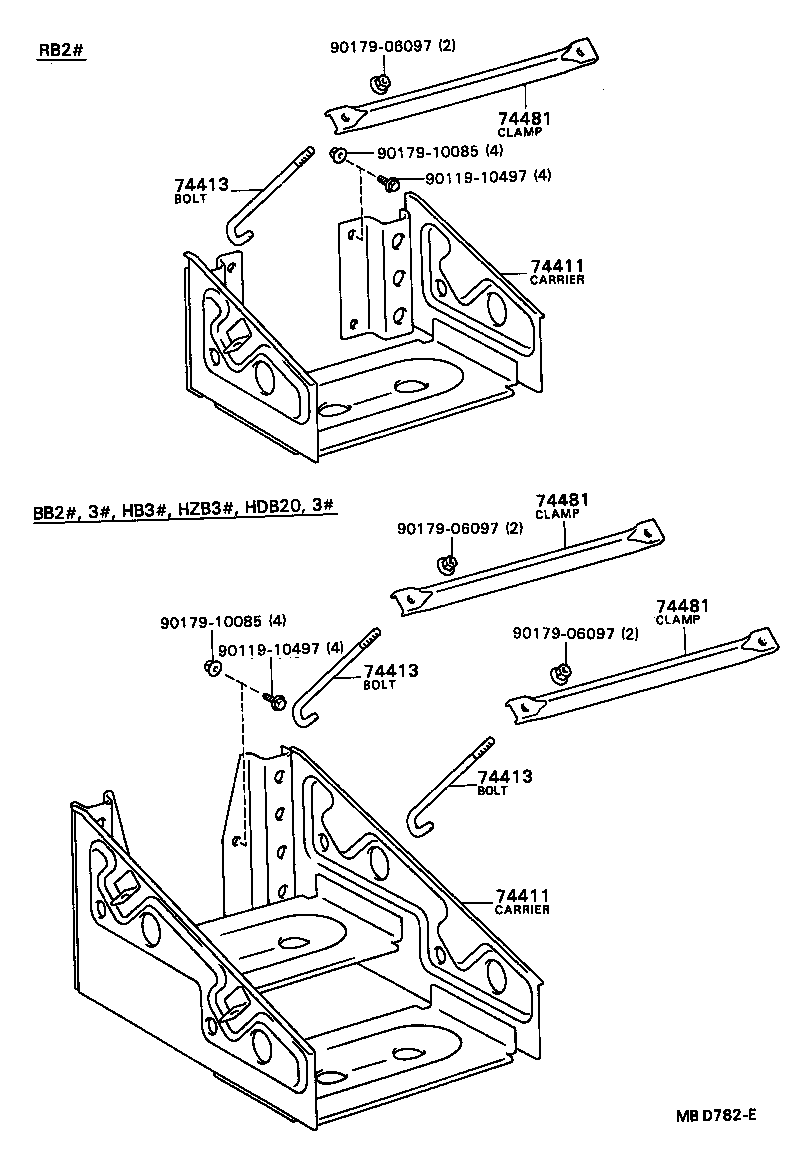

Click highlighted areas on diagram

diagram 74411 74411 74413 74413 74413 74481 74481 74481 9011910497 9011910497 9017906097 9017906097 9017906097 9017910085 9017910085
Part # Description Qty Price
74411 - CARRIER, BATTERY
74403-36030

BB2#,3#

 1
74411 - CARRIER, BATTERY
74403-36030

BB2#,3#

 1
74413 - BOLT, BATTERY CLAMP
74451-25030

BB2#,3#,HB3#,HDB20,3#,HZB3#

 4
74413 - BOLT, BATTERY CLAMP
74451-25030

BB2#,3#,HB3#,HDB20,3#,HZB3#

 4
74413 - BOLT, BATTERY CLAMP
74451-25030

BB2#,3#,HB3#,HDB20,3#,HZB3#

 4
74481 - CLAMP, BATTERY HOLD DOWN
74481-36020

HB3#,HDB20,3#,HZB3#

75D26R,80D26R(NX110-5)

 2
74481-36020

BB2#,3#

 2
74481 - CLAMP, BATTERY HOLD DOWN
74481-36020

HB3#,HDB20,3#,HZB3#

75D26R,80D26R(NX110-5)

 2
74481-36020

BB2#,3#

 2
74481 - CLAMP, BATTERY HOLD DOWN
74481-36020

HB3#,HDB20,3#,HZB3#

75D26R,80D26R(NX110-5)

 2
74481-36020

BB2#,3#

 2
Common parts
90119-10497
90179-06097
90179-10085
