BB26V-MDZR (1984)
Toyota Coaster
Production
Aug 1984
-
Jan 1993
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

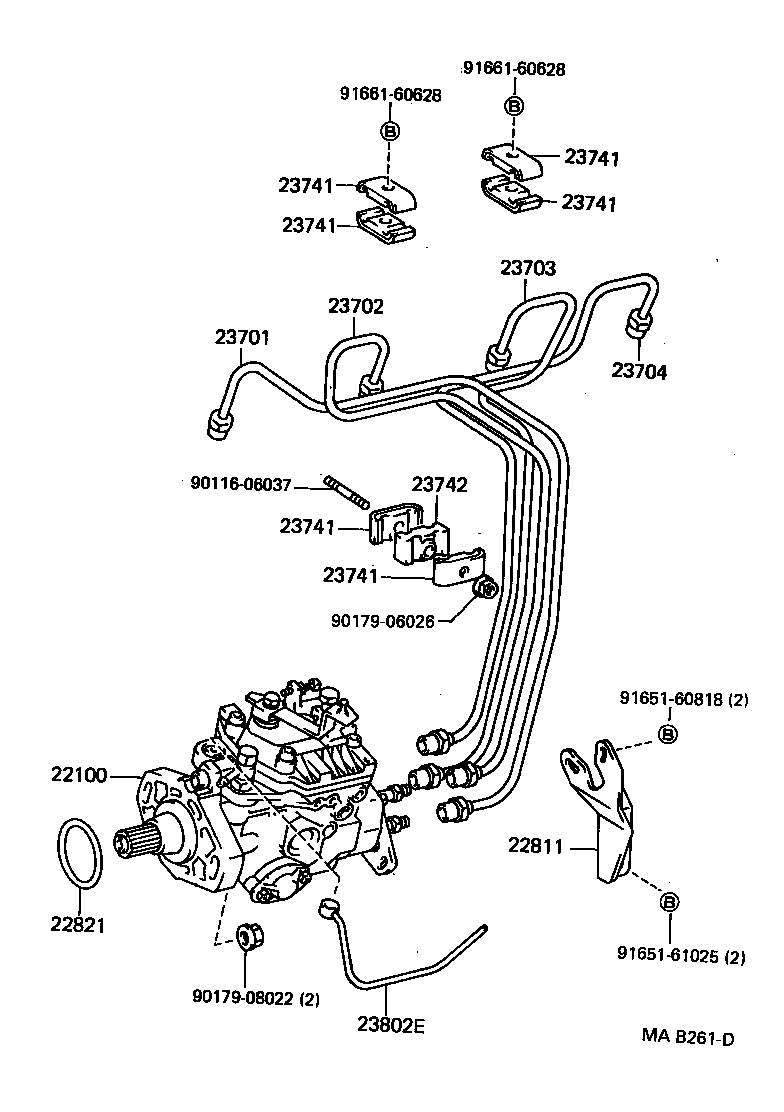

(8808-9301)3B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-58211 |
3B..BB2#,31..WC |
1 | ||
| 22100-58200 |
3B..BB2#,31..WC |
1 | ||
| 22100-58202 |
3B..BB21,26,31 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-56050 |
14B,3B..BB2#,31 |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-58010 |
3B..BB21,26,31 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-58010 |
3B..BB21,26,31 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-58010 |
3B..BB21,26,31 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-58010 |
3B..BB21,26,31 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
3B..BB20,21,26,3# |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
3B..BB20,21,26,3# |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
3B..BB20,21,26,3# |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
3B..BB20,21,26,3# |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
3B..BB20,21,26,3# |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
3B..BB20,21,26,3# |
6 | ||
| 23802E - PIPE SUB-ASSY, FUEL | ||||
| 23801-56070 |
3B..BB2#,3# |
1 | ||
| 23801-56090 |
14B,3B..BB2#,31 |
1 | ||
| Common parts | ||||
| 90116-06037 | ||||
| 90179-06026 | ||||
| 90179-08022 | ||||
| 91651-60818 | ||||
| 91651-61025 | ||||
| 91661-60628 | ||||

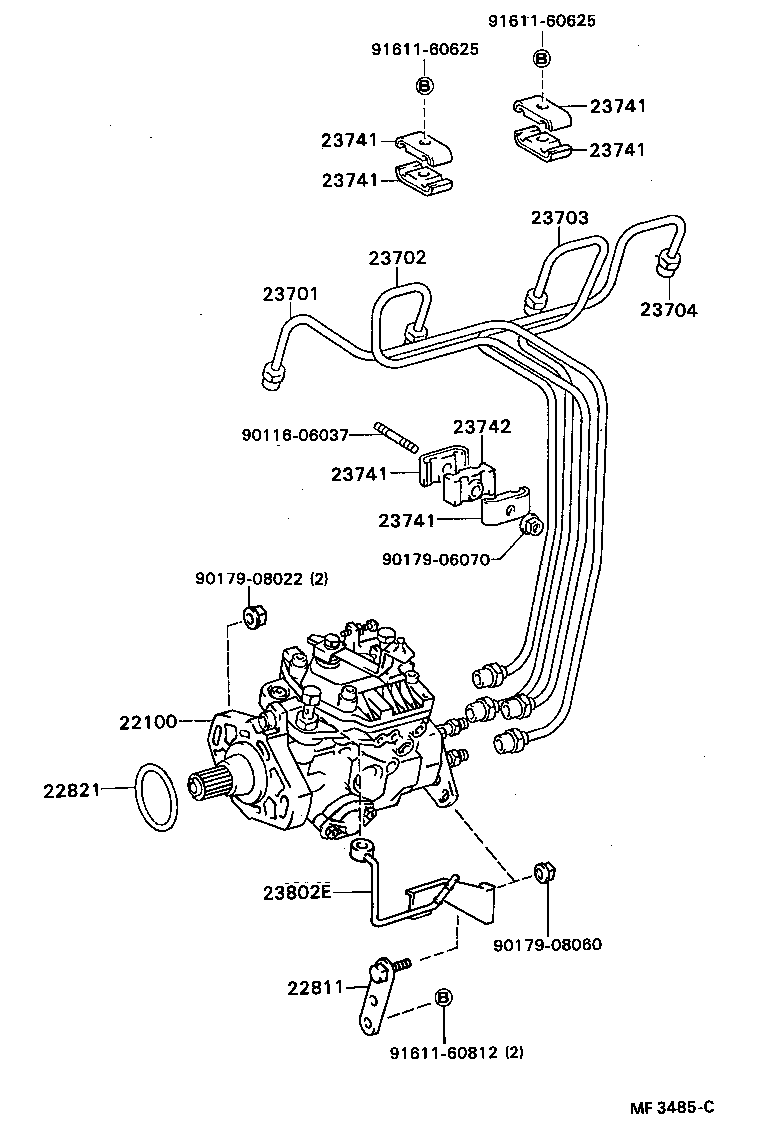

(8408-8808)3B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-58211 |
3B..BB2#,31..WC |
1 | ||
| 22100-58200 |
3B..BB2#,31..WC |
1 | ||
| 22100-58202 |
3B..BB21,26,31 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-56050 |
14B,3B..BB2#,31 |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-58010 |
3B..BB21,26,31 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-58010 |
3B..BB21,26,31 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-58010 |
3B..BB21,26,31 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-58010 |
3B..BB21,26,31 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
3B..BB20,21,26,3# |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
3B..BB20,21,26,3# |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
3B..BB20,21,26,3# |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
3B..BB20,21,26,3# |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
3B..BB20,21,26,3# |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
3B..BB20,21,26,3# |
6 | ||
| 23802E - PIPE SUB-ASSY, FUEL | ||||
| 23801-56070 |
3B..BB2#,3# |
1 | ||
| 23801-56090 |
14B,3B..BB2#,31 |
1 | ||
| Common parts | ||||
| 90116-06037 | ||||
| 90179-06070 | ||||
| 90179-08022 | ||||
| 90179-08060 | ||||
| 91611-60625 | ||||
| 91611-60812 | ||||
