BB26V-MDZ (1984)
Toyota Coaster
(8408- )BB26,36,HB36,HZB36,RB26
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52107 - STAY SUB-ASSY, REAR BUMPER, RH | ||||
| 52153-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 52153-90B00 |
HDB20,3#,HZB3# |
1 | ||
| 52108 - STAY SUB-ASSY, REAR BUMPER, LH | ||||
| 52154-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 52154-90B00 |
HDB20,3#,HZB3# |
1 | ||
| 52151 - BUMPER ASSY, REAR | ||||
| 52107-90B00 |
BB26,36,HB36,RB26 LH |
1 | ||
| 52106-90B00 |
BB26,36,HB36,RB26 RH |
1 | ||
| 52106-90B03 |
BB26,36,HB36,HZB36,RB26 RH,W/BACK DOOR OPEN STOPPER |
1 | ||
| 52106-90B02 |
BB26,36,HB36,HZB36,RB26 RH |
1 | ||
| 52106-90B01 |
BB26,36,HB36,RB26 RH,W/BACK DOOR OPEN STOPPER |
1 | ||
| 52107-90B02 |
BB26,36,HB36,HZB36,RB26 LH |
1 | ||
| 52107-90B01 |
BB26,36,HB36,RB26 LH,W/BACK DOOR OPEN STOPPER |
1 | ||
| 52107-90B03 |
BB26,36,HB36,HZB36,RB26 LH,W/BACK DOOR OPEN STOPPER |
1 | ||
| 52105-90B09 |
HDB20,3#,HZB30,31 |
1 | ||
| 52151 - BUMPER ASSY, REAR | ||||
| 52107-90B00 |
BB26,36,HB36,RB26 LH |
1 | ||
| 52106-90B00 |
BB26,36,HB36,RB26 RH |
1 | ||
| 52106-90B03 |
BB26,36,HB36,HZB36,RB26 RH,W/BACK DOOR OPEN STOPPER |
1 | ||
| 52106-90B02 |
BB26,36,HB36,HZB36,RB26 RH |
1 | ||
| 52106-90B01 |
BB26,36,HB36,RB26 RH,W/BACK DOOR OPEN STOPPER |
1 | ||
| 52107-90B02 |
BB26,36,HB36,HZB36,RB26 LH |
1 | ||
| 52107-90B01 |
BB26,36,HB36,RB26 LH,W/BACK DOOR OPEN STOPPER |
1 | ||
| 52107-90B03 |
BB26,36,HB36,HZB36,RB26 LH,W/BACK DOOR OPEN STOPPER |
1 | ||
| 52105-90B09 |
HDB20,3#,HZB30,31 |
1 | ||
| 52157B - STAY, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-90B00 |
HDB20,3#,HZB3# |
1 | ||
| 52157-90B01 |
BB26,36,HB36,HZB36,RB26 W/BACK DOOR OPEN STOPPER |
1 | ||
| 52157-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 52158B - STAY, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-90B01 |
BB26,36,HB36,HZB36,RB26 W/BACK DOOR OPEN STOPPER |
1 | ||
| 52158-90B00 |
HDB20,3#,HZB3# |
1 | ||
| 52158-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 52302 - STEP SUB-ASSY, BACK | ||||
| 52302-90B01 |
BB26,36,HB36,HZB36,RB26 |
1 | ||
| 52303 - MEMBER SUB-ASSY, BACK STEP | ||||
| 52303-90B00 |
BB26,36,HB36,HZB36,RB26 |
1 | ||
| 52304 - LOCK SUB-ASSY, BACK STEP | ||||
| 52304-90B00 |
BB26,36,HB36,HZB36,RB26 |
1 | ||
| 52305A - RETAINER SUB-ASSY, BACK STEP | ||||
| 52305-90B00 |
BB26,36,HB36,HZB36,RB26 |
1 | ||
| 52401 - DEFLECTOR, REAR BUMPER STONE | ||||
| 59211-90B01 |
BB26,36,HB36,RB26 RH |
1 | ||
| 59212-90B01 |
BB26,36,HB36,RB26 LH,W/BACK DOOR OPEN STOPPER |
1 | ||
| 59211-90B00 |
HDB20,3#,HZB30,31 |
1 | ||
| 59212-90B00 |
BB26,36,HB36,RB26 LH |
1 | ||
| 59211-90B02 |
BB26,36,HB36,RB26 RH,W/BACK DOOR OPEN STOPPER |
1 | ||
| 59211-90B00 |
BB20,21,23,24,30,31,HB30,31,32,HDB20,3#,HZB30,31,RB20 |
1 | ||
| 52401 - DEFLECTOR, REAR BUMPER STONE | ||||
| 59211-90B01 |
BB26,36,HB36,RB26 RH |
1 | ||
| 59212-90B01 |
BB26,36,HB36,RB26 LH,W/BACK DOOR OPEN STOPPER |
1 | ||
| 59211-90B00 |
HDB20,3#,HZB30,31 |
1 | ||
| 59212-90B00 |
BB26,36,HB36,RB26 LH |
1 | ||
| 59211-90B02 |
BB26,36,HB36,RB26 RH,W/BACK DOOR OPEN STOPPER |
1 | ||
| 59211-90B00 |
BB20,21,23,24,30,31,HB30,31,32,HDB20,3#,HZB30,31,RB20 |
1 | ||
| Common parts | ||||
| 58724-90B00 | ||||
| 90119-08511 | ||||
| 90119-10373 | ||||
| 90170-10024 | ||||
| 90179-08096 | ||||
| 90201-10038 | ||||
| 90202-07022 | ||||
| 90386-16004 | ||||
| 90387-10073 | ||||
| 90387-11032 | ||||
| 90467-05004 | ||||
| 91651-40830 | ||||
| 91656-40820 | ||||
| 93220-66012 | ||||
| 93249-15012 | ||||
| 94171-10600 | ||||

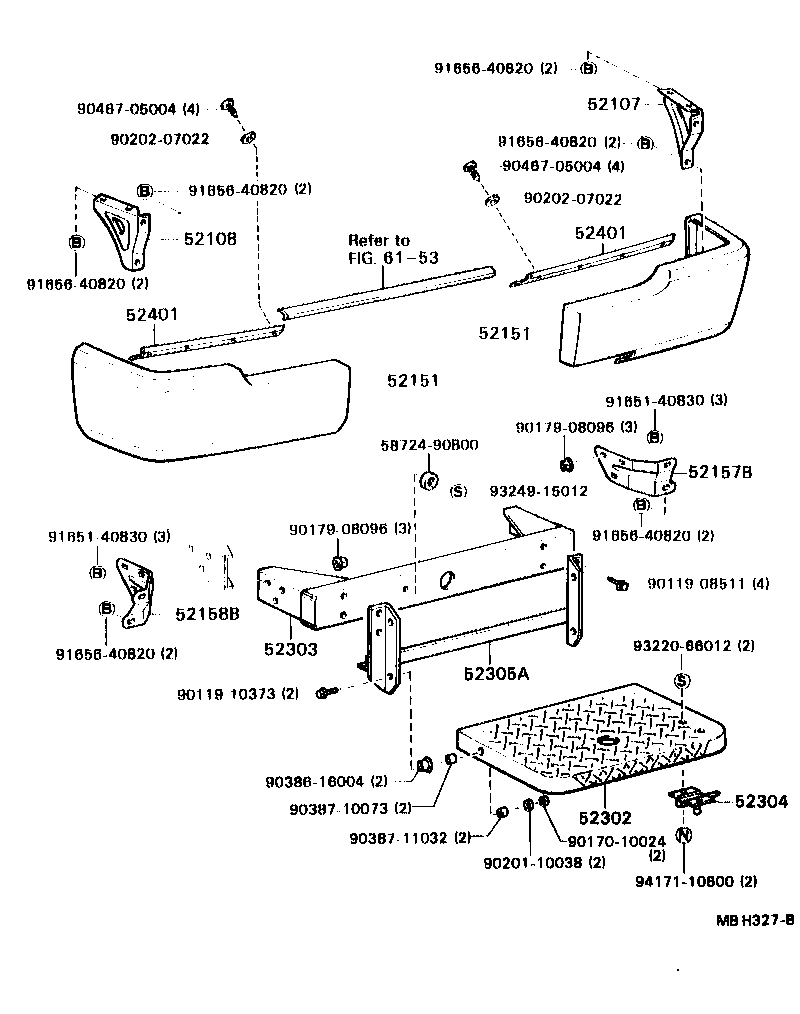

| Linked diagrams | ||||
| 6153 | ||||
