BB24-MGZR (1988)

Toyota Coaster

Production Aug 1988 - Jan 1993
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

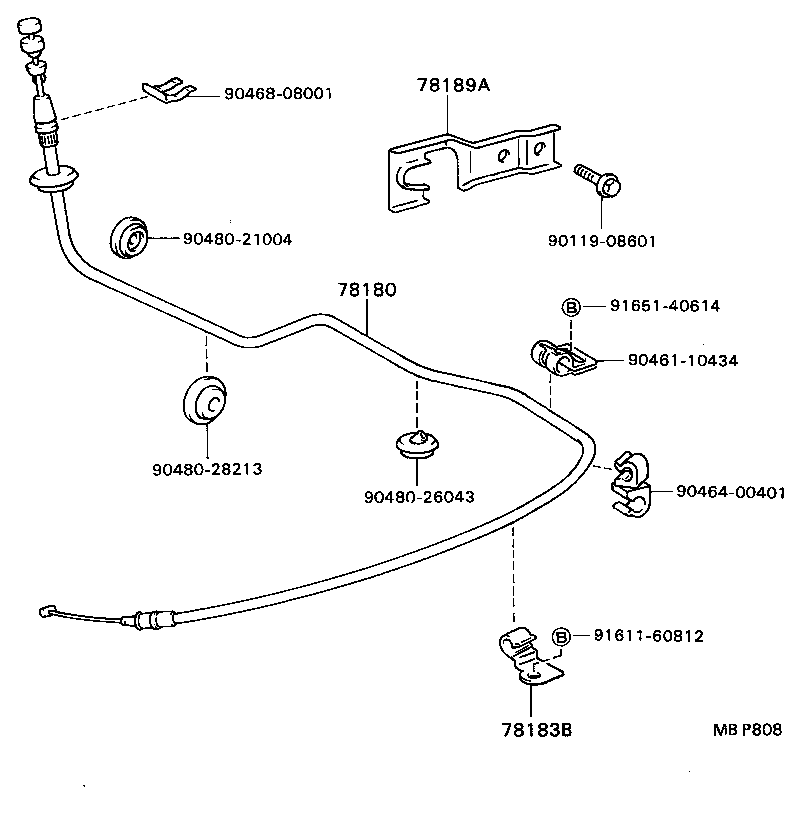

ILLUST NO. 2 OF 2(8808- )BB23,24

Click highlighted areas on diagram

diagram 78180 78183B 78189A 9011908601 9046110434 9046400401 9046808001 9048021004 9048026043 9048028213 9161160812 9165140614
Part # Description Qty Price
78180 - WIRE ASSY, ACCELERATOR
78180-90B10

BB21,26,31

 1
78180-90B16

BB23,24

 1
78180-90B12

BB23,24

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-90B01

BB23,24

 1
Common parts
90119-08601
90461-10434
90464-00401
90468-08001
90480-21004
90480-26043
90480-28213
91611-60812
91651-40614
