BB24-MGZR (1988)

Toyota Coaster

Production Aug 1988 - Jan 1993
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9301)14B

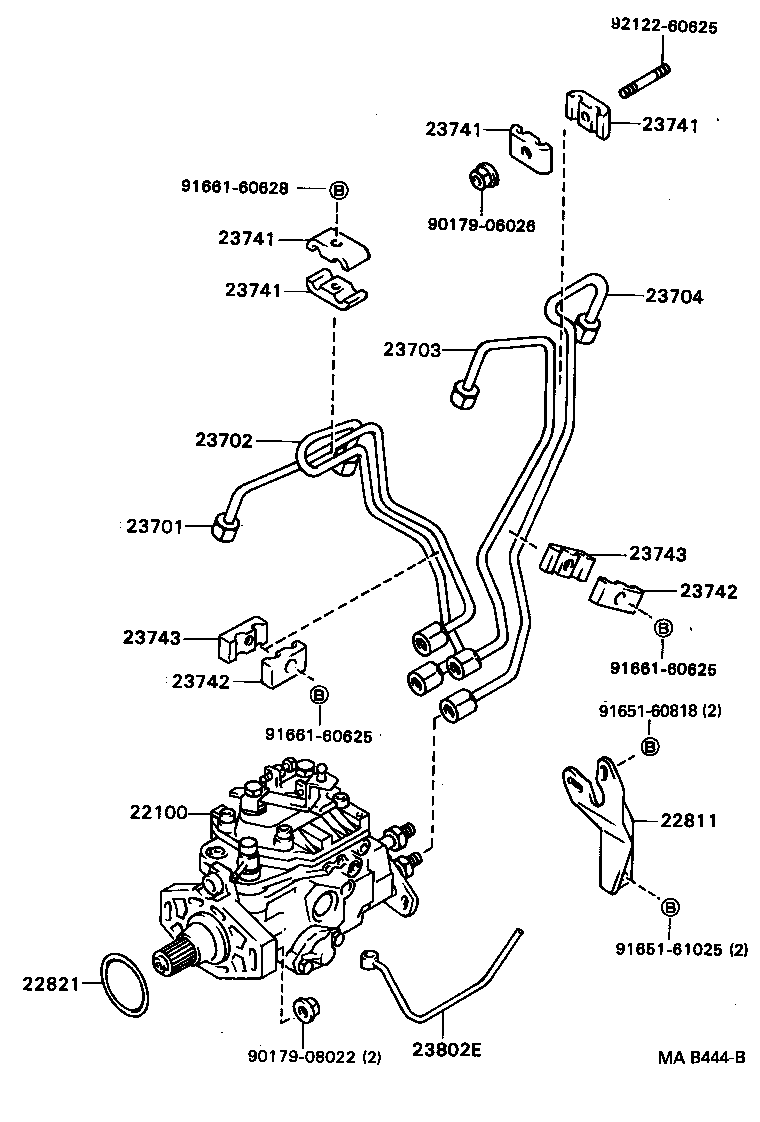

Click highlighted areas on diagram

diagram 22100 22811 22821 23701 23702 23703 23704 23741 23741 23741 23741 23742 23742 23743 23743 23802E 9017906026 9017908022 9165160818 9165161025 9166160625 9166160625 9166160628 9212260625
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-58510

14B..BB23,24..5F

COLD SPEC

 1
22100-58480

14B..BB23,24..5F

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-56050

14B,3B..BB2#,31

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-56080

14B..BB23,24

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-56080

14B..BB23,24

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-56080

14B..BB23,24

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-56080

14B..BB23,24

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

14B..BB23,24

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

14B..BB23,24

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

14B..BB23,24

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

14B..BB23,24

 4
23742 - CLAMP, INJECTION PIPE, NO.2
23741-54010

14B..BB23,24

 2
23742 - CLAMP, INJECTION PIPE, NO.2
23741-54010

14B..BB23,24

 2
23743 - CLAMP, INJECTION PIPE, NO.3
23742-54010

14B..BB23,24

 2
23743 - CLAMP, INJECTION PIPE, NO.3
23742-54010

14B..BB23,24

 2
23802E - PIPE SUB-ASSY, FUEL
23801-56090

14B,3B..BB2#,31

 1
Common parts
90179-06026
90179-08022
91651-60818
91651-61025
91661-60625
91661-60628
92122-60625
