BB23-MDZR (1988)
Toyota Coaster
Production
Aug 1988
-
Jan 1993
Engine
14B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )14B,3B

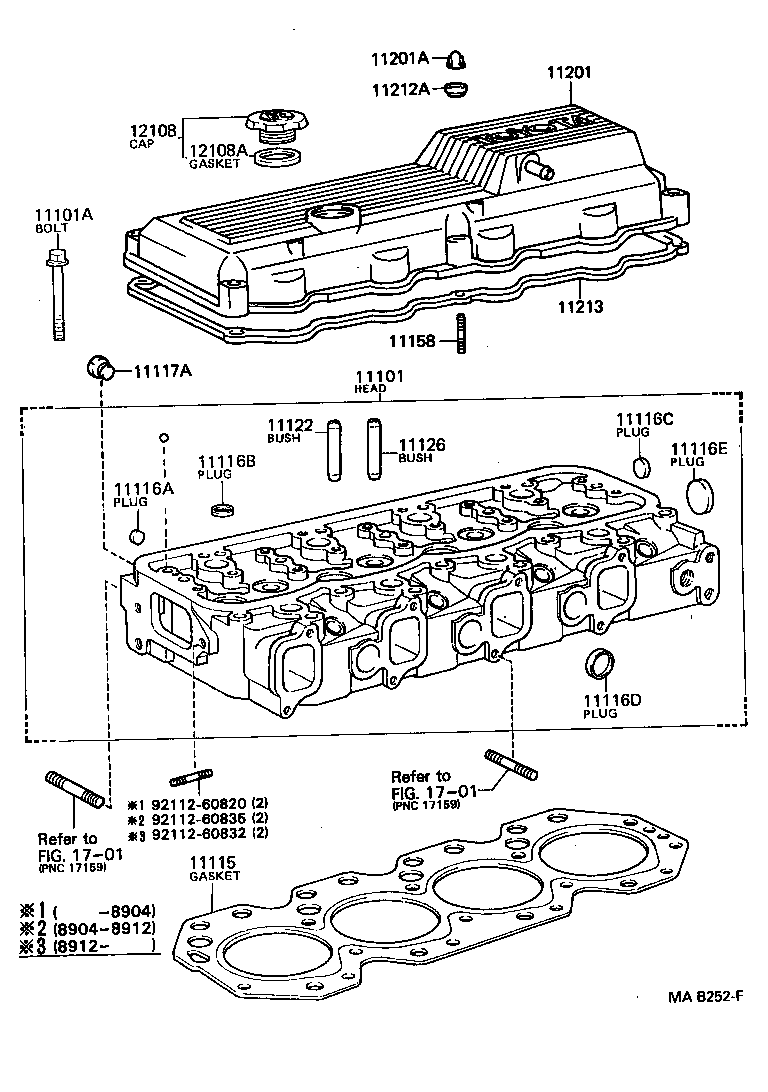

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-58040 |
14B..BB23,24 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02084 |
14B,3B..BB2#,31 *12-1.25PX122.5-60 |
18 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-58070 |
14B..BB23,24 厚さ=1.50,T=1.5 |
1 | ||
| 11115-58090 |
14B..BB23,24 厚さ=1.60,T=1.6 |
1 | ||
| 11115-58100 |
14B..BB23,24 厚さ=1.70,T=1.7 |
1 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-44000 |
14B,3B..BB2#,3# OD=40 |
4 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 90331-21001 |
14B,3B..BB2#,3# OD=21 |
5 | ||
| 11116E - PLUG, TIGHT, NO.5 | ||||
| 96411-44000 |
14B,3B..BB2#,31 OD=40 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-54005 |
14B,3B..BB2#,3# |
4 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-56030 |
14B,3B..BB2#,31 STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-56030 |
14B,3B..BB2#,31 STD |
4 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 90116-08282 |
14B,3B..BB2#,31 長さ=60 |
6 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-56100 |
14B,3B..BB2#,31 |
1 | ||
| 11201-56101 |
14B,3B..BB2#,31 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08038 |
14B,3B..BB2#,31 |
6 | ||
| 11212A - CUSHION, CYLINDER HEAD COVER | ||||
| 11228-56010 |
14B,3B..BB2#,31 |
6 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-56030 |
14B,3B..BB2#,31 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-13030 |
14B,3B..BB2#,31 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
14B,3B..BB2#,3# |
1 | ||
| Common parts | ||||
| 92112-60820 | ||||
| 92112-60832 | ||||
| 92112-60835 | ||||
| Linked diagrams | ||||
| 1701 | ||||
