BB21-MRZ (1983)
Toyota Coaster

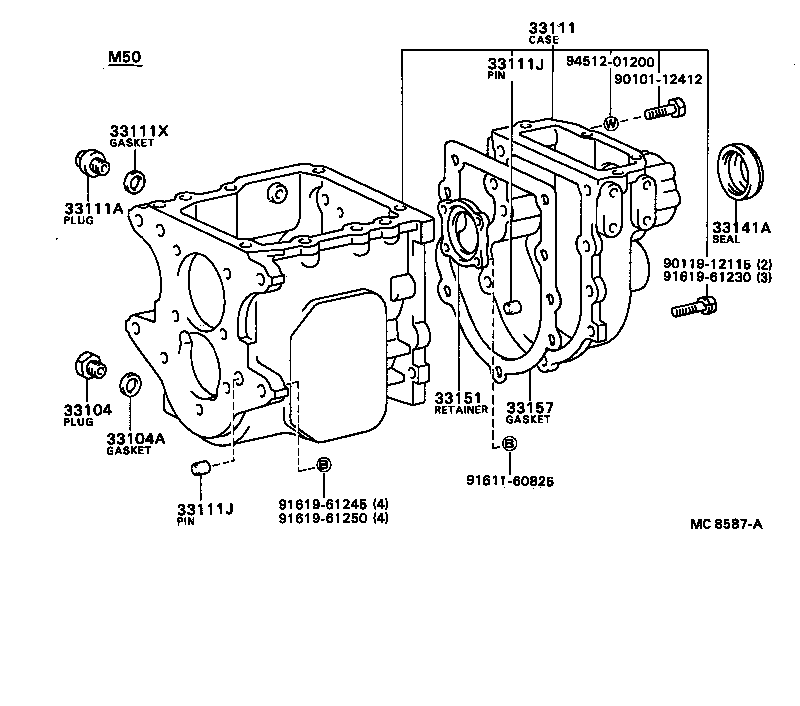

ILLUST NO. 2 OF 2(8205-8510)BB2#,3#,RB2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F |
1 | ||
| 90341-18057 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18007 |
BB2#,3#,HB30,RB20 |
1 | ||
| 90430-18008 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F |
1 | ||
| 90430-18008 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-36033 |
BB2#,3#,RB2# |
1 | ||
| 33101-36061 |
BB2#,3#,HZB3#,RB20..5F |
1 | ||
| 33101-36060 |
BB2#,3#,HB3#,HZB3#,RB2#..5F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
BB2#,3#,HB30,RB20 |
1 | ||
| 90341-18006 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F |
1 | ||
| 90341-18006 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F 長さ=17,外径=12,OD=12,L=17 |
2 | ||
| 90250-12216 |
BB2#,3#,HB3#,RB2# 長さ=14,外径=12,OD=12,L=14 |
2 | ||
| 90250-12216 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F 長さ=14,外径=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
BB2#,3#,HB3#,RB2# 長さ=17,外径=12,OD=12,L=17 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F 長さ=17,外径=12,OD=12,L=17 |
2 | ||
| 90250-12216 |
BB2#,3#,HB3#,RB2# 長さ=14,外径=12,OD=12,L=14 |
2 | ||
| 90250-12216 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F 長さ=14,外径=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
BB2#,3#,HB3#,RB2# 長さ=17,外径=12,OD=12,L=17 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18007 |
BB2#,3#,HB30,RB20 |
1 | ||
| 90430-18008 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F |
1 | ||
| 90430-18008 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-45001 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 90311-48011 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33017-36010 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F |
1 | ||
| 33151-36010 |
BB2#,3#,RB2# |
1 | ||
| 33157 - GASKET, TRANSMISSION CASE, NO.2 | ||||
| 33142-36020 |
BB2#,3#,RB2# |
1 | ||
| Common parts | ||||
| 90101-12412 | ||||
| 90119-12115 | ||||
| 91611-60825 | ||||
| 91619-61230 | ||||
| 91619-61245 | ||||
| 91619-61250 | ||||
| 94512-01200 | ||||

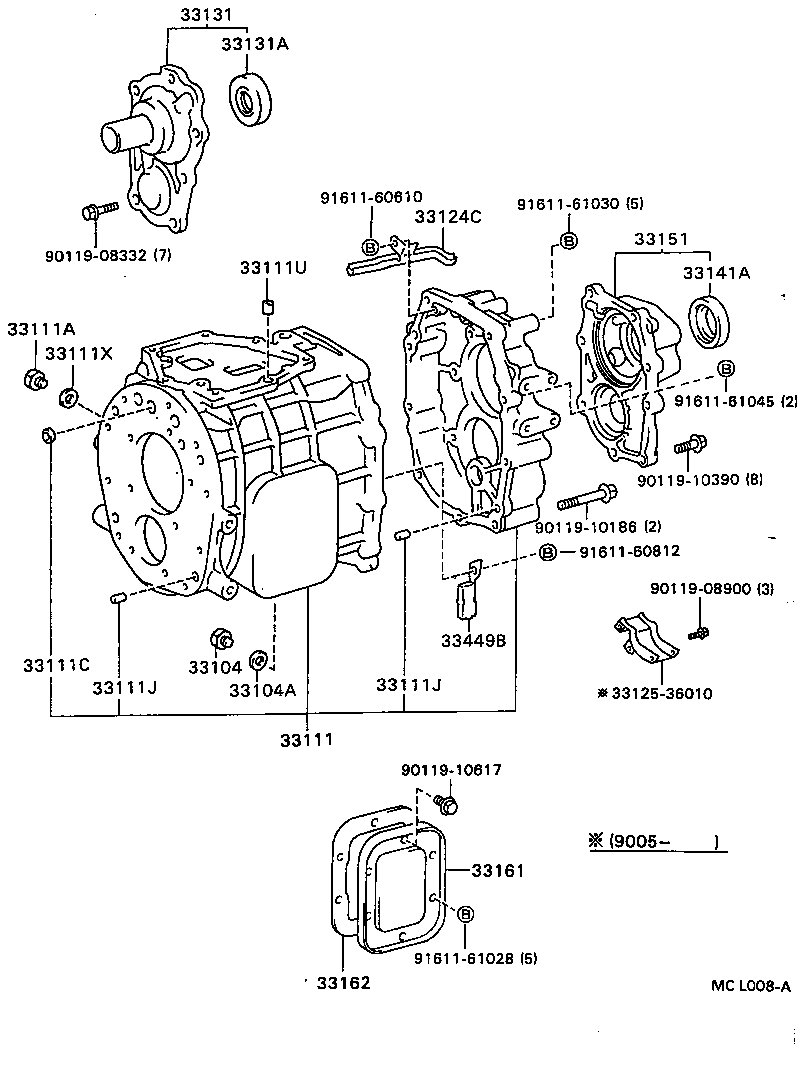

ILLUST NO. 2 OF 2(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F |
1 | ||
| 90341-18057 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18007 |
BB2#,3#,HB30,RB20 |
1 | ||
| 90430-18008 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F |
1 | ||
| 90430-18008 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-36033 |
BB2#,3#,RB2# |
1 | ||
| 33101-36061 |
BB2#,3#,HZB3#,RB20..5F |
1 | ||
| 33101-36060 |
BB2#,3#,HB3#,HZB3#,RB2#..5F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
BB2#,3#,HB30,RB20 |
1 | ||
| 90341-18006 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F |
1 | ||
| 90341-18006 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-16050 |
BB2#,3#,HB3#,RB2#..5F |
3 | ||
| 96411-11600 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F 長さ=17,外径=12,OD=12,L=17 |
2 | ||
| 90250-12216 |
BB2#,3#,HB3#,RB2# 長さ=14,外径=12,OD=12,L=14 |
2 | ||
| 90250-12216 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F 長さ=14,外径=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
BB2#,3#,HB3#,RB2# 長さ=17,外径=12,OD=12,L=17 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F 長さ=17,外径=12,OD=12,L=17 |
2 | ||
| 90250-12216 |
BB2#,3#,HB3#,RB2# 長さ=14,外径=12,OD=12,L=14 |
2 | ||
| 90250-12216 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F 長さ=14,外径=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
BB2#,3#,HB3#,RB2# 長さ=17,外径=12,OD=12,L=17 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-13017 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F 長さ=12,外径=13,OD=13 |
2 | ||
| 90253-11001 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F 長さ=11,外径=11,OD=11 |
1 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18007 |
BB2#,3#,HB30,RB20 |
1 | ||
| 90430-18008 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F |
1 | ||
| 90430-18008 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-36030 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-36023 |
BB2#,3#,RB2# |
1 | ||
| 33018-36050 |
BB2#,3#,HB3#,HDB3#,HZB3#..5F |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32012 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F |
1 | ||
| 90311-32106 |
BB2#,3#,RB2# |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-45001 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 90311-48011 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33017-36010 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F |
1 | ||
| 33151-36010 |
BB2#,3#,RB2# |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-36010 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F |
1 | ||
| Common parts | ||||
| 33125-36010 | ||||
| 90119-08332 | ||||
| 90119-08900 | ||||
| 90119-10186 | ||||
| 90119-10390 | ||||
| 90119-10617 | ||||
| 91611-60610 | ||||
| 91611-60812 | ||||
| 91611-61028 | ||||
| 91611-61030 | ||||
| 91611-61045 | ||||
