BB21-MR (1983)

Toyota Coaster

Production Feb 1983 - Jan 1993
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

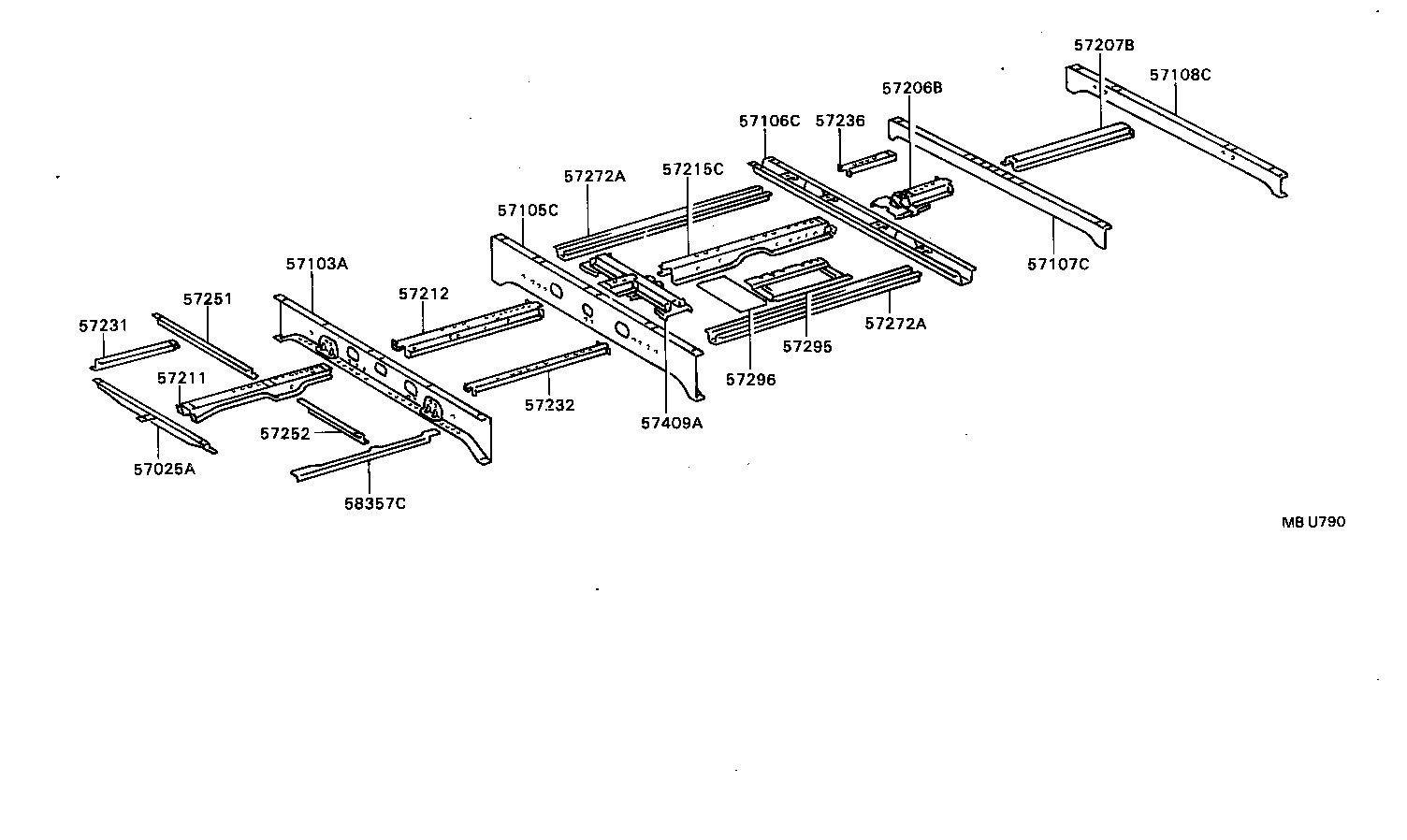

ILLUST NO. 2 OF 2(9001- )BB2#,RB20..10S,26S

Click highlighted areas on diagram

diagram 57025A 57103A 57105C 57106C 57107C 57108C 57206B 57207B 57211 57212 57215C 57231 57232 57236 57251 57252 57272A 57272A 57295 57296 57409A 58357C
Part # Description Qty Price
57025A - STRENGTH, SUB-ASSY, CROSSMEMBER FLOOR, NO.2 SUB
57025-90B00

HDB20,3#,HZB3#

 1
57103A - CROSSMENBER SUB-ASSY, FLOOR, NO.3
57103-90B10

BB21,RB20..SRF..WOC

 1
57105C - CROSSMEMBER SUB-ASSY, FLOOR, NO.5
57105-90B03

BB21,RB20..26S

 1
57106C - CROSSMEMBER SUB-ASSY, FLOOR, NO.6
57106-90B04

BB2#,31,HDB3#,HZB3#,RB20..10S,20S,26S,29S

 1
57107C - CROSSMENBER SUB-ASSY, FLOOR, NO.7
57107-90B01

BB2#,31,HDB20,RB20

 1
57108C - CROSSMEMBER SUB-ASSY, FLOOR, NO.8
57108-90B03

BB2#,31,HDB3#,HZB3#,RB20..10S,20S,26S,29S

 1
57206B - STRENGTH SUB-ASSY, ANCHOR
57206-90B00

BB21,RB20..26S

 1
57206-90B00

BB23,24,26,HDB3#,HZB3#

 1
57207B - STRENGTH SUB-ASSY, REAR FLOOR HOUSING, NO.7
57207-36010

BB2#,31,HDB20,3#,HZB3#,RB20

 1
57207-90B01

BB2#,HDB20,3#,HZB3#,RB20

 1
57211 - STRENGTH, ANCHOR, NO.1
57211-90B00

BB2#,31,RB20

 1
57211-90B06

HDB20,3#,HZB3#

 1
57212 - STRENGTH, ANCHOR, NO.2
57212-90B00

BB2#,31,HDB20,3#,HZB3#,RB20

 1
57215C - STRENGTH, ANCHOR, NO.5
57215-90B00

BB23,24,26,HDB20,3#,HZB3#

 1
57215-90B00

BB21,RB20..26S

 1
57231 - STRENGTH, ANCHOR SIDE, NO.1
57231-90B00

HDB20,3#,HZB3#

 1
57232 - STRENGTH, ANCHOR SIDE, NO.2
57232-90B00

BB23,24,26,HDB30,HZB3#

 1
57232-90B00

BB21,RB20..26S

 1
57236 - STRENGTH, ANCHOR SIDE, NO.6
57236-90B00

BB21,RB20..26S

 1
57236-90B00

BB23,24,26,HDB20,3#,HZB3#

 1
57251 - STRENGTH, FLOOR CROSS
57251-90B00

BB2#,31,HDB3#,HZB3#,RB20..10S,20S,26S,29S

 1
57252 - STRENGTH, FLOOR CROSS, NO.2
57252-90B00

BB2#,31,HDB20,3#,HZB3#,RB20

 1
57272A - STRENGTH, REAR FLOOR HOUSING, SIDE
57272-90B00

BB21,23,24,31,HZB30,31,RB20..26S,29S

 2
57272A - STRENGTH, REAR FLOOR HOUSING, SIDE
57272-90B00

BB21,23,24,31,HZB30,31,RB20..26S,29S

 2
57295 - INSULATOR, ANCHOR STRENGTH TO REAR FLOOR
57295-90B02

BB21..WOC

 1
57409A - STRENGTH SUB-ASSY, REAR FLOOR HOUSING
57409-90B02

BB21,23,24,31,HDB3#,RB20..20S,26S,29S

 1
58357C - STRENGTH, CENTER DOOR STEP, UPPER
58357-90B00

BB2#,31,HDB20,3#,HZB3#,RB20

 1
