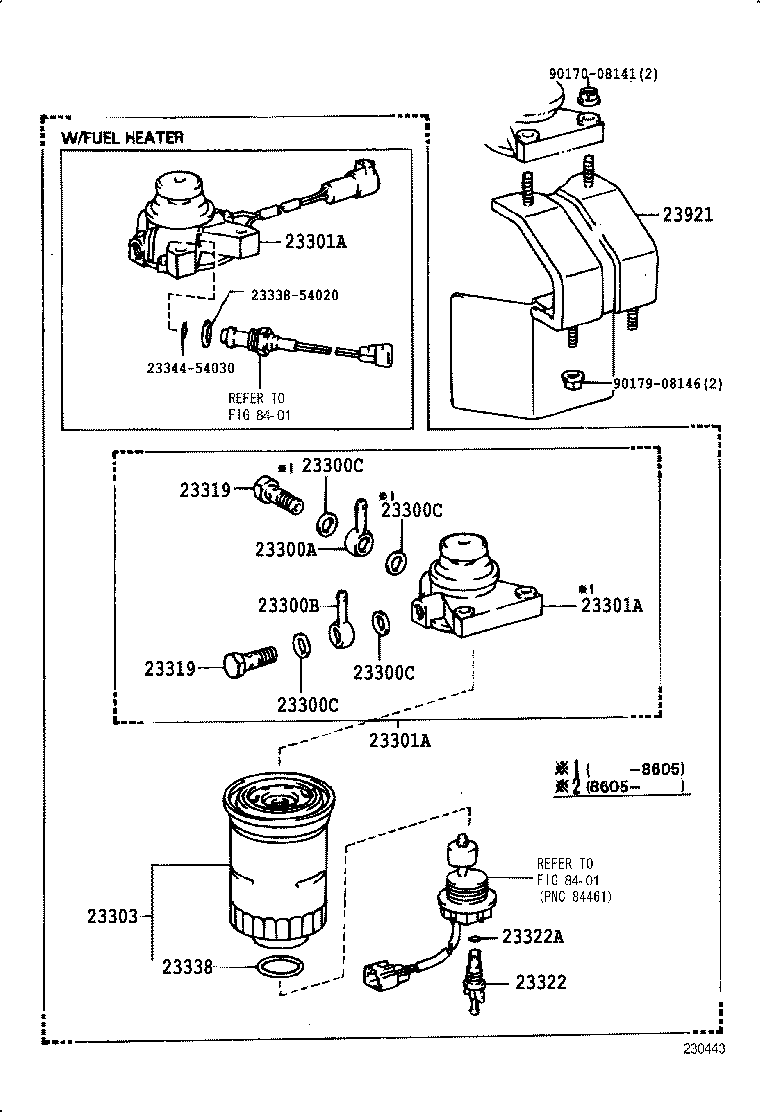

BB21-MDZR (1983)
Toyota Coaster
(8408- )14B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300A - UNION, NIPPLE(FOR FUEL FILTER INLET) | ||||
| 90405-08016 |
3B..BB2#,3# |
1 | ||
| 23300B - UNION, NIPPLE(FOR FUEL FILTER OUTLET) | ||||
| 90405-08016 |
3B..BB2#,3# |
1 | ||
| 23323-56020 |
3B..BB21,31 |
1 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 94712-77121 |
3B..BB21,31 |
4 | ||
| 22447-47030 |
3B..BB2#,3# |
4 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 94712-77121 |
3B..BB21,31 |
4 | ||
| 22447-47030 |
3B..BB2#,3# |
4 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 94712-77121 |
3B..BB21,31 |
4 | ||
| 22447-47030 |
3B..BB2#,3# |
4 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 94712-77121 |
3B..BB21,31 |
4 | ||
| 22447-47030 |
3B..BB2#,3# |
4 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-58090 |
14B,3B..BB2#,31 W/FUEL HEATER |
1 | ||
| 23301-54030 |
3B..BB2#,3# W/FUEL HEATER |
1 | ||
| 23301-58050 |
3B..BB2#,3# |
1 | ||
| 23301-64010 |
3B..BB2#,3# |
1 | ||
| 23301-58020 |
3B..BB2#,3# W/FUEL HEATER |
1 | ||
| 23301-58100 |
14B,3B..BB2#,31 |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-58090 |
14B,3B..BB2#,31 W/FUEL HEATER |
1 | ||
| 23301-54030 |
3B..BB2#,3# W/FUEL HEATER |
1 | ||
| 23301-58050 |
3B..BB2#,3# |
1 | ||
| 23301-64010 |
3B..BB2#,3# |
1 | ||
| 23301-58020 |
3B..BB2#,3# W/FUEL HEATER |
1 | ||
| 23301-58100 |
14B,3B..BB2#,31 |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-58090 |
14B,3B..BB2#,31 W/FUEL HEATER |
1 | ||
| 23301-54030 |
3B..BB2#,3# W/FUEL HEATER |
1 | ||
| 23301-58050 |
3B..BB2#,3# |
1 | ||
| 23301-64010 |
3B..BB2#,3# |
1 | ||
| 23301-58020 |
3B..BB2#,3# W/FUEL HEATER |
1 | ||
| 23301-58100 |
14B,3B..BB2#,31 |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-64010 |
14B,3B..BB2#,3# |
1 | ||
| 23303-54071 |
3B..BB21,31 |
1 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 90099-18011 |
3B..BB2#,3# |
2 | ||
| 90401-14060 |
3B..BB21,31 |
2 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 90099-18011 |
3B..BB2#,3# |
2 | ||
| 90401-14060 |
3B..BB21,31 |
2 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-64010 |
14B,3B..BB2#,3# |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
14B,3B..BB2#,3# |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23338-54010 |
3B..BB21,31 SEDIMENTER |
1 | ||
| 23344-64010 |
14B,3B..BB2#,3# |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23904-58020 |
14B,3B..BB2#,31 |
1 | ||
| 23904-58010 |
3B..BB2#,3# |
1 | ||
| Common parts | ||||
| 23338-54020 | ||||
| 23344-54030 | ||||
| 90170-08141 | ||||
| 90179-08146 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(8302-8408)3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23338-54010 |
3B..BB21,31 SEDIMENTER |
1 | ||
| 23344-64010 |
14B,3B..BB2#,3# |
1 | ||
| 23351 - PLUG, AIR VENT | ||||
| 23351-54010 |
3B..BB21,31 SEDIMENTER |
2 | ||
| 23351 - PLUG, AIR VENT | ||||
| 23351-54010 |
3B..BB21,31 SEDIMENTER |
2 | ||
| 23353 - RING, O(FOR AIR VENT PLUG) | ||||
| 23353-54010 |
3B..BB21,31 SEDIMENTER |
2 | ||
| 23353 - RING, O(FOR AIR VENT PLUG) | ||||
| 23353-54010 |
3B..BB21,31 SEDIMENTER |
2 | ||
| 23922 - SUPPORT, FUEL SEDIMENTER | ||||
| 23922-58010 |
3B..BB21,31 |
1 | ||
| 23930 - SEDIMENTER ASSY, FUEL | ||||
| 23930-58030 |
3B..BB21,31 |
1 | ||
| Common parts | ||||
| 91651-40816 | ||||
| 91665-60845 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(8302-8408)3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22501A - PUMP SUB-ASSY, PRIMING | ||||
| 22501-54010 |
3B..BB21,31 |
1 | ||
| 22501B - GASKET(FOR PRIMING PUMP) | ||||
| 23344-54020 |
3B..BB21,31 |
1 | ||
| 23300B - UNION, NIPPLE(FOR FUEL FILTER OUTLET) | ||||
| 90405-08016 |
3B..BB2#,3# |
1 | ||
| 23323-56020 |
3B..BB21,31 |
1 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 94712-77121 |
3B..BB21,31 |
4 | ||
| 22447-47030 |
3B..BB2#,3# |
4 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 94712-77121 |
3B..BB21,31 |
4 | ||
| 22447-47030 |
3B..BB2#,3# |
4 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 94712-77121 |
3B..BB21,31 |
4 | ||
| 22447-47030 |
3B..BB2#,3# |
4 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 94712-77121 |
3B..BB21,31 |
4 | ||
| 22447-47030 |
3B..BB2#,3# |
4 | ||
| 23300D - FILTER ASSY, FUEL(FOR DIESEL) | ||||
| 23300-56060 |
3B..BB21,31 |
1 | ||
| 23301 - BODY SUB-ASSY, FUEL FILTER | ||||
| 23310-56010 |
3B..BB21,31 |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-64010 |
14B,3B..BB2#,3# |
1 | ||
| 23303-54071 |
3B..BB21,31 |
1 | ||
| 23310 - BODY, FUEL FILTER, UPPER | ||||
| 23311-56060 |
3B..BB21,31 |
1 | ||
| 23310C - VALVE SUB-ASSY, FUEL FILTER | ||||
| 23316-54010 |
3B..BB21,31 |
2 | ||
| 23310C - VALVE SUB-ASSY, FUEL FILTER | ||||
| 23316-54010 |
3B..BB21,31 |
2 | ||
| 23314 - SPRING, FUEL FILTER | ||||
| 23314-54010 |
3B..BB21,31 |
1 | ||
| 23318 - BOLT, UNION | ||||
| 23323-56060 |
3B..BB21,31 |
1 | ||
| 23318A - GASKET(FOR UNION BOLT) | ||||
| 15318-44010 |
3B..BB21,31 |
1 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 90099-18011 |
3B..BB2#,3# |
2 | ||
| 90401-14060 |
3B..BB21,31 |
2 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 90099-18011 |
3B..BB2#,3# |
2 | ||
| 90401-14060 |
3B..BB21,31 |
2 | ||
| Common parts | ||||
| 91611-61045 | ||||
