BB21-MDZR (1983)
Toyota Coaster
(8205-8808)12HT,3B ; (8205-9001)2H..WOC ; (8808-9001)12HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

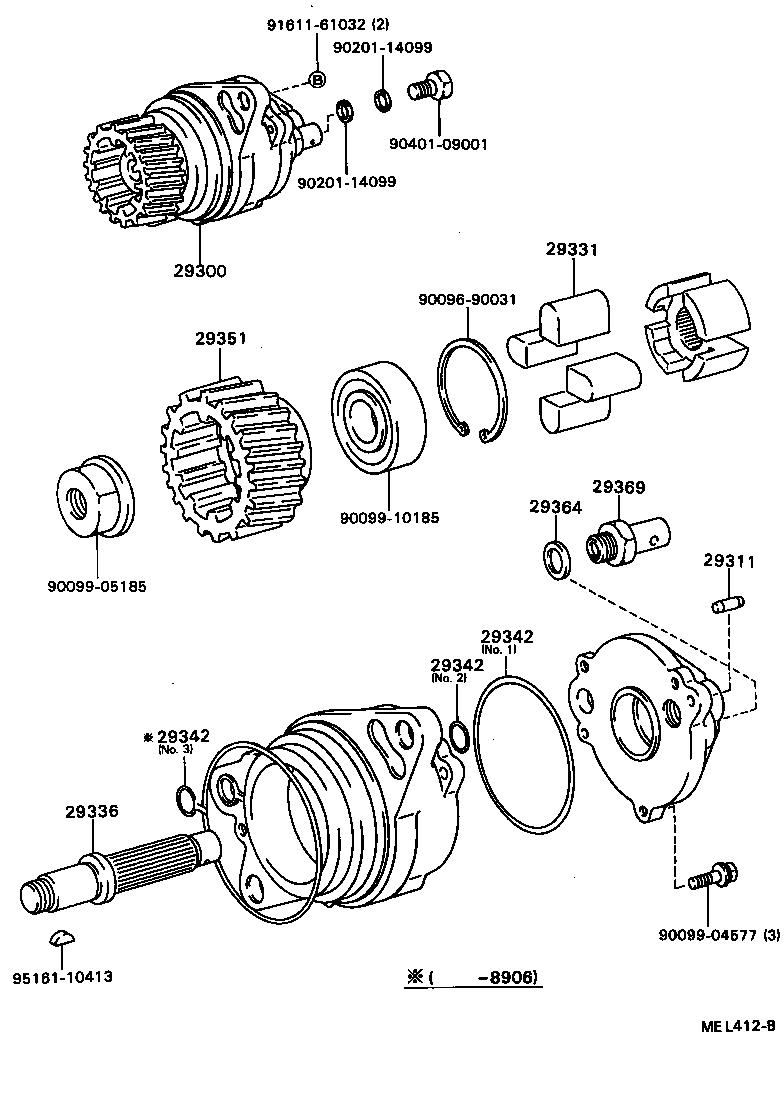

| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-56070 |
3B..BB2#,3# |
1 | ||
| 29300-58050 |
14B,3B..BB2#,31 |
1 | ||
| 29300-56090 |
3B..BB2#..WC ALTERNATOR=24V 85A |
1 | ||
| 29300A - HOSE, VACUUM PUMP OIL INLET | ||||
| 90923-02078 |
3B..BB2#,3#..WC |
1 | ||
| 90923-02078 |
3B..BB2#,31..WC |
1 | ||
| 29300B - HOSE, VACUUM PUMP OIL OUTLET | ||||
| 90923-02081 |
3B..BB2#,3#..WC |
1 | ||
| 90923-02081 |
3B..BB2#,31..WC |
1 | ||
| 29311 - PIN, VACUUM PUMP DOWEL, NO.1 | ||||
| 90099-08082 |
12HT,3B,2H..BB2#,3#,HB3# |
1 | ||
| 90099-08082 |
14B,3B..BB2#,31 |
1 | ||
| 29311-76010 |
12HT,3B,2H..BB2#,3#,HB3# |
1 | ||
| 29331 - BLADE, VACUUM PUMP, A | ||||
| 29331-56070 |
12HT,3B,2H..BB2#,3#,HB3# |
4 | ||
| 29331-58050 |
14B,3B..BB2#,31 |
4 | ||
| 29331-78010 |
12HT,3B,2H..BB2#,HB3#..WC ALTERNATOR=24V 85A |
4 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 29342-58050 |
14B,3B..BB2#,31 NO.3 |
1 | ||
| 96740-02063 |
12HT,3B,2H..BB2#,3#,HB3# |
1 | ||
| 29342-58010 |
14B,3B..BB2#,31 NO.1 |
2 | ||
| 29342-58010 |
14B,3B..BB2#,31 NO.1 |
1 | ||
| 29342-58020 |
14B,3B..BB2#,31 NO.2 |
1 | ||
| 29342-64010 |
14B,3B..BB2#,31 NO.2 |
2 | ||
| 29369 - VALVE SUB-ASSY, CHECK | ||||
| 29369-64030 |
14B,3B..BB2#,31 |
1 | ||
| 29369-56070 |
12HT,3B,2H..BB2#,3#,HB3# |
1 | ||
| Common parts | ||||
| 29364-66010 | ||||
| 90099-04577 | ||||
| 90201-14099 | ||||
| 90401-09001 | ||||
| 90401-10006 | ||||
| 90401-14033 | ||||
| 90402-14006 | ||||
| 90430-10035 | ||||
| 96112-10180 | ||||
(8808- )14B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-56070 |
3B..BB2#,3# |
1 | ||
| 29300-58050 |
14B,3B..BB2#,31 |
1 | ||
| 29300-56090 |
3B..BB2#..WC ALTERNATOR=24V 85A |
1 | ||
| 29311 - PIN, VACUUM PUMP DOWEL, NO.1 | ||||
| 90099-08082 |
12HT,3B,2H..BB2#,3#,HB3# |
1 | ||
| 90099-08082 |
14B,3B..BB2#,31 |
1 | ||
| 29311-76010 |
12HT,3B,2H..BB2#,3#,HB3# |
1 | ||
| 29331 - BLADE, VACUUM PUMP, A | ||||
| 29331-56070 |
12HT,3B,2H..BB2#,3#,HB3# |
4 | ||
| 29331-58050 |
14B,3B..BB2#,31 |
4 | ||
| 29331-78010 |
12HT,3B,2H..BB2#,HB3#..WC ALTERNATOR=24V 85A |
4 | ||
| 29336 - SHAFT, VACUUM PUMP | ||||
| 29336-58050 |
14B,3B..BB2#,31 |
1 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 29342-58050 |
14B,3B..BB2#,31 NO.3 |
1 | ||
| 96740-02063 |
12HT,3B,2H..BB2#,3#,HB3# |
1 | ||
| 29342-58010 |
14B,3B..BB2#,31 NO.1 |
2 | ||
| 29342-58010 |
14B,3B..BB2#,31 NO.1 |
1 | ||
| 29342-58020 |
14B,3B..BB2#,31 NO.2 |
1 | ||
| 29342-64010 |
14B,3B..BB2#,31 NO.2 |
2 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 29342-58050 |
14B,3B..BB2#,31 NO.3 |
1 | ||
| 96740-02063 |
12HT,3B,2H..BB2#,3#,HB3# |
1 | ||
| 29342-58010 |
14B,3B..BB2#,31 NO.1 |
2 | ||
| 29342-58010 |
14B,3B..BB2#,31 NO.1 |
1 | ||
| 29342-58020 |
14B,3B..BB2#,31 NO.2 |
1 | ||
| 29342-64010 |
14B,3B..BB2#,31 NO.2 |
2 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 29342-58050 |
14B,3B..BB2#,31 NO.3 |
1 | ||
| 96740-02063 |
12HT,3B,2H..BB2#,3#,HB3# |
1 | ||
| 29342-58010 |
14B,3B..BB2#,31 NO.1 |
2 | ||
| 29342-58010 |
14B,3B..BB2#,31 NO.1 |
1 | ||
| 29342-58020 |
14B,3B..BB2#,31 NO.2 |
1 | ||
| 29342-64010 |
14B,3B..BB2#,31 NO.2 |
2 | ||
| 29351 - GEAR, VACUUM PUMP | ||||
| 29351-58050 |
14B,3B..BB2#,31 |
1 | ||
| 29364 - WASHER, VACUUM PUMP | ||||
| 29364-66010 |
14B,3B..BB2#,31 |
1 | ||
| 29369 - VALVE SUB-ASSY, CHECK | ||||
| 29369-64030 |
14B,3B..BB2#,31 |
1 | ||
| 29369-56070 |
12HT,3B,2H..BB2#,3#,HB3# |
1 | ||
| Common parts | ||||
| 90096-90031 | ||||
| 90099-04577 | ||||
| 90099-05185 | ||||
| 90099-10185 | ||||
| 90201-14099 | ||||
| 90401-09001 | ||||
| 91611-61032 | ||||
| 95161-10413 | ||||
