BB21-MDZR (1983)

Toyota Coaster

Production Feb 1983 - Jan 1993
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8808)3B

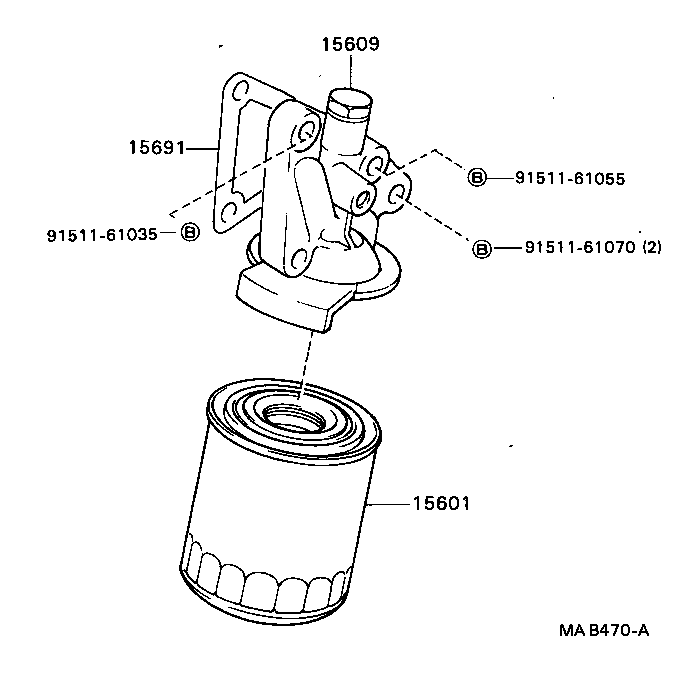

Click highlighted areas on diagram

diagram 15601 15609 15621 15691 9004119257 9011910278 9161161028
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15600-41010

3B..BB20,21,26,3#

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-56040

3B..BB2#,3#

 1
15609-56070

3B..BB21,26,31

 1
15691 - GASKET, OIL FILTER
15691-56030

3B..BB2#,3#

 1
15691-56040

14B,3B..BB2#,31

 1
Common parts
90041-19257
90119-10278
91611-61028

(8808- )14B,3B

Click highlighted areas on diagram

diagram 15601 15609 15691 9151161035 9151161055 9151161070
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15600-41010

3B..BB20,21,26,3#

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-56040

3B..BB2#,3#

 1
15609-56070

3B..BB21,26,31

 1
15691 - GASKET, OIL FILTER
15691-56030

3B..BB2#,3#

 1
15691-56040

14B,3B..BB2#,31

 1
Common parts
91511-61035
91511-61055
91511-61070
