BB21-MDZ (1983)
Toyota Coaster

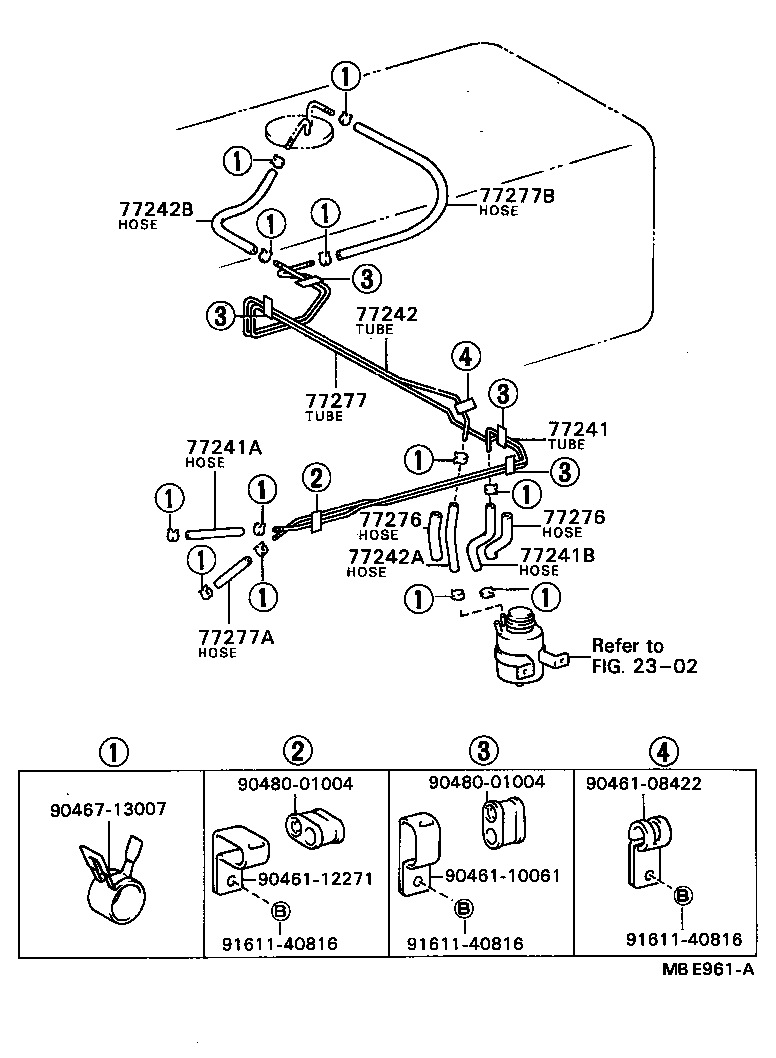

ILLUST NO. 2 OF 2(8302-8808)BB2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36662 |
BB2#,3# |
1 | ||
| 77205-36710 |
HDB20,3# |
1 | ||
| 77205-36610 |
BB2#,31 |
1 | ||
| 77251-36663 |
BB2#,3# |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08030 |
BB2#,3# *H,L=300,内径=7.6 |
1 | ||
| 95333-08030 |
BB21,26,3# *H,L=300 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08020 |
BB2#,3# *H,L=190 |
1 | ||
| 95332-08020 |
BB2#,3# *H,L=190,内径=7.6 |
1 | ||
| 95332-10018 |
BB2#,31..5F *H,L=180 |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-36190 |
BB2#,3# |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-10018 |
BB2#,31..5F *H,L=180 |
1 | ||
| 95332-08020 |
BB2#,3# *H,L=190,内径=7.6 |
1 | ||
| 95333-08020 |
BB2#,3# *H,L=190 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95332-08040 |
BB2#,3# *H,L=360,内径=7.6 |
1 | ||
| 95333-08040 |
BB2#,3# *H,L=360 |
1 | ||
| 95333-10040 |
BB2#,31 *H,L=360 |
1 | ||
| 95332-12028 |
HDB20,3# *H,L=280,内径=12 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 90445-25012 |
BB21,26,3#..10S,26S,29S W/*CH |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 90445-25012 |
BB21,26,3#..10S,26S,29S W/*CH |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-36061 |
BB2#,3# |
1 | ||
| 77255-36060 |
BB2#,3# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-17030 |
HDB20,3# |
1 | ||
| 95332-08030 |
BB2#,3# *H,L=240,内径=7.6 |
1 | ||
| 90445-14157 |
BB21,26,3# |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95333-08040 |
BB2#,3#,HB31 *H,L=360 |
1 | ||
| 95332-08040 |
BB2#,3#,HB31 *H,L=360,内径=7.6 |
1 | ||
| 95333-06040 |
BB2#,31 *H,L=400,*H,L=360 |
1 | ||
| 95333-06030 |
HDB20,3#,HZB3# *H,L=280 |
1 | ||
| Common parts | ||||
| 90461-08422 | ||||
| 90461-10061 | ||||
| 90461-12271 | ||||
| 90467-13007 | ||||
| 90480-01004 | ||||
| 91611-40816 | ||||
| Linked diagrams | ||||
| 2302 | ||||

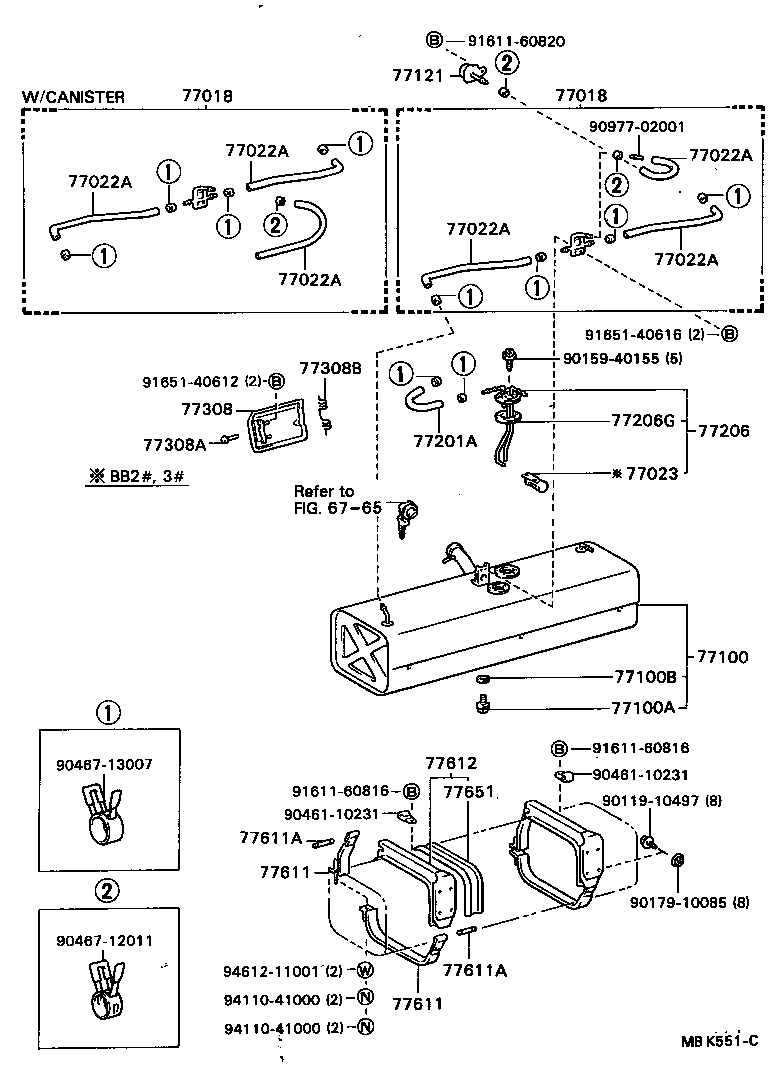

ILLUST NO. 1 OF 2(8302-8510)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36240 |
BB2#,31,HB3#,HDB20,3#,HZB3# |
1 | ||
| 77018-36110 |
BB2#,3#,HB3# |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36240 |
BB2#,31,HB3#,HDB20,3#,HZB3# |
1 | ||
| 77018-36110 |
BB2#,3#,HB3# |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08060 |
BB2#,3#,HB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 95332-06030 |
BB2#,3#,HB3# *H,L=260 |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3#,HDB3#,HZB3# *H,L=220,W/SUB TANK |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3# *H,L=260 |
1 | ||
| 95333-08060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08060 |
BB2#,3#,HB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 95332-06030 |
BB2#,3#,HB3# *H,L=260 |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3#,HDB3#,HZB3# *H,L=220,W/SUB TANK |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3# *H,L=260 |
1 | ||
| 95333-08060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08060 |
BB2#,3#,HB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 95332-06030 |
BB2#,3#,HB3# *H,L=260 |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3#,HDB3#,HZB3# *H,L=220,W/SUB TANK |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3# *H,L=260 |
1 | ||
| 95333-08060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08060 |
BB2#,3#,HB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 95332-06030 |
BB2#,3#,HB3# *H,L=260 |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3#,HDB3#,HZB3# *H,L=220,W/SUB TANK |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3# *H,L=260 |
1 | ||
| 95333-08060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08060 |
BB2#,3#,HB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 95332-06030 |
BB2#,3#,HB3# *H,L=260 |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3#,HDB3#,HZB3# *H,L=220,W/SUB TANK |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3# *H,L=260 |
1 | ||
| 95333-08060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08060 |
BB2#,3#,HB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 95332-06030 |
BB2#,3#,HB3# *H,L=260 |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3#,HDB3#,HZB3# *H,L=220,W/SUB TANK |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3# *H,L=260 |
1 | ||
| 95333-08060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
BB2#,31 |
1 | ||
| 77023-22040 |
BB2#,3# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-36690 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 77001-36918 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20003 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 90341-20004 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 90430-20006 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77243-36010 |
BB20,21,26,3#,HB30,31,36 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95332-08040 |
BB2#,3#,HB3#,RB2# *H,L=320,内径=7.6 |
1 | ||
| 95333-08040 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=320 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-36390 |
HDB20,3# |
1 | ||
| 77203-36902 |
BB2#,3# |
1 | ||
| 77017-36370 |
BB2#,31 |
1 | ||
| 77017-36090 |
BB2#,3# |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2# |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77305-90B00 |
BB2#,3#,HB3#,HDB20,30,HZB3#,RB2# |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05080 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
3 | ||
| 77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER) | ||||
| 90508-23058 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36110 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# LWR |
2 | ||
| 77603-36070 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# UPR |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36110 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# LWR |
2 | ||
| 77603-36070 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# UPR |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-36040 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-36090 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| Common parts | ||||
| 90461-10231 | ||||
| 90977-02001 | ||||
| 91611-40820 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-61025 | ||||
| 93319-14010 | ||||
| 94110-41000 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94612-11001 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 6765 | ||||

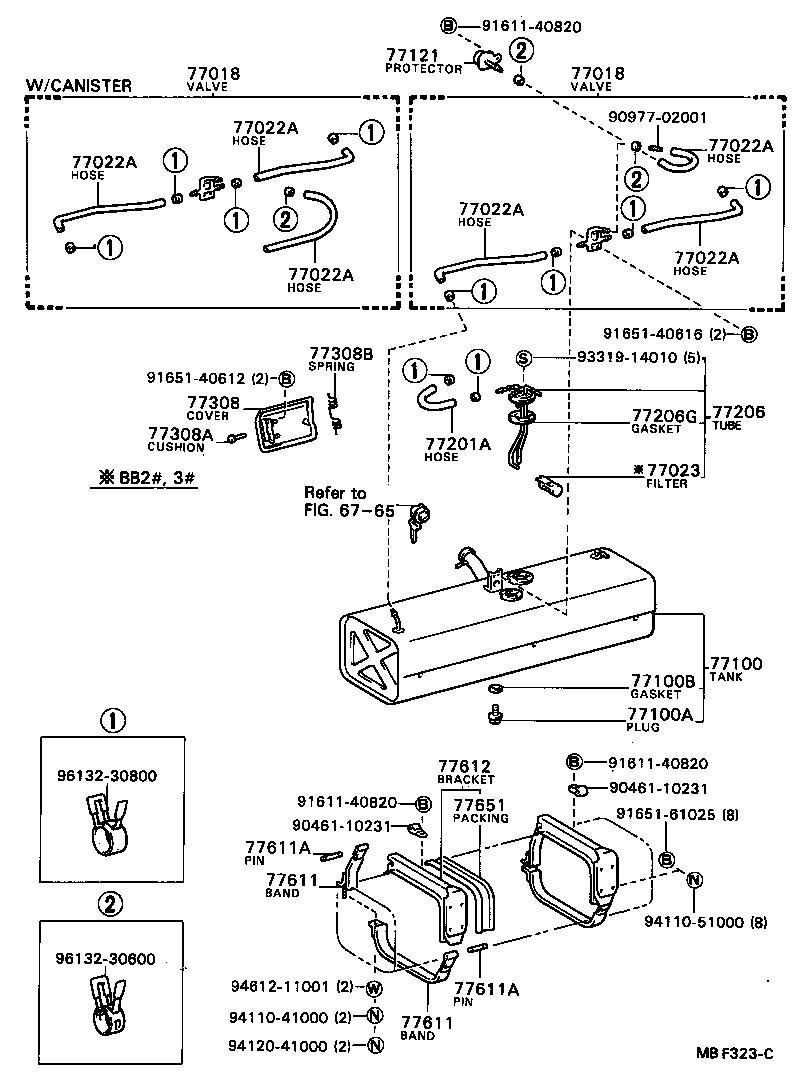

ILLUST NO. 1 OF 2(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36240 |
BB2#,31,HB3#,HDB20,3#,HZB3# |
1 | ||
| 77018-36110 |
BB2#,3#,HB3# |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36240 |
BB2#,31,HB3#,HDB20,3#,HZB3# |
1 | ||
| 77018-36110 |
BB2#,3#,HB3# |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08060 |
BB2#,3#,HB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 95332-06030 |
BB2#,3#,HB3# *H,L=260 |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3#,HDB3#,HZB3# *H,L=220,W/SUB TANK |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3# *H,L=260 |
1 | ||
| 95333-08060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08060 |
BB2#,3#,HB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 95332-06030 |
BB2#,3#,HB3# *H,L=260 |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3#,HDB3#,HZB3# *H,L=220,W/SUB TANK |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3# *H,L=260 |
1 | ||
| 95333-08060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08060 |
BB2#,3#,HB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 95332-06030 |
BB2#,3#,HB3# *H,L=260 |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3#,HDB3#,HZB3# *H,L=220,W/SUB TANK |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3# *H,L=260 |
1 | ||
| 95333-08060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08060 |
BB2#,3#,HB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 95332-06030 |
BB2#,3#,HB3# *H,L=260 |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3#,HDB3#,HZB3# *H,L=220,W/SUB TANK |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3# *H,L=260 |
1 | ||
| 95333-08060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08060 |
BB2#,3#,HB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 95332-06030 |
BB2#,3#,HB3# *H,L=260 |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3#,HDB3#,HZB3# *H,L=220,W/SUB TANK |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3# *H,L=260 |
1 | ||
| 95333-08060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08060 |
BB2#,3#,HB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 95332-06030 |
BB2#,3#,HB3# *H,L=260 |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3#,HDB3#,HZB3# *H,L=220,W/SUB TANK |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3# *H,L=260 |
1 | ||
| 95333-08060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
BB2#,31 |
1 | ||
| 77023-22040 |
BB2#,3# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-36690 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 77001-36918 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20003 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 90341-20004 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 90430-20006 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77243-36010 |
BB20,21,26,3#,HB30,31,36 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95332-08040 |
BB2#,3#,HB3#,RB2# *H,L=320,内径=7.6 |
1 | ||
| 95333-08040 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=320 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-36390 |
HDB20,3# |
1 | ||
| 77203-36902 |
BB2#,3# |
1 | ||
| 77017-36370 |
BB2#,31 |
1 | ||
| 77017-36090 |
BB2#,3# |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2# |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77305-90B00 |
BB2#,3#,HB3#,HDB20,30,HZB3#,RB2# |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05080 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
3 | ||
| 77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER) | ||||
| 90508-23058 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36110 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# LWR |
2 | ||
| 77603-36070 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# UPR |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36110 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# LWR |
2 | ||
| 77603-36070 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# UPR |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-36040 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-36090 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| Common parts | ||||
| 90119-10497 | ||||
| 90159-40155 | ||||
| 90179-10085 | ||||
| 90461-10231 | ||||
| 90467-12011 | ||||
| 90467-13007 | ||||
| 90977-02001 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 94110-41000 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 6765 | ||||

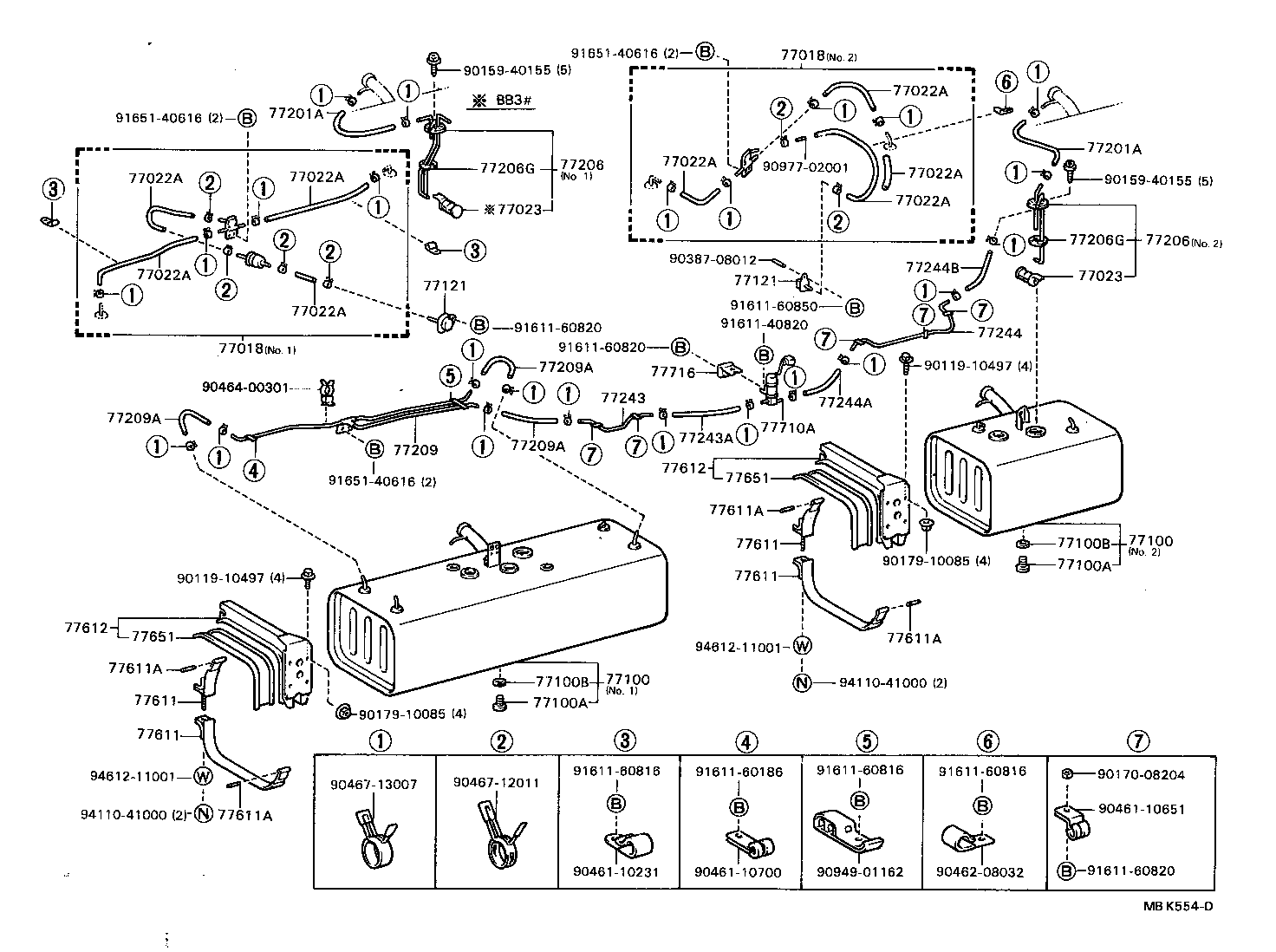

(8510- )BB2#,HB3#,HDB3#,HZB3#..10S,20S,26S,29S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36240 |
BB2#,31,HB3#,HDB20,3#,HZB3# |
1 | ||
| 77018-36110 |
BB2#,3#,HB3# |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36240 |
BB2#,31,HB3#,HDB20,3#,HZB3# |
1 | ||
| 77018-36110 |
BB2#,3#,HB3# |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08060 |
BB2#,3#,HB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 95332-06030 |
BB2#,3#,HB3# *H,L=260 |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3#,HDB3#,HZB3# *H,L=220,W/SUB TANK |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3# *H,L=260 |
1 | ||
| 95333-08060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08060 |
BB2#,3#,HB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 95332-06030 |
BB2#,3#,HB3# *H,L=260 |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3#,HDB3#,HZB3# *H,L=220,W/SUB TANK |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3# *H,L=260 |
1 | ||
| 95333-08060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08060 |
BB2#,3#,HB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 95332-06030 |
BB2#,3#,HB3# *H,L=260 |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3#,HDB3#,HZB3# *H,L=220,W/SUB TANK |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3# *H,L=260 |
1 | ||
| 95333-08060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08060 |
BB2#,3#,HB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 95332-06030 |
BB2#,3#,HB3# *H,L=260 |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3#,HDB3#,HZB3# *H,L=220,W/SUB TANK |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3# *H,L=260 |
1 | ||
| 95333-08060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08060 |
BB2#,3#,HB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 95332-06030 |
BB2#,3#,HB3# *H,L=260 |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3#,HDB3#,HZB3# *H,L=220,W/SUB TANK |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3# *H,L=260 |
1 | ||
| 95333-08060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08060 |
BB2#,3#,HB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 95332-06030 |
BB2#,3#,HB3# *H,L=260 |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3#,HDB3#,HZB3# *H,L=220,W/SUB TANK |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3# *H,L=260 |
1 | ||
| 95333-08060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08060 |
BB2#,3#,HB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 95332-06030 |
BB2#,3#,HB3# *H,L=260 |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3#,HDB3#,HZB3# *H,L=220,W/SUB TANK |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3# *H,L=260 |
1 | ||
| 95333-08060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08060 |
BB2#,3#,HB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 95332-06030 |
BB2#,3#,HB3# *H,L=260 |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3#,HDB3#,HZB3# *H,L=220,W/SUB TANK |
1 | ||
| 95333-06030 |
BB21,26,3#,HB3# *H,L=260 |
1 | ||
| 95333-08060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=460,内径=7.6 |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
BB2#,31 |
1 | ||
| 77023-22040 |
BB2#,3# |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
BB2#,31 |
1 | ||
| 77023-22040 |
BB2#,3# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-36690 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 77001-36918 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-36690 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 77001-36918 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20003 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 90341-20004 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20003 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 90341-20004 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 90430-20006 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 90430-20006 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77243-36010 |
BB20,21,26,3#,HB30,31,36 |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77243-36010 |
BB20,21,26,3#,HB30,31,36 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95332-08040 |
BB2#,3#,HB3#,RB2# *H,L=320,内径=7.6 |
1 | ||
| 95333-08040 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=320 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95332-08040 |
BB2#,3#,HB3#,RB2# *H,L=320,内径=7.6 |
1 | ||
| 95333-08040 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *H,L=320 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-36390 |
HDB20,3# |
1 | ||
| 77203-36902 |
BB2#,3# |
1 | ||
| 77017-36370 |
BB2#,31 |
1 | ||
| 77017-36090 |
BB2#,3# |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-36390 |
HDB20,3# |
1 | ||
| 77203-36902 |
BB2#,3# |
1 | ||
| 77017-36370 |
BB2#,31 |
1 | ||
| 77017-36090 |
BB2#,3# |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2# |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2# |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36110 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# LWR |
2 | ||
| 77603-36070 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# UPR |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36110 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# LWR |
2 | ||
| 77603-36070 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# UPR |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36110 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# LWR |
2 | ||
| 77603-36070 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# UPR |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36110 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# LWR |
2 | ||
| 77603-36070 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# UPR |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-36040 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-36040 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-36090 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-36090 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| Common parts | ||||
| 90119-10497 | ||||
| 90159-40155 | ||||
| 90170-08204 | ||||
| 90179-10085 | ||||
| 90387-08012 | ||||
| 90461-10231 | ||||
| 90461-10651 | ||||
| 90461-10700 | ||||
| 90462-08032 | ||||
| 90464-00301 | ||||
| 90467-12011 | ||||
| 90467-13007 | ||||
| 90949-01162 | ||||
| 90977-02001 | ||||
| 91611-40820 | ||||
| 91611-60186 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60850 | ||||
| 91651-40616 | ||||
| 94110-41000 | ||||
| 94612-11001 | ||||

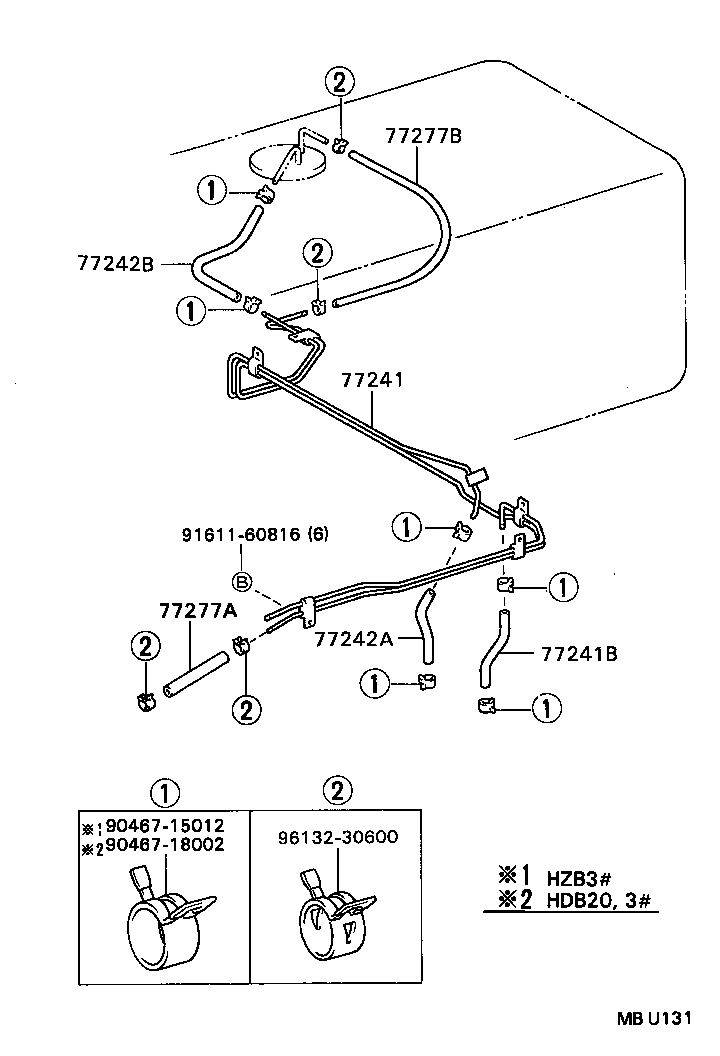

ILLUST NO. 2 OF 2(8808- )BB2#,31
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36662 |
BB2#,3# |
1 | ||
| 77205-36710 |
HDB20,3# |
1 | ||
| 77205-36610 |
BB2#,31 |
1 | ||
| 77251-36663 |
BB2#,3# |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08020 |
BB2#,3# *H,L=190 |
1 | ||
| 95332-08020 |
BB2#,3# *H,L=190,内径=7.6 |
1 | ||
| 95332-10018 |
BB2#,31..5F *H,L=180 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-10018 |
BB2#,31..5F *H,L=180 |
1 | ||
| 95332-08020 |
BB2#,3# *H,L=190,内径=7.6 |
1 | ||
| 95333-08020 |
BB2#,3# *H,L=190 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95332-08040 |
BB2#,3# *H,L=360,内径=7.6 |
1 | ||
| 95333-08040 |
BB2#,3# *H,L=360 |
1 | ||
| 95333-10040 |
BB2#,31 *H,L=360 |
1 | ||
| 95332-12028 |
HDB20,3# *H,L=280,内径=12 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-17030 |
HDB20,3# |
1 | ||
| 95332-08030 |
BB2#,3# *H,L=240,内径=7.6 |
1 | ||
| 90445-14157 |
BB21,26,3# |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95333-08040 |
BB2#,3#,HB31 *H,L=360 |
1 | ||
| 95332-08040 |
BB2#,3#,HB31 *H,L=360,内径=7.6 |
1 | ||
| 95333-06040 |
BB2#,31 *H,L=400,*H,L=360 |
1 | ||
| 95333-06030 |
HDB20,3#,HZB3# *H,L=280 |
1 | ||
| Common parts | ||||
| 90461-10573 | ||||
| 90467-15012 | ||||
| 91611-60816 | ||||
| 96132-41100 | ||||
ILLUST NO. 2 OF 2(9001- )HDB20,3#,HZB3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36662 |
BB2#,3# |
1 | ||
| 77205-36710 |
HDB20,3# |
1 | ||
| 77205-36610 |
BB2#,31 |
1 | ||
| 77251-36663 |
BB2#,3# |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08020 |
BB2#,3# *H,L=190 |
1 | ||
| 95332-08020 |
BB2#,3# *H,L=190,内径=7.6 |
1 | ||
| 95332-10018 |
BB2#,31..5F *H,L=180 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-10018 |
BB2#,31..5F *H,L=180 |
1 | ||
| 95332-08020 |
BB2#,3# *H,L=190,内径=7.6 |
1 | ||
| 95333-08020 |
BB2#,3# *H,L=190 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95332-08040 |
BB2#,3# *H,L=360,内径=7.6 |
1 | ||
| 95333-08040 |
BB2#,3# *H,L=360 |
1 | ||
| 95333-10040 |
BB2#,31 *H,L=360 |
1 | ||
| 95332-12028 |
HDB20,3# *H,L=280,内径=12 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-17030 |
HDB20,3# |
1 | ||
| 95332-08030 |
BB2#,3# *H,L=240,内径=7.6 |
1 | ||
| 90445-14157 |
BB21,26,3# |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95333-08040 |
BB2#,3#,HB31 *H,L=360 |
1 | ||
| 95332-08040 |
BB2#,3#,HB31 *H,L=360,内径=7.6 |
1 | ||
| 95333-06040 |
BB2#,31 *H,L=400,*H,L=360 |
1 | ||
| 95333-06030 |
HDB20,3#,HZB3# *H,L=280 |
1 | ||
| Common parts | ||||
| 90467-15012 | ||||
| 90467-18002 | ||||
| 91611-60816 | ||||
| 96132-30600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
