BB20-MRZY (1982)

Toyota Coaster

Production May 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

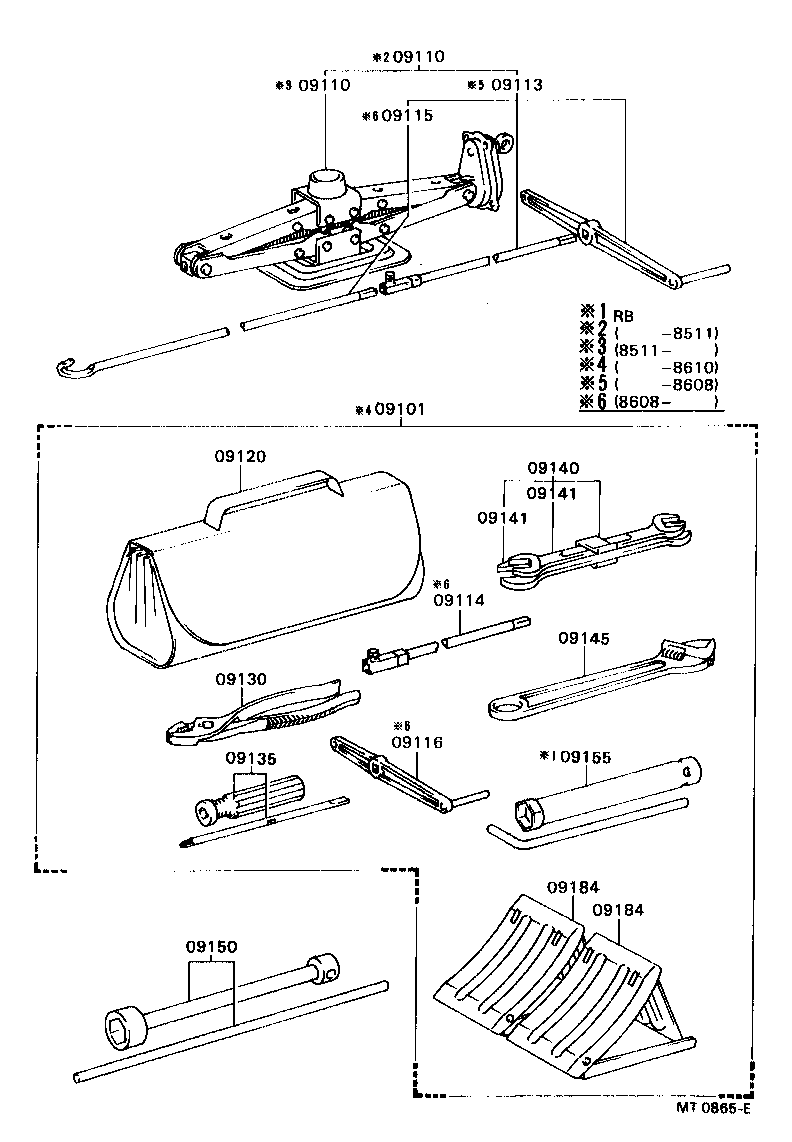

Click highlighted areas on diagram

diagram 09101 09110 09110 09113 09114 09115 09116 09120 09130 09135 09140 09141 09141 09145 09150 09155 09184 09184
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09102-36240

BB2#,3#,HB30

 1
09110 - JACK ASSY
09110-36120

BB2#,3#,HB30,RB20

 1
09110 - JACK ASSY
09110-36120

BB2#,3#,HB30,RB20

 1
09113 - HANDLE, JACK
09113-25040

BB2#,3#,HB30,RB20

 1
09120 - BAG, TOOL
09120-36030

BB2#,3#,HB30,RB20

 1
09130 - PLIERS
99913-11500

BB2#,3#,HB30,RB20

 1
09135 - DRIVER, SCREW
99915-10700

BB2#,3#,HB30,RB20

 1
09140 - SPANNER SET
09140-27010

BB2#,3#,HB30,RB20

 1
09141 - SPANNER
99914-11417

BB2#,3#,HB30,RB20

14 X 17,14X17

 1
99914-11012

BB2#,3#,HB30,RB20

10 X 12,10X12

 1
09141 - SPANNER
99914-11417

BB2#,3#,HB30,RB20

14 X 17,14X17

 1
99914-11012

BB2#,3#,HB30,RB20

10 X 12,10X12

 1
09145 - WRENCH, MONKEY
99911-10200

BB2#,3#,HB30,RB20

 1
09150 - WRENCH, HUB NUT BOX
09150-55020

BB2#,3#,HB30,RB20

 1
09184 - STOPPER, WHEEL
09184-00031

BB2#,3#,HB30,RB20

 2
09184 - STOPPER, WHEEL
09184-00031

BB2#,3#,HB30,RB20

 2
