BB20-MRY2 (1982)

Toyota Coaster

Production May 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

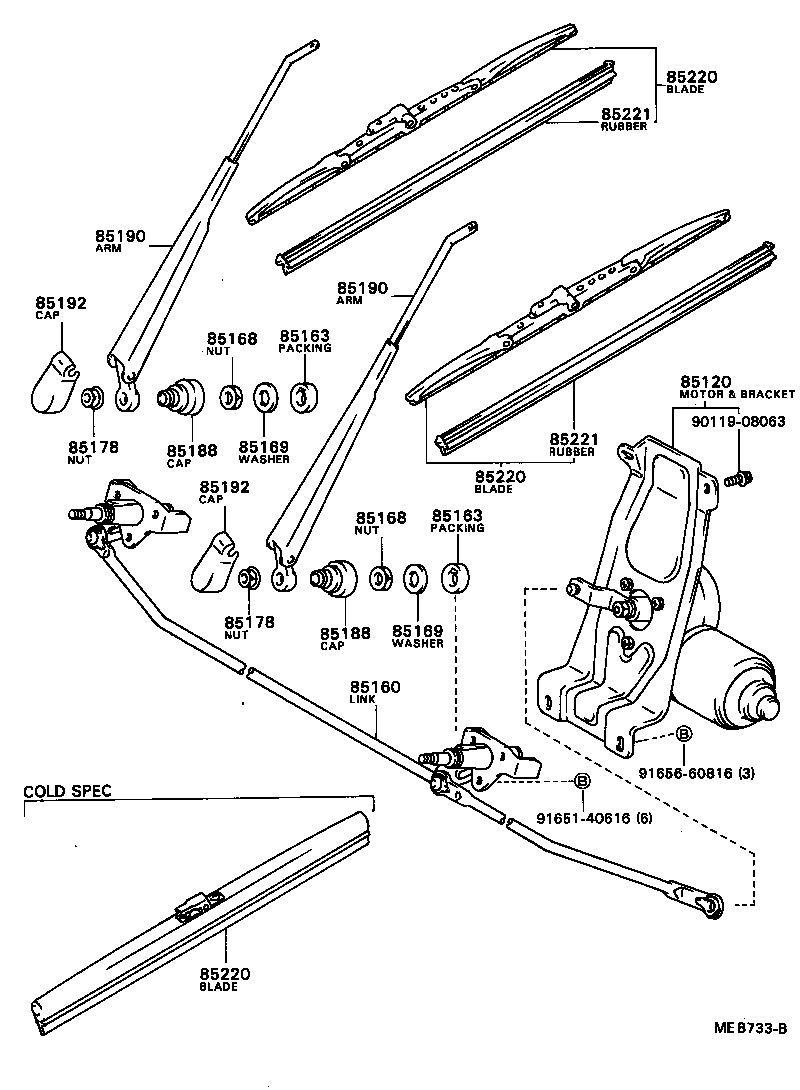

Click highlighted areas on diagram

diagram 85120 85160 85163 85163 85168 85168 85169 85169 85178 85178 85188 85188 85190 85190 85192 85192 85220 85220 85220 85221 85221 9011908063 9165140616 9165660816
Part # Description Qty Price
85120 - MOTOR AND BRACKET ASSY, WINDSHIELD WIPER
85120-90B01

BB2#,3#,HB3#,HDB20,3#,HZB3#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
85163 - PACKING, WINDSHIELD WIPER PIVOT
85174-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
85163 - PACKING, WINDSHIELD WIPER PIVOT
85174-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85186-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85186-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
90209-20001

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
90209-20001

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-10033

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-10033

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85178-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85178-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

RH

 1
85210-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

RH

 1
85210-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

LH

 1
85192 - COVER, WINDSHIELD WIPER ARM
85261-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85261-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
85221 - BLADE, WINDSHIELD WIPER
85221-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
85221 - BLADE, WINDSHIELD WIPER
85221-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
Common parts
90119-08063
91651-40616
91656-60816
