BB20-MRY2 (1982)

Toyota Coaster

Production May 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

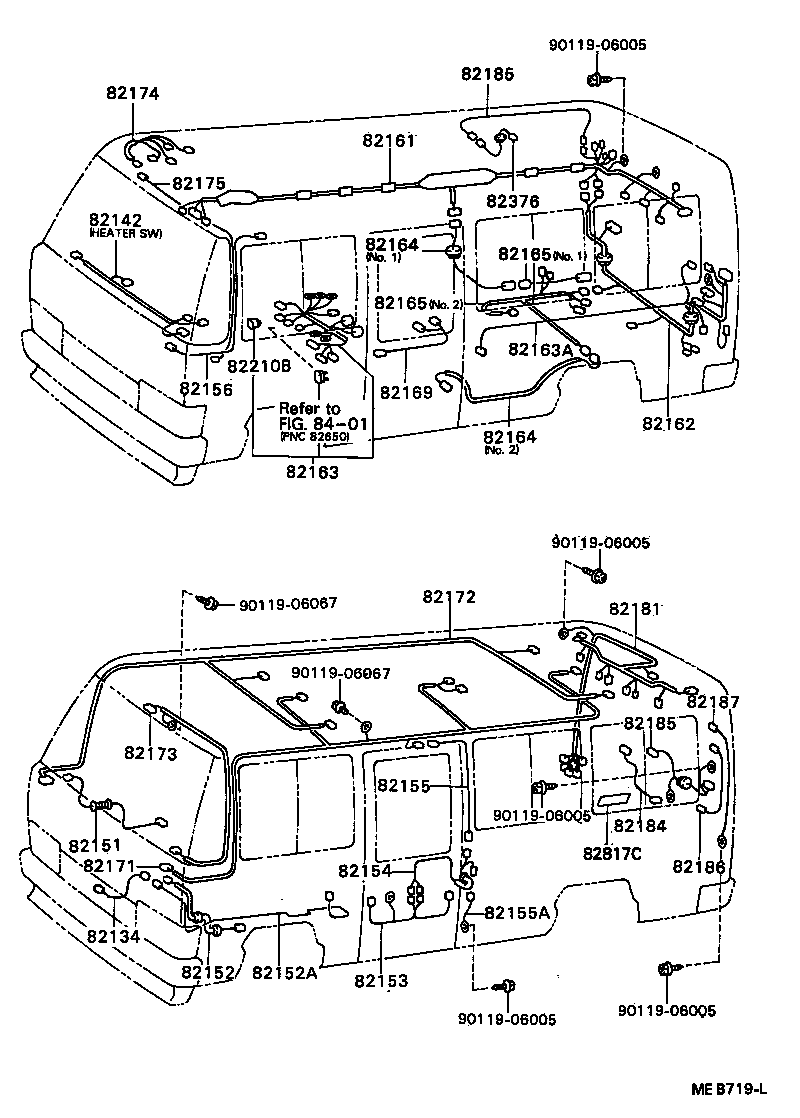

ILLUST NO. 3 OF 6(8205- )

Click highlighted areas on diagram

diagram 82134 82142 82151 82152 82152A 82153 82154 82155 82155A 82156 82161 82162 82163 82163A 82164 82164 82165 82165 82169 82171 82172 82173 82174 82175 82181 82184 82185 82185 82186 82187 82210B 82376 82817C 8401 9011906005 9011906005 9011906005 9011906005 9011906005 9011906067 9011906067
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-90B02

BB2#,RB20..STD

W/*CH

 1
82161-90B03

BB20,21,RB20..STD

 1
82162 - WIRE, FLOOR, NO.2
82162-90B02

BB31..44C;BB31..STD..HRF;BB20,21,30,RB20..STD

 1
82162-90B04

BB2#,3#,RB20..26S,29S

W/*CH OR *RWD

 1
82163 - WIRE, FLOOR, NO.3
82163-90B05

BB2#,3#,HB3#,RB2#..(10S,26S,29S)..WOC

W/*CH

 1
82164 - WIRE, FRAME
82164-90B02

BB20,21,30,31,HB30,31,RB20..(DLX,STD)..(26S,29S)

 1
82164 - WIRE, FRAME
82164-90B02

BB20,21,30,31,HB30,31,RB20..(DLX,STD)..(26S,29S)

 1
82165 - WIRE, FRAME, NO.2
82165-90B00

BB20,21,23,30,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S)

NO.1

 1
82165 - WIRE, FRAME, NO.2
82165-90B00

BB20,21,23,30,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S)

NO.1

 1
82171 - WIRE, ROOF, NO.1
82171-90B04

BB20,21,RB20..SRF..26S

 1
82172 - WIRE, ROOF, NO.2
82172-90B00

BB20,21,RB20..SRF

 1
82173 - WIRE, ROOF, NO.3
82173-90B00

BB20,21,26,3#,HB30,31,36,HDB20,3#,HZB3#,RB2#

 1
82184 - WIRE, BACK DOOR, NO.1
82184-90B00

BB20,21,30,31,HB30,31,HDB3#,HZB30,31,RB20..20S,26S,29S

 1
82187 - WIRE, REAR WINDOW, NO.2
82187-90B00

HDB20,3#,HZB30,31

 1
Common parts
90119-06005
90119-06067
Linked diagrams
8401

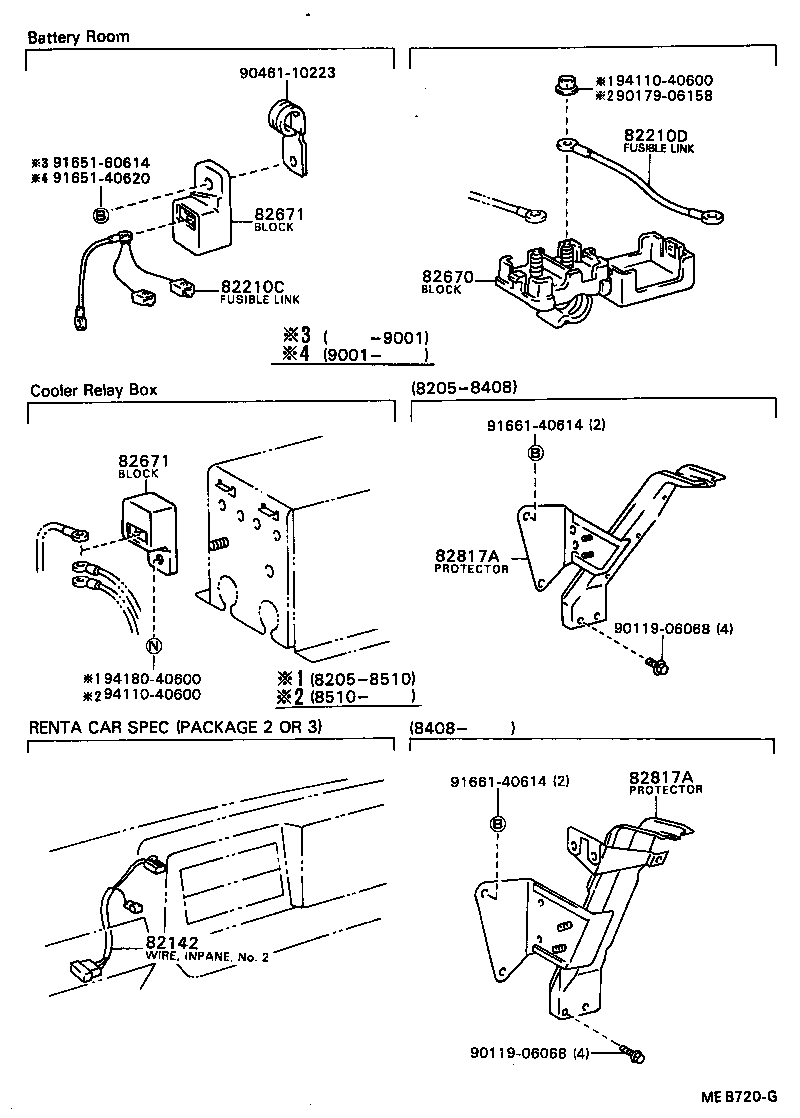

ILLUST NO. 4 OF 6(8205- )

Click highlighted areas on diagram

diagram 82142 82210C 82210D 82670 82671 82671 82817A 82817A 9011906068 9011906068 9017906158 9046110223 9165140620 9165160614 9166140614 9166140614 9411040600 9411040600 9418040600
Part # Description Qty Price
82210C - FUSIBLE LINK
90982-08164

BB2#,3#,HB3#..WOC

 1
82210D - FUSIBLE LINK
90982-08184

BB2#,3#,HB3#

L=100

 1
82670 - BLOCK ASSY, JUNCTION, NO.1
82670-12010

BB2#,3#,HB3#

 1
82671 - BLOCK, JUNCTION
82671-90B00

BB2#,3#,HB3#,RB2#

BATTERY ROOM

 1
82671 - BLOCK, JUNCTION
82671-90B00

BB2#,3#,HB3#,RB2#

BATTERY ROOM

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82807-90B00

BB2#,3#,HB30,RB20

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82807-90B00

BB2#,3#,HB30,RB20

 1
Common parts
90119-06068
90179-06158
90461-10223
91651-40620
91651-60614
91661-40614
94110-40600
94180-40600

ILLUST NO. 6 OF 6(8205- )

Click highlighted areas on diagram

diagram 8271112200 8271114080 8271122270 8271130170 8271190B00 8271190B01 8271190B02 8281990305 8281990A02 8281990B00 8281990B01 8281990B02 9018904024 9046108109 9046108232 9046108385 9046108972 9046110223 9046110274 9046110275 9046110306 9046110490 9046304079 9046308027 9046308375
Part # Description Qty Price
Common parts
82711-12200
82711-14080
82711-22270
82711-30170
82711-90B00
82711-90B01
82711-90B02
82819-90305
82819-90A02
82819-90B00
82819-90B01
82819-90B02
90189-04024
90461-08109
90461-08232
90461-08385
90461-08972
90461-10223
90461-10274
90461-10275
90461-10306
90461-10490
90463-04079
90463-08027
90463-08375

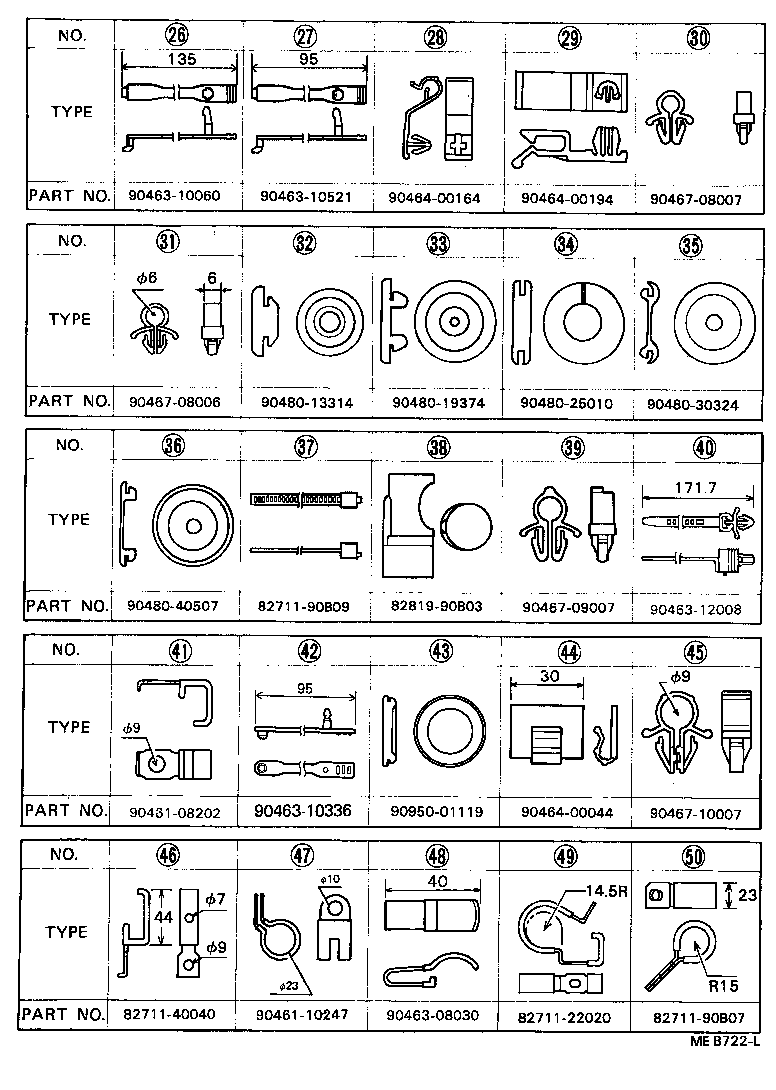

ILLUST NO. 6 OF 6(8205- )

Click highlighted areas on diagram

diagram 8271122020 8271140040 8271190B07 8271190B09 8281990B03 9046108202 9046110247 9046308030 9046310060 9046310336 9046310521 9046312008 9046400044 9046400164 9046400194 9046708006 9046708007 9046709007 9046710007 9048013314 9048019374 9048025010 9048030324 9048040507 9095001119
Part # Description Qty Price
Common parts
82711-22020
82711-40040
82711-90B07
82711-90B09
82819-90B03
90461-08202
90461-10247
90463-08030
90463-10060
90463-10336
90463-10521
90463-12008
90464-00044
90464-00164
90464-00194
90467-08006
90467-08007
90467-09007
90467-10007
90480-13314
90480-19374
90480-25010
90480-30324
90480-40507
90950-01119

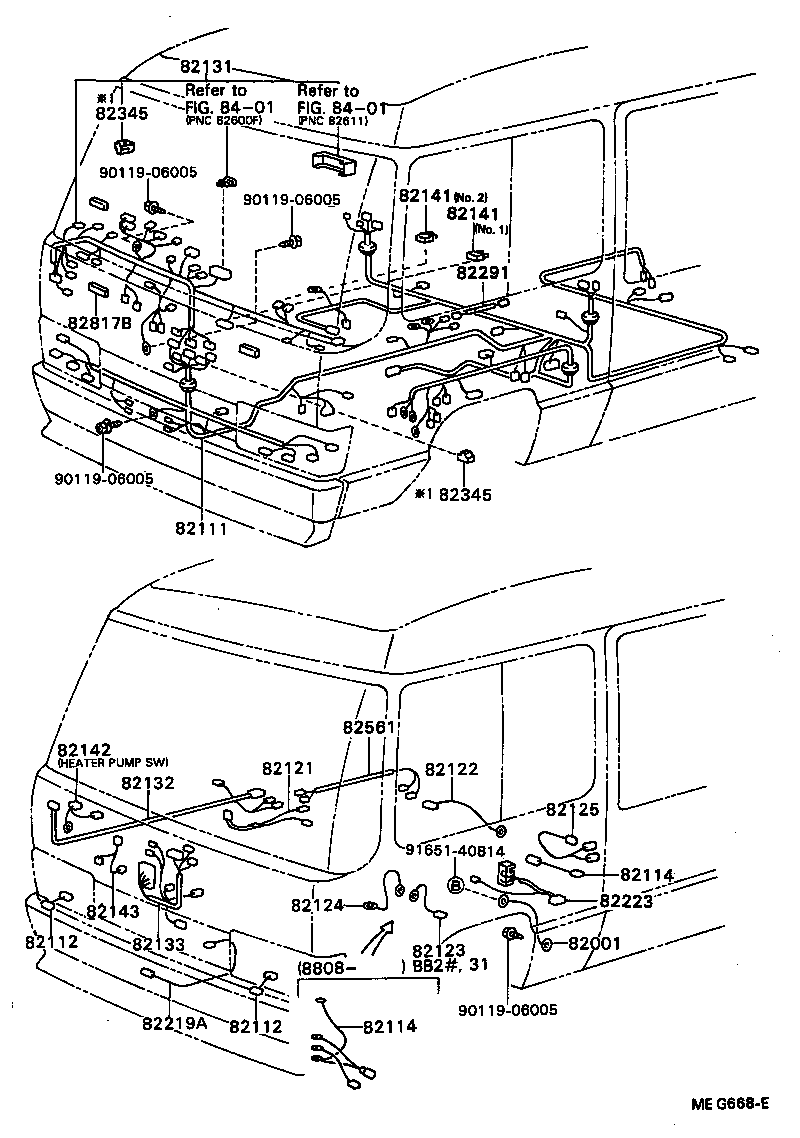

ILLUST NO. 1 OF 6(8205- )

Click highlighted areas on diagram

diagram 82001 82111 82112 82112 82114 82114 82121 82122 82123 82124 82125 82131 82132 82133 82141 82141 82142 82143 82219A 82223 82291 82345 82345 82561 82817B 8401 8401 9011906005 9011906005 9011906005 9011906005 9165140814
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-90B00

BB20,30..STD..(26S,29S)

COLD SPEC

 1
82111-90B31

BB20,30..(26S,29S)..WOC

W/*CH

 1
82111-90B29

BB20,30..STD..WOC

 1
82112 - WIRE, ENGINE ROOM, NO.2
82112-90B00

BB20,21,30,31,RB20..STD

 2
82112 - WIRE, ENGINE ROOM, NO.2
82112-90B00

BB20,21,30,31,RB20..STD

 2
82114 - WIRE, ENGINE ROOM, NO.4
82114-90B04

BB2#,3#,HB30,RB20

 1
82114 - WIRE, ENGINE ROOM, NO.4
82114-90B04

BB2#,3#,HB30,RB20

 1
82122 - WIRE, ENGINE, NO.2
82122-90B00

BB2#,3#,HB3#

 1
82131 - WIRE, COWL
82131-90B00

BB2#,3#..STD..(26S,29S)

W/CLOCK & *EB

 1
82131-90B02

BB2#,3#,HB30..(26S,29S)..WOC

W/*CH

 1
82131-90B07

BB2#,3#..STD..(26S,29S)

 1
82132 - WIRE, COWL, NO.2
82132-90B04

BB20,21,30,31..STD

 1
82133 - WIRE, COWL, NO.3
82133-90B01

BB2#,3#,HB30,RB20..DLX,STD

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-95600

BB2#,3#,HB3#,RB2#

 3
Common parts
90119-06005
91651-40814
Linked diagrams
8401

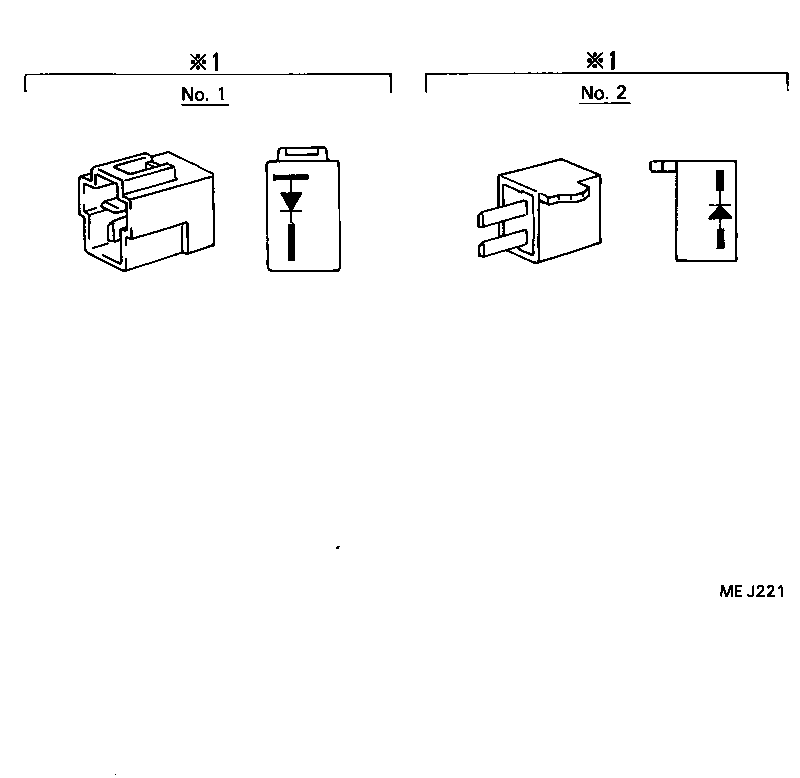

ILLUST NO. 2 OF 6(8205- )

Click highlighted areas on diagram

diagram 12345
Part # Description Qty Price

ILLUST NO. 6 OF 6(8205- )

Click highlighted areas on diagram

diagram 6477790A00 8271112120 8271116460 8271130660 8271140020 8271190B07 8271190B11 8271190B12 8271190B13 8271190B17 8271190B18 8271190B19 8271190B20 8271195410 8281790B08 8281795600 9046106006 9046108265 9046308121 9046400199 9046400209 9046710007 9095001066
Part # Description Qty Price
Common parts
64777-90A00
82711-12120
82711-16460
82711-30660
82711-40020
82711-90B07
82711-90B11
82711-90B12
82711-90B13
82711-90B17
82711-90B18
82711-90B19
82711-90B20
82711-95410
82817-90B08
82817-95600
90461-06006
90461-08265
90463-08121
90464-00199
90464-00209
90467-10007
90950-01066
