BB20-MRY2 (1982)

Toyota Coaster

Production May 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

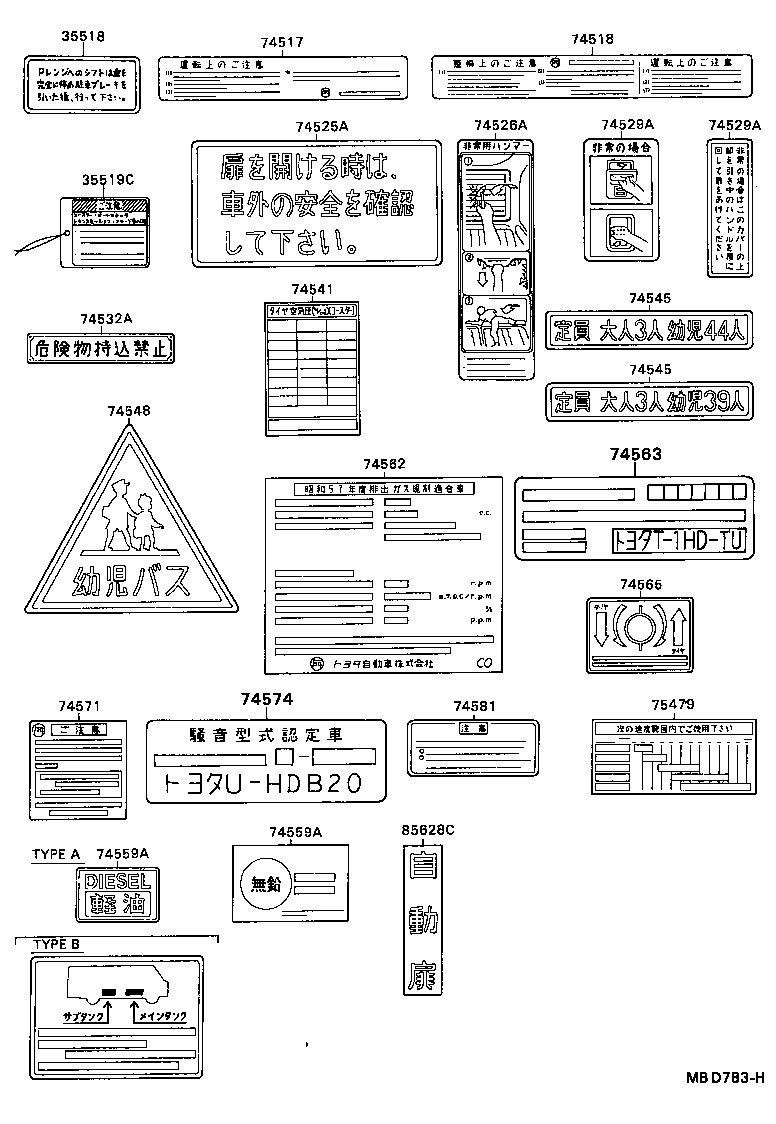

Click highlighted areas on diagram

diagram 35518 35519C 74517 74518 74525A 74526A 74529A 74529A 74532A 74541 74545 74545 74548 74559A 74559A 74562 74563 74565 74571 74574 74581 75479 85628C
Part # Description Qty Price
74518 - PLATE, MAINTENANCE CAUTION
74518-22021

BB2#,3#,HB30,RB20..DLX,STD

 1
74541 - PLATE, TIRE PRESSURE CAUTION
74552-36700

BB2#,3#,RB20..26S,29S,39C

 1
74559A - PLATE, FUEL CAUTION
74559-14030

BB2#,3#,HB3#,HDB20,3#,HZB3#

 1
74559A - PLATE, FUEL CAUTION
74559-14030

BB2#,3#,HB3#,HDB20,3#,HZB3#

 1
74562 - PLATE, EMISSION CONTROL SYSTEM INFORMATION
74562-36100

BB20,30

 1
74565 - PLATE, TIRE CARRIER CAUTION
74544-36010

BB2#,3#,HB3#,RB2#

 1
74571 - PLATE, BRAKE FLUID CAUTION
74571-27011

BB2#,3#,HB30,RB20

 1
74581 - PLATE, POWER STEERING CAUTION
74581-37010

BB2#,3#,HB3#,RB2#

 1
75479 - PLATE, OVER RUN, CAUTION
74584-90B01

BB20,21,30,31,HB30..DLX,STD

 1
